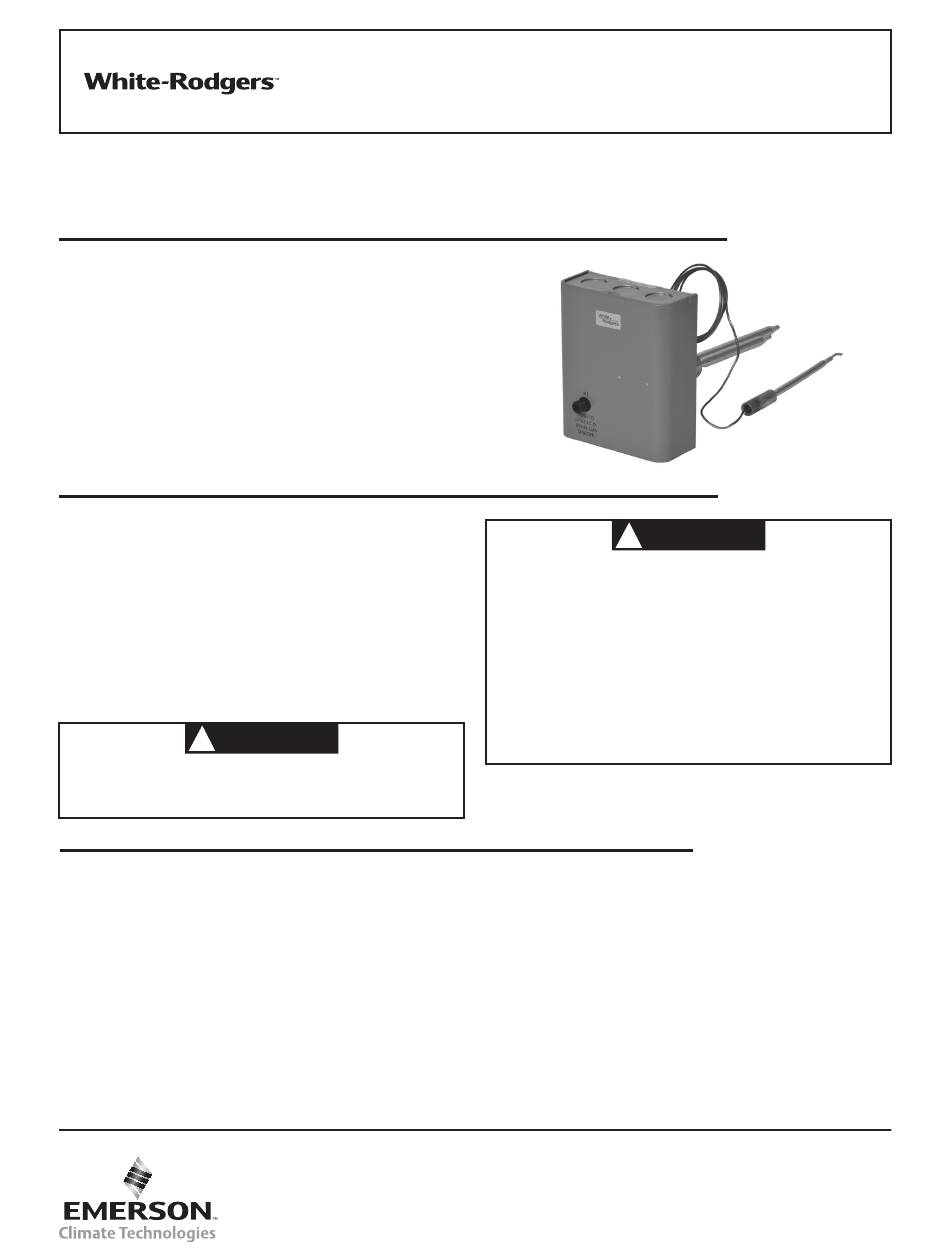

Emerson White-Rodgers 11B79-3 Installation Instructions

FAILURE TO READ AND FOLLOW ALL INSTRUCTIONS CAREFULLY BEFORE
INSTALLING OR OPERATING THIS CONTROL COULD CAUSE PERSONAL
INJURY AND/OR PROPERTY DAMAGE.

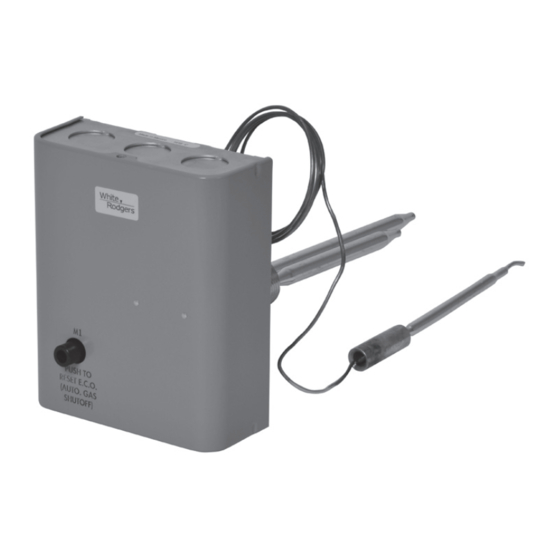

The 11B79-3 combination control is a Hot Water Control
utilizing a thermostat and an E.C.O. (Energy Cut-Off)
device. The thermostat consists of a remote sensor and an
integral sensor. It is a temperature regulating device for use
in applications not exceeding 180°F (82°C). This model is
designed for use as direct immersion. No immersion well is
required.
The E.C.O. is a non-cycling manual reset device designed
to limit the system temperature to 205°F. It is mounted in an
integral well built into the immersion fitting.
If in doubt about whether your wiring is millivolt, line or low voltage,
have it inspected by a qualified heating and air conditioning
contractor, electrician, or someone familiar with basic electricity
and wiring.
Do not exceed the specification ratings.
All wiring must conform to local and national electrical codes
and ordinances.
This control is a precision instrument, and should be handled
carefully. Rough handling or distorting components could cause
the control to malfunction.
CAUTION
!
Do not short on circuits exceeding specified voltage.
Higher voltage will damage control and could cause
shock or fire hazard.
THERMOSTAT
Electrical Rating:
24 VAC - 0.75 Amp
0.25 to 1.0 VDC - 0.25 Amp
10 F.L.A., 60 L.R.A., 120 VAC
Switch Action: Open-on-Rise
Range: Adjustable from 120° to 180°F (50° to 82°C)
Differential: Fixed, 4°F (2.2°C)
ENERGY CUT-OFF (E.C.O.)
Electrical Rating:
24 VAC - 0.75 Amp
0.25 to 1.0 VDC - 0.25 Amp, 120 VAC
INSTALLATION INSTRUCTIONS
To prevent electrical shock and/or equipment damage,
disconnect electric power to system at main fuse or
circuit breaker box until installation is complete.
Shut off main gas to heating system until installation
is completed.
Label all wires prior to disconnection when servicing
controls. Wiring errors can cause improper and
dangerous operation.
Following installation or replacement, follow appliance
manufacturer's recommended installation and/or
service instructions to insure proper operation.
Switch Action: Open-on-Rise at 205°F (96°C)
Differential:
Non-cyling
Manual reset
ELEMENTS:
Case Element:
3/4 NPT
2-3/4" shank, 4-5/8" beyond thread
Remote Element:
3/4 NPT
Compression fitting on 1-1/2" stud
5-1/4" beyond stud
www.white-rodgers.com
www.emersonclimate.com
11B79-3
Combination Control
with E.C.O. Protection
DESCRIPTION
PRECAUTIONS
CAUTION
!
SPECIFICATIONS
PART NO. 37-7543A
1422
