DV420/DV460/DV550
User Manual (English)

Advertisement

Table of Contents
loading

Related Manuals for Acer DV420

Summary of Contents for Acer DV420

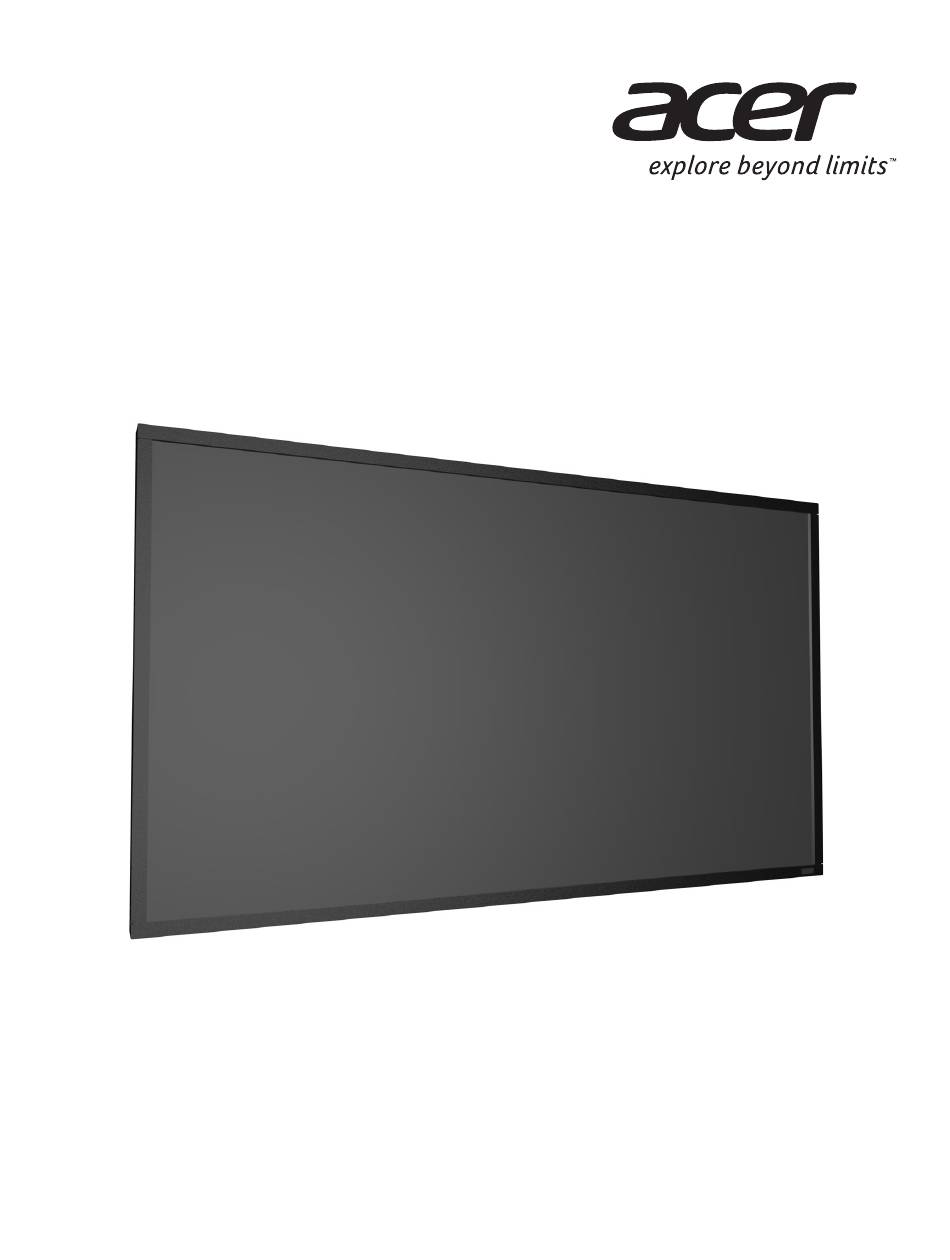

  • Page 1 DV420/DV460/DV550 User Manual (English)
  • Page 2 DV420 /DV460 /DV550 Safety Instructions Warnings and Precautions KNOW THESE SAFETY SYMBOLS CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol indicates high voltage is present inside. It is dangerous to make any kind of contact with any inside part of this product.
  • Page 3 DV420 /DV460 /DV550 Regulatory Information CE Declaration of Conformity We declare under our responsibility that the product is in conformity with the following standards: • EN60950-1:2006+A11:2009+A1:2010+A12:2011+A2:2013 (Safety requirement of Information Technology Equipment) • EN55022:2006+A1:2007 (Radio Disturbance requirement of Information Technology Equipment) •...
  • Page 4 DV420 /DV460 /DV550 Electric, Magnetic and Electronmagnetic Fields (“EMF”) 1. We manufacture and sell many products targeted at consumers, which, like any electronic apparatus, in general have the ability to emit and receive electromagnetic signals. 2. One of our leading Business Principles is to take all necessary health and safety measures for our products, to comply with all applicable legal requirements and to stay well within the EMF standards applicable at the time of producing the products.
  • Page 5 DV420 /DV460 /DV550 North Europe (Nordic Countries) Information Placering/Ventilation VARNING: FÖRSÄKRA DIG OM ATT HUVUDBRYTARE OCH UTTAG ÄR LÄTÅTKOMLIGA, NÄR DU STÄLLER DIN UTRUSTNING PÅPLATS. Placering/Ventilation ADVARSEL: SØRG VED PLACERINGEN FOR, AT NETLEDNINGENS STIK OG STIKKONTAKT ER NEMT TILGÆNGELIGE. Paikka/Ilmankierto VAROITUS: SIJOITA LAITE SITEN, ETTÄ...
  • Page 6 DV420 /DV460 /DV550 Restriction on Hazardous Substances statement (India) This product complies with the “India E-waste Rule 2011” and prohibits use of lead, mercury, hexavalent chromium, polybrominated biphenyls or polybrominated diphenyl ethers in concentrations exceeding 0.1 weight % and 0.01 weight % for cadmium, except for the exemptions set in Schedule 2 of the Rule.

  • Page 7: Table Of Contents

    Connecting External Equipment .... 8 6.2. Troubleshooting ....... 23 3.1. Using the Switch Cover ..... 8 7. Technical Specifications ....... 24 3.2. Connecting External Equipment (DVD/ 7.1. DV420 ..........24 VCR/VCD) ......... 9 7.2. DV460 ..........26 3.2.1. Using COMPONENT video 7.3. DV550 ..........28 input ........

  • Page 8: Unpacking And Installation

    DV420 /DV460 /DV550 Unpacking and Installation 1.1. Unpacking • This product is packed in a carton, together with the standard accessories. • Any other optional accessories will be packed separately. • Due to the size and weight of this display it is recommended for two people to move it.

  • Page 9: Installing And Removing Table Stands (Optional)

    DV420 /DV460 /DV550 1.4. Installing and Removing Table Stands (optional) To install table stands: 1. Ensure your display is powered off. 2. Spread a protective sheet on a flat surface. 3. Grab the carrying handles and place the display face-down on the protective sheet.

  • Page 10: Mounting On A Wall

    DV420 /DV460 /DV550 1.5. Mounting on a Wall To mount this display to a wall, you will have to obtain a standard wall-mounting kit (commercially available). We recommend using a mounting interface that complies with TUV-GS and/or UL1678 standard in North America.

  • Page 11: Parts And Functions

    DV420 /DV460 /DV550 Parts and Functions 2.1. Control Panel MUTE INPUT MENU functions. To enable or disable the keyboard control POWER button lock, press both [ ] and [ ] buttons and hold down Use this button to turn the display on or put the display to continuously for more than 3 (three) seconds.

  • Page 12: Input/Output Terminals

    DV420 /DV460 /DV550 2.2. Input/Output Terminals 9 10 12 13 AC IN VGA IN (D-Sub) AC power input from the wall outlet. VGA video input. MAIN POWER SWITCH VGA AUDIO IN Switch the main power on/off. Audio input for VGA source (3.5mm stereo phone).

  • Page 13: Remote Control

    DV420 /DV460 /DV550 2.3. Remote Control [DISPLAY] button Press to turn on/off the information OSD displayed on the upper right corner of the screen. 2.3.1. General functions [ ] button • Press to move the selection left in OSD menu.

  • Page 14: Inserting The Batteries In The Remote Control

    DV420 /DV460 /DV550 2.3.2. Inserting the batteries in the remote 2.3.4. Operating range of the remote control control Point the top of the remote control toward the display’s remote control sensor when pressing a button. The remote control is powered by two 1.5V AAA batteries.

  • Page 15: Connecting External Equipment

    DV420 /DV460 /DV550 Connecting External Equipment 3.1. Using the Switch Cover A cover for the power switch is provided to prevent the display from being turned on or off accidentally. To lock the cover into position: 1. Align and insert the cover to the indentation located beside the power switch.

  • Page 16: Connecting External Equipment (Dvd/Vcr/Vcd)

    DV420 /DV460 /DV550 3.2. Connecting External Equipment (DVD/VCR/VCD) 3.2.1. Using COMPONENT video input Audio Out COMPONENT Out (YPbPr) DVD / VCR / VCD [AUDIO IN] [COMPONENT IN] (YPbPr) 3.2.2. Using HDMI video input DVD / VCR / VCD HDMI Out...

  • Page 17: Connecting A Pc

    DV420 /DV460 /DV550 3.3. Connecting a PC 3.3.1. Using VGA input VGA Out D-Sub 15 pin Audio Out [AUDIO IN] [VGA IN] [VGA AUDIO IN] 3.3.2. Using DVI input DVI Out Audio Out [AUDIO IN] [DVI IN] [VGA AUDIO IN] 3.3.3.

  • Page 18: Connecting Audio Equipment

    DV420 /DV460 /DV550 3.4. Connecting Audio Equipment 3.4.1. Connecting external speakers External speakers 3.4.2. Connecting an external audio device Audio In Stereo Amplifier [AUDIO OUT]...

  • Page 19: Connecting Multiple Displays In A Daisy-Chain Configuration

    DV420 /DV460 /DV550 3.5. Connecting Multiple Displays in a Daisy-chain Configuration You can interconnect multiple displays to create a daisy-chain configuration for applications such as a video wall. NOTE: Maximum 150 displays (15x10) can be used in a daisy-chain configuration.

  • Page 20: Osd Menu

    DV420 /DV460 /DV550 OSD Menu 4.2. OSD Menu Overview An overall view of the On-Screen Display (OSD) structure is 4.2.1. PICTURE menu shown below. You can use it as a reference for further adjusting your display. 4.1. Navigating the OSD Menu...

  • Page 21: Screen Menu

    DV420 /DV460 /DV550 GAMMA SELECTION V POSITION Gamma is what controls the overall brightness of an image. Press the [ ] button to move the image up, or [ ] to move the Images which are not corrected properly can appear too white image down.

  • Page 22: Audio Menu

    DV420 /DV460 /DV550 4.2.3. AUDIO menu PIP H POSITION Adjust the horizontal placement of the sub picture. PIP V POSITION AUDIO Adjust the vertical placement of the sub picture. BALANCE TREBLE SUB INPUT BASS AUDIO RESET Select the input signal for the sub-picture.

  • Page 23: Configuration1 Menu

    DV420 /DV460 /DV550 4.2.5. CONFIGURATION1 menu SCHEDULE TODAY 2011 . 08 . 04 20 : 19 : 55 CONFIGURATION1 OFF TIMER INPUT SCHEDULE DATE AND TIME ＿ : ＿ ＿ : ＿ ＿ CONFIGURATION1 RESET EVERY DAY EVERY WEEK +-:SEL...

  • Page 24: Configuration2 Menu

    DV420 /DV460 /DV550 2. Press [ ] or [ ] button to toggle among the {YEAR}, • {NORMAL} - All displays can be operated normally by the {MONTH}, {DAY}, {HOUR}, {MINUTE}, and {DAYLIGHT remote control. SAVING TIME} settings. • {LOCK} - Lock the remote control function of this display. To 3.

  • Page 25: Configuration3 Menu

    DV420 /DV460 /DV550 4.2.7. CONFIGURATION3 menu • POSITION - Select the position of this display in the screen matrix. • FRAME COMP. - Choose to turn the frame compensation function on or off. If turned on, the display will adjust the...

  • Page 26: Advanced Option Menu

    DV420 /DV460 /DV550 TERMINAL SETTING SCREEN SAVER Select the mode to display the HDMI or DVI signal according to COOLING FAN AUTO their signal format depending on their source device. BRIGHTNESS • {DVI MODE}: Used for DVI-D signal. • Select {DVI-PC} when the source device is a PC.
  • Page 27 DV420 /DV460 /DV550 FACTORY RESET {ON} - Power & function recover when either H & V syncs or digital clock ard detected. {OFF} - It msut be used power key by remote control or Keypad. There is no Wake On LAN.Power on by remote control (power key), or keypad(power key) or RS232(DSUB 9pin),can’t support...

  • Page 28: Input Mode

    DV420 /DV460 /DV550 Input Mode VGA Resolution: Active Resolution Standard Refresh Rate Pixel Rate Aspect Ratio Stand for Mode Resolution H Pixels V Lines 60 Hz 25.175 MHz 72 Hz 31.5 MHz Video Graphic Array 75 Hz 31.5 MHz WVGA 70 Hz 33.75 MHz...

  • Page 29: Cleaning And Troubleshooting

    DV420 /DV460 /DV550 Cleaning and Troubleshooting 6.1. Cleaning Caution When Using the Display • Do not bring your hands, face or objects close to the ventilation holes of the display. The top of the display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes.

  • Page 30: Troubleshooting

    DV420 /DV460 /DV550 6.2. Troubleshooting Symptom Possible Cause Remedy No picture is displayed 1. The power cord is disconnected. 1. Plug in the power cord. 2. The main power switch on the back of 2. Make sure the power switch is switched the display is not switched on.

  • Page 31: Technical Specifications

    DV420 /DV460 /DV550 Technical Specifications 7.1. DV420 Display: Item Specifications Screen Size (Active Area) 42” LCD Aspect Ratio 16:9 Number of pixels 1920 (H) x 1080 (V) Pixel pitch 0.4845 (H) x 0.4845 (V) [mm] Displayable colors 1.06 Billion colors...
  • Page 32 DV420 /DV460 /DV550 Weight (With Stand) 20.6 Kg Weight (Without Stand) 18.3 Kg Gross Weight (Without Stand) 24.1 Kg Environmental Condition: Item Specifications Temperature Operational 5 ~ 40°C (Landscape), 5 ~ 35°C(Portrait) Storage -20 ~ 60°C Humidity Operational 20 ~ 80% RH (No condensation)

  • Page 33: Dv460

    DV420 /DV460 /DV550 7.2. DV460 Display: Item Specifications Screen Size (Active Area) 46” LCD Aspect Ratio 16:9 Number of pixels 1920 (H) x 1080 (V) Pixel pitch 0.5302 (H) x 0.5302 (V) [mm] Displayable colors 1073.7M colors Brightness (typical) 500 cd/m...
  • Page 34 DV420 /DV460 /DV550 Gross Weight (Without Stand) 28.7 Kg Environmental Condition: Item Specifications Temperature Operational 5 ~ 40°C (Landscape), 5 ~ 35°C(Portrait) Storage -20 ~ 60°C Humidity Operational 20 ~ 80% RH (No condensation) Storage 10 ~ 95% RH (No condensation)

  • Page 35: Dv550

    DV420 /DV460 /DV550 7.3. DV550 Display: Item Specifications Screen Size (Active Area) 55” LCD Aspect Ratio 16:9 Number of pixels 1920 (H) x 1080 (V) Pixel pitch 0.63 (H) x 0.63 (V) [mm] Displayable colors 1.06 Billion colors Brightness (typical)
  • Page 36 DV420 /DV460 /DV550 Gross Weight (Without Stand) 36.75 Kg Environmental Condition: Item Specifications Temperature Operational 5 ~ 40°C Storage -20 ~ 60°C Humidity Operational 20 ~ 80% RH (No condensation) Storage 5 ~ 95% RH (No condensation) Altitude Operational 0 ~ 3,000 m...
  • Page 37 © 2014 All rights reserved. Specifications are subject to change without notice.
