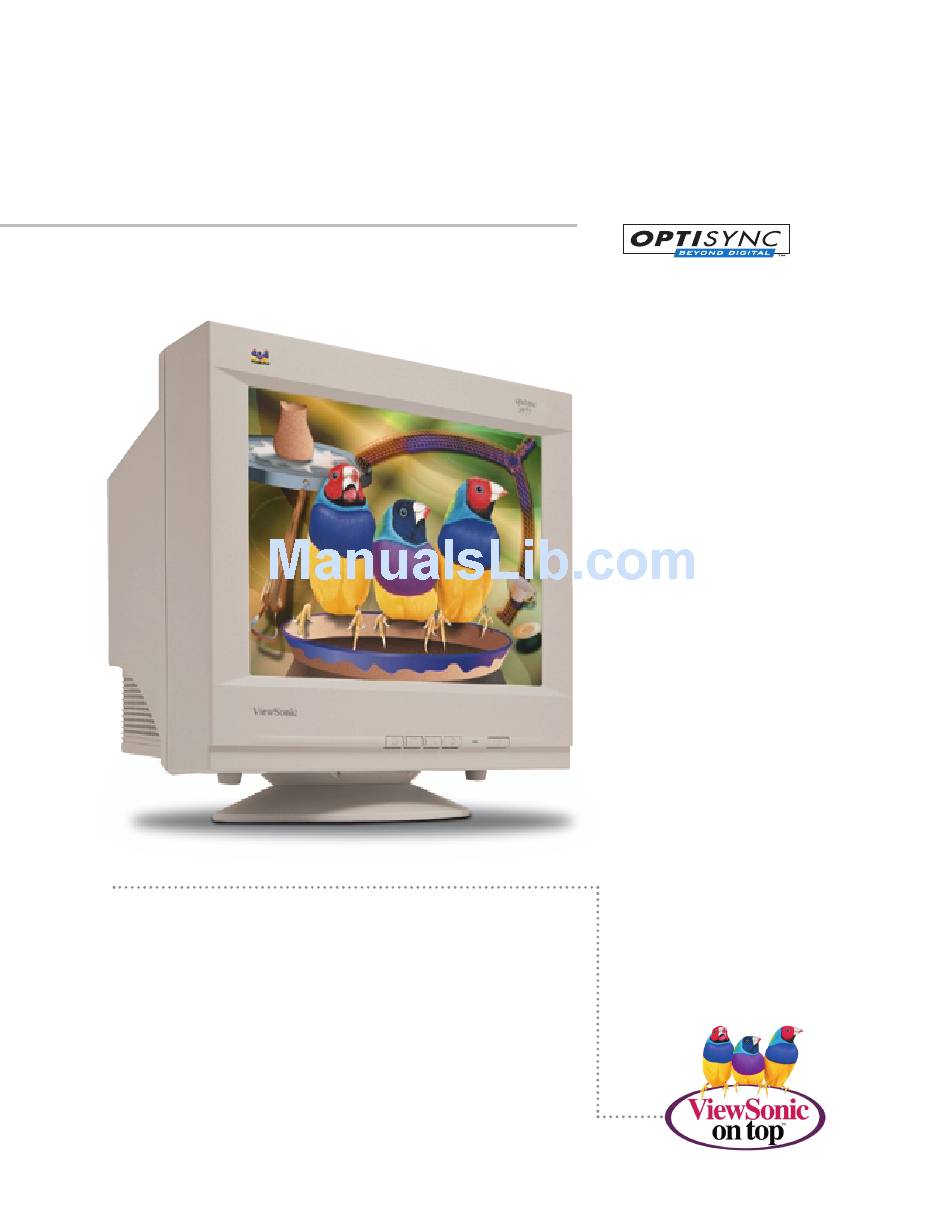

ViewSonic PF77 Specification Sheet

ViewSonic
Professional Series
17" (16.0" viewable) OptiSync Monitor
ViewSonic does it again with the introduction of the PF77 monitor. Designed
with the highly innovative OptiSync technology, the ViewSonic PF77 17" (16.0
viewable) monitor incorporates both analog and digital inputs to provide you
the ultimate compatibility with the latest digital computer technology. This will
drastically optimize your investment in this state-of-the-art ViewSonic CRT display.
The PF77 is capable of delivering resolutions up to 1600 x1200 and also features
PerfectFlat screen for edge-to-edge distortion-free images with minimal eye fatigue.
Its super fine aperture grille design displays astonishing vivid colors. For those who
demand uncompromising screen images, the OptiSync PF77 takes your visual
computing experience beyond digital.
®
PF77
• OptiSync
OptiSync is a revolutionary new multiple input
"sync" technology that features precise display
synchronization to any analog or digital computer
signal. ViewSonic's OptiSync technology provides
exceptional picture quality for today and for
tomorrow's most advanced digital requirements.
• 0.25mm aperture grille
• 1,600 x 1,200 maximum resolution
With analog input, displays a maximum
resolution of 1,600 x 1,200.
1,600 x 1,200 @ 77Hz
1,280 x 1,024 @ 89Hz
1,152 x ,870 @ 104Hz
1,024 x ,768 @ 118Hz
With digital input, displays a maximum resolution
of 1,280 x 1,024 at 85Hz flicker-free refresh
rate for sharp images.
• PerfectFlat
Absolute flat screen provides realistically
proportioned, precise images with reductions
of abient light reflections, image distortion
and eye fatigue.
• OnView
All screen adjustments, including input selection
from either analog or digital signal, are made
via an on-screen menu using simple controls.
ViewMatch allows the users to adjust color
temperature and individual color intensity for
screen-to-print matching.
• Digital (DVI) and analog dual inputs
Two systems, including one analog and one
digital, can be connected at the same time
and selected via OnView controls.
Monitor
technology
™
®
screen
®
controls including ViewMatch
®
