Page 1: Color Monitor

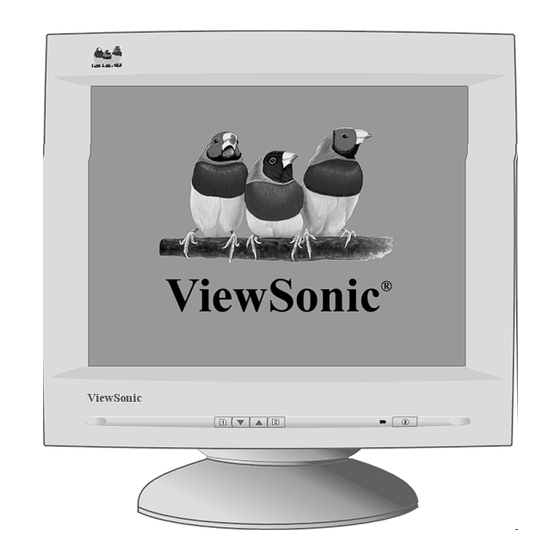

P225 Color Monitor User Guide Guide de l’utilisateur Guía del usuario Guia do usuário With Plug & Play 21" (20" Viewable Diagonal) -
Page 2: Table Of Contents
Setting the Timing Mode ...5 Adjusting the Screen Image ...6 Main Menu Controls ...8 Other Information Specifications ...12 Troubleshooting...13 Customer Support ...14 Cleaning the Monitor ...15 Limited Warranty ...16 Appendix Safety Guidelines ...17 Compliance Information ...18 CE Conformity ...18 ViewSonic P225... -
Page 3: Product Registration
® guidelines for energy efficiency. NERGY Disclaimer: ViewSonic Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from furnishing this material, or the performance or use this product. -
Page 4: Getting Started
• DB-15 video cable • Power cord • Setup Guide • ViewSonic Wizard CD-ROM (including User Guide PDF file and INF/ICM display optimization files) NOTE: The supplied INF file ensures compatibility with Windows operating systems, and the ICM file (Image Color Matching) ensures accurate on-screen colors. ViewSonic recommends that you install both files. -
Page 5: Quick Installation
Monitor power cord ViewSonic P225 6 Install Display Optimization files (INF and ICM files) (1) Insert the ViewSonic Wizard CD-ROM into your computer’s CD-ROM drive. NOTE: If your computer does not have a CD-ROM drive, see “Customer Support” on page 12. -
Page 6: Using The Monitor
640 x 480 @ 66.7 Hz Macintosh 1152 x 870 @ 75 Hz 800 x 600 NI @ 180 Hz 640 x 480 NI @ 180 Hz 1600 x 1200 NI @ 99Hz 2048 x 1536 NI @ 79 Hz ViewSonic P225... -
Page 7: Adjusting The Screen Image
The OnView controls are explained at the top of the next page and are defined in “Main Menu Controls” on page 8. Displays Main Menu; also saves changes/exits Main Menu ViewSonic P225 Power Light Scroll Up/Down Displays control screen for... -
Page 8: Do The Following To Adjust The Screen Image
Brightness. Display control screen. Press button [2] to toggle to the next control in the pair. To adjust the selected control, such as To save the control setting and Exit the menu press button [1] twice. , press the arrow buttons CONTRAST ViewSonic P225... -
Page 9: Main Menu Controls
Main Menu Controls Adjust the menu items shown below by using the up Control ViewSonic P225 Explanation adjusts the difference between the image background Contrast (black level) and the foreground (white level). adjusts the background black level of the screen Brightness image. - Page 10 Top Hooking Bottom Hook Hourglass Bal adjusts the top corners of the screen image. adjusts the bottom corners of the screen image. . Allows further straigtening of the curve at the top provides several color options: several preset ViewSonic P225...
- Page 11 Control ViewSonic P225 Explanation (Continued) ® displays the frequency signal input (horizontal scan ViewMeter and refresh rate) coming from the graphics in your computer. See you video card’s user guide for more details. : To switch between a computer connected to the...
- Page 12 Use this control adjusts the vertical distortion at the center adjusts the vertical distortion at the edge of the allows the user to choose the language in allows you to move the on-screen display menus ViewSonic Vertical P225...
-
Page 13: Other Information
Power Saving Modes Macintosh models prior to G3 require a Macintosh adapter. To order a ViewSonic Macintosh adapter, contact Customer Support. You will need to provide the product serial number. Warning: Do not set the graphic card in your computer to exceed these maximum refresh rates; doing so could result in permanent damage to the monitor. -
Page 14: Troubleshooting
• Connect the monitor to another computer. • Select Degauss from the Main Menu. Do this only once. • If you have an older graphics card, contact ViewSonic Entire screen image (rolls) vertically • Make sure video input signals are within the monitor's specified frequency range. -
Page 15: Customer Support
Baltic countries, and North Africa Australia New Zealand Singapore/Southeast Asia Other Asia/Pacific countries and Indian Peninsula South Africa ViewSonic P225 Email F = FAX T: (800) 688-6688 vstech@viewsonic.com F: (909) 468-1202 T: (800) 688-6688 vstech@viewsonic.com F: (909) 468-1202 T: 0800 833 648... -
Page 16: Cleaning The Monitor
® the monitor screen or case. Some chemical cleaners have been reported to damage the screen and/or case of the monitor. ViewSonic will not be liable for damage resulting from use of any ammonia or alcohol-based cleaners. ViewSonic... -
Page 17: Limited Warranty
How long the warranty is effective: ViewSonic color monitors, including the display tubes, are warranted for three (3) years for all parts and three (3) years for all labor from the date of the first consumer purchase. -
Page 18: Appendix
Switzerland ...SEV Britain ...BASE/BS Japan ...Electric Appliance Control Act Figure A1 Figure A2 Maximum Current Rating of Unit 18 AWG 16 AWG 14 AWG 18 AWG 17 AWG ViewSonic 10 Amps 12 Amps 12 Amps 10 Amps 12 Amps P225... -
Page 19: Compliance Information
Install and use the equipment according to the instruction manual. CE Conformity The device complies with the requirements of the EEC directive 89/336/EEC as amended by 92/31/EEC and 93/68/EEC Art.5 with regard to “Electromagnetic compatibility," and 73/ 23/EEC as amended by 93/68/EEC Art.13 with regard to “Safety." ViewSonic P225... - Page 20 ViewSonic Corporation 381 Brea Canyon Road Walnut, CA 91789 Tel (909) 869-7976 Tel (800) 688-6688 Fax (909) 468-1202...
