About the system
3.2.1 Components: Wireless remote control
3.2.2 Status: Wireless remote control LCD
User reference guide
12
NOTICE
▪
Do NOT drop the wireless remote control.
▪
Do NOT let the wireless remote control get wet.
l
k
j
i
h
g

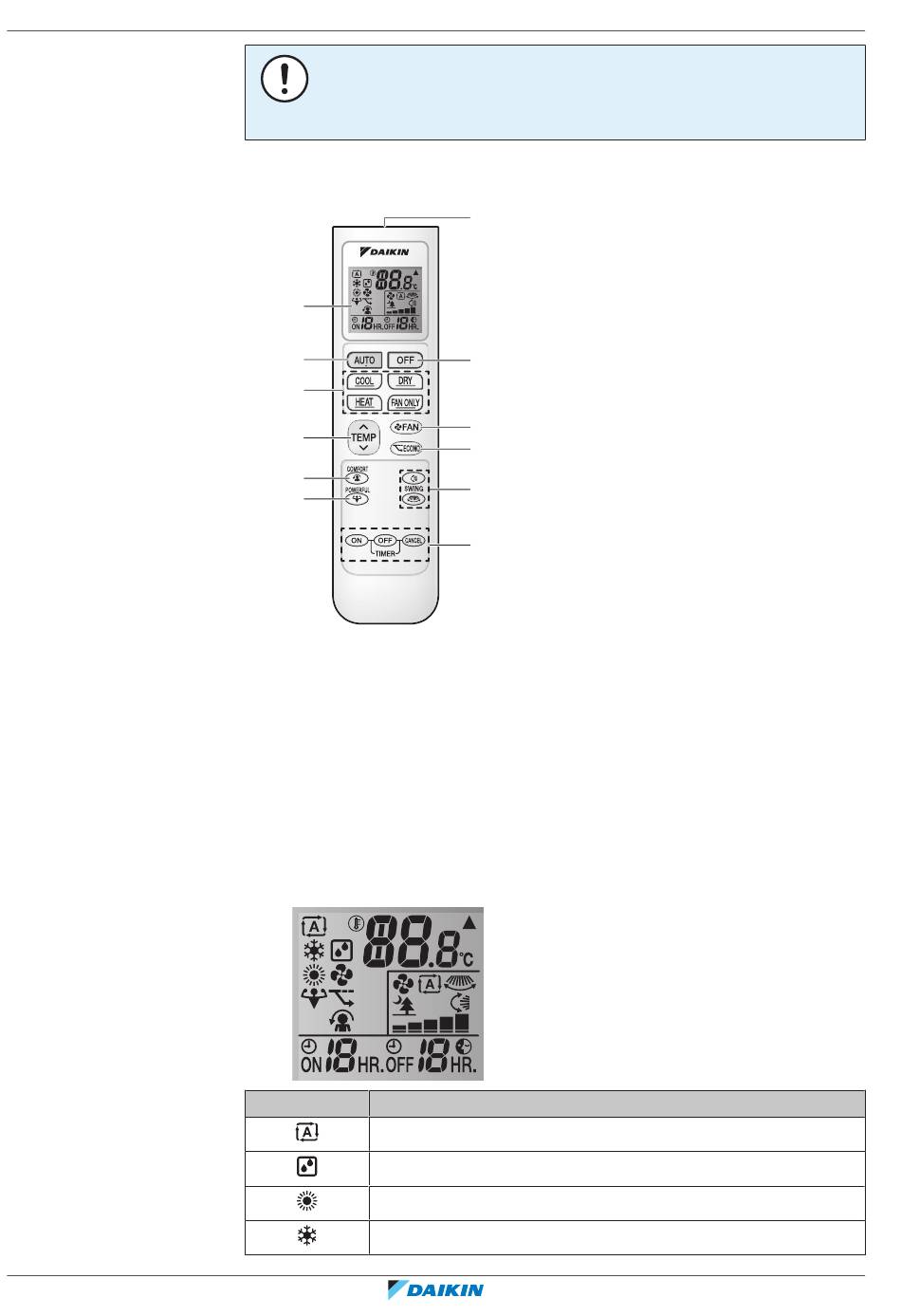

ARC480A78
a Signal receiver
b OFF button
c Fan setting button
d Econo operation button
e Swing buttons
f Timer setting buttons (ON, OFF, cancel)
g Powerful operation button
h Comfort operation button
i Temperature adjustment button
j Operation mode buttons
k Automatic operation mode button
l LCD display
Icon
Operation mode = Automatic
Operation mode = Drying
Operation mode = Heating
Operation mode = Cooling
a
b
c
d
e
f
Description
FTXP20~35N5V1B9 + ATXP20~35N5V1B9
Daikin room air conditioner
4D520466-17M – 2023.08
