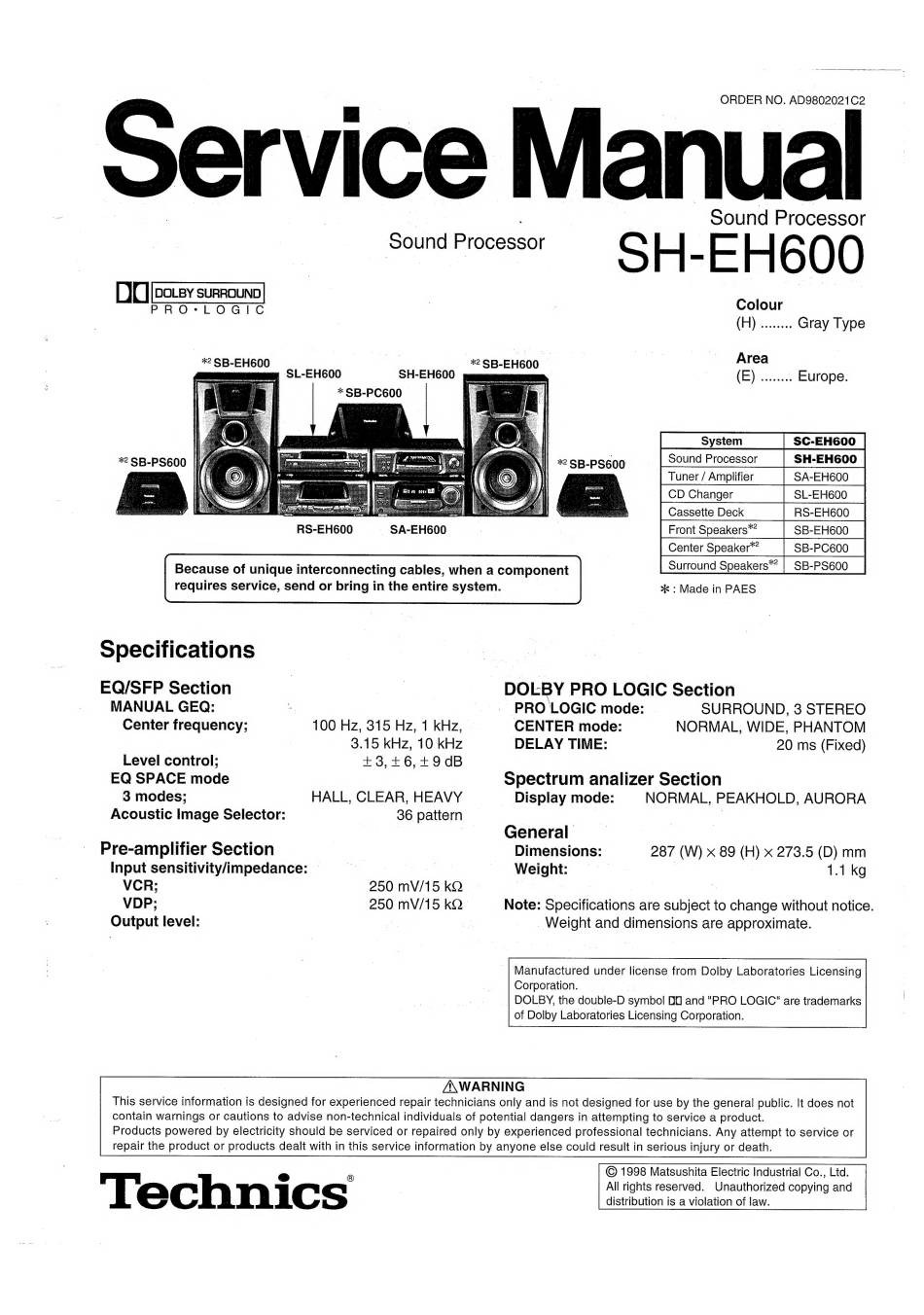

Technics SH-EH600 Service Manual

ORDER NO. AD9802021C2
Service Manual
Sound Processor
PRO-LOGICGC | | Colour
|
(ED) Gevlates Gray Type
"#2 SB-EH600 | _ Area *2 SB-EH600
ee
(=) eee Europe.
| __ System ___|_ SC-EH600 |
*2 SB-PS600
Because of unique interconnecting cables, when a component
requires service, send or bring in the entire system. * : Made in PAES
Specifications -
EQ/SFP Section | DOLBY PRO LOGIC Section
MANUAL GEQ: , -. PRO LOGIC mode: © SURROUND, 3 STEREO
Center frequency; 100 Hz, 315 Hz, 1 kHz, CENTER mode: NORMAL, WIDE, PHANTOM
3.15 kHz, 10 kHz DELAY TIME: 20 ms (Fixed)
Level control; +3,+6,+9dB
EQ SPACE mode Spectrum analizer Section
3 modes; HALL, CLEAR, HEAVY Display mode: NORMAL, PEAKHOLD, AURORA
Acoustic Image Selector: 36 pattern |
| | General
Pre-amplifier Section Dimensions: 287 (W) x 89 (H) x 273.5 (D) mm
Input sensitivity/impedance: - Weight: 1.1 kg
VCR; 250 mV/15 kQ | | :
VDP; 250 mV/15 kQ Note: Specifications are subject to change without notice.
_ Weight and dimensions are approximate.
Output level:
| Manufactured under license from Dolby Laboratories Licensing
Corporation. -
DOLBY, the double-D symbol OO and "PRO LOGIC" are trademarks
of Dolby Laboratories Licensing Corporation.
Z\WARNING
This service information is designed for experienced repair technicians only and is not designed for use by the general public. It does not
contain warnings or cautions to advise non-technical individuals of potential dangers in attempting to service a product.
Products powered by electricity should be serviced or repaired only by experienced professional technicians. Any attempt to service or
repair the product or products dealt with in this service information by anyone else could result in serious injury or death.
Technics
© 1998 Matsushita Electric Industrial Co., Ltd.
All rights reserved. Unauthorized copying and
distribution is a violation of law.
