INTRODUCTION

Welcome to our family
We see your purchase as the beginning of a long relationship together. This manual is your resource for the use and care of your product. Please read it before using your appliance. Keep it handy for quick reference. If something doesn't seem right, the troubleshooting section will help you with common issues. FAQs, helpful tips and videos, cleaning products, and kitchen and home accessories are available at www.frigidaire.com.
We are here for you! Visit our website, chat with an agent, or call us if you need help. We may be able to help you avoid a service visit. If you do need service, we can get that started for you.
Let's make it official! Be sure to register your product.
Keep your product info here so it's easy to find.
Model Number
Serial Number
Purchase Date

NOTE
The dishwasher is programmed to remember your last cycle so you do not have to reset each time. To start the dishwasher using the same cycle and options selected on the previous wash, just press the START pad.

NOTE
Not all cycles and options available on all models.

NOTE
The filters will need to be cleaned to maximize wash performance during the life of your dishwasher. See "Recommended Frequency to Clean Your Filters" for a cleaning schedule.

NOTE
Very Important Information - Read Before Operating Your Dishwasher! Normal Operating Sounds This dishwasher does not sound like most dishwashers - IT'S QUIETER. Your Direct Feed Wash System dishwasher uses energy efficient motors for the wash and drain portions of the cycle you select. Each cycle has a series of water fills and drains for washing and rinsing dishes. As each cycle begins, you may-or may not- hear the drain motor. The next sound you will hear is the splashing water as it enters the tub.
PLEASE BE ADVISED: If you compare this dishwasher to previous models, you may be surprised at what you DON'T hear.

NOTE
Why Energy Efficient Units run long cycles: Several factors are important to washing dishware. The energy use of the dishwasher was reduced by applying more of the factors that don't use so much energy and less of the ones that use more. As a result, you will see that the wash cycles take longer.

FEATURES

Your dishwasher cleans by spraying a mixture of hot water and detergent through the spray arms against soiled surfaces. First, the dishwasher fills with water covering the filter area. Water is then pumped through the spray arms. Soil particles go across the filter and down the drain as the water is pumped out. This series of steps are repeated as needed. The number of water fills vary with the cycle being used.
FEATURES

  1. Nozzle or Spray Arm (located inside the unit)
  2. Top Rack
  3. Serial Label (Located on Right)
  4. Lower Rack
  5. Silverware Basket
  6. Glass Trap
  1. Heating Element
  2. Rinse Aid Compartment
  3. Detergent Dispenser
  4. Overfill Protector
  5. Lower Spray Arm
  6. Middle Spray Arm


Accessories are available for your appliance and may be purchased at Frigidaire.com or by calling 1-800-374-4432 (Frigidaire.ca or 1-800-265-8352 in Canada) or from an authorized seller.

CONTROLS AND SETTINGS

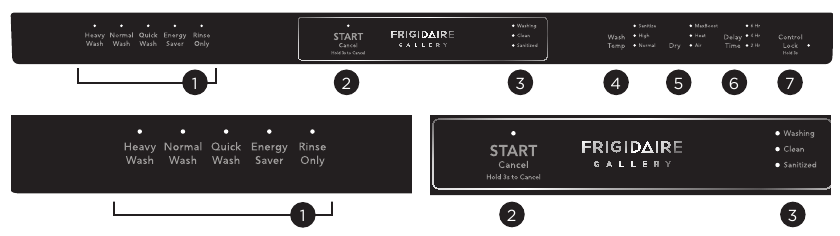

CONTROLS AND SETTINGS - Part 1
CONTROLS AND SETTINGS - Part 2
NOTE
Your dishwasher uses a DishSense Technology to understand how much food is on the dishes and then adjusts the cycle accordingly.


Property Damage Hazard
Before starting dishwasher be sure that the water is connected and turned on. Failure to do so may cause damage to the pump seal and result in water leakage.

NOTE
Lights on the console will remain on once the door is shut and wash cycle begins. If it is preferred to have the lights turn off while cycle is running see Console Lights section for instructions.

Recommended Cycle for typical use:
The Normal Wash cycle with its factory default options of normal temperature and heated dry together provide the best all around performance. This cycle selection is recommended for everyday use and is suitable for a large range of both dish load sizes and food quantities remaining on those dishes.

Wash Cycle Selections

  1. Cycle times are approximate and will vary with options selected. Hot water is necessary to activate dishwasher detergent and melt fatty food soils. An automatic sensor will check the incoming water temperature and, if it is not hot enough, the cycle will be lengthened for automatic water heating in the main wash and final rinse of all cycles. This happens even when High Wash Temp option has not been selected. When High Wash Temp is selected, an even higher temperature will be reached to handle heavier soil loads.
  2. START/Cancel Button
    When cycle and options are selected, LEDs of selected cycle and options are illuminated. To start the cycle, press the START/Cancel button and immediately close the dishwasher door. Press and hold the Cancel button for 3 seconds if you have selected your cycle and options and decide to cancel. The unit will go into standby mode, which all LEDs will go out You can cancel a cycle anytime during the cycle. Press and hold the START/Cancel pad for 3 seconds. The light above the cycle and option selected will go out, and the START/ Cancel light will remain illuminated, the dishwasher will start a 90 second drain. At the end of the drain, select the next desired cycle.
  3. Status Indicator Lights
    The console lights provide information about the cycle selection and current status. During operation, while the door is closed, these lights will remain on. At the completion of the cycle, the clean light will come on. The sanitization light will also come on if that option was selected and sanitization was achieved during the wash cycle.
    Floor Light Beam
    Green Light
    The GREEN LIGHT illuminates on the floor when the wash is complete.
    Blue Light
    The BLUE LIGHT illuminates on the floor to indicate that the wash cycle is operating.

Option Selections

  1. Wash Temp
    The programmed cycles default to the Normal temperature option, to choose High or Sanitize press Wash Temp pad.
    Sanitize Option
    To sanitize your dishes and glassware, select the Sanitize option. When selected, the indicator light will come on and remain on until the end of cycle. The water temperature in the final rinse will be raised to 156°F (69°C). This option is available in Heavy Wash, and Normal Wash Cycles. Only these sanitization cycles have been designed to meet NSF requirements. The cycle time will be extended until the proper water temperature is reached. Washing action will continue during the water heating delay. For best results, the incoming water temperature should be at least 120°F (49°C). The sanitize criteria may not be satisfied if there is an interruption of the cycle, power failure or if the incoming water temperature is below 120°F (49°C). To turn off the Sanitize option, press Wash Temp until the desired temperature option is selected. The indicator light will turn off.
    High Wash Temp Option
    When High Wash Temp option is selected, the dishwasher heats water in the main wash to approximately 140°F (60°C). This increase in water temperature helps the dishwasher detergent remove food grease and soil from dishes more effectively and aids in drying. High Wash Temp option is available on Heavy Wash, and Normal Wash cycles. High Wash Temp is automatically provided when the Heavy Wash cycle is selected. When High Wash Temp option is selected, the indicator light will come on and remain on until end of cycle. To turn off the High Wash Temp option, Wash Temp until the desired temperature option is selected. The indicator light will turn off.
  2. Dry Options
    The programmed cycles default to the Heat temperature option, to choose MaxBoost TM, Heat or Air, press the Dry pad.
    MaxBoost TM
    When MaxBoost TM option is selected, the dishwasher extends drying time by approximately 20 minutes. The MaxBoost TM option can be used with all cycles except China Crystal, Energy Saver and Rinse Only. For best drying performance, also apply an increased wash temperature by selecting High Wash Temp or even better, the Sanitize option. The energy required to use the MaxBoost TM option costs pennies per cycle. You may choose not to select the MaxBoost TM option; however you may have items in your dish load that will not be completely dry at the end of the cycle.
    Heat Dry/Air Dry
    Use of the Heat Dry option, especially in combination with use of rinse agent, will enhance drying. If Air Dry is selected the heater will be deactivated during the drying phase of the selected wash cycle. This will slightly lower the energy use but will increase the likelihood that the dishware will not dry completely.
  3. Delay Time
    The Delay Time option allows you to automatically delay starting your dishwasher 2, 4, or 6 hours. To start the Delay Time option, press Delay Time until the desired delay time LED illuminates. A light will come on indicating the delay has been set and will remain on until cycle starts. Press the START/Cancel button to start the delay option. If the delay option is interrupted, the START/Cancel button will have to be pressed again to return to delay option. To cancel the Delay Time option and to begin the selected cycle before the delay period is over, press and hold START/Cancel button for 3 seconds.
  4. Control Lock
    Lock the dishwasher controls by pressing and holding the Control Lock button until the lock LED comes on to prevent children from starting the dishwasher or accidentally changing the wash cycle. To unlock the controls, press the Control Lock button until the lock LED goes off.

OPERATING INSTRUCTIONS

Getting Started

  1. Load Dishwasher (See Preparing and Loading Dishes).
  2. Add detergent (See Dishwasher Dispenser & Detergents).
  3. Add Rinse Aid, if needed (See Rinse Aid).
  4. Run hot water faucet nearest dishwasher until water is hot. Turn water off.
  5. Select desiredCycle (See Cycle Chart).
  6. Select desiredOption (See Option Selections).
  7. To start, pressSTART/Cancel pad and close door immediately.

To Start a Cycle
When cycle and options are selected, LEDs of selected cycle and options are illuminated, and the LED above the START/Cancel button illuminates.
To start the cycle, press START/Cancel button and immediately close the dishwasher door.

To Cancel a Cycle and Delay Cycle
Both a running cycle and a delay cycle can be canceled at any time.
Open the dishwasher door and press the START/Cancel button until the cycle and option LEDs turn off. The running cycle or delay countdown is canceled. Press the START/Cancel button and close the door immediately to drain. After a 90 second drain you may be able to select a new cycle after canceling a previous wash cycle.

Opening the door during cycle
If you open the door while a cycle is running or delay is counting down, the dishwasher will stop running. The LEDs of selected cycle and options are illuminated. The LED above START/Cancel button will blink to press start.
To resume, press START/Cancel button and close the dishwasher door immediately.
The START/Cancel LED illuminates solid after the START/Cancel button is pressed. If the dishwasher door is kept open for too long, or the door is closed without pressing START/Cancel button, the running cycle or delay countdown will be canceled.

Console Lights
If it is desired to have the console lights remain off while running, perform the following operation: Prior to starting a cycle, press and hold Heavy Wash and Rinse Only simultaneously for approximately 8 seconds until the corresponding lights flash. This will turn the console lights off during cycle operation. Simply repeat this operation to revert back to the previous setting.
The DishSenseTM Technology checks the soil level on your dishes in the Heavy Wash, Normal Wash, and Energy Saver cycles. In response, automatic cycle adjustments are made to assure the dishware gets clean - with less food the cycle gets shorter. Cycle time will also vary based on the options selected and the incoming water temperature. Not all cycles available on all models.

Cycle and Option Chart

Cycle Available Options Water (approx.) Time *(Hours)
Heavy Wash*
Recommended for pots, pans, casseroles and dinnerware having light to heavily soiled loads.
Temperature: Sanitize, High
Drying: MaxBoost™, Heat, Air
7.1 - 9.4 gal. 27 - 36 L.. 2 1/4 - 4
Normal Wash*
Recommended for lightly to heavily soiled loads.
Temperature: Sanitize, High, Normal
Drying: MaxBoost™, Heat, Air
3.2 - 9.2 gal. 12 - 35 L. 1 1/4 - 4
Quick Wash
Recommended for lightly soiled loads only.
Temperature: Normal
Drying: MaxBoost™, Heat, Air
5.4 gal. 20 L. 34 min.
(Air Dry Only)
Energy Saver*
Recommended for lightly soiled loads.
Temperature: Normal Drying: Air 4.8 - 5.8 gal. 18 - 22 L. 1 1/2 - 2
Rinse Only
For rinsing dishware that will be washed later.
Default: Surge
Options: None Available
2.5 gal. 9 L.. 1/4
(Air Dry Only)

* Cycle uses Soil Sensing feature to determine best Wash performance.

CARE AND CLEANING

Dish Preparation
Scrape away large pieces of food, bones, pits, toothpicks, etc. The continuously filtered wash fluid will remove remaining food particles. Burned-on foods should be loosened before loading. Empty liquids from glasses and cups.
Foods such as mustard, mayonnaise, vinegar, lemon juice and tomato based products may cause discoloration of stainless steel and plastics if allowed to sit for a long period of time. Unless the dishwasher is to be operated at once, it is best to pre-rinse or use the Rinse Only cycle to rinse off these food soils.

  • Load racks so that large items do not prevent the detergent dispenser from opening.
  • Check manufacturer's recommendations before washing items in question.
  • If the dishwasher drains into a Food Disposer,be sure disposer is completely empty before starting dishwasher.

Loading the Top Rack
Features and appearance of racks and silverware basket as shown may vary from your model.

The upper rack is designed for flexibility in loading a wide variety of items including cups, glasses, stemware, small plates, bowls, etc.
Load glasses in top rack only. Damage may occur if placed in bottom rack.
Load plastic items in top rack only. Melting may occur if placed in bottom rack.
Load items with open ends facing down for better cleaning and draining.
Damage may occur if delicate items touch each other during dishwasher operation.
Long-handled knives and utensils can be placed in top rack.
Be sure nothing protrudes through the bottom of the rack to block rotation of middle spray arm.

10 place settings standard loading pattern
Loading the Top Rack - Example 1

12 place settings standard loading pattern

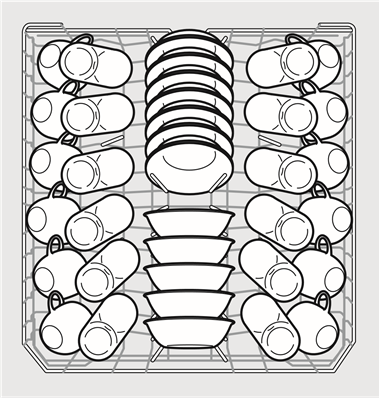

Loading the Top Rack - Example 2

Upper Rack
The Upper Rack cycle directs cleaning only to items in the upper rack and can be used to wash a wide assortment of items. It is useful for washing partial loads - especially when the upper rack fills up with glasses and the lower rack is still empty.
STEMWARE HOLDER/CUPSHELF not available on all models.
CARE AND CLEANING - Upper Rack

Adjustable Upper Rack
To raise the upper rack, refer to the figure below. Press the lever toward the center of the rack and pull straight up on the rack.

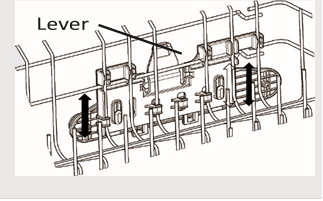

Adjustable Upper Rack - Step 1
To lower the upper rack, press the lever and push down on the rack.

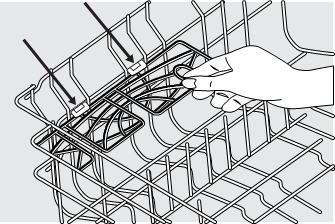

Adjustable Upper Rack - Step 2
Place the clips of the cup shelf over the horizontal rack wires and push down to attach the cup shelf onto the second wire of the upper rack.

Loading the Bottom Rack
Features and appearance of racks and silverware basket as shown may vary from your model.

The lower rack is best for plates, saucers, bowls, and cookware. Large items should be placed along the edge so they do not block the spray arm rotation. For best results, place bowls, casseroles, and sauce pans with soiled surface facing down and toward the center. Tilt slightly for better drainage.
Spin the middle spray arm to make sure that tall items do not block the rotation Be sure pan handles do not protrude through the bottom of the rack and block the lower spray arm rotation.

10 place settings standard loading pattern.

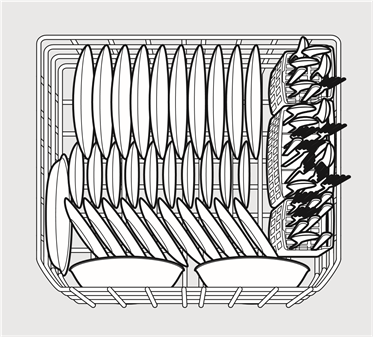

Loading the Bottom Rack - Example 1

12 place settings standard loading pattern
Loading the Bottom Rack - Example 2

Loading the Silverware Basket

Load sharp items (knives, skewers, etc.) pointing down. Failure to do so may result in injury.

Features and appearance of racks and silverware basket as shown may vary from your model.
Load the silverware basket while it is in the bottom rack or take the basket out for loading on a counter or table.
For baskets with lids, small items like baby bottle caps, jar lids, corn cob holders, etc., can be placed in a covered section to hold them in place.

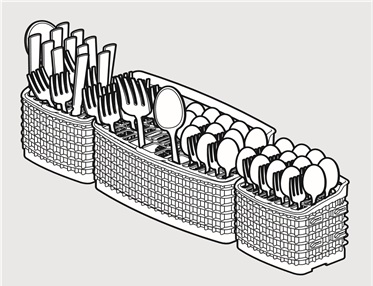

Loading the Silverware Basket - Part 1
Use suggested loading patterns, as shown, to increase washability of the silverware.
Be sure nothing protrudes through bottom of basket or rack to block the spray arm.
To avoid damaging the silver finish do not mix silver and stainless.
When covers are up, mix items in each section of the basket with some pointing up and some down to avoid nesting.
Water spray cannot reach nested items.

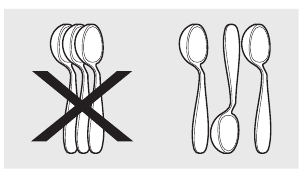

Loading the Silverware Basket - Part 2

Adding a Dish
To add or remove items after wash cycle starts:

  • Unlatch door and wait a few seconds until wash action stops before opening.
  • Add the item, move the door to a near-closed position, and wait a few seconds while the cold air slowly expands inside the dishwasher.
  • Press theSTART/Cancel button then close the door firmly within 4 seconds to resume.


Open the door very slowly & carefully if the dishwasher is operating. There is a risk of hot water squirting out.

Filing the Detergent Dispenser
The detergent dispenser has two detergent cups. The smaller one is for addition to the pre-wash and the larger is for release to the main wash.

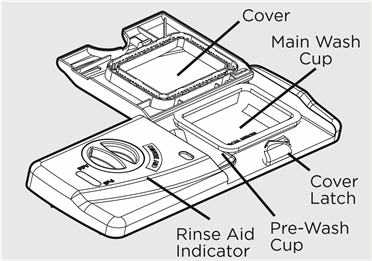

Filing the Detergent Dispenser

  • Use only fresh automatic dishwashing detergent. Other detergents may cause oversudsing.
  • When using automatic dishwashing detergent tablets or packets, use only one tablet or packet, place in the main wash cup and close.
  • Add detergent just before starting cycle.
  • Store detergent in a cool, dry location and discard any that becomes moist or caked.

If the cover is closed on the Main Wash Cup open by pressing the Cover Latch.

How much Detergent to use
The amount of detergent to use depends on the water hardness. Water hardness is measured in grains per gallon. Using too little detergent can result in poor cleaning and hard water filming or spotting. Using too much detergent in soft water can cause etching to some glassware which is surface damage that appears like a film but cannot be wiped off. Your local water company, water softener company or county extension agent can tell you the water hardness in your area.


The use of industrial grade detergent can damage the heating coil and other parts of the dishwasher leading to damage to the unit and surrounding property. Use only household grade automatic dishwasher detergents.

Detergent Usage Chart

Cycle Soft Water
(0-3 grains)
Medium Hard Water
(4-8 grains)
Hard Water
(9-12 grains)
Very Hard Water
(Over 12 grains)
Heavy Wash or Normal Wash 2 teaspoons
(each cup: 1/4 full)
5 teaspoons
(each cup- fill to line above "Regular")
8 teaspoons
(each cup- completely full)
Each Cup- Completely Full
(water softener recommended)
Top Rack, Quick Wash, China Crystal or Energy Saver 2 teaspoons
(Main Wash cup: 1/4 full)
5 teaspoons
(each cup- fill to line above "Regular")
8 teaspoons
(Main Wash cup- completely full)
Main Wash Cup- Completely Full
(water softener recommended)
Rinse Only No Detergent No Detergent No Detergent No Detergent
(water softener recommended)

As a rule, use 1 teaspoon for each grain above 12. For very hard water, detergent alone may not be enough and then a water softener is recommended to improve water quality and dishwashing performance. However, when - using automatic dishwashing detergent tablets or packets simply place one in the main wash cup.

Rinse Aid
Rinse aid greatly improves drying and reduces water spots.
With it water "sheets" off dishes rather than forming water droplets that cling and leave spots.
A dispenser, located next to the detergent cup, automatically releases a measured amount of rinse aid during the last rinse. If spotting and poor drying are problems, increase the amount of rinse aid dispensed by rotating the dial to a higher number. The dial is located under the dispenser cap. The indicator will be dark when full and will show clear when it is time to refill.

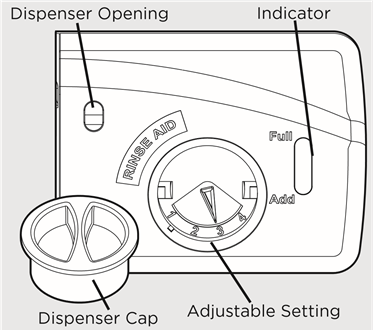

To add liquid rinse aid, turn dispense cap 1/4 turn counterclockwise and lift out. Pour in rinse aid until liquid touches the indicated fill level Replace cap.
Do not overfill since this can cause oversudsing. Wipe up any spills with a damp cloth.
The dispenser holds enough for 35 to 140 washes, depending on the dial setting.
Rinse Aid

Water Pressure
The hot water line to dishwasher must provide water pressure between 20 and 120 psi.
Low Water pressure may occur when laundry or showers are in operation. If you experience poor wash performance you may need to wait until water use is reduced before starting dishwasher.

Water Temperature
Hot water is needed for best dishwashing and drying results. Water entering dishwasher should be at least 120°F (49°C) to give satisfactory results.
To check water temperature entering dishwasher:

  • Turn on hot water faucet nearest dishwasher for several minutes to clear cool water from pipes.
  • Hold a candy or meat thermometer in the water stream to check the temperature.
  • If temperature is below 120°F (49°C), have a qualified person raise the hot water heater thermostat setting.


Before starting a cycle, run hot water to clear cool water from pipe.

The Heat Dry option in combination with rinse aid will enhance drying performance. The energy required to use the Heat Dry option costs pennies per cycle. You may choose not to select the Heat Dry option; however you will have items in your dish load that will not be completely dry at the end of the cycle.
Water Temperature

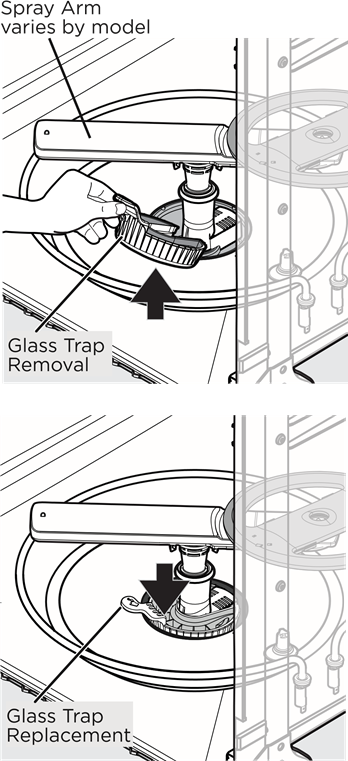

To empty the glass trap:

  1. Pull the glass trap handle up and out toward you to remove.
  2. Empty any debris collected in the glass trap.
  3. Once empty, slide the glass trap back into the same location as when removed, then push down to lock back into position. See image above.


Burn Hazard
Allow heating element to cool before cleaning the interior. Failure to do so can result in burns.

Outer Door - Clean outer door with warm soapy water and a dishcloth or sponge. Rinse with clean water and a dry cloth. Do not use harsh cleaners.
Inside - The inside of the dishwasher and filter are self-cleaning with normal use. If needed, clean around the tub gasket area with a damp cloth. The filter is self-cleaning. A glass trap located in the center of the filter is designed to collect pieces of broken glass, straws, bones and pits.

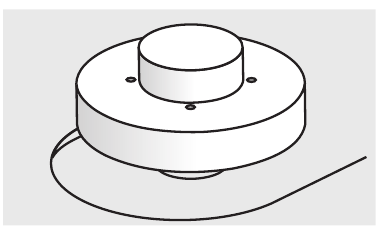

Overfill Protector- keeps dishwasher from overfilling and is located in the left front corner of the tub.

  • Clean occasionally with household cleaner containing vinegar or bleach to dissolve any buildup.
  • Overfill Protector should move up and down freely about one inch.
    Overfill Protector

NOTE
Hard water may cause lime deposit buildup on the interior of the dishwasher. For cleaning instructions see "Removing Spots and film" section.

Care of Drain Air Gap
If a drain air gap was installed for your built-in dishwasher, check to make sure it is clean so the dishwasher will drain properly. A drain air gap is usually mounted on countertop and can be inspected by removing the cover. This is not part of your dishwasher and is not covered by warranty.


Property Damage Hazard
Freezing temperatures may cause water lines to rupture. Be sure all supply lines to and circulating lines within dishwasher are protected. Failure to do so could result in property damage.

NOTE
See Installation Instructions for more details on disconnecting and restoring service to your dishwasher.

Winterizing
A dishwasher left in an unheated place should be protected from freezing. Have a qualified person do the following:

To Disconnect Service:

  1. Turn off electrical power to the dishwasher at the supply source by removing fuses or tripping circuit breaker.
  2. Shut off water supply
  3. Place a pan under the inlet valve. Disconnect water line from inlet valve and drain into pan.
  4. Disconnect drain line from pump and drain water into pan.

To Restore Service:

  1. Direct water line discharge into a pan and open the valve to flush the line.
  2. Reconnect the water, drain, and electrical power supply.
  3. Turn on water and electrical power supply.
  4. Fill both detergent cups and run dishwasher through aHeavy Wash cycle.
  5. Check connections to make sure they do not leak.

TROUBLESHOOTING

Before calling for service, review this list. It may save you both time and expense. This list includes common experiences that are not the result of defective workmanship or material in your dishwasher.

Food Soils Left on Dishes

  • Choose another cycle for longer washing time.
  • Check rack loading section for proper loading-avoid nesting items.
  • Home water pressure may be too low-should be 20 to 120 pounds per square inch (psi).
  • Check incoming water temperature. It should be about 120°F (49°C).
    (See Factors Affecting Performance.)
  • Check water hardness. For extremely hard water, it may be necessary to install a water softener. (See Detergent Chart).
  • Use Fresh Detergent.
  • Make sure items are not blocking the spray arms, preventing them from rotating.
  • Do not overload the dishwasher (See Preparing and Loading Dishes).
  • Check to verify that the glass trap is maintained and installed properly (See Care and Cleaning).

Dishes not Dry

  • Select heat or MaxBoostTM option.
  • Make sure the rinse aid dispenser is filled.
  • Increase the discharge setting of rinse aid. (See Rinse Aid).
  • Check the incoming water temperature. Be sure it is at least 120°F (49°C).
  • Check for proper loading-avoid nesting items.
  • Cups with a concave bottom will collect water. Load them at the far left and right of the upper rack so they will be held in a tilted position.
  • Containers, bowls, pots/pans, and any dishware with concave surfaces that can collect water should be placed in the rack facing or angled down so that water is able to drain even from the lowest point.
  • Plastic items may need to be towel dried.

Glassware/Flatware Spotted or Cloudy

  • Check water hardness. For extremely hard water, it may be necessary to install a water softener. (See Detergent Chart).
  • Water temperature may be low. Avoid extremely low or high temperatures. (See Factors Affecting Performance.
  • Avoid overloading and improper loading. (See Preparing and Loading Dishes).
  • Use fresh detergent. Old detergent is ineffective.
  • Make sure rinse aid dispenser is filled.
  • Check to see that proper amount of detergent is being used for cycle selected. (See Detergent Dispenser).
  • Home water pressure may be too low-it should be 20 to 120 pounds per square inch (psi).

Dishware Chipped

  • Load with care and do not overload. (See Preparing and Loading Dishes).
  • Place delicate items in top rack.
  • Place glasses securely against pins and not over pins.
  • Load items so they are secure and don't jar loose when moving racks in and out. Move racks in and out slowly.
  • Make sure tall glasses and stemware will clear top of tub when rack is pushed in.
  • Fine antique china and crystal should be hand-washed.

Vapor at Vent

  • Spilled rinse aid can cause foam and lead to overflowing. Wipe up any spills with a damp cloth.

Dishware Stained or Discolored

  • Tea and coffee can stain cups. Remove the stains by hand washing in a solution of 1/2 cup (120 ml) bleach and one quart (1L) of warm water. Rinse thoroughly.
  • Iron deposits in water can cause a yellow or brown film. A special filter installed in the water supply line will correct this problem. (See Removing Spots and Film).
  • Aluminum utensils can leave gray/ black marks when they rub against other items. Load Properly.
  • Certain high acid foods can cause discoloration of stainless steel and plastics if allowed to sit for a long period. Use the Rinse Only cycle or rinse by hand if not operating dishwasher at once.
  • Mixing stainless steel and silver utensils in silverware basket can cause pitting of the stainless steel blades. Avoid mixing stainless steel and silver.

Water in Bottom of Tub

  • Water left in the tub bottom after the cycle is complete is not normal. If water remains in the bottom of the tub, the dishwasher may not be draining properly. (See Dishwasher Does not Drain Properly).

Cycle Takes a Long Time

  • The cycle may have been automatically lengthened to reach key temperatures due to some factor such as a cool water supply or a large load of dishes.
  • Delay Start option may have been selected.
  • Choose lower temperature options to shorten the cycle.
  • Cycles that are soil-sensing adjust automatically to assure a good wash
    • heavier soils will elicit a longer cycle response.

Etching

  • Using too much detergent especially in soft or softened water causes damage that looks like a film but cannot be removed.
  • Adjust the amount of detergent based on the water hardness. (Check Detergent Chart).
  • Lower the water temperature by selecting one of the lower temperature options.

Detergent Left in Cups

  • Detergent may be old. Discard and use fresh detergent.
  • Be sure the dish load doesn't block spray from entering the detergent cup.
  • Check to see if cycle has been completed.
  • Make sure items do not prevent the detergent dispenser from opening.

Dishwasher Leaks

  • Check that the door gasket is pressed into its mounting channel, reaches to the bottom of the tub and does not extend beyond the end rib so as to interfere with door closure.
  • Spilled rinse aide can cause foam and lead to overflowing. Wipe up any spills with a damp cloth.
  • Check to see that the dishwasher is level. (See Installation Instructions).
  • Avoid oversudsing by using the correct amount of detergent designed for automatic dishwashers.
  • Check to see that dishwasher is level. (See Installation Instructions).

Normal Sounds You Will Hear

  • Normal sounds include water fill, water spray, draining and motor sounds.
  • There is a noticeable change in sound when the wash action switches between the lower and middle spray arm. This is normal since each spray arm has its own sound.
  • It is normal for the dishwasher to pause (no sound) when the wash action is switching between the lower and middle spray arms.

Dishwasher Won't Run

  • Check to see if circuit breaker is tripped or if a fuse is blown.
  • Make sure water supply is turned on.
  • Check to see if cycle is set correctly. (See Operating Instructions).
  • Is dishwasher set for Delay Start Option?
  • Make sureSTART/Cancel button is pressed after cycle has been selected.
  • Make sure door is closed and latched immediately after pressing theSTART/Cancel button

Dishwasher Won't Fill

  • Assure the water supply is turned on.
  • Check that the overfill protector moves up and down freely. (See Overfill Protector section).

Dishwasher Does Not Drain Properly

  • If unit is hooked up to a food waste disposer, make sure the disposer is empty.
  • Assure the knockout plug has been removed from inside the food waste disposer inlet.
  • Assure the drain hose isn't kinked.
  • Make sure cycle is complete, not in a pause.
  • Assure the glass trap is maintained and installed properly assuring no clogs (See Care and Cleaning).

Dishwasher has an Odor

  • Soiled dishes left in dishwasher too long can create an odor. UseRinse Only cycle.
  • There will be a "new" smell when first installed. This is normal.
  • Check to see if unit is draining properly.(See Dishwasher Does Not Drain Properly).

Stains on Tub Interior

  • Washing large amounts of dishware with tomato based soil can cause a pink/orange appearance. This will not affect performance and will gradually fade over time. Prerinsing or using the Rinse Only cycle will reduce the chance of staining. Using no heat dry option will lessen staining.

Opening the door during cycle

  • If the dishwasher door is opened while the unit is running, the START/ Cancel button must be pressed and the door shut immediately to return the unit to the selected cycle and option, this must happen within 10 minutes for the unit to continue the cycle.

Removing Spots and Film
Hard water can cause lime deposit buildup on the interior of the dishwasher. Dishes and glasses may also get spots and film for a number of reasons. (See Glassware/Flatware Spotted or Cloudy section). To remove buildup, and film, clean using the following instructions:

  1. Load clean dishes and glasses in normal manner. Do not load any metal utensils or silverware.
  2. Do not add detergent.
  3. Select the NORMAL WASH cycle. PressSTART/Cancel button. Close the door.
  4. Allow dishwasher to run until it starts the second water fill (approximately 8 minutes).
  5. Open the door, pour 2 cups of white vinegar into the bottom of dishwasher.
  6. PressSTART/Cancel button. Close the door and allow cycle to finish.

IMPORTANT SAFETY INFORMATION


Please read all instructions before using this dishwasher.

For your Safety

  • Use your dishwasher only as instructed in this User Manual.
  • This Manual does not cover every possible condition and situation that may occur. Use common sense and caution when installing, operating and maintaining any appliance.
  • NSF certified residential dishwashers are not intended for licensed food establishments.
  • DISHWASHER MUST BE ELECTRICALLY GROUNDED. Read the Installation Instructions for details.
  • This dishwasher is designed to operate on regular house current (120V, 60Hz). Use a circuit equipped with a 15 ampere fuse or circuit breaker. Use a 20 ampere fuse if dishwasher is connected with a food disposer.
  • Do not operate dishwasher unless all enclosure panels are in their proper place.
  • To avoid entrapment and/or suffocation, remove door or door latch mechanism from any dishwasher that is discarded or not in use.
  • Keep young children and infants away from dishwasher when it is operating.
  • Do not let children abuse, sit, stand or play on door or racks of a dishwasher.
  • Use only detergents and rinse agents recommended for use in a dishwasher.
  • Store dishwasher detergent and rinse agents out of the reach of children.
  • Do not wash plastic items unless marked: "Dishwasher Safe" or equivalent. Check with manufacturer for recommendations, if not marked. Items that are not marked dishwasher safe may melt and create a potential fire hazard.
  • Disconnect electrical power to dishwasher before servicing.
  • If the dishwasher drains into a food disposer, make sure disposer is completely empty before running dishwasher.
  • Repairs should be done by a qualified technician.
  • Do not tamper with controls.
  • Do not touch the heating element during or immediately after
  • Use care unloading the dishwasher when the Sanitize option has been selected. Contents may be hot to the touch immediately after the end of cycle.
  • Water vapor from the vent may be hot to the touch when the Sanitize option has been selected. Use care and do not let small children play around or touch the vent area of the dishwasher.
  • When loading items to be washed: Locate sharp items and knives so that they are not likely to damage the door seal or tub. Load sharp items and knives with the handles up to reduce the risk of cut-type injuries.
  • Under certain conditions, hydrogen gas may be produced in a hot water, system that has not been used for 2 weeks or more. HYDROGEN GAS IS EXPLOSIVE. If hot water system has not been used for such a period, before using dishwasher, turn on for several minutes This will release any accumulated hydrogen gas. HYDROGEN GAS IS FLAMMABLE. Do no smoke or use an open flame during this time.
  • Do not store or use combustible materials, gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.


To reduce the risk of fire, electrical shock or injury when using your dishwasher, follow the above basic precautions.

This symbol will help alert you to such dangers as personal injury, burns, fire and electrical shock.

Please read all instructions before using this appliance.

Safety Definitions
warningThis is the safety alert symbol. It is used to alert of potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury.

indicates installation, operation or maintenance information which is important but not hazard-related.

Child Safety
Destroy or recycle the carton, plastic bags, and any exterior wrapping material immediately after the dishwasher is unpacked. Children should NEVER use these items to play. Cartons covered with rugs, bedspreads, plastic sheets or stretch wrap may become airtight chambers, and can quickly cause suffocation.

Safety Instructions

  • DO NOT store or use gasoline, or other flammable liquids in the vicinity of this or any other appliance. Read product labels for warnings regarding flammability and other hazards.
  • Remove all staples from the carton. Staples can cause severe cuts, and also destroy finishes if they come in contact with other appliances or furniture.

SAVE THESE INSTRUCTIONS

Our home is your home. Visit us if you need help with any of these things:

owner support
accessories
service
registration
(See your registration card for more information.)

Frigidaire.com
USA 1-800-374-4432
Frigidaire.ca
Canada 1-800-265-8352

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Frigidaire GDPH4515AF - Gallery 24" Built-In Dishwasher Manual

Advertisement

Need Assistance?

Do you have a question about the GDPH4515AF that isn't answered in the manual? Leave your question here.

Error while submitting your question. Please, reload page and try again.

Thank you! Your question has been received!

Table of Contents
