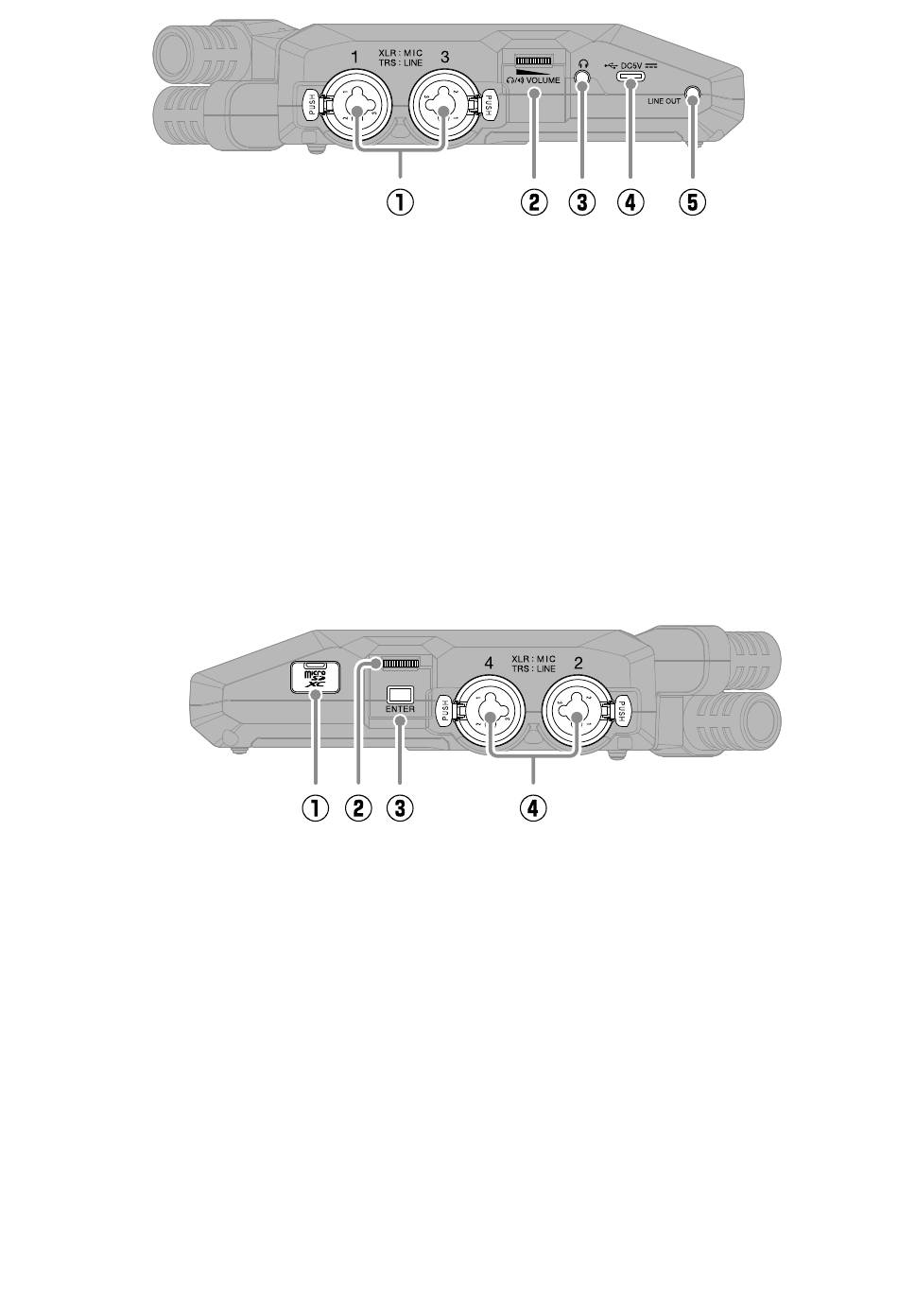

■ Left side
① INPUT 1, INPUT 3 jacks
Connect mics and instruments to these.
These support XLR and 1/4-inch phone
(TRS) plugs.
② VOLUME dial
Use this to adjust the volume output
from the speaker and headphones.
③ Headphone jack
This can output sound to headphones.
■ Right side
① microSD card slot
Insert a microSD card here.
② Select dial
Use this to select menu items.
④ USB port (Type-C)
Connect this to a computer, smartphone
or tablet to use file transfer and audio
interface functions.
This supports operation on USB bus
power.
Use a USB cable that supports data
transfer.
⑤ LINE OUT jack
This outputs sound to a connected
device.
③ ENTER button
Press this to confirm menu items.
④ INPUT 2, INPUT 4 jacks
Connect mics and instruments to these.
These support XLR and 1/4-inch phone
(TRS) plugs.
