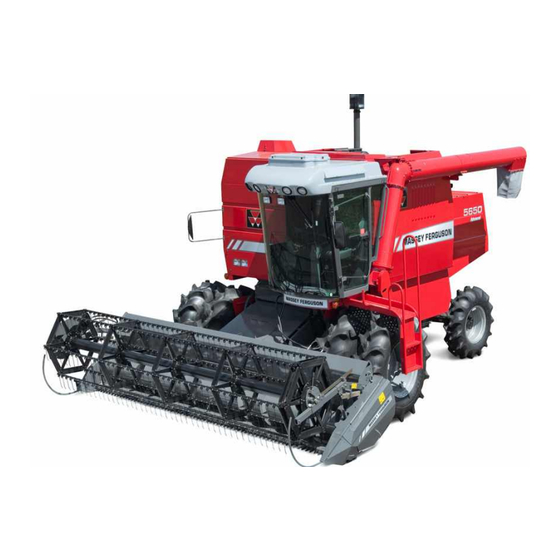

Operation Manual - MF 5650 ADVANCED Harvester models for practical use: MF5650 Advanced The MF5660 harvesters are the result of research, improvements and a large experience in industrial and agricultural and industrial equipments manufacturing. These harvesters were designed to be operated in...
Page 3
Operation Manual - MF 5650 ADVANCED Dear Owner 1 - Keep this Manual in pistine conditions and 8 - Massey Ferguson Original Parts present it to the technician at the Dealer in order The use of parts other than MF original parts to note the Free Warranty Maintenance date.
Page 4
Operation Manual - MF 5650 ADVANCED Table of Contents Safety Guidelines Identification and safety decals Instruments and commands Preparation Operation Maintenance Specifications Accessories MF 5650 ADVANCED Find manuals at https://best-manuals.com...
1. Safety Guidelines Table of contents 1 - Introduction ............................ 3 2 - General Recommendations ......................3 3 - The Harvester ..........................4 4 - Safety notes used throughout this Manual .................. 5 5 - Notes to the operator ........................5 6 - Follow a safety program ........................
1. Safety Guidelines 1 - Introduction The aim of this manual is to enable the owner and The unrestricted commitment and adherence to the operation, services and maintenance requirements, driver to operate the equipment safely and properly. as per specified by AGCO, are considered essential If the instructions are carefully observed, the factors for the proper use.
We strongly recommend that improved efficiency in cropping. the users contact the Massey Ferguson A properly maintained equipment will present a Dealership Network for any problem better cost efficiency than those with neglected derived from services or operations of maintenance services.
1. Safety Guidelines 4 - Safety notes used throughout Remember that this Safety Section was specially designed for this equipment. Follow all usual and this Manual habitual safety precautions and, above of all else, REMEMBER THAT YOUR SAFETY DEPENDS ONLY Always note the following symbols.
1. Safety Guidelines • Never ramin in the engine compartment, while Keep a speed compatible with your safety; the engine is still operating. Always keeps in operational condition all • Avoid flammable material accumulation, such brakes, turning lights, direction signal lights as straw, oil etc., on the harvester, specially near and hazard warning lights (if equipped);...
1. Safety Guidelines 6.3 - For transportation in a trailer-truck • The platform must be transported with another truck, unless the trailling truck floor which is • Always observe the maximum height and width carrying the machine has enough space to hold allowed for the cargo.
1. Safety Guidelines Never trust only on the hydraulic jack. • Never start a flame using a cigarrette, torch or welding, before making sure everything is clean and there is no leakage. In any case, the fire extinguisher must always be in perfect operational conditions.
1. Safety Guidelines Note the position of fire extinguishers and first aid kits (Fig. 5) and be aware of where to find assistance in case of an emergency. Know your equipment well and know how to use it. 70.3 - Use the safety and protection devices available Keep all the protection devices in the correct position and properly attached.
1. Safety Guidelines ATTENTION! Pressurized hydraulic fluid or diesel leak can penetrate in your skin and cause severe personal injuries, blindness or even death. Pressurized fluid leaks may not be visible. Use a carton board or wood to find the leaks. DO NOT place your hands directly to the equipment.
1. Safety Guidelines 8 - Harvester’s maintenance • DO NOT make any repair or maintenance service when the engine is running or still hot, or with the harvester in operation (Fig. 10). • Before making adjustments or repair the electric system, disconnect the battery cables: first, disconnect the negative (-) cable.
1. Safety Guidelines Adjust the seat, put on the safety belt, apply the parking brake and set all controls to neutral before starting. WARNING! Start the engine with the starting key and always sitting on the operator seat. NEVER try to start the engine by a direct start.
1. Safety Guidelines Be careful with pedestrians If start fluid in aerosol cans or ether base start aid is used, the preheating system must be Be attentive to what is going on around you. DO disconnected. Remove the cable from the NOT allow non-trained or non-qualified people preheating system unit that is found in the intake operate the harvester.
1. Safety Guidelines 10.6 - Emergency Brake CAUTION! When parking, or in case the brakes fail, use the parking brake. IMPORTANT: If the brakes are not operating correctly, please contact your local AGCO dealer to fix the problem. 10.7 - Generic risks during the operation •...
1. Safety Guidelines 11 - Transportation on roads BEFORE operating the harvester on public roads, some precautions must be taken: • Know and observe the traffic rules relevant to your machine. • Lock the brake pedals with the locking device. •...
1. Safety Guidelines 12 - Fuel 1 1 1 1 1 2 2 2 2 2 12.1 - Storage, handling and cleaning The fuel purity and cleanness are vital for the good operation of the engine and durability of the 5 5 5 5 5 injection system.
1. Safety Guidelines 12.2 - Specifications 14 - Fill the harvester always at the end of each work day. This will avoid that, during the night, Limiting requirements for diesel oil: the moisture inside the tank(s) condensate and turn into water, contaminating the fuel, which NOTE: when reaching the pump and the nozzles Diesel oil is not classified as fuel # 1 (#...
1. Safety Guidelines 13 - Parts and lubricants storage Always keep a stock of replacement parts, such as filters, belts, fuses, lamps, counter-pins, seals and lubricants (Fig. 17). The products must be stored away from acid and corrosive products, in a clean warehouse, moisture and dust free, well ventilated and organized.
1. Safety Guidelines How to reach the goals? Betting on the Company partnership with the environment is to assure its existence in the future. Believing in the aforementioned statement, AGCO has stipulated its Environmental Policy and the implementation for its consolidation, by the implementation of an Environmental Management system and a Cleaner Production Program.
1. Safety Guidelines Population explosion • Dispose fluids and parts replaced as stated by Law. It has been estimated that by the year 2020 we can have more 8 billion people as related to the present Take a look in some examples: population.
1. Safety Guidelines Carton NOTE: The Points of Sales are required to One ton of recycled carton avoids the cut of 12 accept the returned old batteries, as well trees. as store them in a proper place and then return the batteries to the manufacturer 14.6 - CONAMA Resolution for recycling.
Page 28
2. Harvester identification and safety decals Table of contents 1 - Identification in your harvester ....................3 1.1 - Harvester serial number ....................3 1.2 - Header serial number ....................3 1.3 - Engine and Injection pump Series ................4 1.4 - Hydraulic pump Series ....................
Page 30
1.1 - Harvester’s serial number It’s located on the right side of the machine, next to to sieves fan. : [________________________________] MASSEY FERGUSON Manufactured by: AGCO DO BRASIL COM. E IND. LTDA. INDÚSTRIA BRASILEIRA (MADE IN MODEL:...
