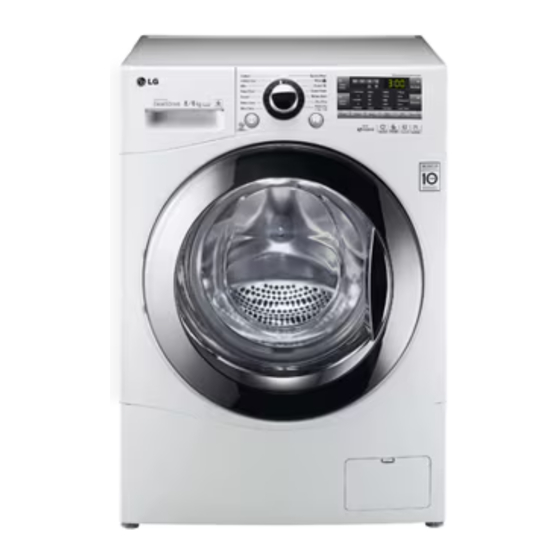

LG F14A8YD Series Service Manual

Hide thumbs Also See for F14A8YD Series:
Table of Contents

Advertisement

Quick Links

Download this manual
WASHING MACHINE
SERVICE MANUAL
CAUTION
READ THIS MANUAL CAREFULLY TO DIAGNOSE PROBLEMS
CORRECTLY BEFORE OFFERING SERVICE.
BEFORE SERVICING THE WASHING MACHINE, UNPLUG THE POWER
CORD TO AVOID THE RISK OF AN ELECTRIC SHOCK.
WHEN SERVICING INTERNAL PARTS, USE ONLY SERVICE PARTS
SUPPLIED FROM LG.
AFTER SERVICING THE ELECTRIC WIRE, INSURE THAT INSULATION
TAPE IS APPLIED TO PREVENT AN ELECTRICAL SHORT.
MODEL : F14A8YD(1~9) / S44A8YD
website :
http://biz.lgservice.com
e-mail : http://LGEservice.com/techsup.html

Advertisement

Table of Contents
loading

Related Manuals for LG F14A8YD Series

Summary of Contents for LG F14A8YD Series

  • Page 1 BEFORE SERVICING THE WASHING MACHINE, UNPLUG THE POWER CORD TO AVOID THE RISK OF AN ELECTRIC SHOCK. WHEN SERVICING INTERNAL PARTS, USE ONLY SERVICE PARTS SUPPLIED FROM LG. AFTER SERVICING THE ELECTRIC WIRE, INSURE THAT INSULATION TAPE IS APPLIED TO PREVENT AN ELECTRICAL SHORT.

  • Page 2: Table Of Contents

    CONTENTS 1. SPECIFICATIONS ..........................3 2. FEATURES & TECHNICAL EXPLANATION ..................5 3. PARTS IDENTIFICATION ......................... 7 4. INSTALLATION ..........................8 5. OPERATION ........................... 14 6. WIRING DIAGRAM / PCB LAYOUT ....................18 7. TROUBLESHOOTING ........................20 7-1.BEFORE PERFORMING SERVICE ..................20 7-2.LOAD TEST MODE ........................

  • Page 3: Features & Technical Explanation

    2. FEATURES & TECHNICAL EXPLANATION 2-1. FEATURES Inverter Direct Drive system The advance Brushless DC motor directly drives the drum without belt and pulley. 6 motion Washer is able to perform various drum actions or a combination of different actions depending on the wash program selected.
  • Page 4 F14A8YD(1~9) / S44A8YD ITEM POWER SUPPLY 220 - 240 V~, 50 Hz PRODUCT WEIGHT 72 kg WASHING 190 W SPIN 380 W ELECTRICITY DRAIN MOTOR 30 W CONSUMPTION WASH HEATER 2120 W DRY HEATER 1550 W 46 rpm WASH REVOLUTION SPEED SPIN 1400 RPM : No Spin / 400 / 800 / 1000 / 1400...
  • Page 5 2-2. DETERMINE WASHING TIME BY FUZZY LOGIC To get the best washing performance optimal time is determined by sensing the water temperature, selected washing temperature and laundry amount. water temperature washing time the best selected FUZZY washing rinse time washing LOGIC temperature performance...

  • Page 6: Parts Identification

    3. PARTS IDENTIFICATION Power Plug Transit Bolts If the supply cord is damaged, it must be replaced by the Drawer manufacturer or its authorized service technician in order to avoid a hazard. Control Panel Drain Hose Drum Drain Pump Filter Door Drain Plug Lower Cover Cap...

  • Page 7: Installation

    4. INSTALLATION INSTALLATION The appliance should be installed as follows. Check the conditions of installation area. 1. Check level ground. horizontal On raised foundations or upper level homes, the can be caused by the type of flooring. vibrations It may be to a different area in the home or have the floor necessary to move machine...
  • Page 8 se spanner to remove transit bolts. Without removal of transit bolts pin noise shaking X 4 EA Transit bolts Confirm the distance between the appliance and the wall. If the distance is less than 2cm, More than 2cm the water supply hose will kink fold The tap connection and hose connection must be parallel.
  • Page 9 Type-C : Connecting one touch type hose to tap without thread 1. Unscrew the adapter ring plate and the 4 adapter retaining screws. 2. Remove the guide plate if the tap is too large to fit the Ring plate adapter. Guide plate 3.
  • Page 10 Connect Drain Hose. If the drain hose is not installed properly, the unit will not drain properly. This allows water to back flow into the unit which can cause odors. Refer to Owner Manual for proper drain hose installation. The odor could also be coming from the home’s drain to which the drain hose is attached. Laundry tub about 100 cm Hose...
  • Page 11 Check the horizontality with a level (Gage). Step 1 If washing machine legs are loose or not Screwed in, then tighten with the spanner wrench. Using the level, level the washing machine from front to back and side to side. A level Higher Tighten...
  • Page 12 Test operation Preparation Press the power button. Press the START/PAUSE button. washing. · Connect the power plug to the · In case of Coloreds program. outlet. · Connect the inlet hose. Check the water heating. Check automatic reverse turn. Check the water supply. ·...

  • Page 13: Operation

    5. OPERATION Additional programs Cycle Selector Power Start/Pause Option Button...
  • Page 14 EST. Time remaining This display shows: a) the estimated time remaining in the cycle when operating. In case of abormal operation, error indications are displayed. see troubleshooting Dry programs selected by rotating dry button. [Lower Temp. - Iron - Cupboard - Eco - Time] can be selected.

  • Page 15: Wiring Diagram / Pcb Layout

    6. WIRING DIAGRAM / PCB LAYOUT Wiring Diagram...
  • Page 16 PCB Layout (Main) ry Heater Earth Wire Connector ry Fanmotor...

  • Page 17: Troubleshooting

    7. TROUBLESHOOTING 7-1. CHECK BEFORE SERVICE Before servicing ask the customer what the trouble is. Check the adjustments. (Power supply :220-240V~, Removal of transit bolts etc..) Check the troubles referring to the troubleshooting. Decide service steps referring to disassembly instructions. Then, service and repair.

  • Page 18: 7-3.How To Check The Water Level Frequency

    7-3. HOW TO CHECK THE WATER LEVEL FREQUENCY Touch the Rinse+ Temp button simultaneously. The digits indicate the water level frequency. For example, if 255 is displayed the water level frequency is 25.5kHz (255X0.1) 7-4. HOW TO CHECK THE TEMPERATURE OF EACH THERMISTOR AT OPERATING CONDITION.

  • Page 19: 7-5.Error Display

    7-5. ERROR DISPLAY If you press the Start/Pause button in error condition, any error except will disappear and the machine will change into the pause status. In case of , if the error is not resolved within 20 sec., and in case of all other errors, if the error is not resolved within 4 min., the power will turn off automatically and the error only will blink.
  • Page 20 ERROR SYMPTOM CAUSE • The connector in the LEAD WIRE ASSEMBLY is MOTOR LOCKED not connected to the connector of STATOR ERROR ASSEMBLY. Reconnect or repair the connector. • The hall sensor is out of order/defective. Replace the STATOR ASSEMBLY Page 34 POWER •...

  • Page 21: 7-6.Troubleshooting With Error

    7-6. TROUBLESHOOTING WITH ERROR Water Inlet Error (IE) [Note] Environmental safety check list 1. No water tap leakage or freeze 4. No entanglement of water supply hose. 2. No water shortage. 5. No water supply hose leakage 3. The inlet filter is not clogged. Is the water tap closed? Check the and open it fully.

  • Page 22: Ue (Unbalanced Error)

    Unbalanced Error (UE) The few items of clothing will clump together Does the load lean toward one and their weight will be in one place on the drum, side, or is the load a few items? throwing the weight off during spin mode. So add some laundry to overcome UE error.

  • Page 23: Oe (Water Outlet Error)

    Water Outlet Error (OE) Check drain hose for kink and straighten the Hose. Is the drain hose kinked ? Drain Hose Check & Clean Pump Filter. Is the clogged ? Pump filter This kind of accumulation on the drain filter not only prevents proper drainage, but also will promote bacteria growth and cause odors.
  • Page 24 Is the greater Standpipe Height Observe Standpipe Height requirements than 1.0 m above the floor? of 1.0m maximum. - Your washer will not be able to drain out water adequately, if the standpipe exceeds 1.0 m. In this case, water may flow back into the washer. When there is no water in the Check the and the...

  • Page 25: Fe (Over Flow Error)

    Overflow Error (FE) Power off for 10sec. Then power on. Is the water level over reference line and is the water level frequency under 21.3kHz? * Water level frequency 'Rinse + - Touch and Hold ' & 'Temp.' simultaneously. Drain out the water and then Is water continuously check the and the...

  • Page 26: Pe (Pressure Sensor S/W Error)

    Pressure Sensor S/W Error (PE) Is the connected correctly to Connector Reconnect or repair the Connector. and the Main PCB Pressure Switch Or replace the Harness. Is the alright ? Harness Is the resistance of the Pressure Switch Replace the Pressure Switch.

  • Page 27: De (Door Open Error)

    Door Open Error (dE) Close the door fully. Is the door closed? Is the Door assembly in line with door switch ? Scratch by Latch Hook Touching Lift up & Close the door. If the dE is displayed, Replace the Door Bracket.

  • Page 28: Te (Thermistor (Heating) Error)

    Thermistor (Heating) Error (tE) Is the connected correctly to Connector Reconnect or repair the Connector. and the and the Heater? Main PCB Thermistor Or replace the Harness. Is the alright ? Harness Heater for Washing Heater for Steam Replace the Thermistor. Is the resistance of the out of range 44 ~ Thermistor...

  • Page 29: Le (Motor Lock Error)

    Motor Locked Error (LE) [Pre Check] • Gentle wash cycles, such as Perm Press, Delicates, Hand Wash, and Wool/Silk should only be used for smaller loads. Because these cycles are more gentle in tumbling and spinning, putting too much in the drum can register an issue with the motor.
  • Page 30 Disassemble the Hall Sensor 1) Disassemble the hook of Hall Sensor by (-) driver. 2) Pull up Hall Sensor slowly as shown in picture. Caution If you disassemble by force,not following the directions, the hooks of stator(red circled) might break. Hence need change of stator assembly.

  • Page 31: Dhe (Dry Heater Error)

    Dry Heater Error (dHE) Is the Connector connected correctly to Reconnect or repair the Connector. and the Main PCB Dry Heater or Fan Motor? Or replace the Harness. Or is the Harness alright? Is the resistance of t.he out of range Thermistor Replace the Thermistor.

  • Page 32: Dry Heater Trouble

    Dry Heater Trouble Replace the Heater. After power off, is the resistance of out of Dry Heater range 33 ~ 37Ω? Replace the Thermostat. Thermostat closed ? When checking voltage between connectors(1,2) on drying, is the voltage AC 220-240V as the figure ? Replace the PWB assembly (main).

  • Page 33: Dry Fan Motor Trouble

    Dry Fan Motor Trouble Is the Connector connected correctly to Reconnect or repair the Connector. and the Main PCB Dry Heater Fan Motor Or replace the Harness. Or is the alright? Harness Replace the Dry Fan Motor. Are the resistance same between points? terminal V~U / U~W / W~V : 2~5Ω...

  • Page 34: Troubleshooting Other

    8. TROUBLESHOOTING WITHOUT ERROR CODES PE (Power Failure or no power) Is the Power Plug connected Reconnect firmly. Power Plug firmly to the power outlet? Check the fuse or And is the supply voltage reset the circuit breaker. 220~240V AC? Is Multi-plug socket used ? Don’t use Multi-plug...

  • Page 35: No Power

    No Power Is the Power Plug connected Reconnect firmly. Power Plug firmly to the power outlet? Check the fuse or And is the supply voltage reset the circuit breaker. 220~240V AC? Is Multi-plug socket used ? Don’t use Multi-plug socket. socket for Single Plug washing machine.

  • Page 36: Vibration & Noise During Spin

    Vibration & Noise During Spin Have all the and the Transit Bolts Base Packing Remove the Transit Bolts been removed? Base Packing. Washer Base Packing Packing Support Refer to INSTALLATION. (Page 8)

  • Page 37: Detergent & Softener Does Not Flow In

    Detergent & Softener does not flow in Refer to [Water Inlet Error (IE)] Is water supplied? (page 26) Is detergent & softener put in the correct compartment of the drawer? Only softener Put it in the Correct Position. Main Wash Pre Wash (Powder) (Powder)

  • Page 38: Water Leak

    Water Leak 1. Water Leak from Dispenser Is the Damaged or warped? Dispenser Tray Replace the Dispenser Tray. Is detergent & softener put in Put it in the Correct Position. the correct compartment of the drawer? Only softener Reference (Amount of Detergent & Softener) Main Wash Pre Wash Detergent...
  • Page 39 2. Water Leak from Dispenser Are the gasket (seal) Clean the periphery of regularly. Gasket Door and door cleaned regularly? Is the door or gasket damaged? Replace the damaged parts. 3. Unknown – Water on Floor Are the inlet hoses loose or cracked/split? Replace the Inlet Hoses.

  • Page 40: Part Inspection

    9. PART INSPECTION ARNING When Resistance (Ohm) checking the Component, be sure to turn the power off, and do voltage discharge sufficiently. -1. FILTER ASSEMBLY (LINE FILTER) iring Circuit in the MAIN P B / iring Diagram diagram Test points Result Test Points Result...

  • Page 41: 9-2.Door Lock Switch Assembly

    -2. DOOR LOCK SWITCH ASSEMBLY iring Circuit in the MAIN P B / iring Diagram diagram MAIN P B MICOM Relay Relay Common terminal of Valve Door switch Function The Door Lock Switch Assembly consists of Heating PTC, a Bimetal, a Protection PTC, and a Solenoid.
  • Page 42 points " " Result...

  • Page 43: 9-3.Stator Assembly

    -3. STATOR ASSEMBLY iring Circuit in the MAIN P B / iring Diagram diagram MAIN P B NA1NA MICOM Function The DD motor can be driven from stopped to maximum speed in infinite steps in either direction. There are 36 poles on the stator; 12 permanent magnets spaced around the rotor. There are no brushes to wear out.
  • Page 44 he hall sensor determines the speed and direction of the motor. It also can read that the load is off balance when the drum speed fluctuates. est point - Voltage esting Hall Sensor at Stator Result (Hall Sensor) (2) (4) (1) (3) (5) If measuring voltage from the Main PCB Assembly to the Hall Sensor, use the following steps:...
  • Page 45 7. To measure output signal voltage from the hall sensor, carefully move test leads to terminals to 4, blue and gray. Slowly rotate motor rotor by hand. You should read a pulsing 0 Vdc. If 0 Vdc is measured from to 4, move lead on blue wire to red wire, terminal 2.

  • Page 46: 9-4.Pump Motor Assembly

    -4. PUMP MOTOR ASSEMBLY iring Circuit in the MAIN P B iring Diagram diagram MAIN P B Rg Cg 1 2 3 1 2 3 1 2 3 4 1 2 3 3 2 1 MICOM 3 2 1 CONNECTOR Pump Driving circuit DRAIN PUMP...

  • Page 47: 9-5.Inlet Valve Assembly

    -5. INLET VALVE ASSEMBLY iring Circuit in the MAIN P B diagram MICOM Inlet valve driving circuit CONNECTOR INLET iring Diagram VALVE MIAN P B COMMON GY VT BL (BK) 1 2 RD MAIN BLEACH VALVE INLET VALVE * All load circuits in wiring diagram are all the same. Function Depending on the cycle and water temperature, the controller will energize the hot or cold water valve solenoids to meet the selected water temperature.

  • Page 48: Disassembly Instructions

    10. DISASSEMBLY INSTRUCTIONS Remove the power cord from the outlet before disassembling or repairing the unit. CONTROL PANEL ASSEMBLY Screws 1 Unfasten the screws from the parts displayed in the fig. 2 Disassemble the top plate assembly by sliding it back and then lifting it up. 3 Pull the drawer panel assembly out.
  • Page 49 PWB ASSEMBLY(MAIN) 1 Unscrew four screws. 2 Disassembly back cover assembly. 3 Unscrew the screw. 4 Pull the PWB assembly in direction of red arrow. 5 Disassembly PWB like the picture. DISPENSER ASSEMBLY 3 Two screws are unscrewed. 4 Clamp 1 The plate assembly(Top) are disassembled.
  • Page 50 INLET VALVE 1 Disconnect the wiring connector. 2 Remove the valve by two screws of the valve holder. When reconnecting the connector VALVE (STEAM) VIOLET/BLACK-BLACK VALVE (PRE-WASH) WHITE/BLACK-BLACK VALVE (NORMAL-WASH) GRAY/BLACK • Rating : 220/240V 50/60Hz • Resistant : 3.5~4.5kΩ DOOR 1 Open the door completely.
  • Page 51 CABINET COVER Two screws are unscrewed 1 The plate assembly(Top) is disassembled. 2 Pull out the drawer and unscrew 2 screws. 3 Lift the side the Control Panel Assembly and pull it out Pull the drawer to arrow direction. 1 Two screws are unscrewed. 2 Push out PANEL ASSEMBLY, CONTROL after Push the hook( ) below.
  • Page 52 4 Lift and separate the cabinet cover. NOTE: When assembling the CABINET COVER, connect the Door S/W connector. SWITCH ASSY, DOOR LOCK 1 Two screws are unscrewed and disassembly cabinet cover. 2 The Door Lock S/W is disconnected form the wiring connector and the strap.
  • Page 53 ROTOR ASSEMBLY, STATOR ASSEMBLY, FRICTION DAMPER 1 Remove the back cover. 2 After loosening the bolt, Rotor, pull out the rotor. 1 Remove the 6 bolts from the stator. 2 Disconnect the 2 connectors. Motor Stator Hall Sensor U V W Common •...
  • Page 54 PUMP 1 Disassembly Top Plate, Control Panel Assembly, Drawer Panel Assembly, Cabinet Cover Assembly, Lower Cover Assembly. Bellows 2 Remove pump outlet hose. Circulation Hose 3 Remove tub pump bellows. Pump 4 Remove cap (remaining Hose). Hose 5 Disconnect the wiring. 6 Unscrew three screws from the cabinet.
  • Page 55 WHEN FOREIGN OBJECT STUCK BETWEEN DRUM AND TUB 1 Remove washing heater. 2 Remove the foreign object(wire,coin,etc) by inserting long bar in the hole. SWITCH ASSEMBLY, SAFETY 1 Disassembly lower cover assembly. 2 Disconnect the wiring connector. First, Press hook and turn the safety switch assembly.

  • Page 56: Exploded View And Part List

    11. EXPLODED VIEW AND PART LIST 11-1. THE PART LIST OF CABINET ASSEMBLY A154 A140 A110 A103 A102 A153 A106 A104 A152 A151 A150 A101 A141 A131 A100 A430 A130 A440 A134 A410 A135 A455 A300 A133 A310 A450 A303 A200 A485 A201...
  • Page 57 11-2. THE EXPLODED VIEW OF CONTROL PANEL & DISPENSER ASSEMBLY F300 F330 F321 F340 F462 F160 F432 F225 F430 F220 F441 F120 F215 F110 F210...
  • Page 58 10-3. THE EXPLODED VIEW OF DRUM & TUB ASSEMBLY K361 K143 K350 K360 K123 K351 F140 K411 K121 K122 K410 K125 F310 F464 K146 F320 K320 F466 K111 M105 K110 K141 K140 K105 K115 K410 K130 K135 K610 K512 K510 K560 K611 K530...
  • Page 59 11-4. THE EXPLODED VIEW OF DRYER M100 M240 M130 M120 M111 M216 M110 M210 M230 M215 M101 M220 M140...
  • Page 60 P/No.: MFL62645332...
