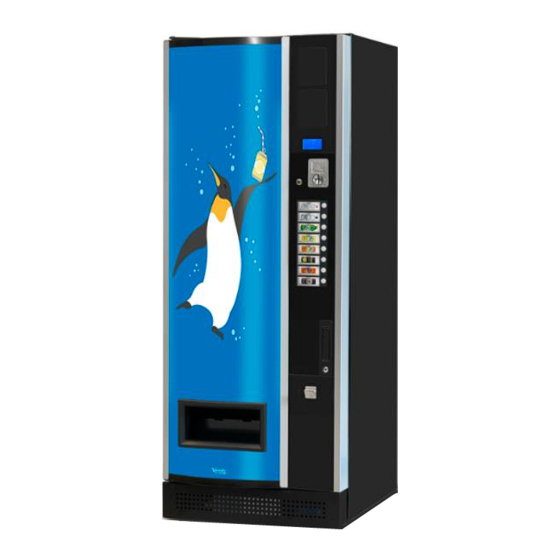

SandenVendo SVE C36-XS User And Maintenance Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
User and maintenance manual
Narrow Stack
Extra Small
Small
Medium
Large
SandenVendo Europe S.p.A.
Regione Cavallino,2
15030 Coniolo (AL) - Italy
Tel. +39 0142.335111
Fax +39 0142.562348
E-mail:
website:
SVE C36-XS
SVE C47-S
SVE C48-M
SVE C4X-L
marketing@sandenvendo.it
www.sandenvendo.com

Advertisement

loading

Related Manuals for SandenVendo SVE C36-XS

Summary of Contents for SandenVendo SVE C36-XS

  • Page 1 User and maintenance manual Narrow Stack Extra Small SVE C36-XS Small SVE C47-S Medium SVE C48-M Large SVE C4X-L SandenVendo Europe S.p.A. Regione Cavallino,2 15030 Coniolo (AL) - Italy Tel. +39 0142.335111 Fax +39 0142.562348 E-mail: marketing@sandenvendo.it website: www.sandenvendo.com...
  • Page 2 E-08940 Cornella (Barcelona) - Spain Tel. : +34 (0)93 4741555 Fax : +34 (0)93 4741842 e-mail: info@sandenvendo.es SandenVendo Belgium Branch of SandenVendo GmbH Avenue A. Van Oss 1 - Boîte 21 1120 Bruxelles - Belgium Tel.: +32 (0)2 2682595 Fax :+32 (0)2 2682862 e-mail: info@sandenvendo.be...
  • Page 3 5.5.1 Daily Cleaning ........................44 5.5.2 Weekly Cleaning ........................ 44 5.5.3 Monthly Cleaning ........................ 44 5.5.4 Yearly Cleaning ........................45 5.6 Assembly / Disassembly for Maintenance ................. 45 Page 1 of 54 TRANSLATION OF THE ORIGINAL INSTRUCTIONS © SandenVendo Europe SpA...
  • Page 4 6.4 Refrigerant System Errors ......................50 7 OUT OF ORDER OPERATION ................... 54 7.1 Disposal............................ 54 7.2 Person in charge of disposal ..................... 54 7.3 Sanctions..........................54 Page 2 of 54 TRANSLATION OF THE ORIGINAL INSTRUCTIONS © SandenVendo Europe SpA...
  • Page 5 This manual is an integral part of the machine and must therefore be kept intact and available to hand for the machine’s entire productive life. Any other document sent by SandenVendo is to be attached to the manual to form a complete dossier of the automatic vending machine.
  • Page 6 Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. © SandenVendo Europe SpA Page 4 of 54...
  • Page 7 It is the responsibility of the purchaser to make sure that the maintenance personnel are trained and aware of all the information and instructions indicated in the manual. © SandenVendo Europe SpA Page 5 of 54...
  • Page 8 Instructions for the installer, maintenance technician and final user 1.4 Manufacturer SandenVendo Europe in Europe has been making significant advancements in the vending industry for many decades and is a powerful partner for excellence in quality, reliability and service. SandenVendo Europe are a “one-stop shop supplier”, offering a wide variety of vending...
  • Page 9  Damage which may be caused, directly or indirectly, by persons, things or animals  Damage deriving from labour linked with the installation, connection to the main supplies.  Improper use of the machine. © SandenVendo Europe SpA Page 7 of 54...
  • Page 10 - Use of unoriginal spare parts - Execution of changes unforeseen/unauthorized by the manufacturer - Improper use of the machine - Connection to inadequate supply systems and not in conformity with the regulations in force © SandenVendo Europe SpA Page 8 of 54...
  • Page 11  Use a differentiated protection system.  If the power cable is damaged, it must be replaced by the manufacturer or by one of its technical support personnel or by a qualified electrician. © SandenVendo Europe SpA Page 9 of 54...
  • Page 12  WARNING: Do not damage the refrigerant circuit.  WARNING: In order to reduce flammability hazards the installation of this appliance must only be carried out by a suitably qualified person.  Original instruction in Italy. © SandenVendo Europe SpA Page 10 of 54...
  • Page 13 SandenVendo Europe S.p.A. recalls that the technical and performance of products can change without notice. “SandenVendo Europe S.p.A.”. reserves the right of making changes on their vending machines without any advice; moreover they declare that the vendors listed in this manual are in conformity with the following directives: 2006/42/CE (EC markings) and 2004/1935/CE.
  • Page 14 Symbol ISO 7010W021 Warning Risk of fire / flammable materials Warning Danger Compulsory Indicates the danger of electric shocks and mechanical risks. Caution The vending machine must be fitted with a grounding system. © SandenVendo Europe SpA Page 12 of 54...
  • Page 15 Lo smaltitore al ricevimento di un'apparecchiatura con indicato il simbolo del cassone barrato ha l’obbligo, prima di smaltirla, di selezionare i rifiuti RAEE e di renderli eventualmente disponibili ad un eventuale recupero. Final inspection certificate. © SandenVendo Europe SpA Page 13 of 54...

  • Page 16: Vending Machine Identification

    2 VENDING MACHINE IDENTIFICATION 2.1 Identification Plate Each SandenVendo vending machine is identified by a model name and a specific serial number, which can be found on the plate, located on the outside on the back of the vending machine and inside above the drawer.
  • Page 17 S = Small M = Medium L = Large Digit indicating the quantity of Narrowstack columns that the model has. 6, 7, 8 e 10 (X = 10) SVE = Sanden Vendo Europe © SandenVendo Europe SpA Page 15 of 54...
  • Page 18 WARNING: Don’t use electrical and mechanical device, unless they are of the type recommended by the manufacturer. Fig. 2.1 © SandenVendo Europe SpA Page 16 of 54...
  • Page 19 14. Support for Products 15. Product Exit Area 16. Refrigerant System Cover 17. Coin Box 18. Coinmech 19. Control Panel 20. Coin Return Motor 21. Board 22. Upper Interior Door 23. Door © SandenVendo Europe SpA Page 17 of 54...
  • Page 20 Attention! Unpacked vending machines are not stackable. MODEL A (mm) B (mm) C (mm) GROSS WEIGHT (Kg) 1960 1960 1960 1960 1030 © SandenVendo Europe SpA Page 18 of 54...
  • Page 21  Remove the wooden bases and install the feet as indicated in paragraph 3.2.1 The packaging materials must be disposed of respecting the environment.. SandenVendo declines all responsibility for damage caused by failure to observe the precautions listed in this section.
  • Page 22 » 2 Fuses 10A 250V » 12 screws » 2 Micro Activation Keys » Sheet A4 Declaration of Gas Conformity » Sheet A4 EC Declaration » Electrical Compatibility Test Sheet » 2 Keys for the lock © SandenVendo Europe SpA Page 20 of 54...
  • Page 23 Make sure that the ventilation grilles are always free and not obstructed by dust or similar to ensure perfect ventilation of the refrigeration unit. Attention! Do not damage the refrigerant circuit. SandenVendo declines all responsibility for inconveniences due to non compliance with the positioning rules. 3.3.1 Installation environment features Attention! The appliance must be installed in environments / rooms where the temperature does not exceed 32°C and less than 10°C;...
  • Page 24 Attention! SandenVendo Europe declines all responsibility for damages caused to people or things due • Incorrect installation. • Improper power supply.
  • Page 25 Max 110° MODEL A (mm) B (mm) C (mm) D (mm) E (mm) F (mm) G (mm) 1310 1285 1565 1535 1045 1050 1665 1630 1180 1215 1015 1830 1785 1400 1115 © SandenVendo Europe SpA Page 23 of 54...
  • Page 26 » For vending machine with the Outdoor Kit, which have a leakage current that can exceed 10mA, it is recommended to install a differential current device (RCD) that has a nominal operating deferential current that does not exceed 30mA © SandenVendo Europe SpA Page 24 of 54...
  • Page 27 Bracket for fixing to the ground Hex Nut Metal spacer Attention! SandenVendo does not assume responsibility for any damage caused by the lack of consulting this instructions. All the operations must be done by authorized personnel. © SandenVendo Europe SpA Page 25 of 54...
  • Page 28 Disconnect the power before making any electrical connections, as you may cause damage to the coin mechanism and/or control board. Attention! These operations are not necessary if using the coin mechanism supplied by SandenVendo Europe Spa. Hook the coin mechanism on the 3 screws (E) positioned on the coin mechanism support (F).
  • Page 29  After connecting the harness p/n 141427, the coinmech can be connected;;  Use the 9-way connector and the 15-way connector of the coinmech by connecting them with the relative counterparts of the wiring harness p/n 141427. © SandenVendo Europe SpA Page 27 of 54...
  • Page 30 Selection 6 ~ Col. 6 Selection 7 ~ Col. 7 Selection 8 ~ Col. 8 Selection 9 ~ Col. 9 Selection 10 ~ Col. 10 Consult the programming manual to change combinations. © SandenVendo Europe SpA Page 28 of 54...
  • Page 31 Can 0.33L [Ø66mm, H116mm] Sleek Can 0.33L [Ø57.5mm, H146mm] SandenVendo reserves the right to approve the vend of all products which are not perfectly cylindrical only after testing them. SandenVendo is not responsible for uses and applications of the vending machine that are not covered in the explanations in this manual.
  • Page 32 Attention! The golden key must not be used for daily use! In fact, a regular and prolonged use of this key can damage the lock internally making it unusable. © SandenVendo Europe SpA Page 30 of 54...
  • Page 33 Therefore all the operations that require the vending machine with the door open must only be carried out by qualified personnel who are aware of the specific risks that this condition entails. © SandenVendo Europe SpA Page 31 of 54...
  • Page 34 J7. Communication <--> RS485 to SVE03 J17. LED J8. Communication USB J18. Board SVE01 Alimentation J9. Analog (ambient probe / evaporator probe) J19. General purpose input J10. Display J20. Coin return motor © SandenVendo Europe SpA Page 32 of 54...
  • Page 35 4 Shelf Attention! SandenVendo is not responsible for products not properly delivered from their vend system if they have not been previously tested by their technicians and at the end of the test delivered all adjustment to be effected on mechanism (set up sheet).
  • Page 36 To adjust the baffle to the correct position, work as follows:  Measure the height of the product you wish to deliver in that specific column;  Position the baffle at a distance of “Product Height+10 mm” starting from the front gate. © SandenVendo Europe SpA Page 34 of 54...
  • Page 37  Set 4 on the desired selection into the submenu “Set Select Depth”  Only Narrowstack 4D: All 4 delivery shelves should be disconnected, independently operate one from the other  Fix the depth of the rear spacer (baffle) © SandenVendo Europe SpA Page 35 of 54...
  • Page 38 AFFLE Attention! For some product formats (for example 0.25 Lt. cans) the column requires spacers or other special kits: in this case contact SandenVendo Europe or the authorized service center for the correct setting. You can possibly send your product to the company: the tests necessary for the exact adjustment will be carried out.
  • Page 39 In any case, for any particular needs it is possible to contact the technical assistance service that will assist you in various problems. © SandenVendo Europe SpA Page 37 of 54...
  • Page 40 No alarm present (e.g. high/low temperature) or in (before the time immediate or the event of alarms from an ‘A7’ elapses) delayed alarm immediate or delayed external from external digital input. digital input © SandenVendo Europe SpA Page 38 of 54...
  • Page 41 Shows temperature in range -50 to +150°C. The temperature is displayed with resolution to the DISPLAY tenths between –19.9 and + 19.9 °C. The display of the tenths can be disabled by setting a parameter. © SandenVendo Europe SpA Page 39 of 54...
  • Page 42 HACCP alarms (‘HA’, ’HAn’, ’HF’, ’HFn’). SET+UP/AUX: if pressed together for more than 5 seconds, starts the report printing procedure (if the controller is connected to the printer interface). © SandenVendo Europe SpA Page 40 of 54...
  • Page 43 • indicates that the door is open, or that the door switch is not working DISPLAY BLINKS correctly • it is activated when the door remains open for more than one hours © SandenVendo Europe SpA Page 41 of 54...

  • Page 44: Maintenance

     Never use pressured water cleaner or water jets.  Never clean with blades or pointed objects. Attention! SandenVendo declines all responsibility for damage caused by failure to observe the precautions contained in the manual and the current regulations. © SandenVendo Europe SpA...
  • Page 45  Periodically check the service cord. If the cable or connector is damaged or worn, it must be replaced with a service cord of the same type as the original delivered together with the vending machine. © SandenVendo Europe SpA Page 43 of 54...
  • Page 46 Condenser and evaporator must be kept clean for optimal operation. Clean the condenser every three months with a vacuum cleaner and a brush, make sure that all the fins and hoses are free and clean. © SandenVendo Europe SpA Page 44 of 54...
  • Page 47 » Insert the new gasket in the seat on the door profiles; » Fit the gasket well even in the corners, where it will be more difficult. The gasket is fixed interlocking in the profiles on the door. © SandenVendo Europe SpA Page 45 of 54...
  • Page 48 » To replace the micro, remove the two screws that secure it. « Follow the instructions to reconnect the cables correctly. Green Connector White Connector » Perform tests with new components; » Mount the lower inner door, close the upper inner doors. © SandenVendo Europe SpA Page 46 of 54...

  • Page 49: Troubleshooting

    Replace the fuses on the transformer box. © SandenVendo Europe SpA Page 47 of 54...
  • Page 50 Defective board Replace Check that the column arrangement The column marks sold-out even The products are beyond the sold- is correct. when it is full. out sensor Check if the micro sold-out works. © SandenVendo Europe SpA Page 48 of 54...
  • Page 51 Check coin tubes Banknote Reader does not accept Check the banknote device manual banknotes or replace it. Insufficient coins in the tubes of the Check payment settings, fill the coinmech coinmech tubes. © SandenVendo Europe SpA Page 49 of 54...
  • Page 52 Check the fan relay, check the connection to the temperature controller The temperature setting is not Set the desired temperature (ref. correct. Programming Manual). Not enough refrigerant in system. Replace cooling unit © SandenVendo Europe SpA Page 50 of 54...
  • Page 53 Check the relay startup Insulate and eliminate expensive Short circuit in other components electrical components until you find the short. Dirty condenser. Problems with the motor or Hot compressor condenser fan. Insufficient ventilation. © SandenVendo Europe SpA Page 51 of 54...
  • Page 54 Check integrity of harness and Temperature too cold Defective temperature sensor sensor. Check paragraph on how to set the Temperature set too cold control unit. Defective relay Defective control unit Replace © SandenVendo Europe SpA Page 52 of 54...
  • Page 55 Defective compressor valves Replace Only technicians from SandenVendo Europe or authorized personnel may carry out operations that require the machine’s lower protection to be opened, because of possible risk of electric shocks and moving mechanical parts. © SandenVendo Europe SpA...
  • Page 56 , before disposing of it select the WEEE waste and make it available for collection. 7.3 Sanctions The sanctions in case of the illegal DISPOSAL of WEEE waste are indicated in the national decrees related to the Directive ROHS 2011/65/UE, Directive WEEE 2012/19/UE. © SandenVendo Europe SpA Page 54 of 54...
  • Page 57 Revisions manual Revision Date Change 03/02/2020 Manual Creation 30/07/2020 Update Service Centres page Update Point: 2.3 – 2.4 – 3.3.2 – 3.3.2.1 – 3.3.3 – 3.3.4 – 4.2.1 Added Point: 4.2.5.1.4...

This manual is also suitable for:

Sve c47-sSve c48-mSve c4x-l
