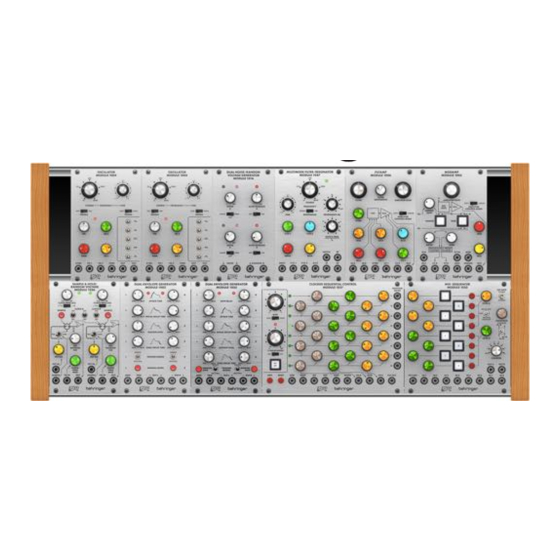

Behringer 2500 Manual

Behringer 2500 Manual

Hide thumbs Also See for 2500:

Advertisement

Quick Links

Download this manual

Advertisement

loading

Related Manuals for Behringer 2500

Summary of Contents for Behringer 2500

  • Page 2 CONTENTS Power Connection Installation Dual Envelope Generator Module 1003 Oscillator Module 1004 Modamp Module 1005 Filtamp Module 1006 Dual Noise / Random Voltage Generator Module 1016 Clocked Sequential Control Module 1027 Dual Envelope Generator Module 1033 Sample & Hold / Random Voltage Module 1036 Multimode Filter / Resonator Module 1047 Mix-Sequencer Module 1050...
  • Page 3 Power Connection Connect end P1 to the module socket Connect end P2 to the power supply The unit comes with the required power cable for connecting to a standard Eurorack power supply system. Follow these steps to connect power to the module. It is easier to make these connections before the module has been mounted into a rack case. 1.

  • Page 4: Installation

    Installation The necessary screws are included with the module for mounting in a Eurorack case. Connect the power cable before mounting. Depending on the rack case, there may be a series of fixed holes spaced 2 HP apart along the length of the case, or a track that allows individual threaded plates to slide along the length
...
  • Page 5 DUAL ENVELOPE GENERATOR MODULE 1003...
  • Page 6 Controls ATTACK TIME - Adjusts the rate at MANUAL GATE - Press and hold to which the envelope reaches its start the envelope cycle. peak voltage. SIGNAL LED - Indicates when a gate signal is present. Patchpoints INITIAL DECAY TIME - Adjusts the rate at which the envelope decays GATE - Connect a gate signal to from its peak to its designated...
  • Page 7 OSCILLATOR MODULE 1004...
  • Page 8 Controls 1. COARSE FREQUENCY - Sets the 6. PW knob - Manually control the frequency from 0.03 to 32 Hz in the pulse width for the pulse waveform. low (LFO) range, or from 15,5 Hz to 7. FM 2 knob - Attenuates the signal 16 kHz in the high (audio) range, connected to the FM 2 input.
  • Page 9 MODAMP MODULE 1005...
  • Page 10 Controls supply the audio signals to the IN A 1. AMPLIFIER GAIN - This knob 6. RATIO - Use this knob in MOD mode and IN B inputs to be modulated. controls the VCA’s gain and final to offset the tune control voltage that output volume at the OUT jack.
  • Page 11 FILTAMP MODULE 1006...
  • Page 12 Controls 1. FILTER - Adjusts the cutoff 9. EXPONENTIAL/LINEAR switch - 16. CV 2 - Connect a voltage that can be frequency of the filter. Select between a linear or more used to control the VCF frequency or natural exponential VCA response. VCA level.
  • Page 13 DUAL NOISE / RANDOM VOLTAGE GENERATOR MODULE 1016...
  • Page 14 Controls 1. LEDs - Indicate whether the associated knob is active. 2. NOISE knob - Attenuates the output of the noise generator 3. SLOW RANDOM knob - Attenuates the output of the slow random voltage generator. 4. WHITE/PINK/OFF switch - Selects between white or pink noise or, disengage the output.
  • Page 15 CLOCKED SEQUENTIAL CONTROL MODULE 1027...
  • Page 16 Controls 1. CH A / CH B / CH C SEQUENTIAL 14. OFF - Use this jack to route external CLK OUT jack only, making this control COLUMNS - Use the knobs to set the very useful for triggering other modules trigger signals to disable the step counter control voltage output for each step.
  • Page 17 DUAL ENVELOPE GENERATOR MODULE 1033...
  • Page 18 Controls 1. GATE DELAY - Delays the envelope 7. TRIGGER MODE - Selects between cycle up to 3 seconds from the initial single mode, where only the gate gate input. signal controls the envelope, or multiple mode, which uses a positive 2.
  • Page 19 SAMPLE & HOLD / RANDOM VOLTAGE MODULE 1036...
  • Page 20 Controls 1. LED - Indicates that clock A or B is 7. INT RANDOM SIG - Adjusts the level engaged. of the internal random signal generator, which can be used instead 2. CLOCK FREQ - Sets the clock of or in addition to an external signal. frequency value.
  • Page 21 MULTIMODE FILTER / RESONATOR MODULE 1047...
  • Page 22 Controls narrower and sharper, which can help which the notch at the point set by the 1. COARSE - Use this knob to dial in the you to focus in on narrow frequency NOTCH FREQ/fc knob. general frequency area you want for the bands.
  • Page 23 Patchpoints 10. INPUT - Use this jack to route audio 14. LP - This jack sends out the signal signals into the module via cables from the low-pass filter via cables with 3.5 mm connectors. You can with 3.5 mm connectors. also route in a keyboard gate signal to “ring”...
  • Page 24 MIX-SEQUENCER MODULE 1050...
  • Page 25 Controls CHANNEL LEVEL knobs - Each knob controls is enabled, this knob is master to all 8 input versus a single group of eight channels routed to the mix level for its respective mixer channel, and channels. both outputs). In the left position, the sequencer the knobs are color-coded into two groups four will count through the channels in two parallel EXT ADV - Use this input to route in gate or clock...
