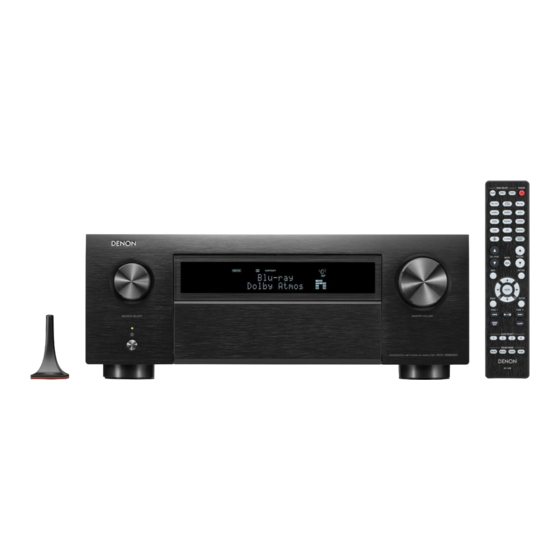

Page 1 Contents Connections Playback Settings Tips Appendix AVC-X6800H INTEGRATED NETWORK AV AMPLIFIER Owner’s Manual Front panel Display Rear panel Remote Index...
Page 2 Contents Connections Playback Settings Tips Appendix Connections Accessories Inserting the batteries Speaker installation Operating range of the remote control unit Connecting speakers Features Before connecting speakers High quality sound Connecting speakers to the speaker terminals High performance Connecting an external power amplifier Easy operation Speaker configuration and “Amp Assign”...
Page 3 Contents Connections Playback Settings Tips Appendix Playback Connecting a TV Connection 1 : TV equipped with an HDMI connector and compatible with the ARC / eARC Basic operation Connection 2 : TV equipped with an HDMI connector and Turning the power on incompatible with the ARC / eARC Selecting the input source Connecting a playback device...
Page 4 Contents Connections Playback Settings Tips Appendix Listening to Internet Radio Convenience functions Listening to Internet Radio Playing back HEOS Favorites Playing back files stored on a PC or NAS Adding to HEOS Favorites Playing back files stored on a PC or NAS Deleting a HEOS Favorites Getting the HEOS App Adjusting the audibility of dialog and vocals (Dialog Enhancer)
Page 5 Contents Connections Playback Settings Tips Appendix Selecting a sound mode Remote lock function Selecting a sound mode Disabling the sensor function of the remote control unit Direct playback Enabling the remote sensor function Pure Direct playback Web control function Auto surround playback Controlling the unit from a web control Description of sound mode types Playback in ZONE2/ZONE3 (Another room)
Page 6 Contents Connections Playback Settings Tips Appendix Video Manual Setup HDMI Setup Speaker Layout Output Settings Amp Assign On-Screen Display Front/Center/Surround/Surround Back/Front Wide Screensaver Height Speakers 4K/8K Signal Format Layout HDCP Setup Front Layout / Middle Layout / Rear Layout / TS/CH Inputs Subwoofers Input Assign...
Page 7 Contents Connections Playback Settings Tips Appendix Distances HEOS Levels You have not signed in Crossovers You have already signed in Speaker Preset General Advanced Language Subwoofer Output Owner's Manual Low Pass Filter Distribution Bluetooth Transmitter Front Speaker ZONE2 Setup / ZONE3 Setup 2ch Playback Zone Rename Tactile Transducer...
Page 8 Contents Connections Playback Settings Tips Appendix Tips Resetting factory settings Resetting network settings Tips Factory Restore Troubleshooting Appendix Power does not turn on / Power is turned off Operations cannot be performed through the remote control unit About HDMI Display on this unit shows nothing Video conversion function No sound comes out Playing back a USB memory devices...
Page 9 Playback Settings Tips Appendix Thank you for purchasing this Denon product. To ensure proper operation, please read this owner’s manual carefully before using the product. After reading this manual, be sure to keep it for future reference. Accessories Check that the following parts are supplied with the product.
Page 10 Contents Connections Playback Settings Tips Appendix Inserting the batteries NOTE 0 To prevent damage or leakage of battery fluid: 0 Do not use a new battery together with an old one. Remove the rear lid in the direction of the arrow and 0 Do not use two different types of batteries.
Page 11 Contents Connections Playback Settings Tips Appendix Features Speaker Virtualizer (v p. 177) High quality sound Speaker Virtualizer enables you to access a more immersive entertainment experience from traditional channel based speaker Powerful 11-channel Amplifier with the Latest Home Cinema layouts through digital signal processing including Dolby Atmos height Specs virtualization and surround virtualization.
Page 12 Contents Connections Playback Settings Tips Appendix IMAX Enhanced (v p. 321) Discrete subwoofers and Audyssey Sub EQ HT™ (v p. 206) This IMAX Enhanced product have met stringent performance The unit has four subwoofer output capability and can adjust the level standards established by IMAX and DTS in order to create a consistent and delay for each subwoofer individually.
Page 13 Fully tunable to your preference. You can purchase a Dirac Live license key to unlock the functionality. Visit www.dirac.com/denon/ Dirac Live Bass Control Upgradability Dirac Live Bass Control is a technology to manage low-frequency channel routing from the signal to the playback channels (speakers) of your audio device.
Page 14 Contents Connections Playback Settings Tips Appendix AURO-3D This unit is equipped with an AURO-3D decoder. With AURO-3D, Front Height (FHL + FHR), Surround Height (SHL + SHR) and Top Surround (TS/optional) are added to a conventional 5.1-channel system to achieve a natural and realistic sound field that is three-dimensional and fully immersive. You will be able to fully enjoy AURO-3D playback if you properly place the speakers for AURO-3D.
Page 15 Contents Connections Playback Settings Tips Appendix Digital video processor upscales 1080p / 4K to 8K High performance 8K 60Hz input/output supported 8K Ultra HD up scaling 1080p/4K 60Hz 4K 120Hz 4K 120Hz This unit is equipped with a 8K video upscaling function that allows 1080p/4K video to be output via HDMI at 8K (7680 ×...
Page 16 Contents Connections Playback Settings Tips Appendix HDMI connections enable connection to various digital AV The device is equipped with a AirPlay ® function in addition to devices (7 inputs, 3 outputs) network functions such as Internet radio etc. (v p. 117) For connection to a broad range of digital sources, this unit features 7 You can enjoy a wide variety of content, including listening to Internet HDMI inputs, that lets you quickly and conveniently connect a...
Page 17 Contents Connections Playback Settings Tips Appendix Playback of DSD and FLAC files via USB and networks Connect Bluetooth headphones This unit supports the playback of high resolution audio formats such as This unit can transmit Bluetooth so you can enjoy audio wirelessly DSD (5.6 MHz) and FLAC 192 kHz files.
Page 18 【MAIN ZONE】【ZONE2】/【ZONE3】 The Denon AVR Remote app gives you full control of this unit as well as access to its setup menu for detailed adjustments from your phones or You can select and play back the respective inputs in MAIN ZONE, tablets.
Page 19 Contents Connections Playback Settings Tips Appendix HEOS provides streaming music from your favorite online music Easy operation sources “Setup Assistant” provides easy-to-follow setup instructions First select the language when prompted. Then simply follow the instructions displayed on the TV screen to set up the speakers, network, etc.
Page 20 Contents Connections Playback Settings Tips Appendix Part names and functions Front panel For details, see the next page. Front panel Display Rear panel Remote Index...
Page 21 Contents Connections Playback Settings Tips Appendix C SOURCE SELECT knob This selects the input source. (v p. 88) D Remote control sensor This receives signals from the remote control unit. (v p. 10) E Display This displays various pieces of information. (v p. 24) F MASTER VOLUME knob This adjusts the volume level.
Page 22 Contents Connections Playback Settings Tips Appendix With the door open E STATUS button Each press of this switches the status information that is shown on the display. r t y u F Information button (INFO) This displays the status information on the TV screen. (v p. 265) G Cursor buttons These select items.
Page 23 Contents Connections Playback Settings Tips Appendix L BACK button This returns to the previous screen. M ENTER button This determines the selection. N SETUP button This displays the menu on the TV screen. (v p. 173) O SETUP MIC jack This is used to connect the supplied Sound calibration microphone.
Page 24 Contents Connections Playback Settings Tips Appendix Display A Input signal indicators D HDMI output indicator These light according to the audio input mode settings of each input These light according to the HDMI output setting. When set to source. (v p. 202) “Auto(Dual)”, the indicators light according to connection status.
Page 25 Contents Connections Playback Settings Tips Appendix K Input/output signal channel indicators The channel for input/output signals is displayed according to the setting configured for “Channel Indicator”. (v p. 261) When “Channel Indicator” is set to “Output” (Default) These light when audio signals are being output from the speakers. When “Channel Indicator”...
Page 26 Contents Connections Playback Settings Tips Appendix Rear panel For details, see the next page. Front panel Display Rear panel Remote Index...
Page 27 Contents Connections Playback Settings Tips Appendix B Digital audio connectors (DIGITAL AUDIO) Used to connect devices equipped with digital audio connectors. “Connection 2 : TV equipped with an HDMI connector and incompatible with the ARC / eARC” (v p. 74) “Connecting a set-top box (Satellite tuner/cable TV)”...
Page 28 Contents Connections Playback Settings Tips Appendix G PRE OUT connectors Used to connect a subwoofer with built-in amplifier or an external power amplifier. “Connecting the subwoofer” (v p. 41) “Connecting an external power amplifier” (v p. 45) “Connecting 13.1-channel speakers” (v p. 62) “Connecting ZONE”...
Page 29 Contents Connections Playback Settings Tips Appendix M REMOTE CONTROL jacks Used to connect infrared receivers/transmitters in order to operate this unit and external devices from a different room. (v p. 84) N RS-232C connector Used to connect home automation controller devices fitted with RS-232C connectors.
Page 30 Contents Connections Playback Settings Tips Appendix Remote control unit A ZONE SELECT buttons These switch the zone (MAIN ZONE, ZONE2, ZONE3) that is operated through the remote control unit. “Playing different sources in MAIN ZONE, ZONE2 and ZONE3” (v p. 165) “Menu operations”...
Page 31 Contents Connections Playback Settings Tips Appendix G BACK button This returns to the previous screen. H System buttons These perform playback related operations. I HDMI OUT button This sets the HDMI monitor output. (v p. 195) J QUICK SELECT buttons (1 – 4) These call up settings registered to each button, such as input source, volume level and sound mode settings.
Page 32 Contents Connections Playback Settings Tips Appendix M POWER button (X) This turns the power on/off. “Turning the power on” (v p. 88) “Playback in ZONE2/ZONE3 (Another room)” (v p. 157) N VOLUME buttons (df) These adjusts the volume level. “Adjusting the volume” (v p. 89) “Adjusting the Volume in ZONE2/ZONE3”...
Page 33 Contents Connections Playback Settings Tips Appendix o Contents o Cables used for connections Provide necessary cables according to the devices you want to Speaker installation connect. Connecting speakers Connecting a TV Speaker cable Connecting a playback device Connecting a USB memory device to the USB port Connecting to a home network (LAN) Subwoofer cable Connecting an external control device...
Page 34 Contents Connections Playback Settings Tips Appendix Speaker installation Determine the speaker system depending on the number of speakers you Place the SURROUND left and right speakers an are using and install each speaker and subwoofer in the room. SL/SR equal distance to the left and right sides of the Speaker installation is explained using this example of a typical (Surround speaker left/ main listening position.
Page 35 Contents Connections Playback Settings Tips Appendix Place the FRONT HEIGHT left and right speakers FHL/FHR directly above the front speakers. Mount them as (Front height speaker close to the ceiling as possible and aim them left/right): towards the main listening position. Mount the TOP FRONT left and right speakers on TFL/TFR the ceiling slightly in front of your main listening...
Page 36 Contents Connections Playback Settings Tips Appendix SHL/SHR Place the SURROUND HEIGHT left and right (Surround height speakers directly above the surround speakers. speaker left/right): Place the CENTER HEIGHT speaker directly above the center speaker. Mount them as close to (Center height the ceiling as possible and aim them towards the speaker): main listening position.
Page 37 Contents Connections Playback Settings Tips Appendix About Dolby Atmos Enabled speakers Dolby Atmos Enabled speakers reflect the sound off the ceiling to allow the sound to come from over your head by using a special upward- pointing speaker that is placed on the floor. You can enjoy the Dolby Atmos 3D sound even in an environment where speakers cannot be installed on the ceiling.
Page 38 Contents Connections Playback Settings Tips Appendix o Recommended placement of the speakers Floor speakers Layout 0 This unit is compatible with Dolby Atmos and DTS:X which offers an even wider and deeper surround sensation. Use the following illustration as a guide for the installation location of 0 The “Speaker Virtualizer”...
Page 39 Contents Connections Playback Settings Tips Appendix Height speakers Layout Use the following illustration as a guide for the installation location of each height speaker. You do not have to match them exactly. Top middle / Top surround speaker Surround height speaker Top front speaker Top rear speaker Front height /...
Page 40 Contents Connections Playback Settings Tips Appendix Connecting speakers Here we connect the speakers in the room to this unit. Before connecting speakers NOTE NOTE 0 Disconnect this unit’s power plug from the power outlet before connecting the 0 Carry out the following settings when using a speaker with an impedance of 4 – 6 speakers.
Page 41 Contents Connections Playback Settings Tips Appendix o Connecting the speaker cables o Connecting the subwoofer Carefully check the left (L) and right (R) channels and + (red) and – Use a subwoofer cable to connect the subwoofer. Four subwoofers (black) polarities on the speakers being connected to this unit, and be can be connected to this unit.
Page 42 Contents Connections Playback Settings Tips Appendix o About the cable labels (supplied) for channel identification The channel display section for speaker terminals on the rear panel is color-coded for each channel to be identifiable. Attach the cable label corresponding to each speaker to each speaker cable. This makes it easy to connect the correct cable to the speaker terminals on the rear panel.
Page 43 Contents Connections Playback Settings Tips Appendix The supplied cable labels include labels for the speaker and HDMI cables. Attach a cable label to each cable that matches the speakers and HDMI devices being connected, as shown below. This makes it easy to identify and properly connect the cables between your components.
Page 44 Contents Connections Playback Settings Tips Appendix Connecting speakers to the speaker terminals You can connect 13.4 channel speakers to this unit. The speaker terminals can perform simultaneous playback for up to 11 channels. Use in combination with pre-out terminals if you wish to perform simultaneous playback for 13 channels.
Page 45 Contents Connections Playback Settings Tips Appendix Connecting an external power amplifier You can use this unit as a preamplifier by connecting an external power amplifier to the PRE OUT connectors. By adding a power amplifier to each channel, the realness of the sound can be further enhanced. Select the terminal to use and connect the device.
Page 46 Contents Connections Playback Settings Tips Appendix 0 Set “Amp Assign” to “Preamplifier” if connecting all channels to the Pre-out connectors using an external amplifier. (v p. 217) This stops operation of the internal power amplifier of this unit, reducing interference in the preamplifier created by the power amplifier. 0 You can use the “Connection”...
Page 47 Contents Connections Playback Settings Tips Appendix Speaker configuration and “Amp Assign” settings This unit has a built-in 11-channel power amplifier. In addition to the basic 5.1-channel system, a variety of speaker systems can be configured by changing the “Speaker Layout” settings to suit the application, such as 7.1-channel systems, bi-amp connections and 2-channel systems for multi-zone playback.
Page 48 Contents Connections Playback Settings Tips Appendix Playback speaker in each zone Connection “Amp Assign” settings page MAIN ZONE ZONE2 ZONE3 7.1-channel playback (bi-amp connection of front 2-channel 2-channel (Pre-out) 7.1ch (Bi-Amp) + ZONE2 speakers) (Speaker out) 2-channel 2-channel 7.1-channel playback 7.1ch + ZONE2/3 (Speaker out) (Speaker out)
Page 49 Contents Connections Playback Settings Tips Appendix Connecting 5.1-channel speakers This serves as a basic 5.1-channel surround system. For each speaker connection, refer to “Connecting speakers to the speaker terminals” (v p. 44) or “Connecting an external power amplifier” (v p. 45). 0 Set Speaker Layout in the menu as follows.
Page 50 Contents Connections Playback Settings Tips Appendix Connecting 7.1-channel speakers o Example layout when using surround back o Example layout when using front wide speakers speakers This 7.1-channel surround system is basic 7.1-channel system. This 7.1-channel surround system is the same as a basic 5.1-channel (Adding surround back speakers to basic 5.1-channel system) system but with front wide speakers.
Page 51 Contents Connections Playback Settings Tips Appendix o Example layout when using height speakers This 7.1-channel surround system is the same as a basic 5.1-channel system but with front height speakers. For each speaker connection, refer to the following. “Connecting speakers to the speaker terminals” (v p. 44) “Connecting an external power amplifier”...
Page 52 Contents Connections Playback Settings Tips Appendix Connecting 9.1-channel speakers o Example layout when using surround back and front wide speakers 0 Set Speaker Layout in the menu as follows. (v p. 216) 1. Center: Yes 2. Surround: Yes 3. Surround Back: 2 spkrs 4.
Page 53 Contents Connections Playback Settings Tips Appendix o Example layout when using surround back and one set of height speakers 0 Set Speaker Layout in the menu as follows. (v p. 216) 1. Center: Yes 2. Surround: Yes 3. Surround Back: 2 spkrs 4.
Page 54 Contents Connections Playback Settings Tips Appendix o Example layout when using front wide and one set of height speakers 0 Set Speaker Layout in the menu as follows. (v p. 216) 1. Center: Yes 2. Surround: Yes 3. Front Wide: Yes 4.
Page 55 Contents Connections Playback Settings Tips Appendix o Example layout when using two sets of height speakers 0 Set Speaker Layout in the menu as follows. (v p. 216) 1. Center: Yes 2. Surround: Yes 3. Height Speakers: 4 spkrs 4. Front Layout: Front Heightz 5.
Page 56 Contents Connections Playback Settings Tips Appendix o Example layout for AURO-3D 9.1 channel system This speaker configuration is optimized for AURO-3D playback. FHR FHL SHR SHL 0 Set Speaker Layout in the menu as follows. (v p. 216) 1. Center: Yes 2.
Page 57 Contents Connections Playback Settings Tips Appendix Connecting 11.1-channel speakers o Example layout when using surround back, Front Wide and one set of height speakers 0 Set Speaker Layout in the menu as follows. (v p. 216) 1. Center: Yes 2. Surround: Yes 3.
Page 58 Contents Connections Playback Settings Tips Appendix o Example layout when using surround back and two sets of height speakers 0 Set Speaker Layout in the menu as follows. (v p. 216) 1. Center: Yes 2. Surround: Yes 3. Surround Back: 2 spkrs 4.
Page 59 Contents Connections Playback Settings Tips Appendix o Example layout when using front wide and two sets of height speakers 0 Set Speaker Layout in the menu as follows. (v p. 216) 1. Center: Yes 2. Surround: Yes 3. Front Wide: Yes 4.
Page 60 Contents Connections Playback Settings Tips Appendix o Example layout when using three sets of height speakers 0 Set Speaker Layout in the menu as follows. (v p. 216) 1. Center: Yes 2. Surround: Yes 3. Height Speakers: 6 spkrs 4. Front Layout: Front Heightz 5.
Page 61 Contents Connections Playback Settings Tips Appendix o Example layout for AURO-3D 11.1 channel system This speaker configuration is optimized for AURO-3D playback. For each speaker connection, refer to the following. “Connecting speakers to the speaker terminals” (v p. 44) “Connecting an external power amplifier” (v p. 45) FHR FHL SHR SHL 0 Set Speaker Layout in the menu as follows.
Page 62 Contents Connections Playback Settings Tips Appendix Connecting 13.1-channel speakers This system, which is based on a 5.1-channel system, plays back up to 13.1-channels at the same time. o Example layout when using surround back, Front Wide and two set of height speakers FWR FWL Power amplifier For each speaker connection, refer to the following.
Page 63 Contents Connections Playback Settings Tips Appendix o Example layout when using surround back and three sets of height speakers TMR TML Power amplifier For each speaker connection, refer to the following. “Connecting speakers to the speaker terminals” (v p. 44) “Connecting an external power amplifier”...
Page 64 Contents Connections Playback Settings Tips Appendix o Example layout for AURO-3D 13.1 channel system This speaker configuration is optimized for AURO-3D playback. Power amplifier For each speaker connection, refer to the following. “Connecting speakers to the speaker terminals” (v p. 44) “Connecting an external power amplifier”...
Page 65 Contents Connections Playback Settings Tips Appendix Bi-amp connection o 9.1-channel playback (bi-amp connection of front speakers) This system plays back 9.1-channels. You can use the bi-amp connection for front speakers. Bi-amp connection is a method to connect separate amplifiers to the tweeter terminal and woofer terminal of a speaker that supports bi-amplification. This connection enables back EMF (power returned without being output) from the woofer to flow into the tweeter without affecting the sound quality, producing a higher sound quality.
Page 66 Contents Connections Playback Settings Tips Appendix o 5.1-channel playback : Bi-amp connection of front, center and surround speakers This system plays back 5.1-channels. You can use the bi-amp connection for all front, center and surround speakers. (Bi-Amp) (Bi-Amp) (Bi-Amp) (Bi-Amp) (Bi-Amp) Front panel Display...
Page 67 Contents Connections Playback Settings Tips Appendix Connecting 9.1-channel speakers: Second pair of front speakers This system enables switching playback between front speakers A and B as desired. (B) (A) (A) (B) SBR SBL FHR FHL z The height speakers, ceiling speakers and Dolby Atmos Enabled speakers can be connected to the HEIGHT1 speaker terminals.
Page 68 Contents Connections Playback Settings Tips Appendix Connecting multi-zone speakers o 9.1-channel playback (MAIN ZONE) + 2-channel playback (ZONE2 or ZONE3) This type of configuration plays back 9.1-channels in MAIN ZONE and 2-channels in ZONE2. (Speakers can output audio from ZONE3 instead of ZONE2 (Amp Assign: 9.1ch + ZONE3)). MAIN ZONE ZONE2 ZONE2...
Page 69 Contents Connections Playback Settings Tips Appendix o 7.1-channel playback (bi-amp connection of front speakers: MAIN ZONE) + 2-channel playback (ZONE2) This type of configuration plays back 7.1-channels in MAIN ZONE and 2-channels in ZONE2. You can use the bi-amp connection for front speakers in MAIN ZONE.
Page 70 Contents Connections Playback Settings Tips Appendix o 7.1-channel playback (MAIN ZONE) + 2-channel playback (ZONE2) + 2-channel playback (ZONE3) This type of configuration plays back 7.1-channels in MAIN ZONE and 2-channels in ZONE2 and ZONE3. MAIN ZONE SBR SBL ZONE3 ZONE3 ZONE2 ZONE3...
Page 71 Contents Connections Playback Settings Tips Appendix o 9.1-channel playback (MAIN ZONE) + 1-channel playback (ZONE2) + 1-channel playback (ZONE3) This type of configuration plays back 9.1-channels in MAIN ZONE and 1-channel (monaural) in ZONE2 and ZONE3. MAIN ZONE ZONE3 ZONE2 Mono Mono ZONE2...
Page 72 Contents Connections Playback Settings Tips Appendix Connecting a TV Connect a TV to this unit so that the input video is output to the TV. You can also enjoy audio from the TV on this unit. How to connect a TV depends on the connectors and functions equipped on the TV. Is the TV equipped with an HDMI connector? Is the TV compatible with the ARC / eARC? “Connection 1 : TV equipped with an HDMI...
Page 73 Contents Connections Playback Settings Tips Appendix Connection 1 : TV equipped with an HDMI connector and compatible with the ARC / eARC Using a high quality HDMI cable , connect one end to the HDMI port labeled “eARC” or “ARC” on your TV. Connect the other end to the HDMI OUT TV 1 port on this unit.
Page 74 Contents Connections Playback Settings Tips Appendix Connection 2 : TV equipped with an HDMI connector and incompatible with the ARC / eARC Use an HDMI cable to connect the TV to this unit. To listen to audio from TV on this unit, use an optical cable to connect the TV to this unit. OPTICAL HDMI Front panel...
Page 75 Contents Connections Playback Settings Tips Appendix Connecting a playback device This unit is equipped with three types of video input connectors (HDMI, component video and composite video) and three types of audio input connectors (HDMI, digital audio and audio). Select input connectors on this unit according to the connectors equipped on the device you want to connect. If the device connected to this unit is equipped with an HDMI connector, it is recommended to use HDMI connections.
Page 76 Contents Connections Playback Settings Tips Appendix Connecting a set-top box (Satellite tuner/cable TV) This explanation uses the connection with a satellite tuner/cable TV STB as an example. Select the input connectors on this unit to match the connectors on the device that you want to connect to. (HDMI incompatible device) Satellite tuner / Satellite tuner /...
Page 77 Contents Connections Playback Settings Tips Appendix Connecting a media player This explanation uses the connection with a media player as an example. Select the input connectors on this unit to match the connectors on the device that you want to connect to. (HDMI incompatible device) Media player Media player...
Page 78 Contents Connections Playback Settings Tips Appendix Connecting a Blu-ray Disc player or DVD player This explanation uses the connection with a Blu-ray Disc player or DVD player as an example. Select the input connectors on this unit to match the connectors on the device that you want to connect to. (HDMI incompatible device) Blu-ray Disc player / Blu-ray Disc player /...
Page 79 Contents Connections Playback Settings Tips Appendix Connecting a game console or player device compatible with 8K This unit supports 8K HDMI video signals. Game console 8K player HDMI HDMI 0 Use a certified “Ultra High Speed HDMI cable” to enjoy 8K or 4K 120Hz video.
Page 80 Contents Connections Playback Settings Tips Appendix Connecting a turntable This unit is compatible with turntables equipped with a moving magnet (MM) phono cartridge. When you connect to a turntable with a low output moving coil (MC) cartridge, use a commercially available MC head amp or a step-up transformer. If you set this unit’s input source to “Phono”...
Page 81 USB memory device 0 Denon does not guarantee that all USB memory devices will operate or receive power. When using a portable USB hard disk drive (HDD) which came with an AC adapter, use that device’s supplied AC adapter. 0 The USB port on the rear panel can only be used to supply power (5 V/1.5 A). It cannot be used to play music files. (v p. 27) NOTE 0 USB memory devices will not work via a USB hub.
Page 82 Contents Connections Playback Settings Tips Appendix Connecting to a home network (LAN) This unit can connect to a network using a wired LAN or wireless LAN. Wired LAN You can connect this unit to your home network (LAN) to enable various types of playback and operations as described below.
Page 83 Contents Connections Playback Settings Tips Appendix Wireless LAN 0 When using this unit, we recommend you use a router equipped with the following When connecting to the network via wireless LAN, connect the external functions: antennas for Bluetooth/wireless connectivity connection to the rear panel 0 Built-in DHCP server and stand them upright.
Page 84 Contents Connections Playback Settings Tips Appendix Connecting an external control device REMOTE CONTROL jacks When this unit is installed in a location where the remote control signals cannot reach (installation in a cabinet etc.), it can still be controlled by the remote control by connecting a remote control receiver unit (sold separately).
Page 85 Contents Connections Playback Settings Tips Appendix TRIGGER OUT jacks When a device with TRIGGER IN jack is connected, the connected device’s power on/standby can be controlled through linked operation to this unit. A digital signal of a maximum of 12V DC/100mA (total 300mA) per jack will be output from the TRIGGER OUT jack. 12 V DC/100 mA trigger-compatible device NOTE 0 Use a monaural mini-plug cable for connecting the TRIGGER OUT jack.
Page 86 Contents Connections Playback Settings Tips Appendix Connecting the power cord After completing all the connections, insert the power plug into the power outlet. Power cord (included/European model only) Connect to household power outlet (AC 230 V, 50/60 Hz) Power cord (included/Australian model only) Connect to household power outlet (AC 230/240 V, 50/60 Hz)
Page 87 Contents Connections Playback Settings Tips Appendix o Contents Playback network audio/service Listening to Internet Radio Basic operation Playing back files stored on a PC or NAS Turning the power on Getting the HEOS App Selecting the input source AirPlay function Adjusting the volume Spotify Connect function Turning off the sound temporarily (Muting)
Page 88 Contents Connections Playback Settings Tips Appendix Basic operation Turning the power on Press POWER X to turn on power to the unit. POWER X 0 You can press the input source select button when the unit is in standby mode to turn on the power.
Page 89 Contents Connections Playback Settings Tips Appendix Adjusting the volume Playback a Blu-ray Disc player/DVD player Use VOLUME df to adjust the volume. The following describes the procedure for playing Blu-ray Disc player/DVD player. 0 The variable range differs according to the input signal and channel level setting. Prepare for playback.
Page 90 Contents Connections Playback Settings Tips Appendix Playing a USB memory device Playing back music files stored on a USB memory device. Only USB memory devices conforming to mass storage class standards can be played on this unit. This unit is compatible with USB memory devices in “FAT32” or “NTFS” format.
Page 91 Contents Connections Playback Settings Tips Appendix Playing files stored on USB memory Browse the music on your USB memory device and devices select something to play. Insert a “FAT32” or “NTFS” formatted USB memory 0 When you select something to play you will be asked how you want to device into the USB port.
Page 92 NOTE Nature 01 - Various Artists 0 Note that Denon will accept no responsibility whatsoever for any problems arising with Nature the data on a USB memory device when using this unit in conjunction with the USB...
Page 93 Select)” (v p. 128) “Playing the same music in all zones (All Zone Stereo)” (v p. 129) “Changing the speaker settings to match the listening environment (Speaker Preset)” (v p. 130) Changing the “Dirac Live Filter” https://manuals.denon.com/DiracLive/ALL/EN/DRDZSYktvnhzad.php Front panel Display Rear panel Remote...
Page 94 Contents Connections Playback Settings Tips Appendix Listening to music on a Bluetooth device Music files stored on Bluetooth devices such as smartphones, digital music players, etc. can be enjoyed on this unit by pairing and connecting this unit with the Bluetooth device. Communication is possible up to a range of about 30 m.
Page 95 Contents Connections Playback Settings Tips Appendix Playing music from Bluetooth device Select this unit when its name appears in the list of devices displayed on the screen of the Bluetooth In order to enjoy music from a Bluetooth device on this unit, the Bluetooth device.
Page 96 Select)” (v p. 128) “Playing the same music in all zones (All Zone Stereo)” (v p. 129) “Changing the speaker settings to match the listening environment (Speaker Preset)” (v p. 130) Changing the “Dirac Live Filter” https://manuals.denon.com/DiracLive/ALL/EN/DRDZSYktvnhzad.php Front panel Display Rear panel Remote...
Page 97 Contents Connections Playback Settings Tips Appendix Reconnecting to this unit from a Bluetooth device After pairing is completed, the Bluetooth device can be connected without performing any operations on this unit. This operation also needs to be performed when switching the Bluetooth device for playback.
Page 98 Contents Connections Playback Settings Tips Appendix Listening to audio on Bluetooth headphones You can listen to audio playing through the MAIN ZONE of this unit on Bluetooth headphones. Output audio from connected speakers and Bluetooth headphones simultaneously, or only using Bluetooth headphones. (Output Mode: Bluetooth + Speakers) (Output Mode: Bluetooth Only) Front panel...
Page 99 Contents Connections Playback Settings Tips Appendix Listening to audio on Bluetooth headphones 0 “Output Mode” can also be set from “Bluetooth Transmitter” in the option menu. 0 A2DP profile-compatible Bluetooth speakers can be connected following the same steps used to connect Bluetooth headphones. Set “Transmitter”...
Page 100 Contents Connections Playback Settings Tips Appendix Adjusting the volume of Bluetooth Reconnecting to a Bluetooth headphones headphones If you are using Bluetooth headphones that do not have volume control, or Follow any of the steps below to reconnect the most recently used if the volume is insufficient, you can control the volume by adjusting the Bluetooth headphones: “Level”...
Page 101 Contents Connections Playback Settings Tips Appendix Disconnecting Bluetooth headphones Complete any of the following steps to disconnect your Bluetooth headphones: Turn off your Bluetooth headphones. Go to “Bluetooth Transmitter” and then select “Disconnect” within the options menu. In the setup menu, go to “General” - “Bluetooth Transmitter”, and set “Transmitter”...
Page 102 Contents Connections Playback Settings Tips Appendix Listening to Internet Radio Internet Radio refers to radio broadcasts distributed over the Internet. Internet Radio stations from around the world can be received. The Internet Radio station list on this unit the database service provided by TuneIn Radio service.
Page 103 “Changing the speaker settings to match the listening environment z Enabled when playing Podcasts. (Speaker Preset)” (v p. 130) Changing the “Dirac Live Filter” https://manuals.denon.com/DiracLive/ALL/EN/DRDZSYktvnhzad.php 0 The display switches between track title and radio station name etc. each time the main unit’s STATUS is pressed. NOTE 0 The radio station database service may be suspended or be otherwise unavailable without notice.
Page 104 Contents Connections Playback Settings Tips Appendix Playing back files stored on a PC or NAS This unit can play back music files and playlists (m3u, wpl) from DLNA compatible servers including PCs and NAS devices on your network. Supported file formats: For details, see “Playing back a file saved on a PC or NAS”...
Page 105 Contents Connections Playback Settings Tips Appendix Playing back files stored on a PC or Browse the music on your PC/NAS and select something to play. Use this procedure to play music files or playlists stored on DLNA files servers on your local network. 0 When you select something to play you will be asked how you want to queue up your music.
Page 106 Contents Connections Playback Settings Tips Appendix Use cursor Up/Down to select the “Play Now” or “Play 0 The display switches between track title, artist name, and album title each time the Now & Replace Queue”, then press ENTER. main unit’s STATUS is pressed. Playback starts.
Page 107 Select)” (v p. 128) “Playing the same music in all zones (All Zone Stereo)” (v p. 129) “Changing the speaker settings to match the listening environment (Speaker Preset)” (v p. 130) Changing the “Dirac Live Filter” https://manuals.denon.com/DiracLive/ALL/EN/DRDZSYktvnhzad.php Front panel Display Rear panel Remote...
Page 108 Contents Connections Playback Settings Tips Appendix Getting the HEOS App You can use many online music streaming services from the HEOS App. Depending upon your geographical location, there are several options to choose from. Download the HEOS App for iOS or Android by searching App Store, Google Play store or Amazon Appstore for “HEOS”. Front panel Display Rear panel...
Page 109 Contents Connections Playback Settings Tips Appendix o Changing your HEOS Account HEOS Account HEOS Accounts can be registered by tapping “Music” tab - “Settings” icon Tap the “Music” tab. in the HEOS App. Select the Settings icon in the upper left corner of Once you create or sign into your HEOS Account, you can use the HEOS Favorites feature to save and recall your favorite streaming radio stations the screen.
Page 110 Some services may be added or discontinued from time to time based on decisions of the music service providers or others. o Selecting a room/device Tap the “Rooms” tab, and select “Denon AVC-X6800H” Rooms Music Now Playing if there are multiple products with HEOS Built-in.
Page 111 Contents Connections Playback Settings Tips Appendix o Selecting the music track or station from music sources Music Tap the “Music” tab and select a music source. 0 All music services displayed may not be available in your location. Rooms Music Now Playing Front panel Display...
Page 112 Contents Connections Playback Settings Tips Appendix Browse the music to play. Album Now Playing After selecting a music track or radio station the app will Artist Album automatically change to the “Now Playing” screen. 10 Tracks,60 Mins.,2014 1 Track 1 0:20 0 When you select a music track to play you will be asked how you want to 0:50...
Page 113 Contents Connections Playback Settings Tips Appendix Listening to the same music in multiple Rooms Rooms rooms Drag one room into another to group them Drag one room into another to group them Dining Dining Song Name 1 This system is a true multi-room audio system. You can create one or Song Name 1 more HEOS groups to automatically synchronize audio playback between Living...
Page 114 Contents Connections Playback Settings Tips Appendix o Ungrouping rooms Rooms Rooms Drag one room into another to group them Drag one room into another to group them Press and hold your finger on room that you want to Dining remove from the group. Dining Song Name 1 Song Name 1...
Page 115 Contents Connections Playback Settings Tips Appendix o Grouping all rooms (party mode) Rooms Rooms You can easily group 16 rooms together into Party Mode by using a Drag one room into another to group them Drag one room into another to group them "pinch"...
Page 116 Contents Connections Playback Settings Tips Appendix o Ungrouping all rooms Rooms Rooms You can easily ungroup all of your rooms and exit Party Mode by using Drag one room into another to group them Drag one room into another to group them a "spread"...
Page 117 Contents Connections Playback Settings Tips Appendix AirPlay function Music files stored on your iPhone, iPod touch, iPad or iTunes can be played on this unit via the network. Router This unit 0 Source input will be switched to “HEOS Music” when AirPlay playback is started. 0 You can stop AirPlay playback by choosing other input source.
Page 118 Contents Connections Playback Settings Tips Appendix Playing songs from your iPhone, iPod Playing iTunes music with this unit touch or iPad Install iTunes 10, or later, on a Mac or Windows PC that If you update your “iPhone/iPod touch/iPad” to iOS 10.0.2 or later, you can is connected to the same network as this unit.
Page 119 Speakers & TVs Songs from an iPhone, iPod touch or iPad operating iOS 11.4 or later can Living Room be synced with multiple AirPlay 2 supported devices for simultaneous Denon xxxxxxxx Song - Artist playback. Bedroom Play the song on your iPhone, iPod touch or iPad.
Page 120 Contents Connections Playback Settings Tips Appendix Spotify Connect function Spotify is all the music you’ll ever need. Millions of songs available Playing Spotify music with this unit instantly. Just search for the music you love, or let Spotify play you something great.
Page 121 Contents Connections Playback Settings Tips Appendix Convenience functions This section explains how to use convenient functions that can be used for each input source. These functions can only be set in the MAIN ZONE. MAIN (HEOS Music) OPTION Cursor Up/Down/ Left/Right ENTER Front panel...
Page 122 Contents Connections Playback Settings Tips Appendix Playing back HEOS Favorites Browse the content and select something to play. When using the HEOS Favorites function for the first time on this unit, create a HEOS Account on the HEOS App or sign in to your account. 0 “HEOS Favorites - Use HEOS app”...
Page 123 Contents Connections Playback Settings Tips Appendix Adjusting the audibility of dialog and Adding to HEOS Favorites vocals (Dialog Enhancer) While content is playing, press OPTION. This function adjusts the center channel frequency band to enhance the The option menu screen is displayed. dialog in the movies and vocals in music for easier listening.
Page 124 Contents Connections Playback Settings Tips Appendix Adjusting the volume of each channel Use cursor Left/Right to adjust the volume. to match the input source (Channel –12.0 dB – +12.0 dB (Default: 0.0 dB) Level Adjust) Use cursor Up/Down/Left/Right to select “Exit”, then The volume of each channel can be changed while listening to music.
Page 125 Contents Connections Playback Settings Tips Appendix Adjusting the tone (Tone) Select “On” in step 3 and press cursor Down to select the sound range to be adjusted. Adjusts the tonal quality of the sound. Bass: Adjust bass. Press OPTION. Treble: Adjust treble.
Page 126 This can be set after running Dirac Live Room Correction. Automatically adjusts the audio See the Dirac Live Manual for details. processing time to compensate for https://manuals.denon.com/DiracLive/ALL/EN (Default): delays in audio/video timing from TV compatible with Auto Lip Sync. Adjusting audio delay (Audio Delay) Off: Do not adjust automatically.
Page 127 Contents Connections Playback Settings Tips Appendix Changing the strength of Tactile If you selected “On” in step 3, press cursor Down and Transducer according to the input adjust the “Level”. source (Tactile Transducer) Use cursor Left/Right to adjust the tone, then press ENTER.
Page 128 Contents Connections Playback Settings Tips Appendix Displaying your desired video during If you selected “On” in step 3, press cursor Down and audio playback (Video Select) select “Source”. Use cursor Left/Right to select the input source for This unit can display video from a different source on TV during audio video you want to play back, then press ENTER.
Page 129 Contents Connections Playback Settings Tips Appendix o Stopping the All Zone Stereo mode Playing the same music in all zones (All Zone Stereo) During playback in All Zone Stereo mode, press OPTION. You can play back the music being played back in MAIN ZONE An option menu screen is displayed.
Page 130 Contents Connections Playback Settings Tips Appendix Changing the speaker settings to match the listening environment 0 This function can be used in the following cases. 0 Adjust the speaker settings manually after setting “Speaker Preset” to “Speaker (Speaker Preset) Preset 2”. 0 Save the result to “Speaker Preset 2”...
Page 131 Contents Connections Playback Settings Tips Appendix Selecting a sound mode This unit allows you to enjoy various kinds of surround and stereo playback modes. Disc formats such as Blu-ray Disc and DVD, as well as being supported by digital broadcasting, and even by streaming movies and music from internet-based subscription services.
Page 132 Contents Connections Playback Settings Tips Appendix o Switching the sound mode Selecting a sound mode Press MOVIE, MUSIC or GAME to display a list of the sound modes that can be selected. Each time you press MOVIE, MUSIC or GAME, Press MOVIE, MUSIC or GAME to select a sound mode.
Page 133 Contents Connections Playback Settings Tips Appendix [Example] When MOVIE is pressed Direct playback MOVIE SOUND Sound recorded in source is played as is. Stereo Dolby Surround Press PURE to select “Direct”. DTS Neural:X AURO-3D Direct playback begins. AURO Surround Multi Ch Stereo Mono Movie 0 While DSD signals are played back, “DSD Direct”...
Page 134 Contents Connections Playback Settings Tips Appendix Pure Direct playback Auto surround playback This mode detects the type of input digital signal, and automatically This mode is for playback with higher sound quality than in Direct playback selects the corresponding mode for playback. mode.
Page 135 Contents Connections Playback Settings Tips Appendix Description of sound mode types Dolby sound mode Sound mode type Description Dolby Atmos Please select this mode to play content encoded with Dolby Atmos. If you have selected a different sound mode previously, please select again this mode for Dolby Atmos content play back. It decodes Dolby Atmos content and its positioning data in real time and outputs audio from the appropriate speakers, creating natural audio images regardless of the speaker layout.
Page 136 Contents Connections Playback Settings Tips Appendix DTS sound mode Sound mode type Description DTS Surround This mode can be selected when playing sources recorded in DTS. DTS-HD This mode can be selected when playing sources recorded in DTS-HD. DTS:X This mode can be selected when playing back content encoded with DTS:X. It decodes DTS:X content and its positioning data in real time and outputs audio from the appropriate speakers, creating natural audio images regardless of the speaker layout.
Page 137 Contents Connections Playback Settings Tips Appendix Sound mode type Description DTS Neural:X This mode uses DTS Neural:X Upmixer to extend various sources to natural and realistic multi channels for playback. Use height speakers such as front height speakers to realize a three-dimensional sound field. This mode uses DTS Virtual:X with virtual height and virtual surround processing to realize a three-dimensional sound field DTS Virtual:X when the height speakers are not used.
Page 138 Contents Connections Playback Settings Tips Appendix MPEG-H sound mode Sound mode type Description MPEG-H This mode can be selected when MPEG-H audio is being delivered, such as in TV broadcasts. With MPEG-H, you can enjoy playback of highly realistic sound according to the format it is delivered in, such as music programs with high-quality sound and movies with multi-channel audio.
Page 139 Contents Connections Playback Settings Tips Appendix Auto sound mode Sound mode type Description Auto In this mode, the type of digital signal input, such as Dolby Digital, Dolby TrueHD, Dolby Digital Plus, Dolby Digital EX, Dolby Atmos, DTS, DTS-HD, DTS:X, DTS-ES, PCM (multi-channel) is detected, and the playback mode switches automatically to the corresponding mode.
Page 140 Contents Connections Playback Settings Tips Appendix Sound mode that can be selected for each input signal The following sound modes can be selected using the MOVIE, MUSIC and GAME buttons. Adjust the sound field effect with the menu “Surround Parameter” to enjoy surround sound the way you like it. (v p. 175) Input signal Sound mode MOVIE button...
Page 141 Contents Connections Playback Settings Tips Appendix Input signal Sound mode MOVIE button MUSIC button GAME button Multi-channel z7 Stereo Dolby Digital Dolby Digital Dolby Digital + Dolby Surround Dolby Digital + Neural:X Dolby Digital Plus Dolby Digital Plus + Dolby Surround z2 z8 Dolby Digital Plus Dolby Digital Plus + Neural:X Dolby Atmos z2 z9...
Page 142 Contents Connections Playback Settings Tips Appendix Input signal Sound mode MOVIE button MUSIC button GAME button DTS Surround DTS + Dolby Surround DTS + Neural:X z2 z4 DTS + Virtual:X DTS-HD DTS-HD + Dolby Surround DTS-HD DTS-HD + Neural:X DTS-HD + Virtual:X z2 z4 DTS:X DTS:X DTS:X + Virtual:X z2z4...
Page 143 Contents Connections Playback Settings Tips Appendix Input signal Sound mode MOVIE button MUSIC button GAME button Multi Ch In Multi Ch In 7.1 PCM multi-channel Multi In + Dolby Surround Multi Ch In + Neural:X z2 z4 Multi In + Virtual:X MPEG-H MPEG-H AURO-3D z2 z6 z11...
Page 144 Contents Connections Playback Settings Tips Appendix o Views on the display A Shows a decoder to be used. In the case of the Dolby Digital Plus decoder, “ ” is displayed. B Shows a decoder that creates sound output. “ ”...
Page 145 Contents Connections Playback Settings Tips Appendix HDMI Control function A recent addition to the HDMI standard is CEC (Consumer Electronics Control), which allows control signals from one device to communicate with another device via the HDMI cable connection. Setting procedure Enable the HDMI Control function of this unit.
Page 146 Contents Connections Playback Settings Tips Appendix Sleep timer function You can have the power automatically switched to standby once a set time has elapsed. This is convenient for viewing and listening while going to sleep. The sleep timer function can be set for each zone. MAIN ZONE2 ZONE3...
Page 147 Contents Connections Playback Settings Tips Appendix o Checking the remaining time Using the sleep timer Press SLEEP when the sleep timer is in operation. The remaining time appears on the display. Press MAIN, ZONE2 or ZONE3 to select the operating zone with the remote control.
Page 148 Contents Connections Playback Settings Tips Appendix Quick select plus function Settings such as the input source, volume level and sound mode can be registered to the QUICK SELECT 1 - 4 buttons. You can simply press one of the registered QUICK SELECT buttons in subsequent playbacks to switch to the group of saved settings in a batch.
Page 149 Contents Connections Playback Settings Tips Appendix Calling up the settings Press MAIN, ZONE2 or ZONE3 to select the operating zone with the remote control. The button for the selected zone is lit. Press QUICK SELECT. The Quick Select settings registered to the button you pressed are called up.
Page 150 Contents Connections Playback Settings Tips Appendix Changing the settings Press MAIN, ZONE2 or ZONE3 to select the operating zone with the remote control. The button for the selected zone is lit. Set the items below to the settings you want to register.
Page 151 Contents Connections Playback Settings Tips Appendix o TV Audio sharing settings You can enjoy the same content as the MAIN ZONE in ZONE2 or ZONE3 while maintaining surround playback of the content from TV or other playback devices in the MAIN ZONE with the original audio format such as Dolby Atmos.
Page 152 Contents Connections Playback Settings Tips Appendix Panel lock function To prevent accidental operation of this unit, you can disable operation of Disabling all key button operations the buttons on the front panel. INFO Cursor Up ENTER Press X while you press and hold STATUS and INFO with the unit in standby mode.
Page 153 Contents Connections Playback Settings Tips Appendix Disabling all button operations except Canceling the Panel lock function VOLUME Press X while you press and hold STATUS and INFO with the unit in standby mode. Press X while you press and hold STATUS and INFO with the unit in standby mode.
Page 154 Contents Connections Playback Settings Tips Appendix Remote lock function When connecting an IR receiver, enable the Remote lock function. When Disabling the sensor function of the the function is enabled, you can not perform operations with the remote remote control unit control unit.
Page 155 The web control screen supports the following functions. Router A Setup Menu This unit B Power ON/OFF for each zone C MAIN ZONE input source switching Web control screen Top menu Denon XXXXXXXXXX Setup Menu Denon XXXXXXXXXX Audio MAIN ZONE Video CBL/SAT Inputs...
Page 156 (v p. 243) http://192.168.100.19 File Edit View Favorites Tools Help Network/Information When the top menu is displayed on the web browser, Friendly Name Denon AVC-X6800H click on the menu item you want to operate. Connection Wireless (Wi-Fi) SSID SSID SSID-01 DHCP...
Page 157 Contents Connections Playback Settings Tips Appendix Playback in ZONE2/ZONE3 (Another room) You can operate this unit to enjoy video and audio in a room (ZONE2 and ZONE3) that is different from the room where this unit is placed (MAIN ZONE). You can simultaneously play back the same source in both the MAIN ZONE, ZONE2 and ZONE3.
Page 158 Contents Connections Playback Settings Tips Appendix Connecting ZONE o Connection 1 : Connection through the HDMI ZONE2 connector When a TV is connected to the HDMI ZONE2 OUT connector, you can play back a video or audio from the device connected to the HDMI 1 – 7 IN connector in ZONE2 (HDMI ZONE2 function).
Page 159 Contents Connections Playback Settings Tips Appendix o Connection 2 : Connection using a speaker output terminal When “Amp Assign” in the menu is set to any of the following audio is output from speakers in ZONE2 or ZONE3. (v p. 216) 0 The connectors for connecting the ZONE2 and ZONE3 speakers depends on your MAIN ZONE Speaker Layout.
Page 160 Contents Connections Playback Settings Tips Appendix Amp Assign: 9.1ch + ZONE2/3-MONO MAIN ZONE ZONE2 ZONE3 This unit Front panel Display Rear panel Remote Index...
Page 161 Contents Connections Playback Settings Tips Appendix Amp Assign: 7.1ch + ZONE2/3 MAIN ZONE ZONE2 ZONE3 This unit Front panel Display Rear panel Remote Index...
Page 162 Contents Connections Playback Settings Tips Appendix o Connection 3 : Connection through the external power amplifiers The audio signals of this unit’s ZONE2 and ZONE3 audio output connectors are played on the ZONE2 and ZONE3 power amplifiers. ZONE2 ZONE3 MAIN ZONE This unit Power amplifier Power amplifier...
Page 163 Contents Connections Playback Settings Tips Appendix Playback the source in ZONE2/ZONE3 o Playing the same source simultaneously in MAIN ZONE, ZONE2 and ZONE3 (TV Audio Sharing setting) The TV Audio Sharing setting of this unit can be used to output all signals from ZONE2 and ZONE3 by setting “Source” as the input source for ZONE2 and ZONE3.
Page 164 Contents Connections Playback Settings Tips Appendix Press ZONE2 SOURCE or ZONE3 SOURCE on the main unit to switch the input source of ZONE2 or ZONE3 to “Source”. If “Source” is selected as the input source of ZONE2 or ZONE3, the input source is changed to mirror that of the MAIN ZONE.
Page 165 Contents Connections Playback Settings Tips Appendix o Playing different sources in MAIN ZONE, ZONE2 and ZONE3 Press ZONE2 or ZONE3 to select the operating zone with the remote control. The button for the selected zone is lit. ZONE2 POWER X ZONE3 Press POWER X to turn on the ZONE2 or ZONE3 power.
Page 166 Contents Connections Playback Settings Tips Appendix Press the input source select button to select the input source to be played. The audio signal of the selected source is output to ZONE2 or ZONE3. To perform an operation with the main unit, press ZONE2 SOURCE or ZONE3 SOURCE.
Page 167 Contents Connections Playback Settings Tips Appendix Adjusting the Volume in ZONE2/ZONE3 o Adjusting the volume Press ZONE2 or ZONE3 to select the operating zone ZONE2 with the remote control. ZONE3 The button for the selected zone is lit. Use VOLUME df to adjust the volume. At time of purchase, “Volume Limit”...
Page 168 Contents Connections Playback Settings Tips Appendix Menu map When using menu operations, connect this unit to a TV and operate this unit while viewing the TV. The recommended settings are configured for this unit by default. You can customize this unit based on your existing system and your preferences. Setting items Detailed items Description...
Page 169 Contents Connections Playback Settings Tips Appendix Setting items Detailed items Description Page Input Assign Changes input connector assignment and the audio input mode. Source Rename Changes the display name for input source. Hide Sources Selects source inputs to hide on the user interface and front panel displays. Source Level Adjusts the input level for the current source.
Page 170 Contents Connections Playback Settings Tips Appendix Setting items Detailed items Description Page [When the user is signed out of the HEOS account] “–” A guidance to download the HEOS app. [When the user is signed in to the HEOS account] Signed in as Displays your HEOS account.
Page 171 Information Shows information about this unit settings, input signals, etc. Usage Data Selects whether or not to send anonymous usage data to Denon. Save & Load Save and restore device settings by using a USB memory device. Setup Lock Protects settings from inadvertent changes.
Page 172 Contents Connections Playback Settings Tips Appendix Setting items Detailed items Description Page Begin Setup... Performs basic installation/connections/settings from the beginning according to the Page 9 of guidance indicated on the TV screen. the separate manual Language Select Sets individual setting items according to the guidance displayed on the TV screen. “Quick Start Speaker Setup Guide”...
Page 173 Contents Connections Playback Settings Tips Appendix Menu operations Press MAIN on the remote control unit to set the MAIN operating zone to the MAIN ZONE. The MAIN button lights. Press SETUP. The menu is displayed on the TV screen. Use cursor Up/Down/Right to select the menu to be set or operated, then press ENTER.
Page 174 Contents Connections Playback Settings Tips Appendix Audio Make audio-related settings. Subwoofer Level Adjust Bass Sync For contents recorded in multi-channel such as Blu-ray discs, the Adjusts the subwoofer channel volume for all input sources. recorded low frequency effects (LFE) may be out of synch and delayed. This function corrects such a delay of low frequency effects (LFE).
Page 175 Contents Connections Playback Settings Tips Appendix o Loudness Management Surround Parameter This sets whether to output as specified in “Dynamic Compression” or You can adjust the surround audio sound field effects to match your output directly without compressing the dynamic range of audio preferences.
Page 176 Contents Connections Playback Settings Tips Appendix o Dynamic Compression o Dialog Control Compress dynamic range (difference between loud and soft sounds). Adjust the volume of dialog in movies, vocals in music, etc. so these can be heard more easily. Automatic dynamic range compression Auto: on/off control according to source.
Page 177 Contents Connections Playback Settings Tips Appendix o Speaker Virtualizer o Center Spread The Speaker Virtualizer enhances the surround and height speaker Center Spread expands the center channel signal to left and right front channels to create an enveloping virtual surround effect. speakers to create a wider frontal audio image for the listener.
Page 178 Contents Connections Playback Settings Tips Appendix o DTS Neural:X o IMAX Audio Settings DTS Neural:X Expands the non-object based audio signals and You can configure special IMAX audio settings to recreate the optimizes them for your speaker configuration. conditions of an IMAX theater. Applies the optimized speaker settings to Use “DTS Neural:X”.
Page 179 Contents Connections Playback Settings Tips Appendix o Low Pass Filter o Auro-Matic Preset Set the low pass filter cutoff frequency of the LFE signal during IMAX Selects the Auro-Matic Preset for fine tuning the AURO-3D experience playback. to specific audio material. 80 Hz / 90 Hz / 100 Hz / 110 Hz / 120 Hz / 150 Hz / 180 Hz / “Small”...
Page 180 Contents Connections Playback Settings Tips Appendix o Auro-Matic Strength o AURO-3D Mode Changes the level of the up-mixed channels in relation to the original Select how to output sound to all speakers when AURO-3D decoding input signal. is active. The value ranges from 0 (no up-mixing) to 15 (Maximum level, providing maximum effect).
Page 181 Contents Connections Playback Settings Tips Appendix o Delay Time o Room Size Adjusts delay time for surround channels. Determine size of acoustic environment. 0 ms – 300 ms (Default: 30 ms) Small: Simulate acoustics of a small room. Simulate acoustics of a medium-small Medium small: room.
Page 182 Contents Connections Playback Settings Tips Appendix o Speaker Select o Subwoofer Selects which speakers output sound, depending on the current sound Turn subwoofer output on and off. mode. The subwoofer is used. Floor: Plays back without height speakers. (Default): Floor & Height Off: The subwoofer is not used.
Page 183 Contents Connections Playback Settings Tips Appendix Restorer 0 This item can be set with analog signals or PCM signal (Sample Rate = Compressed audio formats such as MP3 and WMA (Windows Media 44.1/48 kHz) is input. Audio) reduce the amount of data by eliminating signal components that 0 This cannot be set when the sound mode is set to “Direct”...
Page 184 Contents Connections Playback Settings Tips Appendix o Power On Level Volume Sets the initial volume level when the power is turned on. Set the MAIN ZONE (room where the unit is located) volume setting. Last Sets the power-on level to the last-used o Scale (Default): volume level.
Page 185 Contents Connections Playback Settings Tips Appendix o MultEQ ® XT32 Audyssey ® MultEQ ® XT32 compensates for both time and frequency Set Audyssey MultEQ XT32, Audyssey Dynamic EQ , Audyssey ® ® characteristics of the listening area based on Audyssey ®...
Page 186 Contents Connections Playback Settings Tips Appendix o Dynamic EQ o Reference Level Offset Solves the problem of deteriorating sound quality as volume is Audyssey Dynamic EQ ® is referenced to the standard film mix level. It decreased by taking into account human perception and room makes adjustments to maintain the reference response and surround acoustics.
Page 187 Contents Connections Playback Settings Tips Appendix o Dynamic Volume o Audyssey LFC™ Solves the problem of large variations in volume level between TV, Adjusts the low frequency band to prevent bass and vibration from movies and other content (between quiet passages and loud being conveyed to neighboring rooms.
Page 188 Set a Dirac Live filter. This can be set after running Dirac Live Room Correction. See the Dirac Live Manual for details. 0 Speakers for which “Graphic EQ” can be set differ according to the sound mode. https://manuals.denon.com/DiracLive/ALL/EN 0 This can be set when “MultEQ ®...
Page 189 Contents Connections Playback Settings Tips Appendix o Speaker Selection o Curve Copy Select whether to adjust tones for individual speakers or for all Copy the Flat correction curve created in Audyssey ® Setup. speakers. All: Adjust all speaker tones together. 0 “Curve Copy”...
Page 190 Contents Connections Playback Settings Tips Appendix Video Make video-related settings. o HDMI Pass Through HDMI Setup Selects how this unit will transmit HDMI signals to the HDMI output in Make settings for HDMI Audio Out, HDMI Pass Through and HDMI standby power mode.
Page 191 Contents Connections Playback Settings Tips Appendix o Pass Through Source o RC Source Select Selects the HDMI input to pass through the HDMI output when this unit Set whether to allow this unit to be turned on by the input source select is in standby power mode.
Page 192 Contents Connections Playback Settings Tips Appendix o HDMI Control o ARC You can link operations with devices connected to HDMI and On the TV connected to the HDMI OUT TV 1 connector, set whether to compatible with HDMI Control. receive sound from the TV via HDMI. Use HDMI Control function.
Page 193 Contents Connections Playback Settings Tips Appendix o TV Audio Switching o Power Off Control Sets automatic switching to the “TV Audio” input when a TV connected Links the power standby of this unit to external devices. via HDMI sends an appropriate CEC control command to this unit. If power to a connected TV is turned off independently of the input source, power Select the “TV Audio”...
Page 194 Contents Connections Playback Settings Tips Appendix o Power Saving Enables the Power Saving feature of the AVR to reduce energy costs when using the TV's speakers. This function is activated in the following cases. When “TV Audio” is selected as the input source of this unit When playing content from a device connected by HDMI Use Power Saving feature.
Page 195 Contents Connections Playback Settings Tips Appendix o Video Mode Output Settings Configure the video processing method to match the type of video Makes settings for video output. content. o HDMI Video Output Auto Process video automatically based on (Default): the HDMI content information. Select the HDMI monitor connector to be used.
Page 196 Contents Connections Playback Settings Tips Appendix o HDMI Upscaler On-Screen Display Sets the mode for upscaling 1080p and 4K HDMI content to 8K. Select the on-screen display user interface preferences. Upscale 1080p and 4K HDMI video to 8K Auto: o Volume based on the TV’s capabilities.
Page 197 Contents Connections Playback Settings Tips Appendix o Now Playing Screensaver Sets the display time for the playback display when the input source is Select the screen saver setting. “HEOS Music”. A screen saver is activated if no operation is performed for more than 5 Always On minutes when no video signal is input or when the same screen (e.g.
Page 198 Contents Connections Playback Settings Tips Appendix 4K/8K Signal Format GRelation between the “4K/8K Signal Format” setting and supported resolutionsH Set the format of 4K and 8K signal to be played back by this unit when the 4K/8K Signal Format Support Color Pixel TV or playback device connected to this unit is HDMI 4K or 8K signal...
Page 199 Contents Connections Playback Settings Tips Appendix HDCP Setup 0 When setting this to “Enhanced”, we recommend using a “Premium High Sets the HDCP version for each HDMI input source. Speed HDMI Cable” or “Premium High Speed HDMI Cable with Ethernet” that Video may not be output depending on the HDCP version of your player has an “HDMI Premium Certified Cable”...
Page 200 Contents Connections Playback Settings Tips Appendix Inputs Perform settings related to input source playback. You do not have to change the settings to use the unit. Make settings when needed. Input Assign 0 By default, each item is set as follows. By making connections as indicated by the input sources printed on the Input connector INPUT...
Page 201 Contents Connections Playback Settings Tips Appendix n TV set top box/satellite users please note o DIGITAL When using the digital audio output on a TV/satellite box: Set this to change the digital audio input connectors assigned to the To play the video signal assigned to “HDMI” combined with the audio input sources.
Page 202 Contents Connections Playback Settings Tips Appendix o INPUT MODE o Set Defaults Set the audio input modes for each input source. The “Input Assign” settings are returned to the default settings. It is normally recommended to set the audio input mode to “AUTO”. AUTO Automatically detect input signal and (Default):...
Page 203 Contents Connections Playback Settings Tips Appendix Source Rename Hide Sources Changes the display name of the input source. Remove from the display input sources that are not used. Once changed, the name is displayed on the display and menu screens Show Use this source.
Page 204 Contents Connections Playback Settings Tips Appendix Source Level This function corrects the playback level of the selected input source’s audio input. Make this setting if there are differences in the input volume levels between the different sources. o Source Level n When the input source is set to “HEOS Music”...
Page 205 Contents Connections Playback Settings Tips Appendix Speakers The acoustic characteristics of the connected speakers and listening room are measured and the optimum settings are made automatically. This is called “Audyssey ® Setup”. You do not have to perform Audyssey Setup when you have already performed “Speaker Calibration” in “Setup Assistant”. ®...
Page 206 Contents Connections Playback Settings Tips Appendix o About the main listening position NOTE The main listening position is the position where listeners would 0 Make the room as quiet as possible. Background noise can disrupt the room measurements. Close windows and turn off the power on electronic devices normally sit or where one would normally sit alone within the listening (radios, air conditioners, fluorescent lights, etc.).
Page 207 Contents Connections Playback Settings Tips Appendix Procedure for speaker settings Attach the Sound calibration microphone to the supplied microphone stand or own tripod and install it (Audyssey Setup) ® at the main listening position. When installing the Sound calibration microphone, point the tip of the microphone toward the ceiling and adjust the height to match the Preparation height of the ears of a listener in a seated position.
Page 208 Contents Connections Playback Settings Tips Appendix Connect the Sound calibration microphone to the Select “Start”, then press ENTER. SETUP MIC jack of this unit. Audyssey ® Setup can also make the following settings. Speaker Layout Set the Speaker Layout to suit your speaker environment. Channel Select If “Amp Assign”...
Page 209 Contents Connections Playback Settings Tips Appendix When the following screen is displayed, select “Begin When the detected speaker is displayed, select “Next” Test” and then press ENTER. and then press ENTER. Start the measurement of the first position. Audyssey Setup Speaker Detection Audyssey Setup Front...
Page 210 Contents Connections Playback Settings Tips Appendix Move the Sound calibration microphone to position 2, Repeat step 8, measuring positions 3 to 8. select “Continue”, then press ENTER. The measurement of the second position starts. Measurements can be made in up to eight positions. 0 To skip measuring the fourth and subsequent listening position, press cursor Left to select “Complete”...
Page 211 Contents Connections Playback Settings Tips Appendix When the analysis and storage ends, unplug the Sound Perform the settings for Audyssey Dynamic EQ ® calibration microphone from the SETUP MIC jack on the Audyssey Dynamic Volume ® main unit and then press “Next”. The following screen is displayed during the analysis.
Page 212 Contents Connections Playback Settings Tips Appendix Select “Details” and press ENTER to verify the measurement results. 0 When performing Audyssey ® Setup for the first time, the measurement data is automatically saved to “Speaker Preset 1” of “Speaker Preset”. Subwoofers may measure a greater reported distance than the 0 If Audyssey ®...
Page 213 Contents Connections Playback Settings Tips Appendix Error messages An error message is displayed if Audyssey ® Setup could not be completed due to speaker placement, the measurement environment, etc. If an error message is displayed, check the relevant items and perform the necessary measures. Be sure to turn off the power before checking speaker connections. Examples Error details Measures...
Page 214 Contents Connections Playback Settings Tips Appendix o Subwoofer level error message and how to Select “SW Level Matching” and then press ENTER. adjust Adjust the volume control on your subwoofer so that The optimal level of each subwoofer channel for Audyssey ®...
Page 215 Contents Connections Playback Settings Tips Appendix Retrieving Audyssey ® Setup settings If you set “Restore...” to “Restore”, you can return to Audyssey Setup ® measurement result (value calculated at the start by MultEQ XT32) even ® when you have changed each setting manually. Audyssey Setup Speaker Preset 1 Your AVR can automatically measure the acoustics of your...
Page 216 Contents Connections Playback Settings Tips Appendix Manual Setup Speaker Layout Select a suitable speaker layout for your speaker system. Perform when setting the speakers manually or when changing settings made in Audyssey ® Setup. o Amp Assign If you enable new speakers in the speaker configuration menu after performing Audyssey ®...
Page 217 Contents Connections Playback Settings Tips Appendix Setting to assign the power amplifiers in Setting to assign the power amplifiers in this unit for ZONE3 to 2-channels this unit for front speaker bi-amp 9.1ch + ZONE3: connection to 2-channels. 7.1ch (Bi-Amp) + ZONE2: You can connect speakers for up to 9.1- channels for MAIN ZONE.
Page 218 Contents Connections Playback Settings Tips Appendix n Connection o Front/Center/Surround/Surround Back/Front Wide Select the output terminals for audio from the speakers. Spkr + Pre-out Set the correct audio output terminals for your speaker system. Speaker and pre-out outputs are active. (Default): n Configuration Pre-out outputs are active.
Page 219 Contents Connections Playback Settings Tips Appendix o Height Speakers Select the number of the height speakers, ceiling speakers and Dolby Atmos Enabled speakers used in MAIN ZONE. Uses no height, ceiling and Dolby Atmos None: Enabled speakers. Uses a set of (two) height speakers, 2 spkrs: ceiling speakers or Dolby Atmos Enabled speakers.
Page 220 Contents Connections Playback Settings Tips Appendix o Layout n Configuration Set the speaker layout when installing 1 set (2-channels) of Height, Ceiling or Dolby Atmos Enabled speakers. The layouts that can be selected differ depending on the combinations of “Amp Assign” and floor speaker settings in the menu. (“Amp Assign”...
Page 221 Contents Connections Playback Settings Tips Appendix n Connection Select the output terminals for Height speakers. Spkr + Pre-out Speaker and pre-out outputs are active. (Default): Pre-out outputs are active. Speaker outputs are disconnected for enhanced Pre-out Only: audio quality using only the pre-out terminals.
Page 222 Contents Connections Playback Settings Tips Appendix o Front Layout / Middle Layout / Rear Layout / TS/CH Select the layout setting and audio output terminals for your Height speakers. n Configuration Set the speaker layout when installing 2 sets (4-channels) or more of Height, Ceiling or Dolby Atmos Enabled speakers. The layouts that can be selected differ depending on the combinations of “Amp Assign”...
Page 223 Contents Connections Playback Settings Tips Appendix [5-channel height speakes] Settings AUDIO OUT connectors Height HEIGHT 3/ NOTE Front Layout Rear Layout TS/CH HEIGHT 1 HEIGHT 2 Speakers FRONT WIDE Front Height Surround Height Top Surround Front Height Surround Height L: Top Surround Front Height Surround Height Center Height...
Page 224 Contents Connections Playback Settings Tips Appendix [6-channel height speakes] Settings AUDIO OUT connectors Height Middle HEIGHT 3/ NOTE Front Layout Rear Layout TS/CH HEIGHT 1 HEIGHT 2 Speakers Layout FRONT WIDE Front Height Top Middle Rear Height Front Height Rear Height Top Middle Surround Surround...
Page 225 Contents Connections Playback Settings Tips Appendix n Connection o Subwoofers Select the audio output terminal(s) for each Height speaker. Set the presence of a subwoofer. Spkr + Pre-out 4 spkrs: Use four subwoofers. Speaker and pre-out outputs are active. (Default): 3 spkrs: Use three subwoofers.
Page 226 Contents Connections Playback Settings Tips Appendix o Subwoofer Mode o Subwoofer Layout When you are using multiple subwoofers, set the audio to be output When you are using multiple subwoofers, configure the subwoofer from the subwoofer. layout. The layouts that can be selected differ depending on the configuration of “Subwoofer Mode”.
Page 227 Contents Connections Playback Settings Tips Appendix 0 This can be set when “Subwoofers” is set to “4 spkrs”, “3 spkrs” or “2 spkrs”, and “Subwoofer Mode” is set to “Directional”. 0 The name of the Subwoofer that is displayed in the GUI of this unit depends on the setting combination of “Subwoofers”, “Subwoofer Mode”, and “Subwoofer Layout”. Subwoofer name Subwoofer Subwoofers...
Page 228 Contents Connections Playback Settings Tips Appendix With the “Directional” setting, your room is divided into four areas as shown below so that each subwoofer plays the bass of the speaker set to other than “Full Range” which is located within the area. LEFT RIGHT For example, if “Subwoofers”...
Page 229 Contents Connections Playback Settings Tips Appendix o Bi-Amp o Front B When “Amp Assign” is “9.1ch (Bi-Amp)” and “7.1ch (Bi-Amp) + When “Amp Assign” is “9.1ch + Front B”, the speaker terminal used for ZONE2”, the speaker terminal used for the bi-amp connection of the the second front speakers is displayed.
Page 230 Contents Connections Playback Settings Tips Appendix o ZONE2 o ZONE3 When “Amp Assign” is “9.1ch + ZONE2”, “7.1ch + ZONE2/3” and When “Amp Assign” is “9.1ch + ZONE3” and “7.1ch + ZONE2/3”, the “7.1ch (Bi-Amp) + ZONE2”, the speaker terminal used for the ZONE2 speaker terminal used for the ZONE3 speakers is displayed.
Page 231 Contents Connections Playback Settings Tips Appendix o ZONE2/3 o View Terminal Config. When “Amp Assign” is “9.1ch + ZONE2/3-MONO”, the speaker This shows how to connect the speaker terminals and PRE OUT terminal used for the ZONE2/3 speakers is displayed. Depending on connectors for your “Speaker Layout”...
Page 232 Contents Connections Playback Settings Tips Appendix o Set the distance Distances 0.00 m – 18.00 m / 0.0 ft – 59.1 ft Set distance from listening position to speakers. Measure beforehand the distance from the listening position to each [When using Dirac Live] speaker.
Page 233 Contents Connections Playback Settings Tips Appendix o Dolby Speaker Setup Levels Set the distance between the Dolby Atmos Enabled speaker and the Set the volume of the test tone to be the same at the listening position ceiling. when it is output from each speaker. 0.90 m - 3.30 m / 3.0 ft - 10.8 ft (Default : 1.80 m / 5.9 ft) “Levels”...
Page 234 Contents Connections Playback Settings Tips Appendix Crossovers Speaker Preset Two speaker settings can be saved to suit the environments where you Set in accordance with the lower limit frequency of the base frequencies use your speakers. that can be played back through each speaker. See the speaker manual for information concerning speaker crossover frequency.
Page 235 Contents Connections Playback Settings Tips Appendix Advanced 0 The following settings are saved to presets. The following advanced speaker settings are available. 0 “Speaker Layout” settings 0 “Distances” settings o Low Frequency Effects 0 “Levels” settings “Subwoofer Output” (v p. 236) 0 “Crossovers”...
Page 236 Contents Connections Playback Settings Tips Appendix Subwoofer Output 0 “Subwoofer Output” can be set when “Speaker Layout” - “Subwoofers” in the menu is set to other than “No”. (v p. 225) Selects which low frequency signals are sent to the subwoofer outputs. 0 Play music or a movie source and select the mode offering the strongest bass.
Page 237 Contents Connections Playback Settings Tips Appendix Low Pass Filter Distribution Selects the crossover point for the LFE channel. Set this when you want to Adjusts the amount of LFE signal sent to the full-range floor speakers. change the playback LFE signal of the subwoofer. o Front/Center/Surround/Surround Back/Front o Low Pass Filter Wide...
Page 238 Contents Connections Playback Settings Tips Appendix Front Speaker 2ch Playback Set the front speaker A/B to use for every sound mode. Select the method for setting the speakers used in the 2-channel direct and stereo playback modes. Front speaker A is used. (Default): o Setting Front speaker B is used.
Page 239 Contents Connections Playback Settings Tips Appendix o Subwoofer Output Selects which low frequency signals are sent to the subwoofer outputs. 0 When “Speaker Layout” - “Subwoofers” in the menu is set to “No”, “Full Range” is automatically set. (v p. 225) When “2ch Playback”...
Page 240 Contents Connections Playback Settings Tips Appendix o Bass Extraction LPF o Distance FL / Distance FR Selects the low-pass filter point for the full-range speaker to copy the Set distance from main listening position to speaker. low frequency signal to subwoofer. The unit is “msec”...
Page 241 Contents Connections Playback Settings Tips Appendix o Low Pass Filter Tactile Transducer Selects the low pass filter cutoff frequency for the tactile transducer Set the level and low pass filter cutoff frequency when using tactile output. transducers. 40 Hz / 60 Hz / 80 Hz / 90 Hz / 100 Hz / 110 Hz / 120 Hz / 150 Hz / o Tactile Transducer 180 Hz / 200 Hz / 250 Hz (Default: 80 Hz) The “Low Pass Filter”...
Page 242 You will need to create a Dirac Live account and purchase a license before running Dirac Live. You can create an account and purchase a license on the website below. www.dirac.com/denon/ See the Dirac Live Room Correction manual for details on Dirac Live.
Page 243 Contents Connections Playback Settings Tips Appendix Network To use this unit by connecting it to a home network (LAN), you must configure network settings. If you set up your home network (LAN) via DHCP, set “DHCP” to “On”. (Use the default setting.) This allows this unit to use your home network (LAN). When assigning an IP address to each device manually, you need to assign an IP address to this unit using the “IP Address”...
Page 244 2. Check that your iOS device is connected to the wireless LAN (Wi- o Scan Networks Fi) router and select “Denon AVC-X6800H” from “SET UP NEW Select the network you wish to connect to from the list of possible AIRPLAY SPEAKER...” at the bottom of the Wi-Fi configuration networks shown on the TV screen.
Page 245 Contents Connections Playback Settings Tips Appendix o WPS Router o Manual Use a WPS-compatible router to connect using the push button Enter the name (SSID) and password of the network you wish to method. connect to. 1. Select “Push Button” on the TV screen. 1.
Page 246 Contents Connections Playback Settings Tips Appendix o DHCP Settings Selects how to connect to the network. Configure the IP address. Configure the network settings If you are using a broadband router (DHCP function), the information (Default): automatically from your router. required for network connection such as the IP address will be automatically configured since the DHCP function is set to “On”...
Page 247 0 If you cannot connect to the Internet, recheck the connections and settings. (v p. 82) 0 When using the web control function, Denon AVR Remote App or HEOS App, use 0 If you do not understand about Internet connection, contact your ISP (Internet with the “Network Control”...
Page 248 Router Access 0 Up to 30 characters can be input. 0 The default Friendly Name on first use is “Denon AVC-X6800H”. Checks the connection from this unit to the router. o Set Defaults Failed to communicate with the router.
Page 249 Contents Connections Playback Settings Tips Appendix o Internet Access AirPlay Checks whether this unit has access to the Internet (WAN). Settings for Apple AirPlay. o AirPlay Name Failed to connect to the Internet. Check Error: the Internet connection environment or Displays the name which identifies this unit on Apple devices.
Page 250 Contents Connections Playback Settings Tips Appendix Spotify Connect Wi-Fi and Bluetooth Toggles access to Spotify Connect. Enables/disables the Wi-Fi and Bluetooth radios. o Wi-Fi Enables Spotify Connect. (Default): The Wi-Fi function can be stopped to prevent noise that affects the Off: Disables Spotify Connect.
Page 251 Contents Connections Playback Settings Tips Appendix HEOS HEOS Account is needed in order to use HEOS Favorites. The menu displayed differs depending on the status of the HEOS Account. You have not signed in You have already signed in A QR code is displayed on the TV screen. o Signed in as Scan the QR code with your mobile device and download the HEOS App.
Page 252 Contents Connections Playback Settings Tips Appendix General Make various other settings. Language Set the language for display the menu on the TV screen. Configure the ECO Mode and auto standby mode settings. English / Deutsch / Français / Italiano / Español / Nederlands / o ECO Mode Svenska / Pусский...
Page 253 Contents Connections Playback Settings Tips Appendix Power savings are always active, regardless of volume or input signal. 0 When the unit is switching between the different power saving states in “ECO Mode: Auto”, you may notice a click noise from the inside of this unit, this is Gives you the best balance between normal.
Page 254 Contents Connections Playback Settings Tips Appendix o Power On Default o On Screen Display Set the mode to ECO when the power is on. Display the power consumption of this unit using a meter on the TV screen. The ECO Mode will be set to the previous Last setting before the power was switched Always display the meter on the TV...
Page 255 Contents Connections Playback Settings Tips Appendix o Auto Standby n ZONE2 / ZONE3 When there are no operations for a certain period of time as set here, Set so the unit power automatically switches to standby. the power is automatically shut off even if there is audio or video input. n MAIN ZONE Switches ZONE2/ZONE3 the standby 8 hours:...
Page 256 Contents Connections Playback Settings Tips Appendix o Device List Bluetooth Transmitter Available devices are displayed in the list once you start pairing Sets this unit's Bluetooth transmitter. mode on the Bluetooth headphones you want to connect. Select Set to use Bluetooth headphones to listen to audio playing in the MAIN your Bluetooth headphones from the list to pair them.
Page 257 Contents Connections Playback Settings Tips Appendix o L Ch Level ZONE2 Setup / ZONE3 Setup Adjust the left channel output level. Makes settings for audio playback with ZONE2 and ZONE3. -12 dB – +12 dB (Default : 0 dB) o R Ch Level 0 Values set for “Volume Limit”...
Page 258 Contents Connections Playback Settings Tips Appendix o HDMI Audio (ZONE2 only) o Volume Limit Selects the audio signal format for playing an HDMI source in ZONE2. Make a setting for maximum volume. Through The HDMI audio signal is passed through 60 –...
Page 259 Contents Connections Playback Settings Tips Appendix o Mute Level Zone Rename Set the amount of attenuation when mute is on. Change the display title of each zone to one you prefer. Full Sets the mute level to full mute (no MAIN ZONE / ZONE2 / ZONE3 (Default): sound).
Page 260 Contents Connections Playback Settings Tips Appendix Quick Select 0 “Quick Select” can be set for each Quick Select. Sets the “Quick Select” parameters and display name. 0 When “Input Source” is “Disabled”, Video Select information is not registered/ o Name called up either.
Page 261 Contents Connections Playback Settings Tips Appendix Trigger Out 1 / Trigger Out 2 / Trigger Front Display Out 3 Makes settings related to the display on this unit. Select the conditions for activating trigger out. o Brightness For details about how to connect the TRIGGER OUT jacks, see “TRIGGER OUT jacks”...
Page 262 Contents Connections Playback Settings Tips Appendix o Auto-Update Firmware Turns on Automatic Updates so that feature updates are automatically Checks for the latest firmware information about updates, updates the downloaded and installed when this unit is in standby mode. firmware. n Auto-Update o Check for Update This unit will automatically update to the newest firmware when in...
Page 263 Contents Connections Playback Settings Tips Appendix o Allow Update Notes concerning use of “Update” In order to use these functions, you must have the correct system Enable or disable updates for this unit. requirements and settings for an Internet connection. (v p. 82) Enables this unit to receive updates.
Page 264 Contents Connections Playback Settings Tips Appendix o Video Information Show the HDMI input/output signals and HDMI TV information for Show information about this unit settings, input signals, etc. MAIN ZONE. o Audio HDMI Signal Info. Resolution / HDR / Color Space / Pixel Depth / ALLM / QFT / FRL Show the audio information for MAIN ZONE.
Page 265 Contents Connections Playback Settings Tips Appendix o Firmware SOURCE Blu-ray SOUND Dolby Audio - TrueHD + DSurr SIGNAL Dolby Audio - Dolby TrueHD Displays information for the current Version: firmware. DTS Version: Displays the current DTS version. o Notifications Displays and sets notifications. Also, sets whether or not to display the notification when the power is INPUT ACTIVE...
Page 266 Appendix Usage Data Save & Load To help us improve our products and customer service, Denon collects Save and restore device settings by using a USB memory device. anonymous information about how you use this unit (such as frequently used input sources and sound modes and speaker settings).
Page 267 Contents Connections Playback Settings Tips Appendix Setup Lock Reset Returns settings to the factory default. Protect settings from inadvertent changes. Initialization can be performed for all unit settings or for Network settings o Lock only. Turn protection on. o All Settings Turn protection off.
Page 268 Contents Connections Playback Settings Tips Appendix Specifying the zone used with the remote control unit To prevent accidental misuse, you can set the zone for which the remote control unit is used. Press and hold down either MAIN, ZONE2 or ZONE3 MAIN and SETUP at the same time until the MAIN, ZONE2 and ZONE2...
Page 269: Tips
Contents Connections Playback Settings Tips Appendix o Contents Troubleshooting Power does not turn on / Power is turned off Tips Operations cannot be performed through the remote control unit I want the volume not to become too loud by mistake Display on this unit shows nothing I want to keep the volume at the same level when I turn the power No sound comes out...
Page 270 Contents Connections Playback Settings Tips Appendix Tips I want the volume not to become too loud by mistake Set the volume upper limit for “Volume Limit” in the menu beforehand. This prevents children or others from increasing the volume too much by mistake. You can set this for each zone.
Page 271 Contents Connections Playback Settings Tips Appendix I want to set the optimized listening environment after changing the configuration/position of the speakers or changing a speaker to a new Perform Audyssey ® Setup. This automatically makes the optimized speaker settings for the new listening environment. (v p. 205) I want to combine a desired video with the current music Set “Video Select”...
Page 272 Contents Connections Playback Settings Tips Appendix Troubleshooting If a problem should arise, first check the following: 1. Are the connections correct? 2. Is the set being operated as described in the owner’s manual? 3. Are the other devices operating properly? 0 If steps 1 to 3 above do not improve the problem, restarting the device may improve the problem.
Page 273 Contents Connections Playback Settings Tips Appendix Power does not turn on / Power is turned off Power does not turn on. Check whether the power plug is correctly inserted into the power outlet. (v p. 86) Power automatically turns off. The sleep timer is set.
Page 274 Contents Connections Playback Settings Tips Appendix Operations cannot be performed through the remote control unit Operations cannot be performed through the remote control unit. Batteries are worn out. Replace with new batteries. (v p. 10) Operate the remote control unit within a distance of about 7 m from this unit and at an angle of within 30°. (v p. 10) Remove any obstacle between this unit and the remote control unit.
Page 275 Contents Connections Playback Settings Tips Appendix No sound comes out No sound comes out of speakers. Check the connections for all devices. (v p. 40) Insert connection cables all the way in. Check that input connectors and output connectors are not reversely connected. Check cables for damage.
Page 276 Contents Connections Playback Settings Tips Appendix Desired sound does not come out The volume does not increase. The maximum volume is set too low. Set the maximum volume using “Limit” on the menu. (v p. 184) Appropriate volume correction processing is performed according to the input audio format and settings, so the volume may not reach the upper limit. The Bluetooth headphones do not have volume control and the volume is too low or too high.
Page 277 Contents Connections Playback Settings Tips Appendix No sound comes out of a specific speaker. Check that speaker cables are properly connected. Check that a selection other than “No” is set for the “Speaker Layout” setting in menu. (v p. 216) Check the “Amp Assign”...
Page 278 Contents Connections Playback Settings Tips Appendix Dolby Atmos, Dolby TrueHD, DTS-HD, Dolby Digital Plus audio is not output. Make HDMI connections. (v p. 76) Check the digital audio output setting on the connected device. On some devices, “PCM” is set by default. DTS Neural:X mode cannot be selected.
Page 279 Contents Connections Playback Settings Tips Appendix Dirac Live can not be selected. This cannot be selected when you have not perforned Dirac Live Room Correction. “Dirac Live Setup” (v p. 242) This cannot be selected when using the headphone. Dirac Live cannot be used when the “Speaker Layout” is changed to different settings from the settings that were used when Dirac Live Room Correction was performed.
Page 280 Contents Connections Playback Settings Tips Appendix Sound is interrupted or noise occurs During playback from the Internet radio or USB memory device, sound is occasionally interrupted. When the transfer speed of the USB memory device is slow, sound may occasionally be interrupted. The network communication speed is slow or the radio station is busy.
Page 281 Contents Connections Playback Settings Tips Appendix No video is shown on the TV No picture appears. Check the connections for all devices. (v p. 73) Insert connection cables all the way in. Check that input connectors and output connectors are not reversely connected. Check cables for damage.
Page 282 Contents Connections Playback Settings Tips Appendix While the menu is being displayed, no video is shown on the TV. The video being played will not appear in the background of the menu when the menu is operated. When using HDMI ZONE2, the video output in MAIN ZONE is interrupted. When ZONE2 is operated with the same input source selected for MAIN ZONE and ZONE2, video in MAIN ZONE may be interrupted.
Page 283 Contents Connections Playback Settings Tips Appendix The menu screen is not displayed on the TV The menu screen or status information screen is not displayed on the TV. The status information will not appear on the TV when the following video signals are being played. - Some images of 3D video content - Computer resolution images (example: VGA) - Video with an aspect ratio other than 16:9 or 4:3...
Page 284 Contents Connections Playback Settings Tips Appendix AirPlay cannot be played back The AirPlay icon is not displayed on iTunes / iPhone / iPod touch / iPad. This unit and PC / iPhone / iPod touch / iPad are not connected to the same network (LAN). Connect it to the same LAN as this unit. (v p. 82) The firmware on iTunes / iPhone / iPod touch / iPad is not compatible with AirPlay.
Page 285 Contents Connections Playback Settings Tips Appendix USB memory devices cannot be played back USB memory device is not recognized. Disconnect and reconnect the USB memory device. (v p. 81) Mass storage class compatible USB memory devices are supported. This unit does not support a connection through a USB hub. Connect the USB memory device directly to the USB port. The USB memory device must be formatted to “FAT32”...
Page 286 Contents Connections Playback Settings Tips Appendix Bluetooth cannot be played back Bluetooth devices cannot be connected to this unit. The Bluetooth function in the Bluetooth device has not been enabled. See the Owner’s Manual of the Bluetooth device to enable the Bluetooth function. Bring the Bluetooth device near to this unit.
Page 287 Contents Connections Playback Settings Tips Appendix The sound is cut off. Bring the Bluetooth device near to this unit. Remove obstructions between the Bluetooth device and this unit. To prevent electromagnetic interference, locate this unit away from microwave ovens, wireless LAN devices and other Bluetooth devices. Reconnect the Bluetooth device.
Page 288 Contents Connections Playback Settings Tips Appendix The Internet radio cannot be played back A list of broadcasting stations is not displayed. The LAN cable is not properly connected, or the network is disconnected. Check the connection status. (v p. 82) Perform the network diagnostic mode.
Page 289 Contents Connections Playback Settings Tips Appendix Music files on PC or NAS cannot be played back Files stored on a computer cannot be played. Files are stored in a non-compatible format. Record in a compatible format. (v p. 305) Files that are copyright protected cannot be played on this unit. The USB port of this unit cannot be used for connection to a computer.
Page 290 Contents Connections Playback Settings Tips Appendix Various online services cannot be played Various online services cannot be played. The online service may have been discontinued. The HDMI Control function does not work The HDMI Control function does not work. Check that “HDMI Control” in the menu is set to “On”. (v p. 192) You cannot operate devices that are not compatible with the HDMI Control function.
Page 291 Contents Connections Playback Settings Tips Appendix Cannot connect to a wireless LAN network Cannot connect to the network. The network name (SSID), password and encryption setting have not been set up correctly. Configure the network settings according to the setting details of this unit.
Page 292 Contents Connections Playback Settings Tips Appendix When using HDMI ZONE2, the devices does not function properly When using MAIN ZONE, video output is interrupted in HDMI ZONE2. With the same input source selected for MAIN ZONE and ZONE2, when you operate MAIN ZONE, video may be interrupted in HDMI ZONE2. When using HDMI ZONE2, no video or audio is output from the TV in ZONE2.
Page 293 Contents Connections Playback Settings Tips Appendix Update error messages If an update is interrupted or fails, an error message appears. Display Description Connection failed. Please check your network, then try The network connection is unstable. again. Connection to the server failed. Check your network environment and try the update again.
Page 294 Contents Connections Playback Settings Tips Appendix Resetting factory settings If the indicators are incorrect or the unit cannot be operated, restarting the unit may improve the problem. We recommend restarting the unit before returning the settings to the default settings. (v p. 272) If the operations are not improved by restarting the unit, follow the steps below.
Page 295 Contents Connections Playback Settings Tips Appendix Resetting network settings If network contents cannot be played or the unit cannot connect to the network, restarting the unit may improve the problem. We recommend restarting the unit before returning the settings to the default settings. (v p. 272) If the operations are not improved by restarting the unit, follow the steps below.
Page 296 Contents Connections Playback Settings Tips Appendix Factory Restore When the unit or the network functions do not work properly, operation may be improved by performing the Factory Restore. Do this when the unit still does not work properly even after trying the steps for “Resetting factory settings” or “Resetting network settings”. (v p. 294, 295) After performing the Factory Restore, various settings are reset to the default settings.
Page 297 Contents Connections Playback Settings Tips Appendix About HDMI HDMI is an abbreviation of High-Definition Multimedia Interface, which is an AV digital interface that can be connected to a TV or amplifier. This unit supports input and output of 3D (3 dimensional) video signals With the HDMI connection, high definition video and high quality audio of HDMI.
Page 298 Contents Connections Playback Settings Tips Appendix Auto Lip Sync ARC (Audio Return Channel) This function can automatically correct delay between the audio and This function transmits audio signals from the TV to this unit through video. the HDMI cable and plays back the audio from the TV on this unit Use a TV that is compatible with the Auto Lip Sync function.
Page 299 Contents Connections Playback Settings Tips Appendix o Supported audio formats ALLM (Auto Low Latency Mode) This unit automatically switches to low latency mode depending on 2-channel Linear 2-channel, 32 kHz – 192 kHz, 16/20/24 bit playback contents when using a combination of television and game console compatible with the ALLM function.
Page 300 Contents Connections Playback Settings Tips Appendix Copyright protection system In order to play back digital video and audio such as BD video or DVD video via HDMI connection, both this unit and the TV or player must to support the copyright protection system known as HDCP (High- bandwidth Digital Content Protection System).
Page 301 Contents Connections Playback Settings Tips Appendix Video conversion function This unit automatically converts the input video signals as shown in the diagram before outputting them to the TV. This unit HDMI-compatible TV Video device Output Input (IN) (HDMI OUT) Output HDMI signal HDMI signal HDMI connector...
Page 302 Contents Connections Playback Settings Tips Appendix When “HDMI Upscaler” in the menu is set to “Auto”, this unit upscales the input HDMI video signal and then outputs it to the TV. (v p. 196) HDMI Output signal 1080p 1080p 1080p 480i/576i 480p/576p 720p 1080i...
Page 303 Contents Connections Playback Settings Tips Appendix Playing back a USB memory devices This unit is compatible with MP3 ID3-Tag (Ver. 2) standard. This unit can show the artwork that was embedded by using MP3 ID3-Tag Ver. 2.3 or 2.4. This unit is compatible with WMA META tags. If the image size (pixels) of an album artwork exceeds 500 ×...
Page 304: Usb Memory Device
Contents Connections Playback Settings Tips Appendix Playing back a Bluetooth device o Maximum number of playable files and folder The limits on the number of folders and files that can be displayed by This unit supports the following Bluetooth profile. this unit are as follows.
Page 305 Contents Connections Playback Settings Tips Appendix Playing back a file saved on a PC or NAS This unit is compatible with MP3 ID3-Tag (Ver. 2) standard. This unit can show the artwork that was embedded by using MP3 ID3-Tag Ver. 2.3 or 2.4. This unit is compatible with WMA META tags.
Page 306 Contents Connections Playback Settings Tips Appendix Playing back Internet Radio Personal memory plus function The most recently used settings (input mode, HDMI output mode, sound o Playable broadcast station specifications mode, tone control, channel level, MultEQ ® XT32, Dynamic EQ, Dynamic Volume, Dirac Live, Restorer and audio delay, etc.) are saved for each Sampling frequency Bit rate...
Page 307 Contents Connections Playback Settings Tips Appendix Sound modes and channel output S This indicates the audio output channels or surround parameters that can be set. D This indicates the audio output channels. The output channels depend on the settings of “Speaker Layout”. (v p. 216) Channel output Front Surround...
Page 308 Contents Connections Playback Settings Tips Appendix Channel output Front Surround Back Surround Front Front Rear Surround Sound mode Front Surround Center Dolby Atmos Dolby Atmos Dolby Atmos Center Back Wide Height Front Middle Rear Height Height Subwoofer Height Surround Enabled Enabled Enabled Multi Ch Stereo...
Page 309 Contents Connections Playback Settings Tips Appendix Sound modes and surround parameters Surround Parameter Loudness Dynamic Dialog Speaker Speaker High Pass Sound mode Frequency Cinema Delay Effect Room Center IMAX Audio Management Compression Control Select Virtualizer DTS Neural:X Filter IMAX Effects Time Level Size...
Page 310: Volume
Contents Connections Playback Settings Tips Appendix Surround Parameter Audyssey Subwoofer Dialog Tone Restorer Bass Sync Low Pass Subwoofer Dynamic Audyssey Level Adjust Sound mode MultEQ® XT32 Dynamic EQ Dirac Live Auro-Matic Auro-Matic AURO-3D Enhancer Volume LFC™ Filter Output Subwoofer z11z12 z13z14 Preset Strenght...
Page 311 Contents Connections Playback Settings Tips Appendix z1 During playback in Pure Direct mode, the surround parameters are the same as in Direct mode. z2 This item can be selected when a Dolby Digital, Dolby Digital Plus, Dolby TrueHD or Dolby Atmos signal is played. z3 This item can be selected when a Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS:X, DTS-HD or DTS signal is played.
Page 312 Contents Connections Playback Settings Tips Appendix Types of input signals, and corresponding sound modes F This indicates the default sound mode. S This indicates the selectable sound mode. 2-channel signal Multi-channel signal Dolby Dolby Dolby Sound mode NOTE Dolby Dolby Analog / (Super Dolby...
Page 313 Contents Connections Playback Settings Tips Appendix 2-channel signal Multi-channel signal Dolby Dolby Dolby Sound mode NOTE Dolby Dolby Analog / (Super Dolby Dolby IMAX IMAX (Super Digital DTS-HD Digital Digital DTS:X DTS-HD AURO-3D multi- MPEG-H TrueHD Digital Audio Atmos TrueHD DTS:X Audio Plus...
Page 314 Contents Connections Playback Settings Tips Appendix 2-channel signal Multi-channel signal Dolby Dolby Dolby Sound mode NOTE Dolby Dolby Analog / (Super Dolby Dolby IMAX IMAX (Super Digital DTS-HD Digital Digital DTS:X DTS-HD AURO-3D multi- MPEG-H TrueHD Digital Audio Atmos TrueHD DTS:X Audio Plus...
Page 315 Contents Connections Playback Settings Tips Appendix z1 This item can be selected when using any of the Surround Back, Front Height, Top Front, Top Middle, Top Rear, Rear Height, Front Dolby, Surround Dolby or Back Dolby speaker. It can also be selected when the “Surround Parameter” - “Speaker Virtualizer” setting is turned “On”. z2 The default sound mode for the AirPlay playback is “Direct”.
Page 316 Contents Connections Playback Settings Tips Appendix Explanation of terms o Audyssey Audyssey LFC™ (Low Frequency Containment) Audyssey LFC™ solves the problem of low frequency sounds disturbing Audyssey Dynamic EQ ® people in neighboring rooms or apartments. Audyssey LFC™ dynamically Audyssey Dynamic EQ ®...
Page 317 Contents Connections Playback Settings Tips Appendix o Dirac Live o AURO-3D Dirac Live room correction Auro-3D ® ® Dirac Live is an advanced room correction technology developed by The Auro-3D technology suite is a groundbreaking new audio technology ® ® Dirac Research.
Page 318 Contents Connections Playback Settings Tips Appendix o Dolby Dolby Digital Dolby Digital is a multi-channel digital signal format developed by Dolby Dolby Atmos Laboratories. Introduced first in the cinema, Dolby Atmos brings a revolutionary sense of A total of 5.1-channels are played: 3 front channels (“FL”, “FR” and “C”), 2 dimension and immersion to the Home Theater experience.
Page 319 Contents Connections Playback Settings Tips Appendix Dolby Speaker Technology (Dolby Atmos Enabled speakers) Speaker Virtualizer A convenient alternative to speakers built into the ceiling, Dolby Atmos Dolby Atmos height virtualization is a digital signal processing solution that Enabled speakers employ the ceiling above you as a reflective surface for leverages Dolby’s deep understanding of human audio perception to reproducing audio in the height plane above the listener.
Page 320 Contents Connections Playback Settings Tips Appendix o DTS DTS-ES™ Discrete 6.1 DTS-ES™ Discrete 6.1 is a 6.1-channel discrete digital audio format Dialog Control adding a surround back (SB) channel to the DTS digital surround sound. Gives you control of the listening experience. You can lift the dialog out Decoding of conventional 5.1-channel audio signals is also possible from the background sounds when clarity and intelligibility are desired.
Page 321 Contents Connections Playback Settings Tips Appendix DTS-HD High Resolution Audio DTS Neural:X DTS-HD High Resolution Audio is an improved version of the conventional Enables an immersive audio experience for older content. DTS Neural:X DTS, DTS-ES and DTS 96/24 signals formats, compatible with sampling can upmix your stereo, 5.1 or 7.1 content to take full advantage of all frequencies of 96 or 48 kHz and up to 7.1-channels of discrete digital speakers in your surround sound system.
Page 322 Contents Connections Playback Settings Tips Appendix o Audio THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED Apple Lossless Audio Codec WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A This is a codec for lossless audio compression method developed by PARTICULAR PURPOSE ARE DISCLAIMED.
Page 323 Contents Connections Playback Settings Tips Appendix MPEG (Moving Picture Experts Group), MPEG-2, MPEG-4 WMA (Windows Media Audio) These are the names for digital compression format standards used for This is audio compression technology developed by Microsoft the encoding of video and audio. Video standards include “MPEG-1 Corporation.
Page 324 Contents Connections Playback Settings Tips Appendix o Video Speaker impedance This is an AC resistance value, indicated in Ω (ohms). Progressive (sequential scanning) Greater power can be obtained when this value is smaller. This is a scanning system of the video signal that displays 1 frame of video as one image.
Page 325 Contents Connections Playback Settings Tips Appendix o Network WPA2 (Wi-Fi Protected Access 2) This is a new version of the WPA established by the Wi-Fi Alliance, AirPlay compatible with more secure AES encryption. AirPlay sends (plays) contents recorded in iTunes or on an iPhone/iPod WPA/WPA2-Personal touch/iPad to a compatible device via the network.
Page 326 Contents Connections Playback Settings Tips Appendix o Others HDCP When transmitting digital signals between devices, this copyright protection technology encrypts the signals to prevent content from being copied without authorization. MAIN ZONE The room where this unit is placed is called the MAIN ZONE. Pairing Pairing (registration) is an operation that is required in order to connect a Bluetooth device to this unit using Bluetooth.
Page 327 Contents Connections Playback Settings Tips Appendix Trademark information Manufactured under license from Auro Technologies. Auro-3D and the related symbols are registered trademarks of Auro ® Apple, AirPlay, iPad, iPad Air, iPad Pro, iPhone and Mac are trademarks Technologies. All materials contained in this work are protected by of Apple Inc., registered in the U.S.
Page 328 Contents Connections Playback Settings Tips Appendix For DTS patents, see http://patents.dts.com. Manufactured under Manufactured under license from Dolby Laboratories. license from DTS, Inc. DTS, DTS:X, and the DTS:X logo are registered Dolby, Dolby Atmos, Dolby Audio, Dolby Vision, and the double-D trademarks or trademarks of DTS, Inc.
Page 329 Contents Connections Playback Settings Tips Appendix Manufactured under license from IMAX Corporation. IMAX ® is a The MPEG-H TV Audio system logo is a trademark of Fraunhofer IIS and registered trademark of IMAX Corporation in the United States and/or is registered in Germany and other countries. other countries.
Page 330 Contents Connections Playback Settings Tips Appendix © 2018 Dirac Research AB. All rights reserved. Dirac, Dirac Live and the Dirac logos are trademarks of Dirac Research AB. Front panel Display Rear panel Remote Index...
Page 331 Contents Connections Playback Settings Tips Appendix Specifications Audio section Power amplifier Rated output: Front: 140 W + 140 W (8 Ω/ohms, 20 Hz – 20 kHz with 0.05 % T.H.D.) 175 W + 175 W (6 Ω/ohms, 1 kHz with 0.7 % T.H.D.) Center: 140 W (8 Ω/ohms, 20 Hz –...
Page 332 Contents Connections Playback Settings Tips Appendix Analog Input sensitivity: 200 mV Frequency response: 10 Hz – 100 kHz — +1, –3 dB (Direct mode) S/N: 102 dB (IHF–A weighted, Direct mode) Distortion: 0.005 % (20 Hz – 20 kHz) (Direct mode) Rated output: 1.2 V Digital...
Page 333: Wireless Lan
Contents Connections Playback Settings Tips Appendix Video section Standard video connectors Input level and impedance: 1 Vp-p, 75 Ω/ohms Frequency response: 5 Hz – 10 MHz — 0, –3 dB Color component video connector Input level and impedance: Y signal — 1 Vp-p, 75 Ω/ohms signal —...
Page 334 Contents Connections Playback Settings Tips Appendix Bluetooth section Communications system: Bluetooth Specification Version 5.4 Transmission power: Bluetooth Specification Power Class 1 Maximum communication range: Approx. 30 m in line of sight Used frequency range: 2.4 GHz Modulation scheme: FHSS (Frequency-Hopping Spread Spectrum) Supported profiles: Receiver function A2DP (Advanced Audio Distribution Profile) 1.4...
Page 335 Contents Connections Playback Settings Tips Appendix General Operating temperature: 5 °C - 35 °C Power supply: AC 230 V, 50/60 Hz Power consumption: 750 W Power consumption in standby modes: Setting items in the menu HDMI Pass Through Power Standby modes Network Control Wi-Fi and Bluetooth Allow Update...
Page 336 Contents Connections Playback Settings Tips Appendix Dimensions (Unit : mm) Weight: 15.6 kg Front panel Display Rear panel Remote Index...
Page 337 Contents Connections Playback Settings Tips Appendix Index Bi-amp ............65 Firmware Update .......... 262 Bluetooth device ..........95 Front panel ............. 20 v Numerics Blu-ray Disc player ........78, 89 11.1-channel ..........57 13.1-channel ..........62 Game console ..........79 3D ..............
Page 338 Contents Connections Playback Settings Tips Appendix Input Assign ..........200 NAS ............. 104 Rear panel ............26 Input settings ........169, 200 Network settings .......... 243 Remote control unit ........30 Input source ........... 88 Resetting factory settings ......294 Internet Radio ..........
Page 339: Table Of Contents
Contents Connections Playback Settings Tips Appendix Tips .............. 270 Web control ..........155 Troubleshooting ........... 272 Wi-Fi settings ..........244 TV ............73, 74 Wired LAN ..........82, 243 Wireless LAN ......... 83, 244 USB memory device ........ 81, 90 ZONE2/ZONE3 ........
