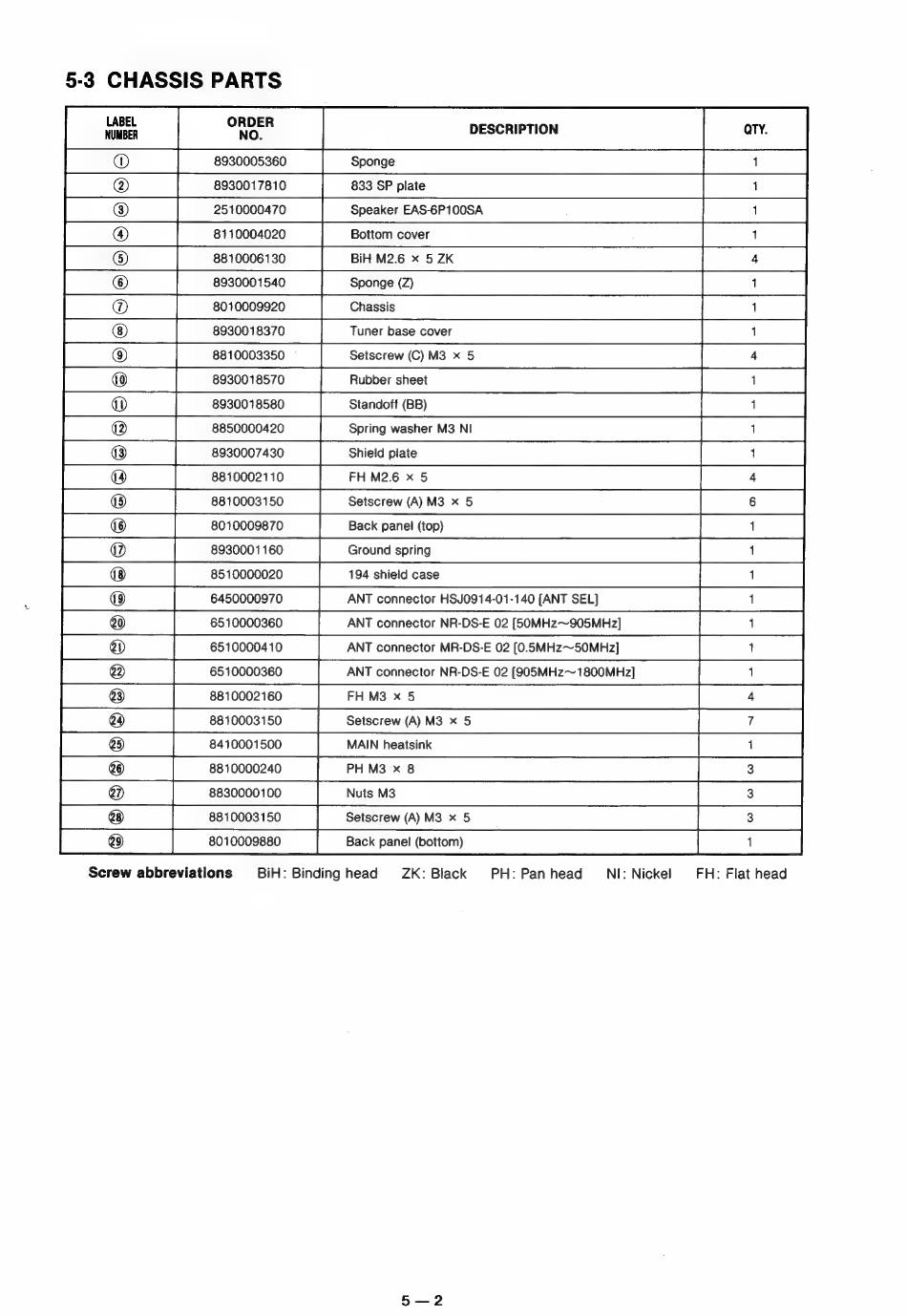

5-3 CHASSIS PARTS
LABEL
NUMBER
o =
<
ORDER DESCRIPTION
8930005360
8930017810
2510000470
8110004020
8810006130
8930001540
8010009920
8930018370
8810003350 `
8930018570
8930018580
8850000420
8930007430
8810002110
8810003150
8010009870
8930001160
8510000020
6450000970
6510000360
6510000410
6510000360
8810002160
8810003150
8410001500
8810000240
8830000100
8810003150
8010009880
Sponge
833 SP plate
Speaker EAS-6P100SA
Bottom cover
BiH M2.6 x 5 ZK
uL
ШИН
Sponge (2)
Chassis
Tuner base cover
Setscrew (C) M3 x 5
Rubber sheet
Standoff (ВВ)
Spring washer M3 NI
Shield plate
ЕН М2.6 х 5
Setscrew (А) МЗ х 5
Back panel (top)
Ground spring
194 shield case
ANT connector HSJ0914-01-140 [ANT SEL)
ANT connector NR-DS-E 02 (БОМН2--905МН2)
ANT connector MR-DS-E 02 [0.5MHz—50MHz]
ANT connector NR-DS-E 02 (905МН2--1800МН2)
ЕН M3 x 5
Setscrew (A) МЗ х 5
MAIN heatsink
РН M3 х 8
Nuts M3
Setscrew (A) M3 x 5
Back panel (bottom)
т
rear
rep
Screw abbreviations ВІН: Binding head ZK: Black PH: Рап head МІ: Nickel FH: Flat head
