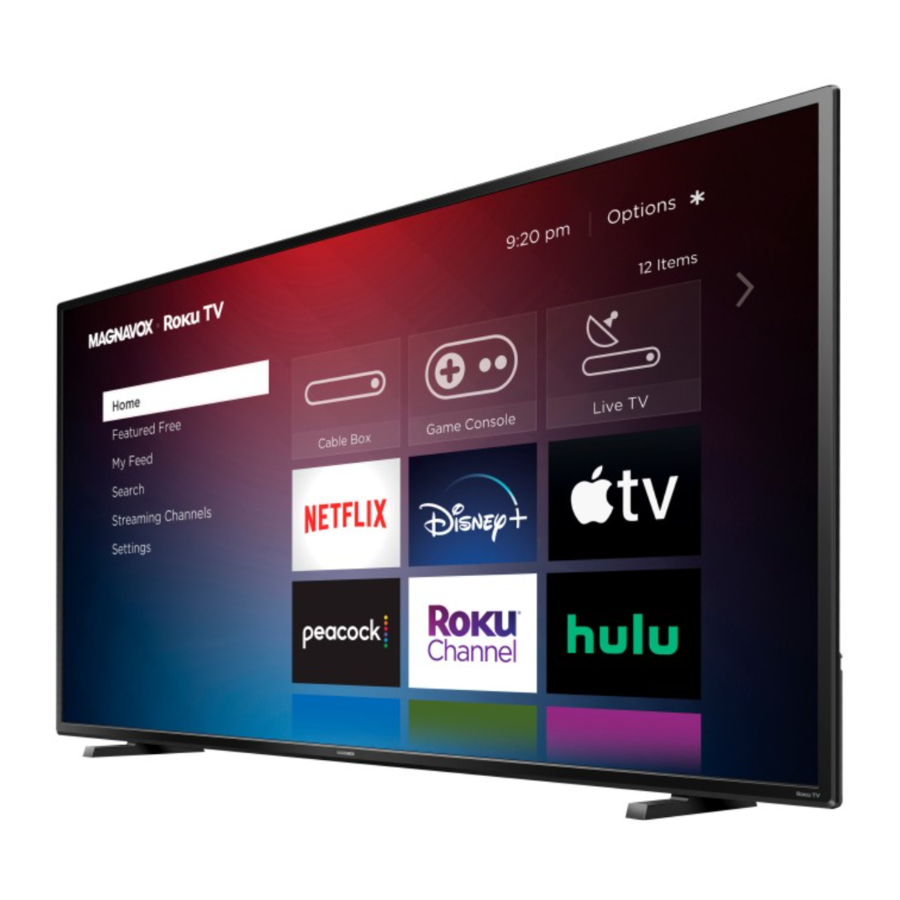

Magnavox 65MV379R A, 55MV379R A - 65", 55" Class 4K Ultra HD Roku TV Manual

What's in the box

* The shape of the stands may differ depending on which product you purchased.

What you need (not included)

For additional support, please see online owner's manual at www.MAGNAVOX.com/support
Key things to know: A paid subscription or other payments may be required for some streaming channel content. Channel availability is subject to change and varies by country.

Mount base onto TV

Refer to the Caution sheet for instructions on how to install the stand.
If you plan to wall mount your TV, refer to "Wall mount bracket kit" in this Quick start guide for recommended wall mount bracket kit.

Connections and Control panel

USB port
Used to connect a USB flash drive to view personal media or pause Live TV. A USB drive (16 GB or larger ) is required for the Live TV pause feature.
HDMI input jacks
* For HDMI 2 only
In addition to normal HDMI and HDMI-DVI functionality, it outputs TV audio to an HDMI-ARC compliant device, such as a home theater system.
Digital audio (S/PDIF) output
To home theater or another digital audio system
Note: Use an optical (TOSLINK) to coaxial (RCA) adapter (not included) for devices which only have a coaxial input.
Ethernet port
To use the wired network connection, connect an RJ-45 Ethernet cable (not included) from the jack on the back of your TV to your network router.

Control panel located on the back of the TV.

1. Press to turn the TV on/select connected device.
   Press and hold to turn the TV off.
2. Press once for factory reset**Please be aware that all settings will be reset to its factory defaults.
3. Remote control sensor

Disconnect the AC power cord before connecting devices.

Place batteries in remote

Power your TV remote by inserting the included batteries carefully matching (+) and (−) indicated inside the battery compartment.
If your remote gets warm / hot during use, discontinue use and contact customer support immediately at www.MAGNAVOX.com/support

Tip
Always replace used batteries with two brand-new batteries from the same manufacturer.
Never use damaged batteries.

Plug in and turn on TV

Connect the AC power cord to the AC outlet. Press the power button on the TV's remote control.

Follow the on-screen instructions

1. Once your Roku TV powers on, follow the on-screen instructions. Your Roku TV will walk you through initial setup and help connect to your preferred wireless network.
2. Your TV will automatically detect wireless networks in your area. Have your network name and password handy and follow the easy on-screen instructions.
   If you are not ready to connect your TV to a wireless network, you can still use it as a regular TV by selecting "Connect to the Internet later".
3. Once connected your TV will automatically update with the latest software. This can take a few minutes to update.

Your new MAGNAVOX Roku TV automatically receives regular software updates in the background when it's connected to the Internet. This allows it to give you a better experience over time.

Activate your smart TV

You need a Roku account to activate your Roku TV and to access entertainment across thousands of streaming channels.

Your Roku account
Follow the on-screen instructions on your Roku TV. You will need to activate your Roku TV using your smartphone, tablet, or computer to link to a Roku account. See more information below.

• Roku accounts are free, and while a valid credit card number is not required to create your account, providing your credit card information makes renting and purchasing entertainment from the Roku Channel Store fast and convenient.
• If you choose to provide a payment method, you will be able to seamlessly rent content, download channels and subscribe to services without having to enter your credit card information each time.
• A unique PIN can be added to the account to prevent unauthorized purchases.

Tip
Roku does not charge for activation support — beware of scams.

Connect antenna or cable (optional)

With the tuner built-in you can connect your TV to antenna or cable (free cable only, does not work with cable TV using a set-top box) and enjoy over-the-air entertainment.

*User interface may vary.

1. When the setup wizard is complete, select the Antenna TV tile from the home screen.
2. Follow the on-screen instructions.
3. Whenever you want to watch local broadcast TV, select this tile.

Tip
While in the antenna TV input, you can use your remote to access additional features.

• D-Pad left: Pressing this key brings up the smart guide, a list of antenna TV channels.
• Play/Pause: Pause live TV for up to 90 minutes when a 16 GB USB drive is connected.
• RWD scan and FWD scan: Allows you to fast forward and rewind while using the Live TV pause feature.
• D-Pad left and right: Allows you to scroll through the paused Live TV and select scenes.
• Live TV Pause can pause content received on the antenna TV input for up to 90 minutes and requires a 16 GB or larger USB drive and a valid Roku account. All data on the USB drive will be deleted prior to use.

Download the Roku mobile app (optional)

The free Roku mobile app allows you to use your mobile device as a fully functioning remote control with voice search and keyboard.

• Download the Roku mobile app on your smartphone or tablet through Google Play or Apple App Store.


• Simply search for "Roku app" and choose the "Roku" app provided by Roku Inc.
• Follow the on-screen prompts and you are on your way.

Funai Corporation, Inc. does not warrant access to the portal or to any of the services, content, software and advertising. Funai Corporation, Inc. or third party content / service providers may, in their sole discretion, add or remove access to any specific services, content, software and advertising at any time. Although Funai Corporation, Inc. will strive to provide a good selection of services, content or software, Funai Corporation, Inc. does not warrant continued access to any specific services, and content or software.
Funai Corporation, Inc. does not warrant wireless screencasting compatibility with all source devices such as smartphones, tablets, laptops, etc. due to large variability in hardware, firmware, drivers, software and implementation of wireless casting applications on these source devices. Although Funai Corporation, Inc. will strive to enhance compatibility and performance across a range of source devices, Funai Corporation, Inc. does not warrant compatibility with specific source devices.

This remote control is designed to be incredibly intuitive for watching TV and navigating on-screen menus.

Here are some buttons you should know about.

*The gives you easy access to picture settings, display options and more. Try it on every screen.

Safety instructions

Register online at www.magnavox.com/support/ today to get the most benefits from your purchase.
Registering your model with MAGNAVOX makes you eligible for all of the valuable benefits such as software upgrades and important product notifications. Register online at www.magnavox.com/support/

*Product safety notification
By registering your product, you'll receive notification - directly from the manufacturer - in the rare case of a product recall or safety defect.

*Additional benefits
Registering your product guarantees that you'll receive all of the privileges to which you're entitled, including special money-saving offers.

Know these safety symbols

RISK OF ELECTRIC SHOCK DO NOT OPEN

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL

The caution marking is located on the rear or bottom of the cabinet.

	The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the apparatus's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
	The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the apparatus.

Important safety instructions

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other.
   A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments / accessories specified by the manufacturer.
12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart / apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

Example of antenna grounding as per NEC - National Electric Code

Wall mount bracket kit

• Your TV meets the VESA standard for wall mounting. Consult with your local dealer for a wall mount bracket which is compatible with your TV model.
• The recommended wall mount bracket kit (sold separately) allows the mounting of the TV on the wall.
• For detailed information on installing the wall mount, refer to the wall mount instruction book.
• Funai Corporation is not responsible for any damage to the product or injury to yourself or others if you elect to install the TV wall mount bracket or mount the TV onto the bracket on your own.
• The wall mount bracket must be installed by experts.

Funai Corporation is not liable for any accidents or injuries incurred while installing this product, including but not limited to those noted below:

• Install the wall mount bracket on a sturdy vertical wall.
• If installed onto a ceiling or slanted wall, the TV and wall mount bracket may fall which could result in a severe injury.
• Do not use screws that are longer or shorter than their specified length. If screws too long are used this may cause mechanical or electrical damage inside the TV set. If screws too short are used this may cause the TV set to fall.
• Do not fasten the screws by excessive force. This may damage the product or cause the product to fall, leading to an injury.
• For safety reasons use 2 people to mount the TV onto a wall mounting bracket.
• Do not mount the TV onto the wall mounting bracket while your TV is plugged in or turned on. It may result in an electrical shock injury.

When installing the unit on the wall, allow this much space.

Notice

MAGNAVOX and SMART. VERY SMART. are registered trademarks of Koninklijke Philips N.V. and are used under license from Koninklijke Philips N.V. Funai reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly.
The material in document is believed adequate for the intended use of the system. If the product or its individual modules or procedures are used for purposes other than those specified herein, confirmation of their validity and suitability must be obtained.
Funai warrants that the material itself does not infringe any United States patents. No further warranty is expressed or implied.
Funai cannot be held responsible neither for any errors in the content of document nor for any problems as a result of the content in document. Errors reported to Funai will be adapted and published on the Funai support website as soon as possible.

Pixel characteristics
This LCD product has a high number of color pixels. Although it has effective pixels of 99.999% or more, black dots or bright points of light (red, green or blue) may appear constantly on the screen. This is a structural property of the display (within common industry standards) and is not a malfunction.

Modifications
This apparatus may generate or use radio frequency energy. Changes or modifications to this apparatus may cause harmful interference. Any modifications to the apparatus must be approved by Funai Corporation. The user could lose the authority to operate this apparatus if an unauthorized change or modification is made.

Cables
Connections to this device must be made with shielded cables with metallic RFI / EMI connector hoods to maintain compliance with FCC rules and regulations.

Positioning the TV

• Large screen TVs are heavy. 2 people are required to carry and handle a large screen TV.

• Make sure to hold the upper and bottom frames of the unit firmly as illustrated.
• Install the unit in a horizontal and stable position.
• Do not install the unit in direct sunlight or in a place subject to dust or strong vibration.
• Depending on the environment, the temperature of this unit may increase slightly. This is not a malfunction.
• When installing this unit in a temperate environment, avoid a place with rapid temperature changes.
• This unit should not be used in a tropical environment as it has not been evaluated under such conditions.
• No objects should be placed directly on or under this unit, especially lighted candles or other flaming objects.
• Depending on your external devices, noise or disturbance of the picture and / or sound may be generated if the unit is placed too close to them. In this case, please ensure enough space between the external devices and the unit.
• Do not insert the AC power cord into the power socket outlet before all the connections are made.
• Ensure that you always have easy access to the AC power cord and outlet to disconnect the TV from the AC outlet.
• Before you move the TV, disconnect attached cables to prevent damage to connectors, especially the TV tuner.
• Be sure to unplug the AC power plug from the AC outlet before moving or carrying the unit.
• When moving the TV and then setting it down, please be careful not to pinch the AC power cord under the unit.

Regulatory notices

To prevent injury, this apparatus must be securely attached to the furniture / wall in accordance with the instructions. Tipping, shaking or rocking the unit may cause injury / death.

Never place a TV in an unstable location. A TV may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

• Using cabinets or stands recommended by the manufacturer of the TV.
• Only using furniture that can safely support the TV.
• Ensuring the TV is not overhanging the edge of the supporting furniture.
• Not placing the TV on tall furniture (for example, cupboards or bookcases) without anchoring both the furniture and the TV to a suitable support.
• Not placing the TV on cloth or other materials that may be located between the TV and supporting furniture.
• Educating the children about the dangers of climbing on furniture to reach the TV or its controls.

If your existing TV is being retained and relocated, the same considerations as above should be applied.
Do not place the unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling unit can cause serious injury or even death. In order to avoid interruption of ventilation, this unit should not be placed in built-in equipment such as a book cabinet, rack, etc., and the vents of this unit should not be covered with anything such as a tablecloth, curtain, newspaper, etc. Make sure that there is enough ventilation space (4 " / 10 cm or more) around this unit.
Press B to turn the unit on and go into standby mode. To completely turn off the unit, you must unplug the AC power plug from the AC power outlet. Disconnect the AC power plug to shut the unit off when trouble is found or not in use. The AC plug shall remain readily available.

Never use a gas duster on this TV.
The gas trapped inside of this unit may cause ignition and explosion.

Batteries usage

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.

Batteries (battery pack or battery installed) should not be exposed to excessive heat such as sunshine, fire or the like.

• Do not mix old and new batteries.
• Do not mix alkaline, standard (carbon-zinc) or rechargeable (ni-cad, ni-mh, Li-ion, etc.) batteries.

If you have any questions or need a detailed manual, or wish to call or chat with us, Start Guide please visit our support website at www.magnavox.com/support/
Chat with us: https://tinyurl.com/y5loludv
Scan to chat with us:
