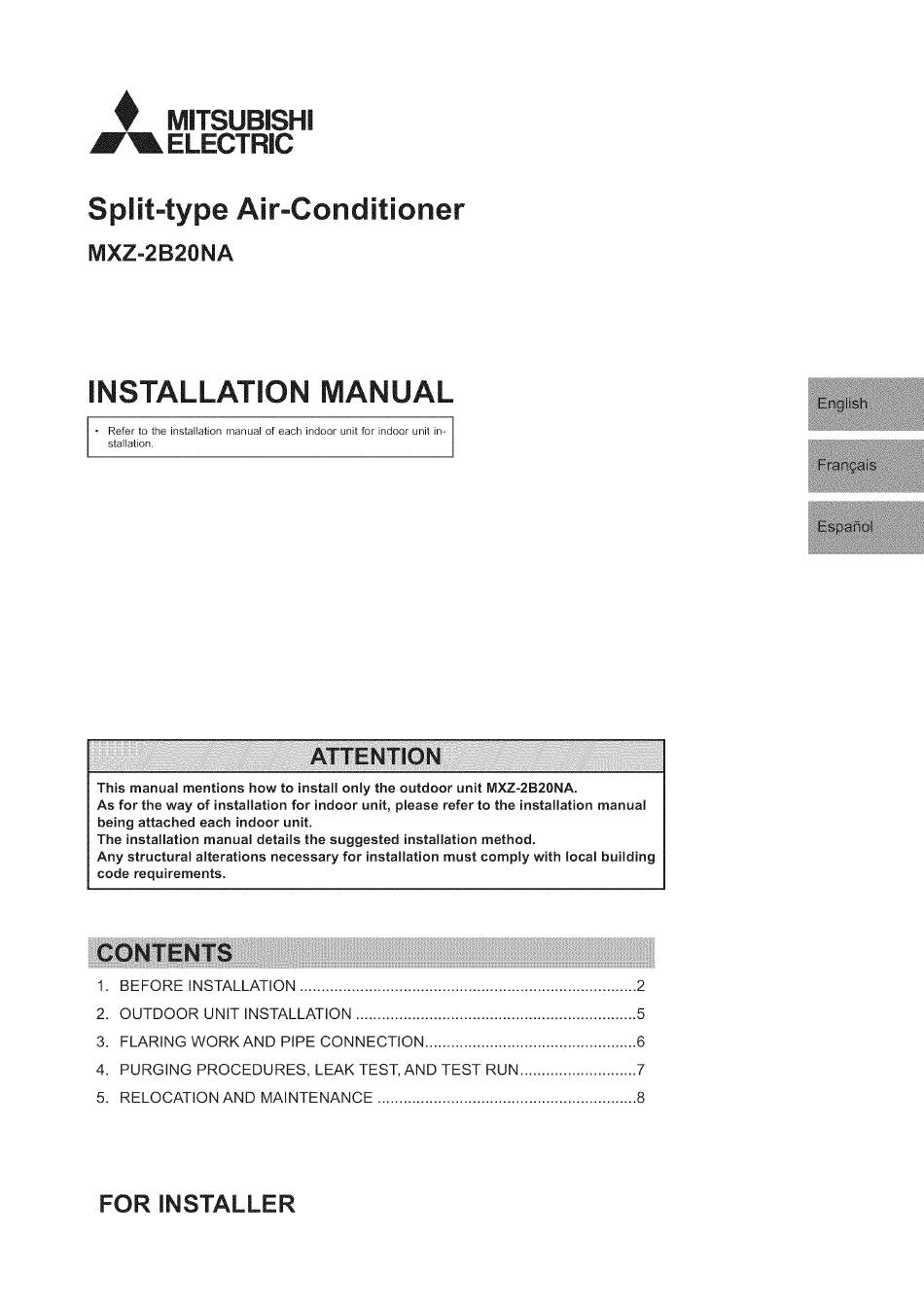

Mitsubishi Electric MXZ-2B20NA Installation Manual

MITSUBISHI
47% ELECTRIC
Split-type Air-Conditioner

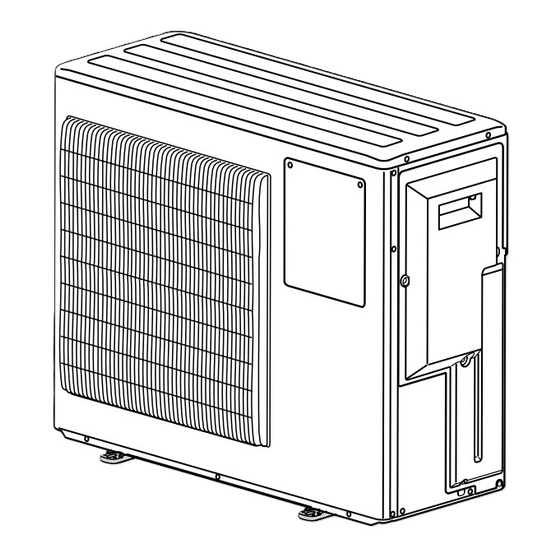

MXZ-2B20NA
INSTALLATION MANUAL
° Refer to the installation manual of each indoor unit for indoor unit in-
stallation.
ATTENTION
This manual mentions how to install only the outdoor unit MXZ-2B20NA.
As for the way of installation for indoor unit, please refer to the installation manual
being attached each indoor unit.
The installation manual details the suggested installation method.
Any structural alterations necessary for installation must comply with local building
code requirements.
1. BEFORE INSTALLATION o.oo etree rane rrieee tae eeranae 2
2. OUTDOOR UNIT INSTALLATION o.oo renee 5
3. FLARING WORK AND PIPE CONNECTION... eee 6
4. PURGING PROCEDURES, LEAK TEST, AND TEST RUN... ee 7
5. RELOCATION AND MAINTENANCE. 0.00.0... cece cece tener erences tene ee eeneeee 8
FOR INSTALLER
