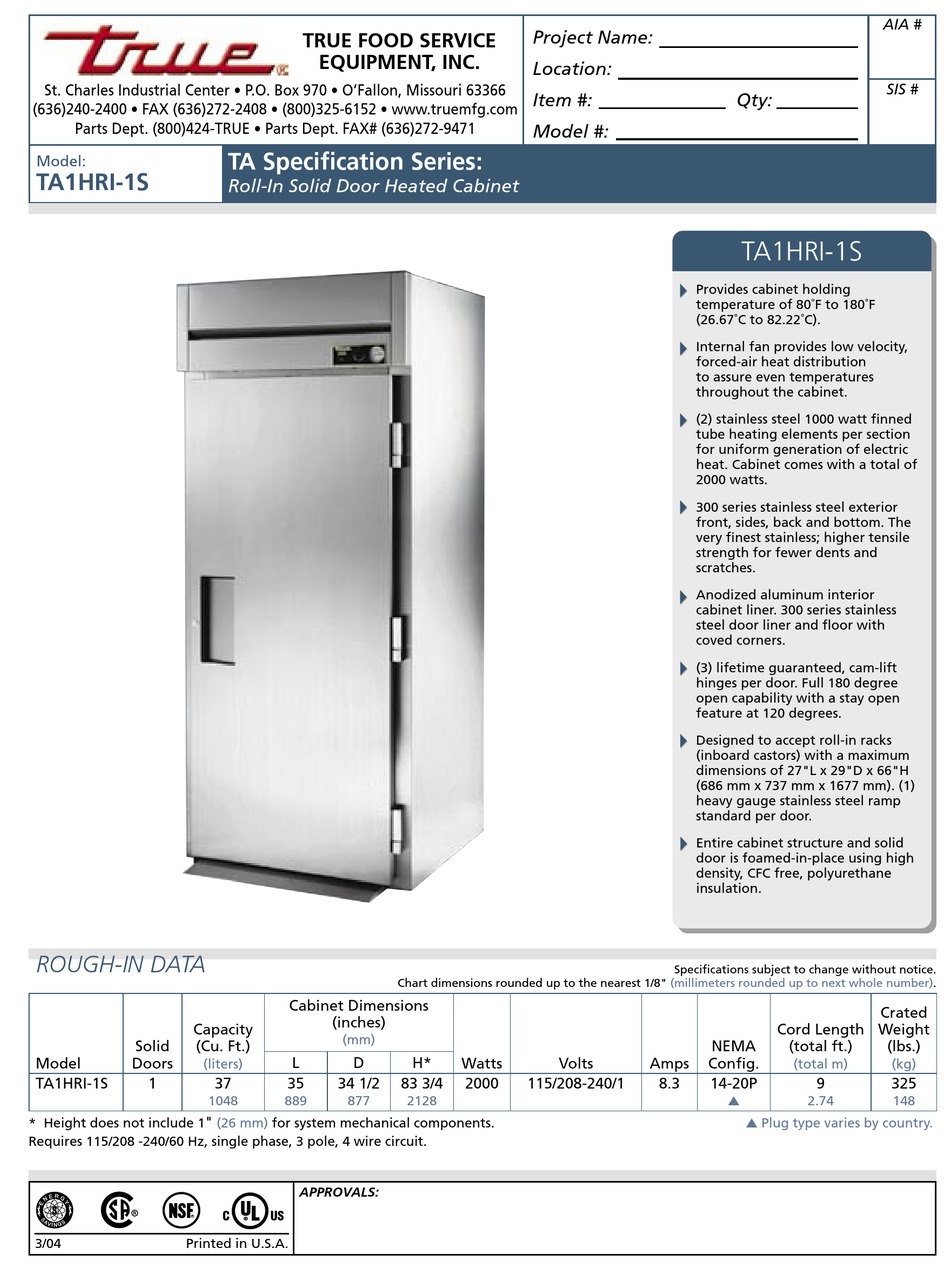

True TA1HRI-1S Specifications

St. Charles Industrial Center • P.O. Box 970 • O'Fallon, Missouri 63366
(636)240-2400 • FAX (636)272-2408 • (800)325-6152 • www.truemfg.com
Parts Dept. (800)424-TRUE • Parts Dept. FAX# (636)272-9471
Model:
TA1HRI-1S
ROUGH-IN DATA
Capacity
Solid (Cu. Ft.)
Model Doors
(liters)
TA1HRI-1S 1
1048
"
* Height does not include 1
Requires 115/208 -240/60 Hz, single phase, 3 pole, 4 wire circuit.
S
R
3/04 Printed in U.S.A.
TRUE FOOD SERVICE
EQUIPMENT, INC.
TA Specification Series:
Roll-In Solid Door Heated Cabinet
Chart dimensions rounded up to the nearest 1/8"
Cabinet Dimensions
(inches)
(mm)
L D
37 35 34 1/2
889 877
(26 mm) for system mechanical components.
APPROVALS:
C US
®
Project Name:
Location:
Item #:
Model #:
H* Watts Volts
83 3/4 2000 115/208-240/1
2128
Qty:
TA1HRI-1S
Provides cabinet holding
temperature of 80˚F to 180˚F
(26.67˚C to 82.22˚C).
Internal fan provides low velocity,
forced-air heat distribution
to assure even temperatures
throughout the cabinet.
(2) stainless steel 1000 watt finned
tube heating elements per section
for uniform generation of electric
heat. Cabinet comes with a total of
2000 watts.
300 series stainless steel exterior
front, sides, back and bottom. The
very finest stainless; higher tensile
strength for fewer dents and
scratches.
Anodized aluminum interior
cabinet liner. 300 series stainless
steel door liner and floor with
coved corners.
(3) lifetime guaranteed, cam-lift
hinges per door. Full 180 degree
open capability with a stay open
feature at 120 degrees.
Designed to accept roll-in racks
(inboard castors) with a maximum
dimensions of 27"L x 29"D x 66"H
(686 mm x 737 mm x 1677 mm). (1)
heavy gauge stainless steel ramp
standard per door.
Entire cabinet structure and solid
door is foamed-in-place using high
density, CFC free, polyurethane
insulation.
Specifications subject to change without notice.
(millimeters rounded up to next whole
Cord Length
NEMA (total ft.)
Amps Config.
(total m)
8.3 14-20P 9
2.74

 Plug type varies by country.
AIA #
SIS #
number).
Crated
Weight
(lbs.)
(kg)
325
148
