Toshiba 2837DD Manual

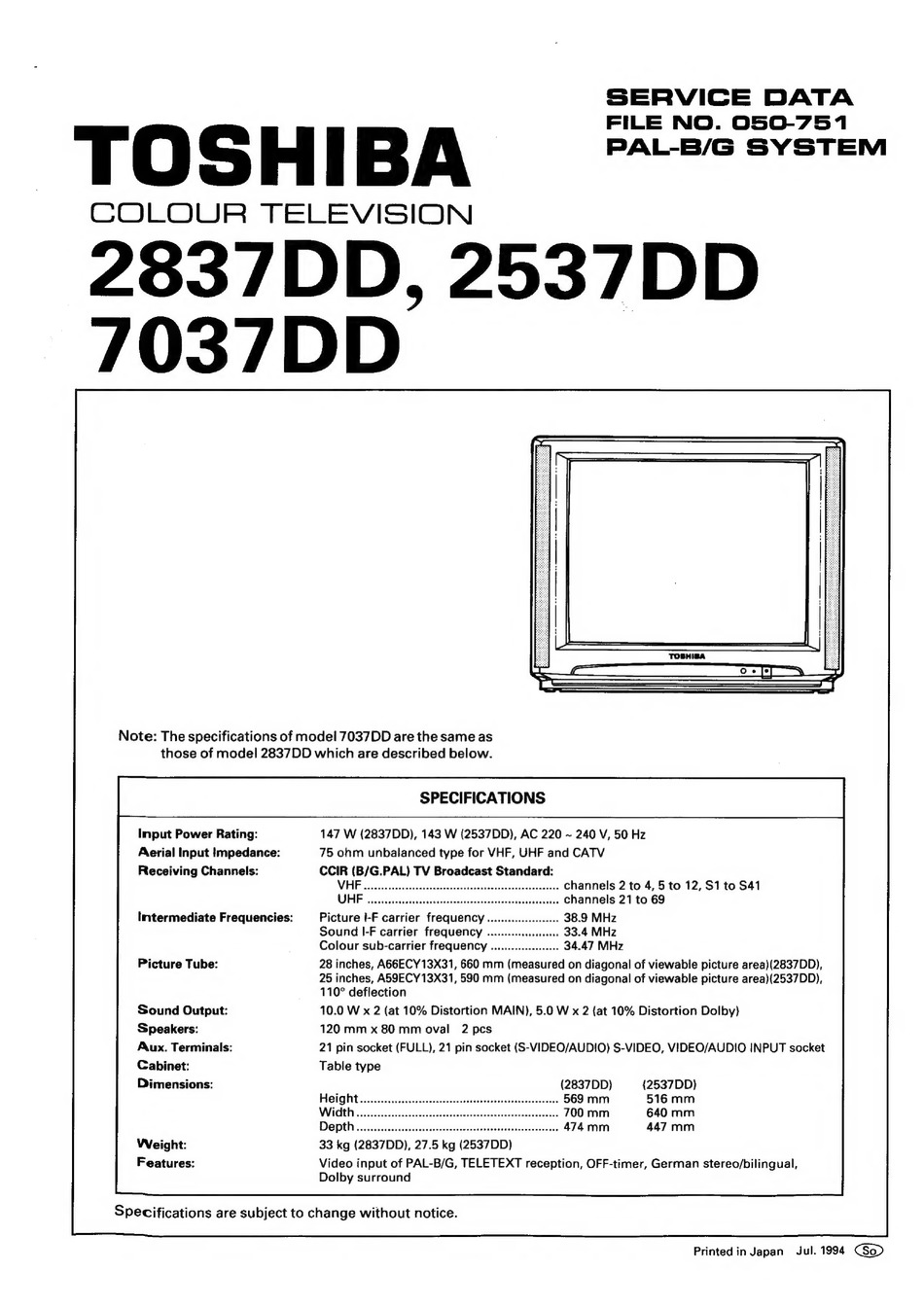

SERVICE DATA
FILE NO. 050-751
PAL-B/G SYSTEM
COLOUR TELEVISION
Note: The specifications of model 7037DD are the same as
those of model 2837DD which are described below.
SPECIFICATIONS
Input Power Rating:
Aerial Input Impedance:
Receiving Channels:
Intermediate Frequencies:
Picture Tube:
Sound Output:
Speakers:
Aux. Terminals:
Cabinet:
Dimensions:
Weight:
Features:
147 W (2837DD), 143 W (2537DD), AC 220 ~ 240 V, 50 Hz
75 ohm unbalanced type for VHF, UHF and CATV
CCIR (B/G.PAL) TV Broadcast Standard:
channels 2 to 4, 5 to 12, S1 to S41
channels 21 to 69
Picture I-F carrier frequency 38.9 MHz
Sound I-F carrier frequency ...
Colour sub-carrier frequency .. 34.47 MHz
28 inches, A66ECY 13X31, 660 mm (measured on diagonal of viewable picture area)(2837DD),
25 inches, AS9ECY 13X31, 590 mm (measured on diagonal of viewable picture area)(2537DD),
110° deflection
10.0 W x 2 (at 10% Distortion MAIN), 5.0 W x 2 (at 10% Distortion Dolby)
120 mm x 80 mm oval 2 pcs
21 pin socket (FULL), 21 pin socket (S-VIDEO/AUDIO) S-VIDEO, VIDEO/AUDIO INPUT socket
Table type
(2837DD) (2537DD)
516 mm
640 mm
447 mm
33 kg (2837DD), 27.5 kg (2537DD)
Video input of PAL-B/G, TELETEXT reception, OFF-timer, German stereo/bilingual,
Dolby surround
Specifications are subject to change without notice.
Printed in Japan Jul. 1994
