We advise you to read this manual carefully, which contains all the instructions for maintaining the
appliance's aesthetic and functional qualities. For further information on the product: www.smeg.com
PRECAUTIONS
General safety instructions
Risk of personal injury
• During use the appliance and
its accessible parts become
very hot. Keep children well
away from the appliance.
• The appliance becomes very
hot during use. Take care never
to touch the heating elements.
• Protect your hands by using
oven gloves when handling hot
pans.
• Never try to put out a fire or
flames with water: turn off the
appliance and smother the
flames with a fire blanket or
other appropriate cover.
• This appliance may only be
used by children aged 8 years
and over, and by people of
reduced physical, sensory or
91477A870/A
21
21
24
25
25
25
25
25
26
26
26
26
28
28
28
mental capacity, or lacking in
experience in the use of
electrical appliances, provided
that they are supervised or
have been given instructions on
the safe use of the appliance
and of the hazards associated
with it.
• Children must not play with the
appliance.
• Keep children below the age
of 8 away from the appliance
unless they are constantly
supervised.
• Keep children under the age of
8 away from the appliance
when it is in use.
• Cleaning and maintenance
must not be carried out by
unsupervised children.
• Be aware of how rapidly the
28
28
33
33
33
34
34
35
36
37
37
37
37
PRECAUTIONS - 21
Advertisement
Table of Contents
Related Manuals for Smeg SE332EB

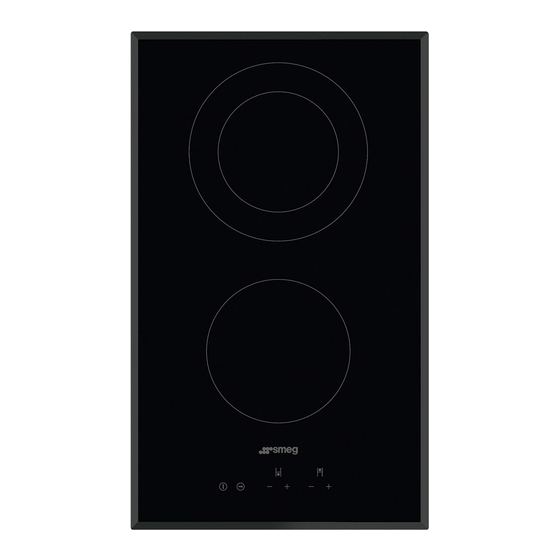

Summary of Contents for Smeg SE332EB
-
Page 1: Table Of Contents
Instructions for the installer Preliminary operations We advise you to read this manual carefully, which contains all the instructions for maintaining the appliance’s aesthetic and functional qualities. For further information on the product: www.smeg.com PRECAUTIONS General safety instructions mental capacity, or lacking in... - Page 2 cooking zones heat up. Do not • If you need to move food or at place empty pans on the heat. the end of cooking, open the Danger of overheating. door 5 cm for a few seconds, • After use the cooking zones let the steam come out, then remain hot for a certain period open it fully.
- Page 3 • The bulbs used in this to operate with external timers appliance are specific for or remote-control systems. household appliances; do not • WARNING: Only use a use them for home lighting. protective shield designed by • Do not try to repair the the manufacturer of the cooking appliance yourself or without appliance.
-
Page 4: Installation
• Cooking vessels or griddle sponges) on glass parts. plates should be placed inside • The glass ceramic surface is the perimeter of the hob. highly resistant to impacts. • All pans must have smooth, flat However, avoid hard, solid bottoms. -
Page 5: Appliance Purpose
temperature of at least 90 °C. residential environments. • The tightening torque of the • In bed and breakfast screws of the terminal supply accommodation. wires must be 1.5 - 2 Nm. This user manual • Be careful when connecting •... -
Page 6: To Save Energy
• Deliver the appliance to the appropriate • When preparing dishes with long cooking recycling centre for electrical and electronic times, you can save time and energy by equipment waste, or return it to the retailer using a pressure cooker, which also helps to when purchasing an equivalent product, on retain vitamins contained in the food. - Page 7 Maximum Maximum Maximum Outer diameter Inside diameter Middle Zone power draw power draw power draw (mm) diameter (mm) (mm) (W)* (W)* (W)* 1200 2000 1800 2700 1950 1050 91477A870/A DESCRIPTION - 27...
-
Page 8: Control Panel
Maximum Maximum Maximum Outer diameter Inside diameter Middle Zone power draw power draw power draw (mm) diameter (mm) (mm) (W)* (W)* (W)* 2200 1000 oval plate 2200 1400 2000 1700 oval plate 2000 1100 *Power levels are approximate and may vary according to the settings made and the mains voltage. Cooking zones Control panel Front left... - Page 9 2. Press the Increase button again 1. After having set the power to press the symbol appears on the Increase button appears on the display to indicate that the cooking zone is display. on at maximum power. 2. Press the increase button again 3.
- Page 10 1. After switching on the hob, press the 2. Press the Timer button again. If at least Controls lock button for at least 2 one cooking zone is active a lighted dot seconds. An illuminated dot appears on the comes on under the controls of the first button to indicate that the controls are active zone (from left to right).
- Page 11 • Choose a pan suitable for the quantity of symbol). food to be cooked. A large, half-empty The cooking zone display shows the number of saucepan leads to a waste of energy. the setting currently being modified (1 = • Do not use cast-iron cookware or cookware Automatic controls lock, 2 = Showroom, 3 = with a rough base.
- Page 12 Cooking information table Power lev- Cooking mode Suitable for... OFF setting Dishwarming Warming up dishes Cooking small amounts of food (mini- Melting butter, chocolate or similar products. mum power) Keeping small amounts of water on the boil, whisk Cooking small amounts of food butter egg yolk sauces or Heating solid or liquid food,...
-
Page 13: Cleaning And Maintenance
CLEANING AND MAINTENANCE Cleaning the glass ceramic hob unsuitable detergents. They are difficult to remove using conventional cleaning products. It may be necessary to repeat the cleaning See General safety instructions. process several times. Use of corrosive detergents or rubbing of pan bases can wear Cleaning the surfaces away the decoration on the hob over time and To keep the surfaces in good condition, they... -
Page 14: Installation
INSTALLATION Electrical connection the other wires. Terminal block connection See General safety instructions. Arrange the cables in an orderly manner to avoid overlapping or contact with any jumpers. The cables must be of the correct length to General information avoid build-up/twisting inside the terminal box. Check the mains characteristics against the data indicated on the plate. -
Page 15: Section Cut From The Countertop
60 - 77 - 90 cm models: hood installation instructions. • The minimum clearances must also be 220-240 V 1N~ respected for the edges of the hob on the 3 x 6 mm ² back as indicated in the assembly three-core cable instructions. -
Page 16: Mounting
the top of the appliance installed below. Hob seal To prevent leakage of liquid between the frame of the hob and the countertop, place the adhesive seal provided along the entire outer edge of the hob before assembly. On top of empty kitchen unit or drawers If there are other pieces of furniture (lateral walls, drawers, etc.), dishwashers or fridges under the... -
Page 17: Fixing To The Built-In Cabinet
opens on rear: Fixed connection Fit the power line with an all-pole circuit breaker with a contact separation distance sufficient to provide complete disconnection in category III overvoltage conditions, pursuant to installation regulations. For the Australian/New Zealand market: The circuit breaker incorporated in the fixed connection must comply with AS/NZS 3000.
