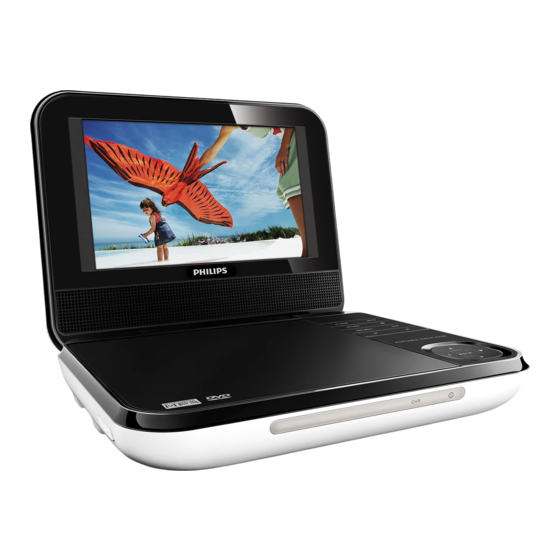

DVD Portable
Service Manual
TABLE OF CONTENTS
Technical Specification, PCBs Location....................... 1
Safety Instruction ...................................................... 2
Instruction for Use...................................................... 3
Mechanical and Dismantling Instructions...................... 4
Service Modes, Troubleshooting.................................. 5
Overall Block Diagram, Wiring Diagram......................... 6
Electrical Diagram...................................................... 7
Exploded View Diagram & Service Part List....................8
Revision List............................................................. 9
Copyright 2009 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may by reproduced, stored in a retrieval system or
transmitted, in any form or by any means, electronics, mechanical, photocopying, or otherwise
without the prior permission of Philips.
Published by BL AVM
Version 1.0
Printed in the Netherlands
PD709/05/12
Chapter
Subject to modification
Advertisement
Related Manuals for Philips PD709/05
Summary of Contents for Philips PD709/05
- Page 1 Exploded View Diagram & Service Part List………………..8 Revision List……………………………………………………. 9 Copyright 2009 Philips Consumer Electronics B.V. Eindhoven, The Netherlands All rights reserved. No part of this publication may by reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronics, mechanical, photocopying, or otherwise without the prior permission of Philips.
- Page 2 1.0 TECHNICAL SPECIFICATION VIDEO/ AUDIO Characteristic Testing discs Test discs DOLBY: Dolby Test disc ABEX: TDV-540A VIDEO FORMAT DVD / SVCD / JPEG / MPEG4 / DIVX3, 4,5,6(Home theater) AUDIO FORMAT CD / MP3(32 - 320 kbps) Video (PAL / NTSC) White bar : 714mV +10%/-20% Sync.
- Page 3 1.1 PCBs Location VERSION VARIATIONS Type/Versions: PD709 Service policy Board in used: MAIN BOARD KEY BOARD TFT BOARD *TIPS: C -- Component Lever Repair. M -- Module Lever Repair X -- OCX...
- Page 4 5. Refer below table for your region code setting Procedure for SW upgrade 1. The upgrade will provide a document re-named: PHILIPS.BIN 2. “PHILIPS.BIN” copy to CD-ROM into the data; 3. Reading the CD-ROM in accordance with prompt press ”OK” key to upgrade...
- Page 5 2.0 SAFTETY INSTRUCTIONS WAARSCHUWING WARNING Alle IC’s en vele andere halfgeleiders zijn All ICs and many other semi-conductors are gevoelig voor electrostatische ontladingen susceptible to electrostatic discharges (ESD). (ESD). Careless handling during repair can reduce life Onzorgvuldig behandelen tijdens reparatie kan drastically.
- Page 6 2.1 ESD PROTECTION When the power supply is being turned on, you may not remove this laser cautions label. If it removes, radiation of laser may be received. PREPARATION OF SERVICING Pickup Head consists of a laser diode that is very susceptible to external static electrocity. Although it operates properly after replacement, if it was subject to electrostatic discharge during replacement, its life might be shortened.
- Page 7 SAFTY NOTICE SAFTY PRECAUTIONS LEAKAGE CURRENT CHECK Plug the AC line cord directly into a 120V AC outlet (do Measure the AC voltage across the 1500 resistor. not use an isolation transformer for this check). Use an The test must be conducted with the AC switch on and AC voltmeter, having 5000 per volt or more sensitivity.
- Page 8 2.2 SAFETY INSTRUCTIONS Battery Handling Guideline Since the battery is packed in soft package, to ensure its better performance, it’s very important to carefully handle the battery 2.2.1 Soft Aluminium foil The soft aluminum packing foil is very easily damaged by sharp edge parts such as Ni-tabs, pins and needles. Don’t strike battery with any sharp edge parts Trim your nail or wear glove before taking battery Clean worktable to make sure no any sharp particle...
- Page 9 3.0 Instruction for Use You can download this information from the following websites: http://www.philips.com/support http://www.p4c.philips.com...
- Page 10 4.0 MECHANICAL INSTRUCTION Remove screws on back cabinet to separate top cabinet and back cabinet. Generally open the middle cabinet. Remove screws on main board. Disassemble hous and connecter. Remove screws on KEY board. Disassemble hous and connecter. Remove screws on front cabinet. Open the top cabinet...
- Page 11 5.0 TROUBLESHOOTING SYMPTOM: NO IMAGE / NO SOUND SYMPTOM: NO IMAGE OUTPUT ( THE PANEL SHOW BLUE PICTURE) Start Check DVD Drive work? Replace DVD Drive Check the external AV NOTE: AV Cable TYPE from outside to note Cable TYPE Exchange AV cable Inside L-Audio, R-Audio, Video, Ground connection is OK?
- Page 12 5.0 TROUBLESHOOTING SYMPTOM: THE DVD DRIVE DOES NOT WORK SYMPTOM: THE DVD DRIVE DOESN T WORK Start Check DVD-Loader Cable Reinsertion connection OK? Check the DVD-Loader Replace DVD- Loader Replace main board...
- Page 13 5.0 TROUBLESHOOTING SYMPTOM: ADAPTOR CANNOT POWER ON Adaptor can not Power ON Start Check Adaptor OK? Change adaptor SET OK? Check the Power-ON Return set to Replace Main Board button and cable OK? Customer Replace Button or Cable...
- Page 14 5.0 TROUBLESHOOTING SYMPTOM: KEY & BOTTON FAILURE SYMPTOM: Key & Botton Fail Start Check CABLE form board to Cable Reinsertion board connection OK? Check KEY board OK? Replace KEY board Replace main board Return to custormer...
- Page 16 SS14 SS14...
- Page 19 150k 1% 51K 1%...
- Page 20 N16885851...
- Page 22 TO HANSTAR PANNEL...
- Page 31 9.0 REVISION LIST Version 1.0 Initial release...
