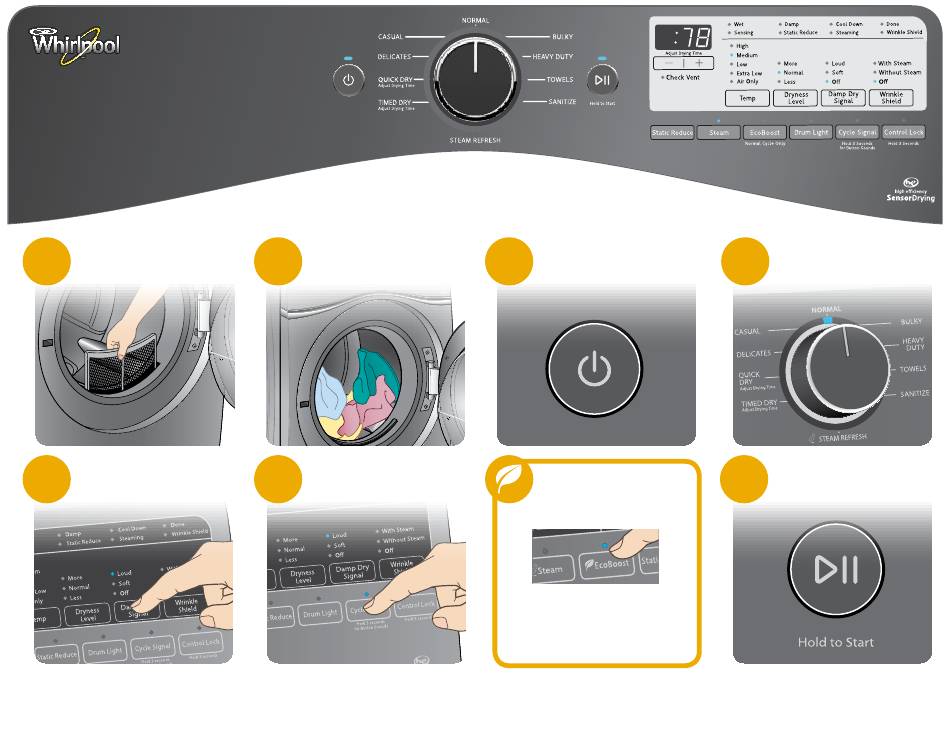

CLEAN THE LINT SCREEN

ADJUST CYCLE

SETTINGS, IF DESIRED*

* NOTE: See "Cycle Guide" in the Use and Care Guide for more information about cycles, settings, and options. Not all cycles, settings, and options are available with all models.

Read your Use and Care Guide before using your dryer.

W10804668A

W10804669A - SP

Quick Start Guide

Using Your High Efficiency Dryer

LOAD THE DRYER

SELECT ANY

ADDITIONAL OPTIONS*

PRESS POWER TO TURN

ON THE DRYER

ECOBOOST™ OPTION

Activate the EcoBoost

™

option to increase your energy

savings. This option uses a slightly

lower heat level and extends cycle time.

Turn on for optimal energy savings.

Turn off for optimal cycle times.

EcoBoost

™

option is only available

for NORMAL.

NOTE: Energy savings may vary

across loads.

Appearance may vary

depending on model.

SELECT THE DESIRED

CYCLE FOR YOUR LOAD*

TOUCH AND HOLD START/

PAUSE TO BEGIN CYCLE
