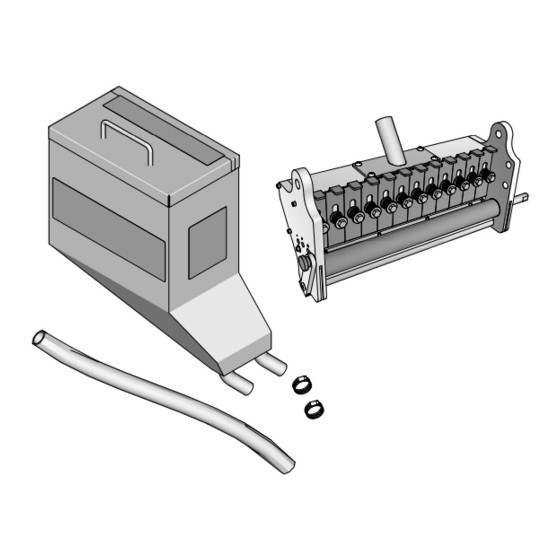

Double bead box kit
Hide thumbs Also See for 17B587:
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Kit Instructions
Double Bead Box Kit
17B587 (8") or 17B361 (12")
For adding a second bead box to the ThermoLazer 200 or 200TC.
To be used on 200/200TC models only.
Models
17B587 – 8" (20cm), 17B361 – 12" (30cm)
IMPORTANT SAFETY INSTRUCTIONS
Read all warnings and instructions in ThermoLazer Operation manual.
Be familiar with the controls and the proper usage of the equipment.
Save these instructions.
Follow these instructions when adding the second bead box to an existing 8-inch (20cm) or 12-inch (30cm) bead box
on the ThermoLazer 200 or 200TC. Refer to the ThermoLazer Repair and Operation manuals as need for additional
information.
Related Manuals:
3A1319
3A1320
ti24490a
334146A
EN
