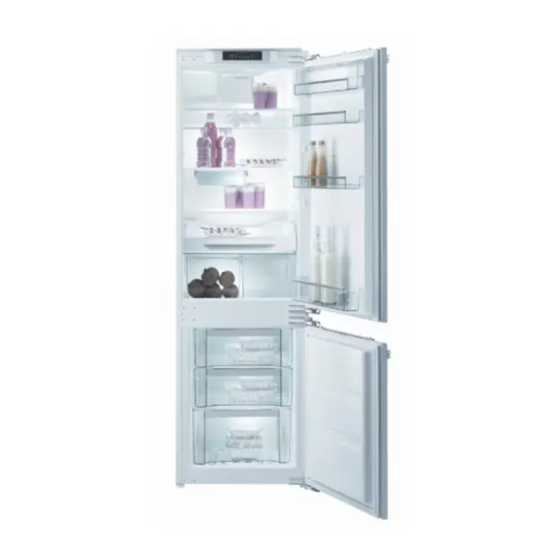

- Page 1 Baumatic RF278IBK Instructions for use Upright refrigerator-freezer...
-
Page 2: Table Of Contents
Freezer is used in households for freezing fresh food and storage of frozen food for up to one year (depending on the type of food). TECHNICAL DATA Rating plate with basic information is located in the interior of the appliance. DATA RF278IBK Total Capacity (net/gross) (l) 260/278 Freezer capacity (net/gross) (l) 60/75... -
Page 3: Before First Operation
Before first operation • This appliance is not intended for use by persons (including children) with reduced physical,sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance. - Page 4 • WARNING! Keep Ventilation openings in the appliance enclosure or in the built-in structure, clear of obstruction. • WARNING! Do not use any mechanical accessories when thawing the refrigerator, except for those explicitly recommended by the manufacturer. • WARNING! Do not damage the refrigerant circuit. •...
-
Page 5: A Few Tips On How To Save Power With Your
A few tips on how to save power with your refrigerator-freezer combo • Observe the installation instructions. • Do not open the appliance door more frequently than necessary. • Occasionally check whether air can circulate freely behind the appliance. • Condenser unit mounted on the appliance back wall must be kept clean at all times (see section “Cleaning the appliance”). -
Page 6: Description Of The Appliance
Description of the appliance Interior equipment of the appliance will typically vary according to the specific model. A Refrigerator 1 Fan 2 Interior light 3 Control panel 5 Adjustable glass shelves 6 Pull-out glass shelf (adjustable height) 7 Removable snack tray 8 Foldable egg rack (closed - 6 eggs, open - 12 eggs) 9 FreshZone pan... -
Page 7: Installation And Connections
Installation and connections Selecting the location • Place the appliance in dry and well aired room. The applian- ce operates best at temperature ranges indicated in the chart below. Relevant class of the appliance is indicated on the rating plate. Class Ambient temperature SN (subnormal) - Page 8 Warning: when installing built-in appliances into a cupboard or cabinet in a side-by-side layout, the dew prevention installation kit should also be purchased and installed. For safety reasons, dew prevention kit may only be installed by an authorized service technician! Order code: 376078 (appliances higher than 1,700 mm) •...
-
Page 9: Changing The Direction Of Opening The Door
Changing the Direction of Opening the Door Freestanding appliance Necessary tools: ring spanner No.8, screwdriver, torque 25 Tilt the appliance so that the bottom hinge can be unscrewed and proceed with disassembling as shown in the Figure 3. Then fix the assembly parts again in the opposite turn. Use the attached opposite hinge insert piece. -
Page 10: Appliance With Electronic Control
Appliance with electronic control Appliance with a fan and the No Frost system A Freezer temperature key H Signal light: on when alarm is activated B Freezer temperature digital display: Refrigerator on/off key displays temperature in the range from J Signal light: on when the refrigerator is -16°C to -24°C operating C Super freeze on/off key... - Page 11 Adjusting the Refrigerator temperature range: from +1°C to +9° temperature from -16°C to -24°C + super Freezer temperature range: freeze Adjust the freezer temperature with the A key and refrigerator • temperature with the N key. • When one of the temperature adjustment keys is pressed, the display will start flashing and the most recent setting will be displayed.
- Page 12 Intermittent acoustic signal - power failure alarm If the temperature in the refrigerator or freezer rises too high as a result of a power failure, an intermittent acoustic signal will be activated, signal light H will light up, and the highest actual temperature will be indicated on a flashing display (for refrigerator, the maximum temperature is 9°C).
-
Page 13: Refrigerator Accessories
Refrigerator accessories (Equipment depends on the model) Shelf • Shelves can be optionally placed on the guides inside the appliance. To remove the shelf, first slide it out as far as the guide allows it, then slightly lift it up and pull it out. Quickly perishable food should be stored on the back i.e. - Page 14 Removable snack tray The tray is especially handy for cold cuts, cheese, etc ... The drawer is pulled out by lifting the front part slightly and then pulling out. The handle may be moved sideways along with the drawer. Recommended Refrigerator compartments: distribution of food - top section: canned food, bread, wine, cake, …...
-
Page 15: Storage Of Food In The Refrigerator
Storage of food in the refrigerator Important precautions • Proper use of the appliance, adequately packed food, correct and hints temperature and hygienic precautions produce substantial impact on the quality of stored food. • Always respect the best before date, printed on the packaging. •... -
Page 16: Storing Food In The Freshzone Compartment
Storing food in the FreshZone compartment The FreshZone drawer allows storing a wide variety of fresh food to keep longer than in a conventional refrigerator. The food stays fresh longer, retaining the flavour and nutrients. It lows down decay and loss of mass; therefore, fruit and vegetables remain fresh and natural longer. -
Page 17: Freezing And Storing Frozen Food
Freezing and storing frozen food Freezing process • Activate the freezer boost (super freeze) function 24 hours before freezing fresh food: - press the C key; After 24 hours of super freeze operation, insert the fresh food into the freezer compartment. Make sure the fresh food does not come into contact with the food that is already frozen! Be sure to provide the NO FROST freezer models with enough room below the ceiling for cool air circulation, so avoid storing... - Page 18 Storage of industrially The storage time and recommended temperature for storing frozen food commercially frozen foods is indicated on the packaging. Always follow manufacturer’s instructions for storage and use of frozen food. When shopping be careful to choose only food which is adequately packed and provided with complete data and stored in freezers where the temperature never rises above -18°C.Do not buy packages of food wrapped with frost.
-
Page 19: Defrosting The Appliance
Defrosting the appliance Automatic defrosting of Refrigerator needs no special defrosting procedure, because ice the refrigerator deposited at the inner back wall is defrosted automatically. Ice deposited on the inner back wall during the compressor operation is defrosted when the compressor stops operating, and condensed water drops are drained through the outlet in the inner back wall into the drain pan situated above the compressor where it evaporates. -
Page 20: Cleaning The Appliance
Cleaning the appliance Prior any cleaning attempt disconnect the appliance from the mains (see the control chapter for ON/OFF function), and pull the power cord from the mains wall outlet. Special antibacterial protection in top layer of inner walls prevents multiplication of bacteria and maintains the interior clean and germ free. - Page 21 • The condenser on the rear wall must always be clean and free of dust or kitchen fumes deposits, therefore clean the dust periodically with non-metallic brush or vacuum cleaner.. • Clean also the drip pan above the compressor. If you removed the pan, please make sure you replace it to the same position, and check that it is in completely horizontal position! •...
-
Page 22: Troubleshooting Guide
Troubleshooting guide Fault: Cause/Remedy The appliance does not • Check if there is power in the socket and if the appliance is operate after connection to the switched on. mains: Cooling system operates • Ambient temperature too high. continuously without •... - Page 23 Fault: Cause/Remedy Bulb replacement: • Before replacing the light bulb, disconnect the appliance form the power supply (pull the power cord from the wall socket). Insert the screwdriver into the cover slot, lift it and remove the cover. Replace the bulb with the equivalent new bulb (E 14, same voltage as the original one) and replace the cover back to its position.
-
Page 24: Noise Level
Noise level The refrigerator – freezer appliances are cooled by the refrigeration system with a compressor (assisted by fan in certain models) whose operation may produce certain noise. The level of such noise depends upon the location, correct use and age of the appliance. •... - Page 28 COMBI 54-2 en (02-15)
