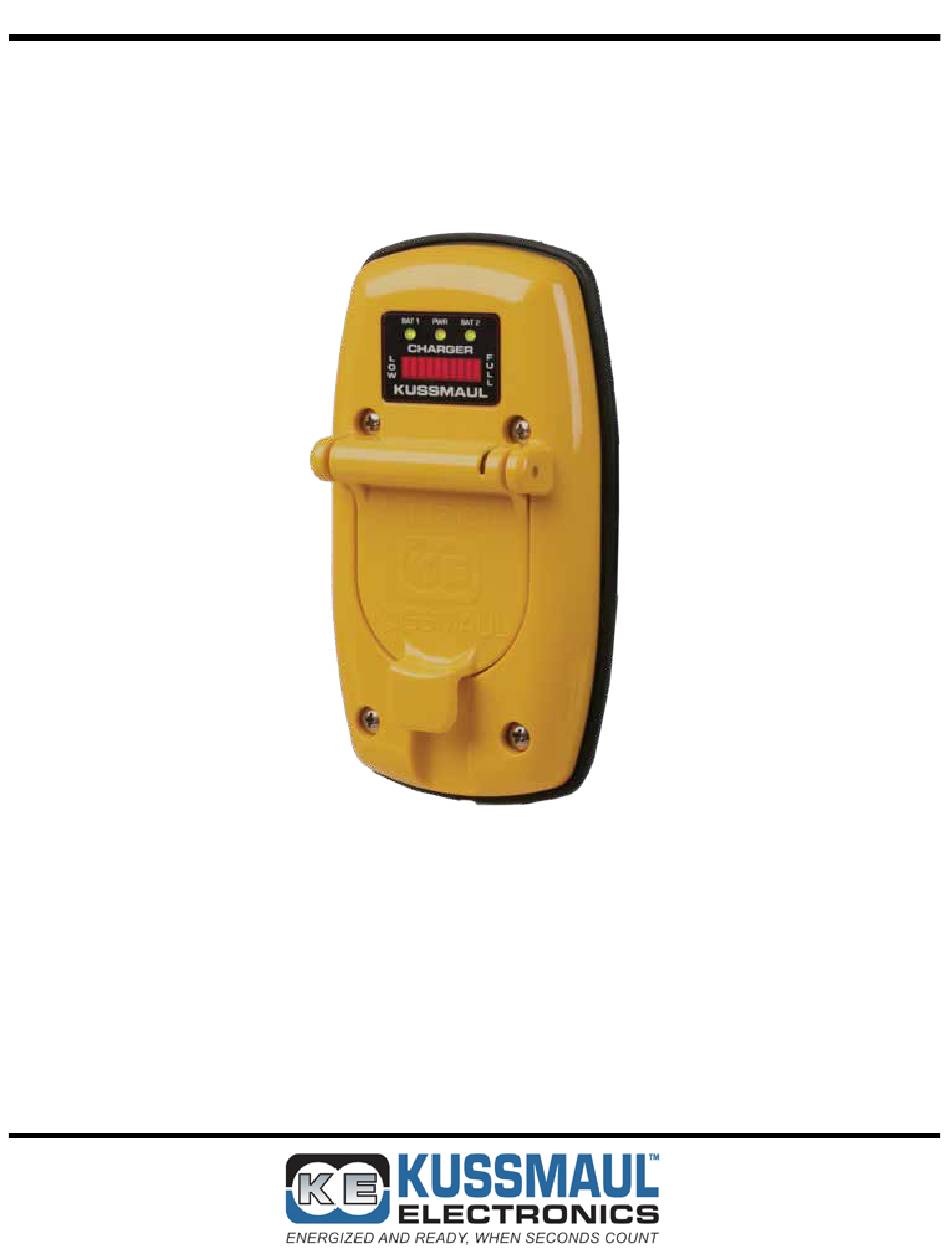

SUPER AUTO EJECT DELUXE COVER
WITH BAR GRAPH DUAL LED INDICATOR
MODEL #: 091-55-239-XXX
File: IM_091-55-239-XXX
Rev: A
Revised By: PSS/JRN
Date: 9-12-2018
170 Cherry Avenue
West Sayville, NY 11796
www.kussmaul.com
INSTRUCTION MANUAL
Works with AC 2000 and AC 4000
Battery Chargers
3 YEAR WARRANTY
Ph: 800-346-0857
Fax: 631-567-5826
sales@kussmaul.com
Advertisement
Related Manuals for KUSSMAUL 091-55-239 Series
Summary of Contents for KUSSMAUL 091-55-239 Series
- Page 1 WITH BAR GRAPH DUAL LED INDICATOR MODEL #: 091-55-239-XXX Works with AC 2000 and AC 4000 Battery Chargers File: IM_091-55-239-XXX Rev: A Revised By: PSS/JRN 3 YEAR WARRANTY Date: 9-12-2018 170 Cherry Avenue Ph: 800-346-0857 West Sayville, NY 11796 Fax: 631-567-5826 www.kussmaul.com sales@kussmaul.com...
-
Page 2: Installation Instructions

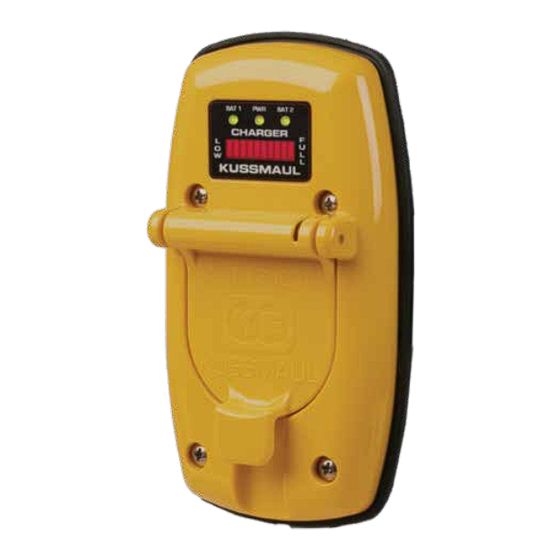

The Deluxe Cover features a remotely mounted bar graph display. The display contains a 10-LED bar graph to indicate the vehicle’s battery charger status when used with a Kussmaul Auto Charger. The top or bottom LEDs blink to indicate HIGH voltage or LOW voltage, respectively. A green LED indicator illuminates whenever AC power is applied to the Kussmaul Battery Charger. - Page 3 INSTALLATION INSTRUCTIONS 32 " THRU ALL 2.950 1.625 16 " THRU ALL 1-3/4” HOLE 1.625 Figure 1: Hole Template 170 Cherry Avenue Ph: 800-346-0857 West Sayville, NY 11796 Fax: 631-567-5826 www.kussmaul.com sales@kussmaul.com...
- Page 4 3. Insert (4) 8-32 X 7/8”, PHILLIPS PANHEAD screws. IV. COVER & GASKET MOUNTING: Figure 2 8-32 X 7/8" PHILLIPS PANHEAD MOUNTING SCREWS (4) 6.21 091-055-207 GASKET TRUCK BODY 170 Cherry Avenue Ph: 800-346-0857 West Sayville, NY 11796 Fax: 631-567-5826 www.kussmaul.com sales@kussmaul.com...
-
Page 5: Wiring Diagram
4 - GREEN 20AWG 3 - WHITE 20AWG 2 - BLACK 20AWG 1 - RED 20AWG REMOTE DISPLAY TYPICAL REMOTE INTERFACE LOCATED ON CHARGER GASKET COVER with INDICATOR OUTLINE DRAWING 170 Cherry Avenue Ph: 800-346-0857 West Sayville, NY 11796 Fax: 631-567-5826 www.kussmaul.com sales@kussmaul.com... -
Page 6: Specifications
VEHICLE OWNER WARRANTY POLICY All products of Kussmaul Electronics are warranted to be free of defects of material or workmanship. Liability is limited to repairing or replacing at our factory, without charge, any material or defects which become apparent in normal use within 2 years from the date the equipment was shipped.
