Pioneer CT-70R Service Manual

VY) PIONEER'
Setvice
PAZETTET
REPAIR & ADJUSTMENTS
ORDER NO.
ARP- 260-0

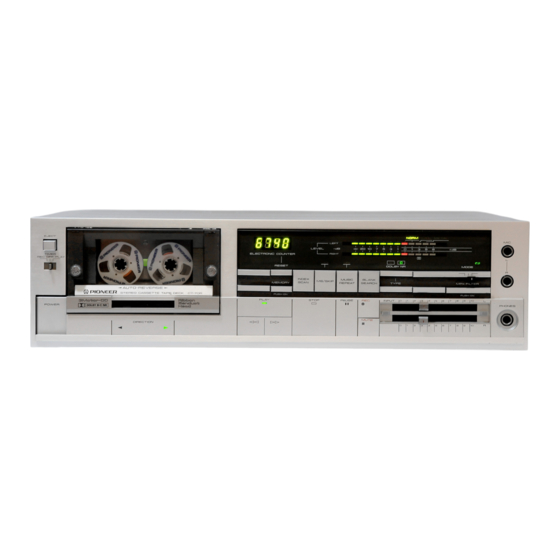

STEREO CASSETTE TAPE DECK
Cir- 7OR
MODEL CT-70R COMES IN SEVEN VERSIONS DISTINGUISHED AS FOLLOWS:
~T Whom; . |
Type Voltage Remarks
KU AC120V only U.S.A. model
__|
KC AC120V only Canada model
+
HE AC220V, 240V (switchable) European continent model
HB AC220V, 240V (switchable) United Kingdom model
AC220V, 240V (switchable) Australia model
AC120V, 220V, 240V (switchable) General export model
AC120V, 220V, 240V (switchable) U.S. Military model
This service manual is applicable to the KU type. For servicing of the other types, please refer to pp.
66~76.
For the circuit and mechanism descriptions, please refer to the CT-90R service manual (ARP-364-0).
Ce manuel d'instruction se refére au mode de reglage, en francais.
Este manual de servicio trata del método de ajuste escrito en espajiol.
CONTENTS
1. SPECIFICATIONS ......0.0. 050055 085 ea% 3 9. ELECTRICAL PARTS LIST .............. 33
2. FRONT PANEL FACILITIES ............. 4 10. ADJUSTMENTS .......... 0.0.0. cee eee 38
3. DISASSEMBLY ............. 00.0 00000- 8 REGU AGE soc skeek eae ok seek Cav awe 47
4. PARTS LOCATION ................004. 10 ASUSTEES 2.3 Gace a Periebdetesabs achudee o alierccd SBE S 56
5S, 'EXPLODED VIEW: s 2 pg gees gee gine ams 12 11. SUPPLEMENT FOR HE, HBANDHPTYPES .. 66
6: PACKING «5 esea dead cedaarevss dee ews 18 12. SUPPLEMENT FOR KC TYPE ............ 71
7. P.C. BOARDS CONNECTION DIAGRAM ..... 20 13. SUPPLEMENT FOR D AND D/G TYPES .... 72
8. SCHEMATIC DIAGRAM ................ 27
PIONEER ELECTRONIC CORPORATION 3-1, Meguro 1-Chome, Meguro-ku, Tokyo 153, Japan
PIONEER ELECTRONICS (USA) INC. 1925 E. Dominquez St., Long Beach, California 90810 U.S.A.
PIONEER ELECTRONIC [EUROPE] N.V. Keetbergiaan 1,2740 Beveren, Belgium
PIONEER ELECTRONICS AUSTRALIA PTY. LTD. 178-184 Boundary Road, Braeside, Victoria 3195, Australia
YH © MAY 1983 Printed in Japan
