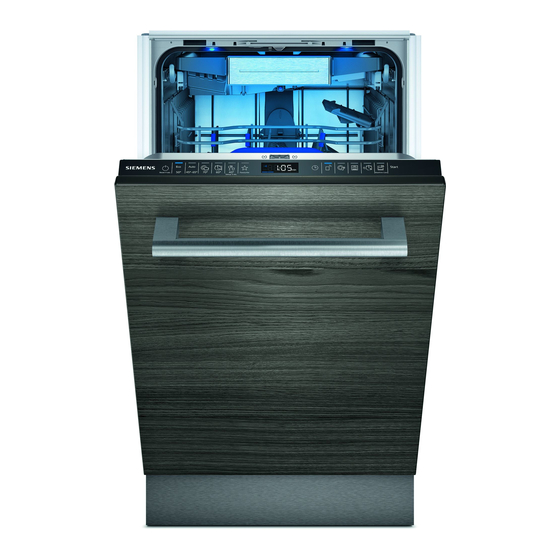

- Page 1 SR65ZX23ME Dishwasher EN Information for Use Register your appliance on My Siemens and discover exclusive services and offers. Siemens Home Appliances...
-
Page 2: Table Of Contents
Further information and explanations are available online: Table of contents 1 Safety ........... 4 8 Features........ 20 1.1 General information.... 4 8.1 Top basket....... 21 1.2 Intended use...... 4 8.2 Etagere ........ 21 1.3 Restriction on user group.. 4 8.3 Bottom basket ...... 22 1.4 Safe installation ...... - Page 3 20 Customer Service.... 51 13.2 Arrange tableware .... 31 20.1 Product number (E-Nr.), 13.3 Removing tableware.... 32 production number (FD) 14 Basic operation ....... 32 and consecutive numbering (Z-Nr.) ........ 52 14.1 Switching on the appliance ... 32 20.2 AQUA-STOP guarantee .. 52 14.2 Setting a programme ....
-
Page 4: Safety
en Safety 1 Safety Observe the following safety instructions. 1.1 General information Read this instruction manual carefully. ¡ Keep the instruction manual and the product information safe ¡ for future reference or for the next owner. Do not connect the appliance if it has been damaged in transit. ¡... - Page 5 Safety en WARNING ‒ Risk of electric shock! Incorrect installation is dangerous. Connect and operate the appliance only in accordance with the ▶ specifications on the rating plate. Always use the supplied power cable for the new appliance. ▶ Connect the appliance to a power supply with alternating cur- ▶...
-
Page 6: Safe Use
en Safety Contact between the appliance and installation lines may lead to a defect in these lines, e.g. gas pipes and power lines. Gas from a corroded gas pipe can ignite. A damaged power line can cause a short circuit. Check that there is a distance of at least 5 cm between the ap- ▶... - Page 7 Safety en Highly caustic alkaline or highly acidic cleaning agents in conjunc- tion with aluminium parts in the interior of the appliance may cause explosions. Never use highly caustic alkaline or highly acidic cleaning ▶ agents, in particular commercial or industrial products, in con- junction with aluminium parts (e.g.
-
Page 8: Damaged Appliance
en Safety WARNING ‒ Risk of burns! The blow opening of the Zeolith container becomes hot and can cause burns. Never touch the blow opening of the Zeolith container. ▶ 1.6 Damaged appliance WARNING ‒ Risk of electric shock! If the appliance or the power cord is damaged, this is dangerous. Never operate a damaged appliance. - Page 9 Safety en Children may become trapped in the appliance and suffocate. Use the childproof lock if fitted. ▶ Never let children play with or operate the appliance. ▶ WARNING ‒ Risk of harm to health! Children can lock themselves in the appliance, thereby putting their lives at risk.
-
Page 10: Preventing Material Damage
en Preventing Modified or damaged water hoses Preventing 2 Preventing material may result in material damage and damage to the appliance. damage Never kink, crush, modify or cut ▶ through water hoses. Preventing 2.1 Safe installation Only use the water hoses supplied ▶ with the appliance or genuine ATTENTION! spare hoses. -
Page 11: Environmental Protection And Saving Energy
Environmental protection and saving energy en So as not to scratch the finish on 3.3 Zeolith drying ▶ the appliance, do not use sponges The appliance features a Zeolith con- with a rough surface or abrasive tainer. Zeolith drying lets you save cleaning agents. -
Page 12: Installation And Connection
en Installation and connection Sensor set- Description 4 Installation and con- ting nection SE:00 Optimum setting for a mixed load and To ensure proper operation, connect heavily soiled table- the appliance to the power and water ware. Saves both en- supply correctly. Observe the spe- ergy and water. -
Page 13: Drainage Connection
Installation and connection en installing it under a continuous work- 4.4 Drinking water connec- top that is securely connected to ad- tion jacent cabinets. Follow the safety instructions. Connect your appliance to a drinking → Page 4 water connection. Follow the instructions for electrical Installing the drinking water connection. -
Page 14: Familiarising Yourself With Your Appliance
en Familiarising yourself with your appliance 5 Familiarising yourself with your appliance 5.1 Appliance You can find an overview of the parts of your appliance here. Rating plate Rating plate with E number and FD num- ber → Page 52. The data you need for Customer Service → Page 51. - Page 15 Familiarising yourself with your appliance en Detergent dispenser Add detergent to the detergent dispenser. → "Detergent", Page 28 Bottom basket Bottom basket → Page 22 Filter system Filter system → Page 41 Dispenser for special salt Add special salt to the dispenser for spe- cial salt. → "Water softening system", Page 24 Tablet collecting tray During the wash cycle tablets automatic- ally fall out of the detergent dispenser into...
-
Page 16: Controls
en Familiarising yourself with your appliance 5.2 Controls You can use the control panel to configure all functions of your appliance and to obtain information about the operating status. With some buttons you can perform different functions. 3 4 5 6 ON/OFF button and reset Switching on the appliance button... -
Page 17: Adding Rinse Aid", Page
Familiarising yourself with your appliance en Timer programming Setting timer programming → Page 33 Door handle Open the appliance door. Display The display shows information about the remaining running time or the ba- sic settings. You can change the ba- sic settings via the display and the setting buttons. - Page 18 en Programmes 6 Programmes You can find an overview of the pro- ted. The running time will change if grammes that can be selected here. the rinse aid system is switched off Different programmes, which can be or rinse aid needs to be added. found on the control panel of your The consumption values can be appliance, are available depending...
-
Page 19: Information For Test Institutes
Programmes en Programme Programme se- quence Tableware: Time-optimised: Mixed tableware and cutlery Cleaning 60 °C ¡ ¡ Speed 60° Level of soiling: Intermediate rinse ¡ Common household food rem- Final rinse 50 °C ¡ ¡ nants lightly dried on ¡ Use only if appliance is unloaded. Machine Care 70 °C Machine Care → "Favourite ", Page 19... -
Page 20: Features
en Additional functions 7 Additional functions You can find an overview of the additional functions that can be selected here. Different additional functions, which can be found on the control panel of your appliance, are available depending on the appliance configuration. You can se- lect certain additional functions depending on the programme. -
Page 21: Top Basket
Features en Raise or lower the basket evenly to 8.1 Top basket the right level. Arrange cups, glasses and small items of tableware in the top basket. Check that the basket is level on both sides. Release the levers. You can adjust the height of the top The basket clicks into position. -
Page 22: Bottom Basket
en Features 8.3 Bottom basket 8.4 Folding prongs Arrange pans and plates in the bot- Use the folding prongs to position tom basket. tableware securely, e.g. plates. Large plates up to a diameter of You can fold the prongs down to po- 31 cm can be arranged in the bottom sition pans, bowls and glasses basket as shown. -
Page 23: Cutlery Drawer
Features en To fold down the folding spines, 8.5 Cutlery drawer push the lever forwards and fold Arrange cutlery in the cutlery drawer. down the folding spines . Arrange cutlery with the points and If you want to return the cutlery sharp edges downwards. -
Page 24: Before Using For The First Time
en first time Add detergent → Page 28. first time 9 Before using for the Start the Programme with the first time highest cleaning temperature without tableware. first time To remove any marks from water 9.1 Performing the initial con- or other residues, we recommend figuration you operate the appliance without tableware before using it for the... -
Page 25: Setting The Water Softening System
Water softening system en Water hardness Hardness range mmol/l Setting value °E 39 - 62 Hard 5.5 - 8.9 H:07 Note: Set the water hardness determ- hardness. The higher the water hard- ined on your appliance. ness, the greater the consumption of special salt. -
Page 26: Switching Off The Water Softening System
en Water softening system Place the lid back on the dis- 10.5 Regeneration of the wa- penser and turn to close. ter softening system 10.4 Switching off the water In order to obtain fault-free function of the water softening system, the appli- softening system ance performs regeneration of the If you find the special salt refill indic- water softening system at regular in-... -
Page 27: Rinse Aid
Rinse aid system en Close the lid of the dispenser for 11 Rinse aid system rinse aid. The lid clicks into position. 11.1 Rinse aid 11.2 Setting the amount of For optimum drying results, use rinse rinse aid aid. Only use rinse aid for domestic dish- If there are streaks or water marks on washers. -
Page 28: Detergent
en Detergent The display shows H:xx. Powder detergent The display shows . Powder detergent is recommended Press repeatedly until for shorter programmes. the display shows the value r:04 The dosage can be adjusted to the set at the factory. level of soiling. Press repeatedly until the dis- Liquid detergent... -
Page 29: Unsuitable Detergents
Detergent en According to the manufacturers, ness, usually 26 °E, without combined detergents generally only adding special salt. For the best function up to a water hardness of washing and drying results we re- 26 °E. With a water hardness above commend using special salt from a 26 °E you will need to add special water hardness of 17 °E. - Page 30 en Tableware Add the detergent to the dry deter- Close the lid of the detergent dis- gent dispenser. penser. 50 ml 25 ml 15 ml If you are using tablets, one is The lid clicks into position. enough. Insert the tablets in a hori- The detergent dispenser will open zontal position.
-
Page 31: Tableware
Tableware en 13.1 Damage to glass and Cause Recommenda- tion tableware Highly caustic al- If you are using Only put glasses and china in the kaline or highly highly caustic al- dishwasher if it is marked as dish- acidic cleaning kaline or highly washer-safe by the manufacturer. -
Page 32: Removing Tableware
en operation For better washing and drying res- ¡ ults, position items with curves or recesses at an angle so water can run off. 13.3 Removing tableware WARNING Remove large remnants of food Risk of injury! from tableware. Hot tableware can cause burns to the To save resources, do not pre- skin. -
Page 33: Setting A Programme
operation en The Eco 50° programme is espe- 14.4 Setting timer program- cially environmentally friendly and ming ideal for normally soiled tableware. It is the most efficient programme You can delay the start of the pro- for the combination of energy/wa- gramme by up to 24 hours. ter consumption for this type of Press ... -
Page 34: Terminate Programme
en operation will help prevent excess pressure building up in the appliance and stop the appliance door bursting open. Open the appliance door carefully. Press . The programme is saved and the appliance switches off. Press to resume the pro- gramme. -
Page 35: Basic Settings
Basic settings en 15 Basic settings You can configure the basic settings for your appliance to meet your needs. 15.1 Overview of the basic settings The basic settings depend on the features of your appliance. Basic setting Display text Selection Description Water hardness H:04 H:00 - H:07 Set the water softening sys-... - Page 36 en Basic settings Basic setting Display text Selection Description EmotionLight EL:02 EL:00 - EL:02 Interior light. With the setting "EL:00"m ¡ the interior light is switched off. With the setting "EL:01", ¡ the interior light can be activated via the ON/OFF button.
-
Page 37: Remote Start ", Page
Basic settings en Basic setting Display text Selection Description Tone volume SL:02 SL:00 -SL:03 Adjustment of tone volume. Level "SL:00" switches the signal tone off. Button volume bL:02 bL:00 - bL:03 Set the button volume during operation. Level "bL:00" switches the button tones off. -
Page 38: Changing Basic Settings
en Home Connect The Home Connect app guides you 15.2 Changing basic settings through the entire login process. Fol- Tip: Connect your appliance to a mo- low the instructions in the Home Con- bile device. You can conveniently nect app to configure the settings. change all settings via the Tips Home Connect app. -
Page 39: Remote Start
Home Connect en If you open the appliance door, the Setting up Home Connect function is automatically deactiv- Requirements ated. The Home Connect app has been ¡ button lights up. installed on your mobile device. The appliance is receiving signals ¡ Tip: To deactivate the function, press from the WLAN home network (Wi- ... -
Page 40: Cleaning And Servicing
Dishwasher Care and Ma- ance to malfunction. To avoid such chine Cleaner for Dishwashers online faults and reduce odours, we recom- at https://www.siemens-home.bsh- mend cleaning your appliance at reg- group.com/store or from customer ular intervals. service. -
Page 41: Filter System
Cleaning and servicing en To ensure optimum cleaning perform- Pour the machine cleaner into the ance, the programme doses the de- detergent dispenser until it is filled tergents independently of each an- completely. other during the relevant cleaning Do not place any additional ma- phase. -
Page 42: Cleaning Spray Arms
en Cleaning and servicing Turn the coarse filter anticlockwise Carefully clean the rim of dirt and remove the filter system . between the coarse and the fine fil- ter. Check that no foreign objects ‒ Re-assemble the filter system. fall into the sump. Make sure that the locking catches on the coarse filter click into posi- tion. - Page 43 Cleaning and servicing en Pull up the lower spray arm to re- Check the outlet nozzles on the move. spray arms for blockages under running water and remove any for- eign bodies. Insert the lower spray arm. The spray arm clicks into position. Insert the upper spray arms and screw firmly in place.
-
Page 44: Troubleshooting
This will avoid unneces- sary costs. Tip: You can find further information and explanations on troubleshooting on- line by scanning the QR code in the table of contents and on our website siemens-home.bsh-group.com. WARNING Risk of electric shock! Incorrect repairs are dangerous. - Page 45 Troubleshooting en Fault Cause and troubleshooting E:32-00 will light up Remove the filter from the supply hose alternately or indicator for water supply lights Clean the filter. Re-insert the filter in the supply hose. Screw the water connection back on. Check the water connection for leaks. Restore the power supply.
- Page 46 en Troubleshooting Fault Cause and troubleshooting E:61-03 will light up Not an appliance fault. Siphon connection is still alternately. Water is closed or the wastewater hose is kinked or blocked. not drained. Check the connection to the siphon and open if ne- cessary.
- Page 47 Troubleshooting en Fault Cause and troubleshooting All LEDs lit up or Electronics have detected a fault. flashing. Press the main switch button for approx. 4 seconds. The appliance is reset and restarted. If the problem occurs again: Switch off the appliance. ‒ Pull out the mains plug or switch off the fuse in ‒...
- Page 48 en Troubleshooting Fault Cause and troubleshooting Remnants of food on Select a more intensive washing programme. ▶ tableware. → "Programmes", Page 18 Adjust the sensitivity of the sensors. ▶ → "Sensors", Page 11 Tableware has been precleaned too intensely. The sensors chose a weaker programme. Stubborn soiling cannot be entirely removed.
- Page 49 Troubleshooting en Fault Cause and troubleshooting Removable streaks Adjust the sensitivity of the sensors. ▶ are present on → "Sensors", Page 11 glasses, glassware with a metallic appear- ance and cutlery. Rust spots on cutlery. Cutlery is not sufficiently rust-resistant. Knife blades are often more severely affected. Use rust-resistant tableware.
-
Page 50: Clean Wastewater Pump
en Transportation, storage and disposal Insert the pump cover and press 18.1 Clean wastewater pump down . Large remnants of food or foreign bodies can block the waste water pump. As soon as the rinsing water no longer drains properly, the waste water pump must be cleaned. -
Page 51: Protect Appliance From Frost
Customer Service en 19.2 Protect appliance from 19.4 Disposing of old appli- frost ance If there is a risk of frost where the ap- Valuable raw materials can be re- pliance will be standing, e.g. in a holi- used by recycling. day home, empty the appliance com- pletely. -
Page 52: Product Number (E-Nr.), Production Number (Fd) And Consecutive Numbering (Z-Nr.)
en Customer Service Customer Service for a period of at 20.2 AQUA-STOP guarantee least 10 years from the date on In addition to warranty claims against which your appliance was placed on the seller under the purchase agree- the market within the European Eco- ment and in addition to our manufac- nomic Area. -
Page 53: Technical Specifications
Technical specifications en 21 Technical specifications Weight Max.: 45 kg Voltage 220 - 240 V, 50 Hz or 60 Hz Power rating 2000 - 2400 W Fuse 10 - 16 A Water pressure min. 50 kPa (0.5 bar) ¡ max. 1000 kPa (10 bar) ¡ Inlet rate Min. 10 l/min Water temperature Cold water. Hot water max.: 60 °C Capacity 10 place settings You can find more information about... -
Page 54: Declaration Of Conformity
BSH Hausgeräte GmbH hereby de- A detailed Declaration of Conformity clares that the appliance with Home can be found online at siemens- Connect functionality conforms to the home.bsh-group.com/uk/ among the essential requirements and other rel- additional documents on the product evant provisions of Directive page for your appliance. - Page 56 EN Manufactured by BSH Hausgeräte GmbH under the trademark licence of Siemens AG Valid within Great Britain: Imported to Great Britain by BSH Home Appliances Ltd. Grand Union House Old Wolverton Road Wolverton, Milton Keynes MK12 5PT United Kingdom BSH Hausgeräte GmbH Carl-Wery-Straße 34...
