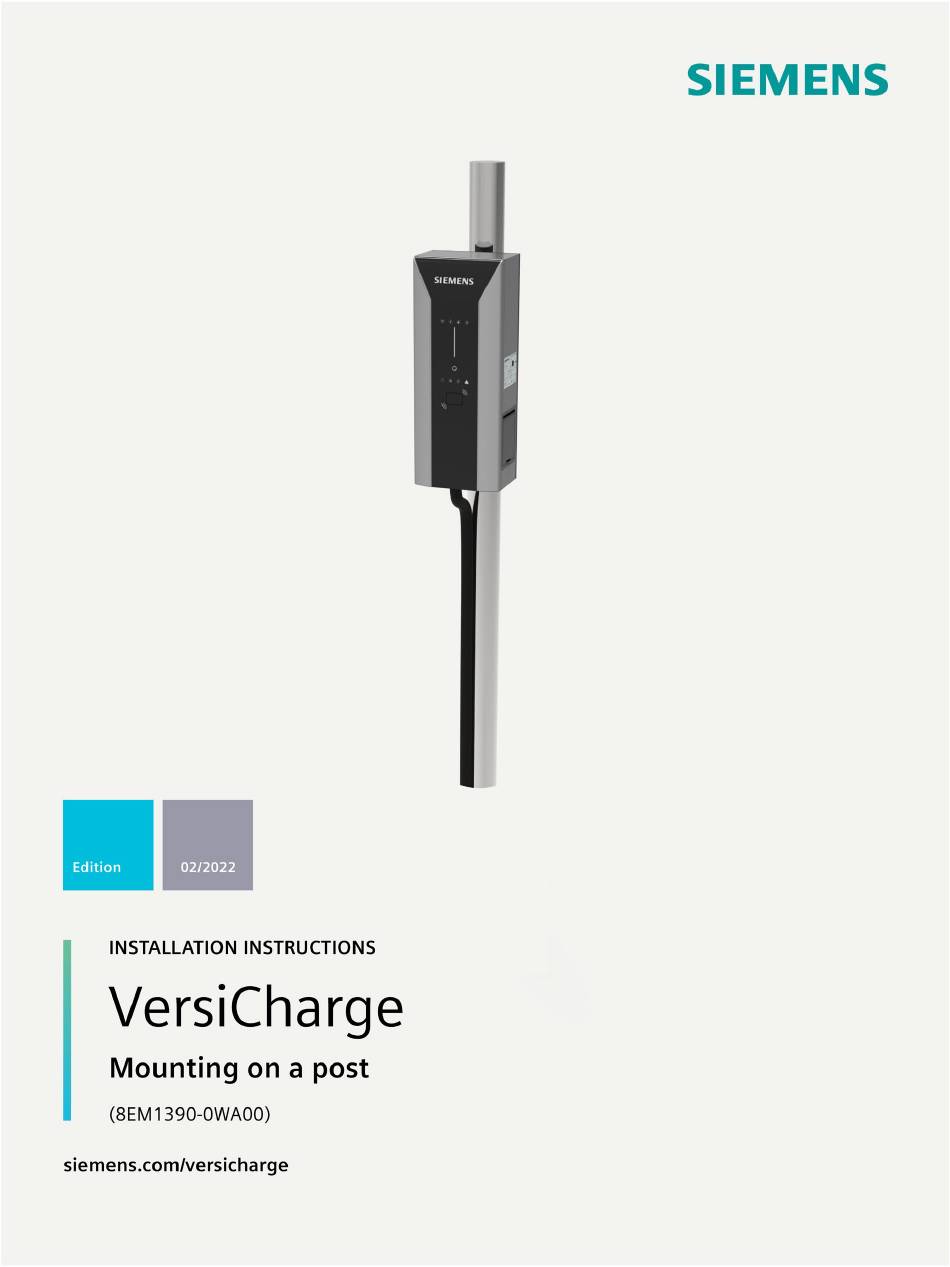

- Page 2 VersiCharge mounting on posts Single mounting on a post VersiCharge mounting on posts Brochure 02/2022 A5E51701924-AA...
- Page 3 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.
- Page 4 Table of contents Single mounting on a post ........................4 Introduction ........................4 Safety instructions ....................... 4 Preparation .......................... 4 Scope of delivery ......................... 4 Mounting ..........................5 VersiCharge mounting on posts Brochure, 02/2022, A5E51701924-AA...
-
Page 5: Safety Instructions
Single mounting on a post Introduction This flyer provides installation instructions for mounting a VersiCharge Wallbox on a post. The post is not included in the scope of delivery from Siemens. Safety instructions See Installation instruction no. A5E51460471-AA Preparation The Wallbox can be secured individually to a post. - Page 6 • English (https://support.industry.siemens.com/cs/at/en/view/109782228) ① Fastening clip top ② Fastening clip bottom ③ Protective tube ④ Heat-shrink tube ⑤ Tube connection ⑥ Lock nut Figure 1-2 Round posts Note Lay the protective tube inside the post VersiCharge mounting on posts Brochure, 02/2022, A5E51701924-AA...
