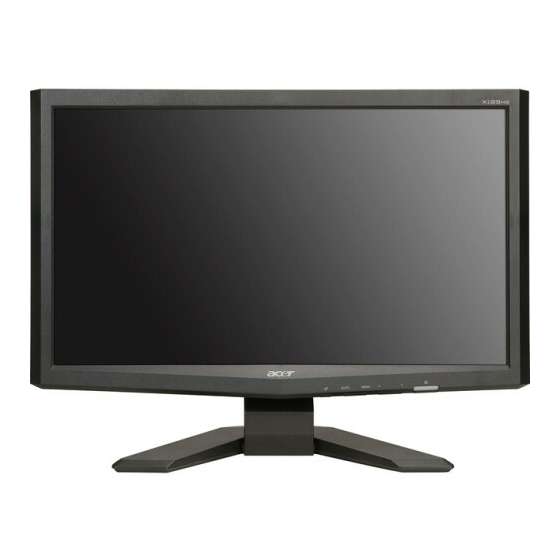

X193HQ LCD MONITOR
High Resolution 19" LCD Flat-Screen Monitor
Everything is bigger and better on the Acer X193HQ. The panoramic viewable display is ideal for watching
DVD movies – transporting you from your home into a small cinema.
You will also be able to display Microsoft Office Applications, do 3D drawing, IT programming, financial
reports and great Internet browsing.
Why X193HQ LCD Monitor?
•
Resolution 1366 x 768
•
Contrast Ratio 10000:1 (ACM)
•
Brightness 300cd/m
•
Response Time 5ms
2
Page 1

Advertisement

loading

Related Manuals for Acer X193HQ

Summary of Contents for Acer X193HQ

  • Page 1 X193HQ LCD MONITOR High Resolution 19” LCD Flat-Screen Monitor Everything is bigger and better on the Acer X193HQ. The panoramic viewable display is ideal for watching DVD movies – transporting you from your home into a small cinema. You will also be able to display Microsoft Office Applications, do 3D drawing, IT programming, financial reports and great Internet browsing.
  • Page 2 3 year pick up and return Product specifications are subject to change without prior notice. Acer & the Acer logo are registered trademarks of Acer Inc., and Acer America Corp. All other products, brand names, or company names are trademarks &...
  • Page 3 Acer Acer –LCD-X193HQ Service Manual LCD Monitor Acer X193HQ - 0 -...

  • Page 4: Table Of Contents

    Copyright 2006 InnoLux Tech. Corp. Ltd All Rights Reserved This manual may not, in whole or in part, be copied, Photocopied, reproduced, translated, or converted to any electronic or machine readable form without prior written permission of InnoLux Tech. Corp. Ltd. Acer X193HQ Service Manual...

  • Page 5: Important Safety Notice

    Acer Acer –LCD-X193HQ Important Safety Notice Safety precautions This monitor is manufactured and tested on a ground principle that a user’s safety comes first. However, improper used or installation may cause damage to the monitor as well as to the user.

  • Page 6: Product Specification

    01 Product Specification 1. General: Acer X193HQ is designed with LVDS interface and dual (analog and digital signal) input, it featured with embedded universal AC power supplies and audio input. It’s a green product and meets all ROHS standard. The power button and display control buttons are on the front of the monitor.
  • Page 7 Acer Acer –LCD-X193HQ -20°C to 60°C Temperature range Relative humidity 5% to 80% Altitude 0 to 12191M (40000 ft) 2.2 Safety, EMC, Ergonomics and Compatibility Requirements Items Description UL/cUL TUV/GS BSMI Other Safety ● ● ● ● ● FCC-B CE/EMC...
  • Page 8 Acer Acer –LCD-X193HQ +5.2V audio output <200mv DC Output Voltage and Current VCC14.2V(13.5~16.3V); 0.8A(typ.),1.0A(max) VCC5.2V(4.95~5.45V); 0.8A(typ.),1.0A(max) Audio VCC5.2V(4.95~5.45V) 0.5A(typ.),0.6A(max) Power consumption with Audio ≤25W Protection See Table-1 Power management See Table-2 Note2. Before each test, the buck capacitor need to be discharged.
  • Page 9 Acer Acer –LCD-X193HQ The test to verify specifications in this section shall be performed under the following standard conditions unless otherwise noted. Temperature : 25 ± 5°C Test pattern : white Video Resolution : 1366 x 768 Video input level : 700 mV ±...
  • Page 10 55-76 Hz 4.4 DDC data EDID Standard Compliance 4.4.1 EDID File Format : VESA’s EDID Standard Version1.0, Revision 12, EDID Structure : Version #1, Revision #3. EDID Data Table : See the attached table (for example) X193HQ VGA EDID table...
  • Page 11 Acer Acer –LCD-X193HQ X193HQ DVI EDID table X183H VGA EDID table X183H VGA EDID table 4.5 Audio signal...
  • Page 12 Acer Acer –LCD-X193HQ Items Specification ≧ ≧ ≧ ≧ 10K ohm Input impedance 200Hz – 20kHz Frequency response range ≧ ≧ ≧ ≧ 40 dB Signal to noise ratio ≧ ≧ ≧ ≧ 1.0 W + 1.0 W ( 10%THD ) Output power 5.
  • Page 13 Management” to show “e Color OSD”, and press “User” to show OSD interface [MENU] before. The translations of “ACER e Color Management” and “User” are always English. B. When OSD displays, press [MENU] to perform function of menu icon that is highlight or enter next level menu A.

  • Page 14: Flat Panel Specification

    Acer Acer –LCD-X193HQ User mode Text mode Standard Brightness 0 ~ 100 mode Graphics mode Movie mode Focus 0 ~ 100 Depend on each timing Image Clock 0 ~ 100 50 ○ ○ ○ ○ H. Position 0 ~ 100 Position V.
  • Page 15 Acer Acer –LCD-X193HQ...
  • Page 16 Acer Acer –LCD-X193HQ...
  • Page 17 Acer Acer –LCD-X193HQ...
  • Page 18 Acer Acer –LCD-X193HQ...
  • Page 19 Acer Acer –LCD-X193HQ...
  • Page 20 Acer Acer –LCD-X193HQ...
  • Page 21 Acer Acer –LCD-X193HQ...
  • Page 22 Acer Acer –LCD-X193HQ...
  • Page 23 Acer Acer –LCD-X193HQ...
  • Page 24 Acer Acer –LCD-X193HQ...
  • Page 25 Acer Acer –LCD-X193HQ...
  • Page 26 Acer Acer –LCD-X193HQ...
  • Page 27 Acer Acer –LCD-X193HQ...
  • Page 28 Acer Acer –LCD-X193HQ...
  • Page 29 Acer Acer –LCD-X193HQ...
  • Page 30 Acer Acer –LCD-X193HQ...
  • Page 31 Acer Acer –LCD-X193HQ...
  • Page 32 Acer Acer –LCD-X193HQ...
  • Page 33 Acer Acer –LCD-X193HQ...
  • Page 34 Acer Acer –LCD-X193HQ...
  • Page 35 Acer Acer –LCD-X193HQ...
  • Page 36 Acer Acer –LCD-X193HQ...
  • Page 37 Acer Acer –LCD-X193HQ...
  • Page 38 Acer Acer –LCD-X193HQ...
  • Page 39 Acer Acer –LCD-X193HQ...
  • Page 40 Acer Acer –LCD-X193HQ...
  • Page 41 Acer Acer –LCD-X193HQ...
  • Page 42 Acer Acer –LCD-X193HQ...

  • Page 43: Exploded Diagram

    Acer Acer –LCD-X193HQ Exploded Diagram 3.1 Screw List Fixed Item Part No. Description Remark T(kg*cm) SCREW,P,CROSS Power Board to 509146305300R 4.5~5.0 W/WAS,M3*5,Zn ROHS Chassis*3 509000000700R BOLT,#4-40x11.8,Ni ROHS 4.0±0.5 D-SUB CON*2 SCREW P T4*12 Zn-BLK 509112612500R 8±0.5 Hinge to Stand ROHS...
  • Page 44 Acer Acer –LCD-X193HQ 3.2 . LCD Exploded drawing (All)

  • Page 45: Troubleshooting

    Acer Acer –LCD-X193HQ 04 Troubleshooting 4.1 No Power & LED Off No power Check primary Check Check IC802, circuit if rectifier voltage C805, T801, short Check F801, P801, RT801, D801 Check pin2 of CheckC815,D806, IC802 voltage about 16V Check primary OVP,...
  • Page 46 Acer Acer –LCD-X193HQ 4.2 Unstable Power Unstable power Check sampling Check R811, Circuit R818, R810, R811, R818, R810, R825, Check the C Check the R Change IC803 pin voltage of pin voltage of IC803 if 3V IC80 about Check Check pin2...
  • Page 47 Acer Acer –LCD-X193HQ 4.3 DC output voltage is unstable Output voltage unstable Check ZD801, Check Vbe of Checkcircu D803, D805 Q801below 0.3V it if Check Q801, Q802 Check R832,, IC801, Check Check Pin R of IC803 voltage reference about 2.5V...
  • Page 48 Acer Acer –LCD-X193HQ 4.4 No Raster No raster? LED Blue? Backlight can’t be turned on. Check power Is there 16Vdc supply voltage on pin9 of IC501? Is there high-level Check I/F Is Ok R510? voltage on pin8 of board IC501?
  • Page 49 Acer Acer –LCD-X193HQ 4.5 Black Screen...
  • Page 50 Acer Acer –LCD-X193HQ 4.6. White screen...
  • Page 51 Acer Acer –LCD-X193HQ Bad Screen...

  • Page 52: Spare Parts List

    Acer Acer –LCD-X193HQ 05 Spare parts List ACER PART UNIT PRICE OEM PART NO DESCRIPTION ET.LEH0C.024 (US$) 55.LEH0J.001 791931300702R PCBA,I/F BOARD,W/SPK,LE18K3-712 ROHS 6.20 19.LEH0J.001 791931400700R PCBA,P/I BOARD,W/SPK,LE18K3-712 ROHS 10.00 55.LAU0J.002 790061500000R PCBA,KEYPAD BOARD,LE1983-X10 ROHS 1.00 50.LEH0J.001 430300802230R HRN ASSY 2x4P to 8P 190mm UL1571#28 0.29...

  • Page 53: Schematics And Layouts

    Acer Acer –LCD-X193HQ 06 Schematics and Layouts 6.1 PI BD Layout...
  • Page 54 Acer Acer –LCD-X193HQ 6.2 PI BD Layout...
  • Page 55 Acer Acer –LCD-X193HQ 6.3 IF BD Layout...
  • Page 56 Acer Acer –LCD-X193HQ 6.4 IF BD Layout 6.2 Switching Mode Power Supply circuit...
  • Page 57 C820 4700P Y1 C802 R802 1n 500V T801 C805 400V SPW-093 68u/450V +14V R836 R843 R842 D805 R833 R832 R823 SB5150 100R 1W R803 D801 68ohm 10K NC 68ohm R838 2.7M C808 C811 ZD801 Q802 R806 BL4-06 470uF 25V R837 1n 500V MMBT4401 NC 4.7R...
  • Page 58 C516 CN504 10p/3KV 4100-D02 C510 C509 R520 R515 R517 2.2u/25V 390 1% 10K 1% R501 100K C520 C522 3300p/50V C511 C512 R519 680pF/50V 2.2u/25V Q501 MMBT4401 Q502 ON/OFF R502 MMBT4401 100K L<2.cm C502 R503 W=2.0mm 220p/50V 100K C508 T501 1u/16V C514 C503 R506...
  • Page 59 VCC5V CN101 VGA5V D107 +3.3V BAT750-LF/NC DVI5V Note 5 Note 6 Note 2 CCFL_ON/OFF R110 R104 0/NC Note 3 U102 D101 BRIGHTNESS 5 U101 +3.3V LD1117AL-1.8V +1.8V VOLUME SSM24APT LD1117AL-3.3V VCC5V +3.3V MUTE VOUT +1.8V DIO--SMA DCR_CONTROL 5 VOUT +3.3V R199 100 R101 10P 2.0mm...
  • Page 60 CN102 Note 2 DZ11AA1-H5W6-4F RB101 R114 C113 0.047u/16V RED+ R0603 RB102 R115 C114 0.047u/16V GREEN+ R0603 RB103 R116 C115 0.047u/16V BLUE+ R0603 VGA5V R159 470 1% C134 0.047u/16V Note 1 C116 C117 C118 R0603 10p/50V/NC 10p/50V/NC 10p/50V/NC R122 C119 0.047u/16V RED- R123 C120 0.047u/16V...
  • Page 61 VCC5V DVI5V DVI5V CN201 DVI-D_CON VCC5V 2,3,5 DVI_RX2- R201 Note 1 RX2- RX2- DVI_RX2+ R202 RX2+ RX2+ DVI_RX1- R203 R215 RX1- D201 RX1- DVI_RX1+ R204 0/NC C201 BAV70 RX1+ RX1+ 0.1/16V DVI_RX0- R205 RX0- RX0- DVI_RX0+ R206 RX0+ RX0+ R211 R212 R213 DVI_RXC+...
  • Page 62 CN107 CN105 +3.3V DVDD_3V3 +3.3V AVCC_3V3 PVCC_3V3 +3.3V VAA_3V3 +1.8V Note8 FFC-CON/NC Note7 FFC-CON +3.3V Note 1 Note 1 Note 1 Note 1 Note 1 FB102 FB104 FB107 FB106 RXO0- RXO0+ 60Ω 60Ω 60Ω 60Ω RXO1- C139 RXO1+ C141 C150 1u/16V C138 RXO2-...

  • Page 63: Assembly And Disassembly

    Acer Acer –LCD-X193HQ 7.0 Assembly and Disassembly S e q u e n c e Ite m P h o to P r o c e d u r e s P /N D e s c rip tio n (1 ).T a k e p a n e l o u t o f b o x a n d p la c e it o n...
  • Page 64 Acer Acer –LCD-X193HQ Assembly and Disassembly (continue) FFC socket (1).Insert FFC wire into its relevant interface of mainboard properly like Keypad cable socket Insert FFC attached picture1. HRN LVDS FFC cabel into (2).Insert the short keypad into its 430303001970R 30P 147MM...
  • Page 65 Acer Acer –LCD-X193HQ Assembly and Disassembly (continue) make sure keypad cable into the interface HRN ASSY 2x4P to Pack keypad Insert the keypad cable into the chassis keypad cable 430300802230R 8P 190mm cable as picture through chassis UL1571#28 (1). Handle hexagonal screws and...
  • Page 66 Acer Acer –LCD-X193HQ Assembly and Disassembly (continue) Insert the FFC cable into the interface of HRN LVDS FFC Insert FFC 430303001970R panel as picture 30P 147MM cable insert FFC 1)Insert 4pcs light wire into the relevant Insert light position 2) put the balance light wire to the...
  • Page 67 Acer Acer –LCD-X193HQ Assembly and Disassembly (continue) Picture 1 left speaker Put the right and left speaker into the two position of chassis , remark : put the SPEAKER 2W 8Ω Assemble speaker with green cable to left ,and put 618100200360R 290 ＆...
  • Page 68 Acer Acer –LCD-X193HQ Assembly and Disassembly (continue) COVER Assemble Put the right and left cover hinge into the 501020225700R HINGE,BLACK related position as picture cover hinge RIGHT,LE18K3 (1)Release monitor to the packing line (2)Put monitor into carton like the Packing...
