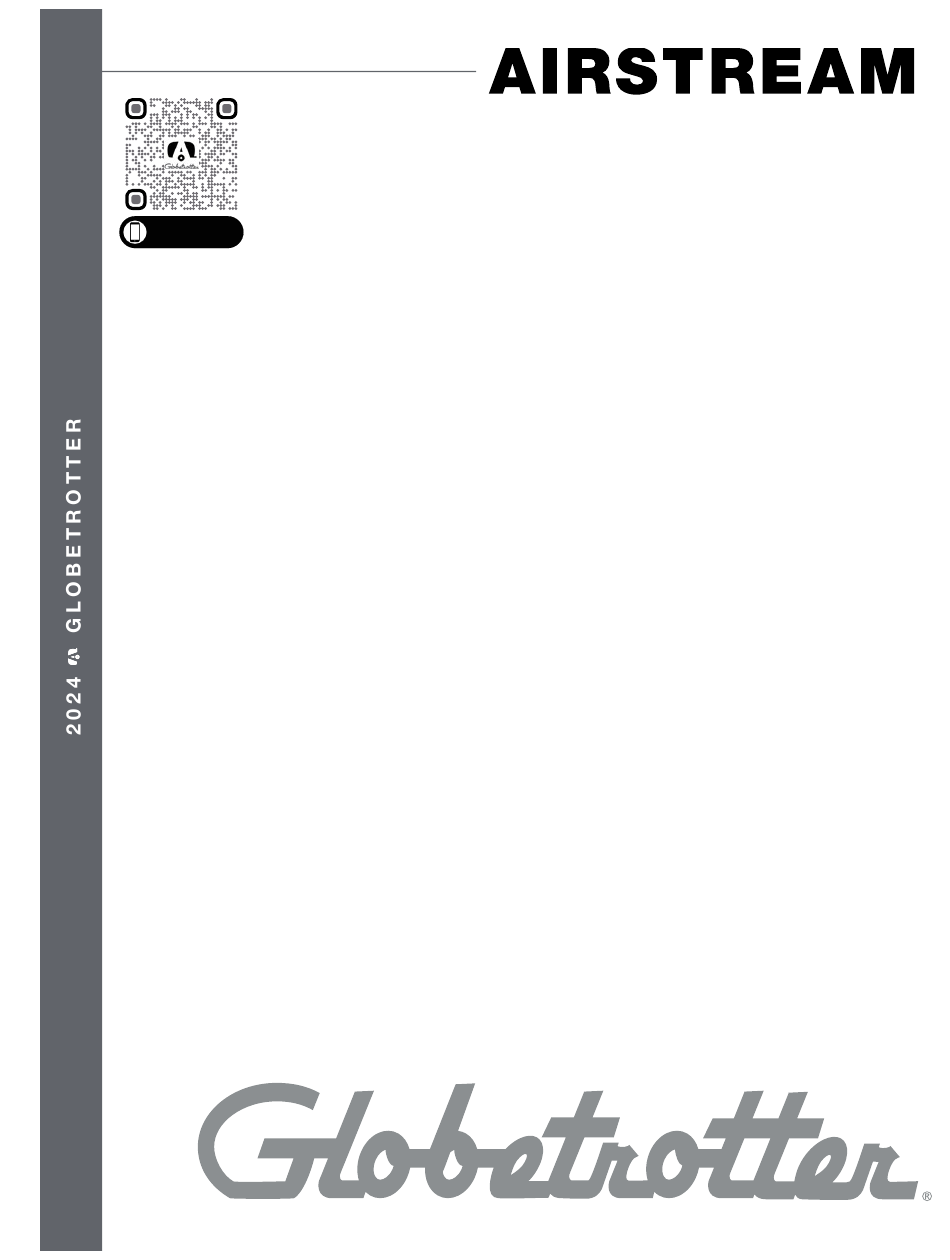

- Page 1 ® SCAN ME #liveriveted ® O w n e r ’ s M a n u a l...
- Page 2 If and when new materials and production techniques are developed that can improve the quality of its product, or material substitutions are necessary due to availability, Airstream reserves the right to make such changes.
-
Page 3: Table Of Contents
® TABLE OF CONTENTS TABLE OF CONTENTS INTRODUCTION ....1-1 TOWING ....7-1 SAFETY . - Page 4 NOTES NOTES 2024 Globetrotter...
-
Page 5: Introduction
However, should you ever feel that you may be in need of assistance, please consult your Airstream dealer for advice on service that may be required. A brief explanation of the operation of the appliances such as refrigerator, furnace, water heater, and others, are explained in this manual. - Page 6 Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. NOTICE Indicates a potential situation which, if not avoided, may result in damage to your Airstream. Addresses practices not related to personal injury. NOTE Provides noteworthy information and tips about your Airstream.
-
Page 7: Safety
® Section 2 Section 2 SAFETY SAFETY SAFETY PRECAUTIONS � � � � � � � � � � 2-2 ALARMS AND DETECTORS � � � � � � � � � 2-3 Transporting of Passengers � � � � � � � � 2-2 Smoke Alarm �... -
Page 8: Safety Precautions
Safety Safety Precautions Appliances and Equipment The appliances (stove) and equipment (hot water Many things can be construed as safety related, but heater, furnace, etc.) typically operate on liquefied the most important is your common sense� If you are petroleum LP gas. LP gas is flammable and is careless with matches, cigarettes, flammable material, contained under high pressure�... -
Page 9: Alarms And Detectors
Smoke alarms have a limited life. The unit should be replaced immediately if it is not operating Airstream strongly suggests that you take measures to properly. You should always replace a smoke properly ventilate your trailer on a regular basis� If you alarm after 10 years from the date of purchase. -
Page 10: Liquid Propane Gas (Lpg)/Carbon Monoxide (Co) Detector
1-amp, in-line fuse� It has no WARNING internal battery backup� In normal stand-by mode, the LED indicator will be green� Airstream recommends shutting off the gas Low Voltage supply at the LPG tanks before refueling the tow vehicle or entering a refueling station. -
Page 11: This Carbon Monoxide Detector Is Not
Safety Important Safety Precautions WARNING • Carbon Monoxide is produced by the incomplete This product is intended for use in ordinary, combustion of fuels such as wood, charcoal, coal, indoor locations of family living units. It is heating oil, paraffin, gasoline, natural gas, propane, not designed to measure compliance with butane, etc�... -
Page 12: Conditions That Can Result In Potentially Dangerous Co Situations
Safety Conditions that can result in potentially dangerous Basic Rules For LPG Safety CO situations A warning label is displayed in the cooking area 1� Excessive spillage or reverse-venting of fuel- reminding you to provide an adequate supply of fresh burning appliances caused by outdoor conditions, air for combustion�... -
Page 13: If You Smell Gas
Safety If You Smell Gas Safety 1� Extinguish any open flames, pilot lights, and all As always, safety should be a top priority� Ensure smoking materials� you and everyone traveling with you can operate the main door and emergency exit window rapidly, without 2�... - Page 14 Safety NOTES NOTES 2024 Globetrotter...
-
Page 15: General Information
Obligations Under This Limited Warranty � � � 3-4 Tips To Control Condensation � � � � � 3-9 Airstream Limited Warranty Excludes � � � � 3-5 Molds � � � � � � � � � � � � � � � � 3-9 Normal Wear �... -
Page 16: Limited Warranty Policy
Warranty Transfer Form must be submitted to and Airstream repair facilities, loss of time, loss of pay, Airstream at the time of resale� loss of use, inconvenience, commercial loss (includ-... -
Page 17: What Is Not Covered
Airstream, or any defects or damage caused by exists� such items; Unless prohibited by state law, repairs will not extend 7�... -
Page 18: Obtaining Warranty Service
Airstream does not control the scheduling of repairs electric power supply or improper travel trailer at its authorized Airstream dealers, and repairs at the hookup to other facilities; Acts or omissions of any Airstream factory may not be immediately available�... -
Page 19: Airstream Limited Warranty Excludes
Lack of customer care and/or improper maintenance There are limits to the amount of load that can be will result in early failure for which Airstream cannot be safely transported, depending upon speed and road held responsible�... -
Page 20: Service
General Information Service When you require service for your trailer from the Airstream Factory Service Center or a Certified Dealer Coach-Net Roadside Assistance ® Service Center, please contact the service manager for an appointment, and inform them if you are unable to keep the appointment date or wish to change it�... -
Page 21: Camping
General Information Camping Trailer Equipment and Accessories 1� Water hose, 5/8-in� high-pressure, tasteless, Suggested Pre-Travel Check List odorless, non-toxic, (2 25-ft. sections) Interior 2� Y connection - water hose� 1� Turn off water pump switch� 3� Sewer hose with clamp� 2�... -
Page 22: Overnight Stop
If you must park on a slope, park facing downhill� It is easier to level the trailer this way� All you need to do to enjoy the self-contained luxury of your Airstream is to turn on the LP and light any appliance pilot lights� 2024 Globetrotter... -
Page 23: Stabilizing Jacks
General Information Stabilizing Jacks Appearance of these conditions may indicate a serious problem� When you recognize the signs of excessive moisture and condensation in the trailer, action should be taken to minimize their effects� Tips To Control Condensation Allow excess moisture to escape to the outside when: •... -
Page 24: Contributing Factors To Mold Growth
General Information Contributing Factors To Mold Growth After the sewage tank has been emptied, close the dump valves and put approximately five gallons of For mold growth to occur, temperatures, indoor or water in the sewage holding tank using the black tank outdoors, must be between 40°... -
Page 25: Winter Traveling
General Information Winter Traveling 27FB Model Traveling in sub-freezing temperatures will require certain precautions to protect the plumbing system and your personal belongings from being damaged by freezing� Whenever possible, the heat should be kept set to a constant temperature� It is easier for the furnace to keep a constant room temperature than allow the trailer temperature to drop to 50°F, and then attempt to raise it to room temperature�... - Page 26 General Information NOTES NOTES 3-12 2024 Globetrotter...
-
Page 27: Floor Plans And Specifications
® Section 4 Section 4 FLOOR PLANS AND FLOOR PLANS AND SPECIFICATIONS SPECIFICATIONS FLOOR PLANS � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4-2 25FB Globetrotter �... -
Page 28: Floor Plans
Floor Plans And Specifications Floor Plans 25FB Globetrotter 27FB Globetrotter 30RB Globetrotter 2024 Globetrotter... -
Page 29: Specifications
Floor Plans And Specifications Specifications Specification Chart NOTE All product information and specifications listed are as accurate as possible at the time of printing. Since we continually strive to improve our products, all specifications are subject to change without notice. All capacities are approximate and dimensions are nominal and are checked and updated throughout the model year. -
Page 30: Specification Tags
Floor Plans And Specifications Measuring Hitch Ball Height The UBW and NCC weights listed in the Specification Chart are for the base unit with LP and batteries The proper height will vary according to the weight you included. carry and the tires you use. However, checking the Gross Vehicular Weight Rating (GVWR) is the height on your trailer is relatively easy: maximum permissible weight of this trailer when fully... -
Page 31: Interior
® Section 5 Section 5 INTERIOR INTERIOR GENERAL INFORMATION AND CLEANING � � � 5-3 ELECTRICAL � � � � � � � � � � � � � � � 5-8 Upholstery � � � � � � � � � � � � � � � 5-3 Battery/12-Volt System Information �... - Page 32 Internet � � � � � � � � � � � � � � � �5-14 Fuse � � � � � � � � � � � � � � �5-17 Airstream Connected, Wi-Fi � � � � � �5-14 Furnace �...
-
Page 33: General Information And Cleaning
General Information and Cleaning Interior Aluminum Skin Interior aluminum skin can be cleaned by washing with The interior of all Airstream trailers has been designed any mild non-abrasive soap or detergent� Cleaning for comfort, convenience, durability, and appearance� should be followed by a thorough clean water rinse�... -
Page 34: Luxury Woven Vinyl Floor
To avoid staining or discoloration of vinyl flooring, Use the following steps to set up the various dinette only use doormats or rugs made of natural fibers. The and bed layouts� rubber-backed mat provided by Airstream is suitable for outdoor use only� Full Dinette: NOTICE 1�... -
Page 35: 30Rb Model
4� Align the tabletop sockets with the legs and push down on the tops until seated on the legs� All lighting in the Airstream trailer is LED and most will 5� Once mounted, join the two halves together by require a replacement fixture should it go out. The main... -
Page 36: Plumbing
Interior Plumbing Draining System Fresh Water Lines and Tanks Water System (Self-Contained) The fresh water system’s water lines have low point Fill the water tank by opening the exterior access door drain valves and can be drained� The fresh water tank and remove screw cap�... -
Page 37: Toilet
Faucet Cleaning and Care All that is needed to clean your faucet is a soft, damp cloth� Airstream does not recommend the use of scour pads, cleansers, or chemicals� The abrasive nature of these substances could damage the faucet’s finish. A non-abrasive car wax will help to protect the finish. -
Page 38: Electrical
Power,” and is used to separate the batteries from the The major portion of electrical power in your 12-volt distribution panel� Airstream is 12-volt� The 12-volt current powers all The battery disconnect switch has a green backlight gas appliances for controls and/or ignition as well as when the switch is turned ON, and the batteries’... -
Page 39: Inverter
Inverter Power Center Globetrotter models have the power center installed Your Airstream is equipped with a 2000W pure sine below the refrigerator� Open the decorative door for wave inverter that converts 12-volt electricity from your access to 12-volt fuses and 120- volt breakers�... -
Page 40: 12-Volt Power Circuits
Interior Converter Operation • If converter is not within these voltages, have it serviced by a qualified technician or replace it. The power converter is designed to supply the nominal One of these wires is not spliced onto a wire of the 12-volt-filtered DC power for all 12-volt-operated same color�... -
Page 41: 120-Volt Ac Panel Board
The fan is never heater can be turned off� If that does not solve the on more than required to cool electronic components in problem, consult an Airstream Service Center� the converter� You may never hear the fan operate� Automatic Micro-Controller Operation... -
Page 42: Converter
All GFCI breakers implement an auto self-test result from contact with a HOT load wire and ground� function, however, Airstream recommends a WARNING manual test be conducted every month. The GFCI circuit breaker will NOT reduce shock hazard if contact is made between a HOT load wire and a neutral wire or two HOT load wires. -
Page 43: Entertainment Systems
SOUND OUT > BLUETOOTH DEVICE > DEVICE LIST > YOUR DEVICE’S NAME� Smartphone and Stereo Bluetooth ® Pairing Your Airstream has Bluetooth ® enabled Smart To pair most smartphones to the stereo and stream TVs and a Fusion ®... -
Page 44: Tv/Radio Antenna
OFF� Airstream Connected, Wi-Fi The antenna is constructed of durable automotive- Your Airstream comes pre-wired to have an grade plastic that is UV-protected, weatherproof, and capable of withstanding outdoor climates� Clean aftermarket Airstream Connected Wi-Fi kit installed�... -
Page 45: Appliances
Interior Appliances Air Conditioner Depending on the model, your Airstream will have one All appliances are delivered to Airstream Inc� with in- or more high-efficiency rooftop air conditioners with an depth owner’s manuals� Those manuals are included in integrated heat pump, allowing each unit to produce the delivery case supplied by your dealer�... -
Page 46: Ducted Roof System
Interior Ducted Roof System The high-volume ceiling vent exhausts stale hot air and draws in fresh, clean air. To maximize airflow, close all Globetrotter trailers are designed with a ducted roof other vents and open the window or door furthest from system. -
Page 47: Exhaust Vent
Operating instructions are located in your owner’s packet� If they should become misplaced, new literature can be ordered directly from the manufacturer or your Airstream dealer� The manufacturer also offers a detailed service guide for Operation your furnace�... -
Page 48: Monitor Panel
Interior Monitor Panel If the BATT button is held down, the display continuously rechecks the voltage and shows the updated value. The reading may flicker back and forth between two values� If another button is pressed before the 5-second time is up for the BATT button, the display will immediately switch to show the value for the new button�... -
Page 49: Solar System
Portable solar panel kits MUST include a solar controller that is set to the profile of the battery you chose for your Airstream, and cannot have an output of more than 10 amps� The solar port is fused at 10 amps in a holder in the battery box�... -
Page 50: Thermostat
Interior Thermostat Thermostat Button Functions Make selections in the following order to turn on the system and set the thermostat for each zone� SYSTEM BUTTON System is OFF� No units will operate in this mode� LCD displays current temperature of the selected zone�... -
Page 51: Water Heater
• Fd: Water heater operating in Winter Use – The water heater will run for a few seconds and then shut off in freezing conditions if the power is ON� This mode will only protect the Water Heater heat exchanger and not your Airstream’s plumbing system� 5-21 2024 Globetrotter... - Page 52 Interior NOTES NOTES 5-22 2024 Globetrotter...
-
Page 53: Exterior
® Section 6 Section 6 EXTERIOR EXTERIOR CLEANING � � � � � � � � � � � � � � � � 6-2 SmartPlug Cable/Satellite and Ethernet Inlet � 6-6 Exterior Skin � � � � � � � � � � � � � � 6-2 Exterior Outlet �... -
Page 54: Cleaning
If a substance is found on the coating that cannot be removed by normal washing procedures, Airstream recommends using DX 330 Acryli-Clean, made by PPG Industries� Follow all directions and warnings on the product container�... -
Page 55: General Information And Operation
Exterior General Information and Operation Step To operate the step, lift up on the front of the step and pull straight out until step locks into place� Some units will be equipped with a double step� After extending the For lubrication and out-of-adjustment issues, see Main step, the second portion folds out�... -
Page 56: Front End Protection
The tinted solar plexiglass window stone guards on the tape every year or after a long trip� Have it replaced if it front of your Airstream provide added protection from begins to wear thin� road debris while traveling and reduce the effects of LED light strips have been installed with your awning sun rays�... -
Page 57: Gravity Water Fill
Exterior City Water Hookup During the close/reset cycle, the awning arms will fully lower before the awning retracts� If the main entry door is left open during this process, the awning’s gas rafter will contact the door, damaging the gas rafter� If you turn off the power to the awning, or if power is lost while it is extended, follow these steps to retract it: 1�... -
Page 58: Shoreline Power Inlet And Cordset
This condition exists when the power pedestal is improperly wired. SmartPlug Inlet SmartPlug Cable/Satellite and Ethernet Inlet Your Airstream is equipped with either a 30A or 50A SmartPlug power inlet located on the roadside exterior� Prior to establishing a connection, review the SmartPlug Cordset instructions that follow�... -
Page 59: Axle And Running Gear Assembly
Exterior Axle and Running Gear Assembly Power Jack Each rubber torsion axle is aligned during The power jack is operated using the up/down switch manufacturing, and double-checked on a random on the power head� When the jack is fully extended or basis�... -
Page 60: Liquid Petroleum Gas (Lpg)
Exterior Liquid Petroleum Gas (LPG) light but have lower than normal flame or starve out from lack of gas, a substantial reduction in the flame Fill Valve when another appliance is operating, or pilots that are difficult to light. If this should happen, the following steps should eliminate the condition: 1�... -
Page 61: Lpg Tanks
Exterior Make sure there is propane in both tanks before you LPG Tank Installation: start� Rotate the white knob on the top-front side of 1� Place the tanks in position on the A-frame and the regulator toward the cylinder you want to use first. tank cross-member so that it rests on the upper This will be the service cylinder and the other will be collar of both tanks with the collar rims engaged... -
Page 62: Exterior Lpg Port
Exterior Exterior LPG Port DANGER An exterior LPG port quick-connect is installed on the A warning label has been located near the hitch A-frame of your trailer� An LPG supply line is LPG container. This label reads: DO NOT FILL shipped with the trailer in the loose parts box�... -
Page 63: Towing
® Section 7 Section 7 TOWING TOWING TOW VEHICLE � � � � � � � � � � � � � � 7-2 TOWING TIPS AND INFORMATION � � � � � � 7-5 BRAKES � � � � � � � � � � � � � � � � � 7-2 Tracking Observation �... -
Page 64: Tow Vehicle
Towing Tow Vehicle Brakes When buying a new vehicle to tow your trailer, we All trailers are equipped with Dexter Nev-R-Adjust suggest including towing options offered by most tow brakes� Please follow all maintenance procedures vehicle manufacturers� These include such things as a in the Dexter user’s manual provided in the owner’s heavy-duty alternator and radiator, heavy-duty springs packet�... -
Page 65: Loading
A full load of water equals XXX kg or XXX lbs of cargo @ 1 kg/L (8.3 lb/gal) Do not use the breakaway switch as a parking Airstream weighs the trailer as finished to arrive at the brake. If the battery should go dead, the trailer trailer’s weight�... -
Page 66: Hitching Up
Towing Weighing Your Trailer Place a piece of wood of approximately the same thickness as the bathroom scale on the ground in line The illustration below shows how to weigh the trailer on with the trailer hitch jack as shown� It should be so scales�... -
Page 67: Towing Tips And Information
5� Blue, Brake Towing Tips and Information 6� Brown, Right Turn/Stop We want every Airstream owner to be a safe and 7� Blank courteous driver� A few hours of towing practice in a large, empty parking lot will make pulling your trailer NOTE over the road much easier�... -
Page 68: Cooling System Overload
Towing Cooling System Overload Off-Road Towing When towing, you might encounter a temporary cooling When driving in mud and sand, let the momentum system overload during severe conditions, such as: carry the rig through� Apply power gently and use as little as possible�... -
Page 69: Backing Up
Towing Backing Up Controlling Sway or Fishtailing When backing up, the important thing to remember is Sway or fishtailing is the sideways action of a to do everything slowly and to immediately correct if trailer caused by external forces� It is common for you see the trailer turning the wrong way�... -
Page 70: Corrective Measures
Although Airstream has not intruded into the hitch used: manufacturer’s field of expertise and performed formal testing, we find the vast majority of Airstream owners 1� Slow down immediately and remove your foot from purchase sway-control devices� the accelerator� Avoid using the tow vehicle brakes unless there is a danger of collision�... -
Page 71: Maintenance
® Section 8 Section 8 MAINTENANCE MAINTENANCE MAINTENANCE SCHEDULE � � � � � � � � � 8-2 Battery Maintenance and Storage � � � � �8-10 SUGGESTED MAINTENANCE AND Lead Acid Batteries � � � � � � � � � �8-10 REPLACEMENT PARTS �... -
Page 72: Maintenance Schedule
Maintenance Maintenance Schedule WARNING Every 5,000 miles or 90 days Hitch Ball Lubricate with hitch ball lube or Failure to maintain your trailer can cause pre- wheel bearing grease. mature and unexpected parts breakage and/or Range Exhaust Clean fan blades and wash erratic operation that may be hazardous. -
Page 73: Suggested Maintenance And Replacement Parts
Maintenance Suggested Maintenance and Replacement Parts Part numbers listed are Airstream part numbers and can be ordered by calling a Certified Airstream Dealer. WARNING Always replace the bulb or light fixture with the correct bulb for that light or matching fixture. Failure to heed this warning could cause fire, property damage, personal injury, or death. -
Page 74: Exterior Care
Replacement Filters The following exterior care products are recommended Air Conditioner PN – 690323-321 by Airstream. Read and follow label directions. Exterior Range Hood PN – 512210-100 sealant should be checked and resealed once a year. Merv 8 Return Grill Filter PN –... -
Page 75: Tires
Never attempt to change any tire on the trailer trailer tires. Most Airstream dealers cannot make without securely chocking the trailer’s remaining adjustments to tires. An Airstream or tire dealer that wheels. Never position yourself in a manner handles that particular brand must do this. If you where a raised trailer can come down on you if it experience tire problems, contact the nearest dealer. -
Page 76: Tire Load And Inflation Information
Maintenance Tire Load and Inflation Information WARNING Maintaining proper tire inflation pressure is essential for Due to RISK OF EXPLOSION damaged tires or both tire safety and performance. tires run with more than a 20% underinflation Proper Tire Inflation (approximate) must be dismounted, inspected by a qualified technician, and should not be inflated The level of air in your tires affects your vehicle’s without using a safety cage. -
Page 77: Tire Care Tips
Maintenance Tire Care Tips next trip or vacation. Store your RV in a cool, dry area away from major heat sources and extreme cold. To reduce the risk of tire failure, we strongly An enclosed storage area is best with no exposure recommend the following: to electromagnetic sources such as generators or 1�... -
Page 78: Max Load Single Vs. Max Load Dual
This tends to flex the wheel and gradually behind the other. loosen the wheel nuts. Although the materials and For Airstream Travel Trailers, refer to the Max Load manufacturing methods are maximized for this kind of Single rating�... -
Page 79: Power Jack
Dexter Operation Maintenance Manual enclosed in your owner’s Radial Tires packet. Airstream recommends these procedures be performed by a qualified Dexter service technician, due the need of specialized tools and training. Brakes... -
Page 80: Batteries
RV industry, and based on your choice, your the housing to free the cover. Do not use or insert Airstream will have one of the following: Lithium, AGM, a screwdriver blade to remove the cover, as it may or Lead Acid. -
Page 81: Agm Batteries
Maintenance Ensure the caps are in place and tightly sealed before NOTE cleaning. If the baking soda/water solution used for cleaning gets into the battery, it will neutralize the A battery will self-discharge 1-3% per month battery acid. Clean the top of the battery using a ratio at 80 degrees. -
Page 82: Water Pump
Maintenance Water Pump Fresh Water Tanks and Draining Water Pump Access Locations Drain Valves In 25FB, 27FB, and 30RB models, the water pump and strainer are located under the wardrobe. The bottom cabinet panels swing open for access and/or the bottom shelf of the wardrobe can be removed on certain models. -
Page 83: Drain Valve Locations
Maintenance Drain Valve Locations Sanitizing The 25FB and 27FB models have interior water line Potable water systems require periodic maintenance low-point drain valves in the curbside-exterior storage to deliver a consistent flow of fresh water. Depending compartment. A separate stainless steel valve (right on use and the environment the system is subject to, photo, above), used to drain the fresh water tank, is sanitizing is recommended prior to storing and before... -
Page 84: Black And Gray Water Tank Draining
Maintenance Black and Gray Water Tank Draining Black Water Tank Flush To empty one or both tanks, attach the sewer hose by pressing the bayonet fitting onto the dump valve outlet and rotating clockwise until it feels solid and secure. Attach the outlet end of the hose to the sewage outlet, making sure the hose is placed so it will drain completely. -
Page 85: Winterizing And Storage
Maintenance Winterizing and Storage 7� Reconnect the water pump outlet. 8� Lower the front of the trailer as far as the jack will The main consideration in winterizing your trailer is allow and let the trailer sit until water ceases to to guard against freeze damage to the fresh water drain (no droplets are forming), then crank the jack system, including lines, tank, and pump;... -
Page 86: Restoring Service After Winter
Maintenance The Winterization Kit is near the water pump; 8� Allow the antifreeze to flow down drains. Flush the Water Pump Access Locations on page 8-12� For drain toilet and allow antifreeze to flow down the toilet. valve locations, see Drain Valve Locations on page If equipped, operate the toilet hand sprayer until 8-13�... -
Page 87: Main Door Care
• Main door has come open at some point, introducing aluminum skin. This may be ordered through the a change to the contour of the door frame (check for Airstream dealer or at the Airstream online store at sheared rivets on interior skin of door). www.airstream.com. -
Page 88: Electrical Diagrams
Maintenance Electrical Diagrams The following electrical diagrams are representative of the National Electric Code (NEC) and Canadian Standards Association (CSA). All circuits are NEC with the exception of CSA circuits as specified in each respective table. 25FB Globetrotter - 12 Volt Main Schematic - 30 Amp 8-18 2024 Globetrotter... - Page 89 Maintenance 25FB Globetrotter - 12-Volt Main Schematic - 50 Amp 8-19 2024 Globetrotter...
- Page 90 Maintenance 27FB Globetrotter - 12-Volt Main Schematic - 30/50 Amp 8-20 2024 Globetrotter...
- Page 91 Maintenance 30RB Globetrotter - 12-Volt Main Schematic - 50 Amp 8-21 2024 Globetrotter...
- Page 92 Maintenance 25FB Globetrotter - 120-Volt/30 Amp Diagram 8-22 2024 Globetrotter...
- Page 93 Maintenance 25FB Globetrotter - 120-Volt/30 Amp Diagram - CSA 8-23 2024 Globetrotter...
- Page 94 Maintenance 25FB Globetrotter - 120-Volt/50 Amp Diagram 8-24 2024 Globetrotter...
- Page 95 Maintenance 25FB Globetrotter - 120-Volt/50 Amp Diagram - CSA 8-25 2024 Globetrotter...
- Page 96 Maintenance 27FB Globetrotter - 120-Volt/30 Amp Diagram 8-26 2024 Globetrotter...
- Page 97 Maintenance 27FB Globetrotter - 120-Volt/30 Amp Diagram - CSA 8-27 2024 Globetrotter...
- Page 98 Maintenance 27FB Globetrotter - 120-Volt/50 Amp Diagram 8-28 2024 Globetrotter...
- Page 99 Maintenance 27FB Globetrotter - 120-Volt/50 Amp Diagram - CSA 8-29 2024 Globetrotter...
- Page 100 Maintenance 30RB Globetrotter - 120-Volt/50 Amp Diagram 8-30 2024 Globetrotter...
- Page 101 Maintenance 30RB Globetrotter - 120-Volt/50 Amp Diagram - CSA 8-31 2024 Globetrotter...
- Page 102 The following diagram depicts the way Airstream wires bar to an area just behind the Seelevel Monitor display. the solar system on factory-installed units and is the The best way to reach the Cat 5 cable is to remove recommended wiring for use of the pre-wire system.
-
Page 103: Fresh Water Layouts
Maintenance Fresh Water Layouts 25FB Globetrotter 8-33 2024 Globetrotter... - Page 104 Maintenance 27FB Globetrotter 8-34 2024 Globetrotter...
- Page 105 Maintenance 30RB Globetrotter 8-35 2024 Globetrotter...
-
Page 106: Faqs And Answers
Inverter on page 5-9� (Remember, use your no-fuss flush.) 3. I was told my Airstream is pre-wired for solar 2. How do I use my black water tank flush? panels. What does this mean? Answer: First, empty your black water tank, then close Answer: Wiring has been installed throughout your unit your black water tank valve. - Page 107 A frame by the LPG tanks. Appliances 2. Awning suggestions: 1. I am planning for a trip in my Airstream. How Your Zip Dee awning is intended to provide shade. should I get the refrigerator cooled down? Your awning can be used in light rain conditions if front Answer: Cooling time will vary with exterior or rear is tilted to let water run off.
- Page 108 Aerospace Protectant 303 to the seals. Clean edge of glass also. For more information, see Windows on page 8-17 10. The mattress in my Airstream is an odd shape, where can I buy sheets? Answer: Airstream has a selection of sheets for your Airstream and can be purchased by calling (937) 596- 6111 extension 7400 or 7418.
- Page 109 7-Way Plug 7-5 Cooktop 5-16 Air Conditioner 5-15 Hitching Up 7-4 Cordset 6-6 Airstream Academy ii Measuring Hitch Ball Height 4-4 Airstream Connected, Wi-Fi 5-14 Hitch/Coupler 6-6 Alarms 2-3 Hitching Up 7-4 Detectors 2-3 Aluminum Wheels 6-2 Dinette 5-4 Appliances 5-15...
- Page 110 Index Outlets 5-9 Tank Heaters 3-11 Warranty 3-2 120-Volt Outlet 6-6 Tanks Obtaining Warranty Service 3-4 Overnight Stop 3-8 Black/Gray Water Tank Draining Waste Water System 3-10 8-14 Water Fill 6-5 Drain Systems Cleaning 8-14 Water Heater 5-21 Fresh Water Tanks and Draining Water Heater Draining 8-12 Parts 8-3 8-12...
- Page 111 Beautiful is a call to action to pick up the litter, toss it in a can, and not simply step over it and pass it by. Your purchase of a new Airstream will open doors to new experiences and places you’ve only dreamed of – but it takes all of us working together to ensure those places remain pristine, accessible, and ready for the next adventure.
- Page 112 ® 1001 West Pike Street P.O. Box 629 Jackson Center, OH. 45334-0629 Phone: (937) 596-6111 Fax: (937) 596-7939 www.airstream.com...
