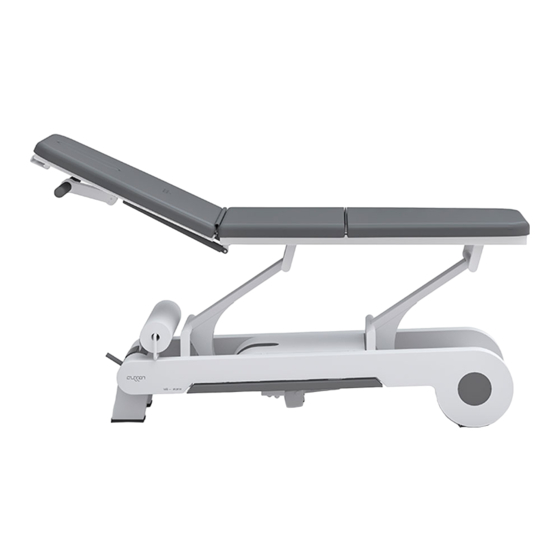

- Page 1 line N’RUN Instruction Manual N’RUN series 2-3-4-5 models, with accessories VERSION 1.0...
-
Page 2: Table Of Contents
N’RUN Instruction Manual Instruction Manual N’RUN series 2-3-4-5 models, with accessories Table of contents 1. Introduction 2. Use of the manual 3. Warranty 4. Liability 5. EC Declaration of conformity 6. Safety instructions 7. Product Dimensions 8. Operation Wheel block/unblocking system Gas piston levers Peripherial switch Handlebar support... -
Page 3: Introduction
1. Introduction CONGRATULATIONS! You took NAGGURA home! Thank you for having acquired a NAGGURA product and for the trust shown in us. We are sure that this treatment table will turn into the pillar of your work and will more than fulfil your most demanding work requirements. ... -
Page 4: Use Of The Manual
3. Warranty The warranty period for your Naggura N’RUN is 2 years for all the components of the couch, from its date of purchase. The above-mentioned warranty is not applicable in the following cases: a. In the event of improper use of the couch;... -
Page 5: Ec Declaration Of Conformity
6. Safety instructions Responsibility of the owner Naggura treatment tables are only meant to be used by professional personnel in Physiotherapy, rehabilitation, examination and massage field. It is the responsibility of the owner to ensure that training is given to all operators and third parties (like for example cleaning per- sonnel) on safe use of the treatment table, and that they have read and understood all the operating and safety instructions. - Page 6 N’RUN Instruction Manual Safety instructions Safety during treatments - Don’t let anybody, except the operator and the patient, in the treatment room - The bed may not be used for patient transport. - Never leave the bed on its wheels during treatment. - Do not exceed the maximum load of the table (see typeshield) - Place the table on a stable and horizontal surface.
-
Page 7: Product Dimensions
N’RUN Instruction Manual 7. Product dimensions N’RUN 2W N’RUN 2L N’RUN 3 N’RUN 4 N’RUN 5... - Page 8 N’RUN Instruction Manual Pack dimensions (cm) Handling and transport Do not lift from the long sides...
-
Page 9: Operation
N’RUN Instruction Manual Product dimensions in movement (cm) Power cord lenght (cm) 8. Operation Power input Voltage and frequency input shall be AC 100-120, 50/60Hz or 220-240V, 50/60Hz. Plug the bed on the power supply properly as shown below:... -
Page 10: Wheel Block/Unblocking System
N’RUN Instruction Manual Operation of N’Run 1. Wheel block/unblocking system 2. Gas piston levers 3. Peripheral switch 4. Handlebar support (NRUN2L, 2W and 3) 5. Paper roll holder 6. Breather hole 7. Twinlift armrests (NRUN4 and 5) 8. Folding widening supports (NRUN 2W) 9. - Page 11 N’RUN Instruction Manual Operation Peripheral Switch The height of the table can be adjusted from the 4 sides of the table thanks to a very intuitive peripheral switch. The mechanism on both sides consists of 2 grey long overhanging bars which are fully integrated in the base making the design simply beautiful. When the physiotherapist presses the bar with his foot, the table goes up.
-
Page 12: Switches For Lumbar Flexion And Heating
N’RUN Instruction Manual Operation Specifications Product size 202 (+/- 23 cm with movement) x 68 x 56 / 92 cm Package size 206 x 74 x 65 cm Highest position 92 cm Lowest position 56 cm Net weight 132 / 148 Kg Gross weight 142 / 158 Kg Power... - Page 13 N’RUN Instruction Manual Operation Twinlift Armrests If your table is equipped with a head section with arms support (N’RUN4 or N’RUN5), you can adjust them as it is shown in the pic- tures below. Press the lever on the side, and adjust the exact height you need the armrests to be. Both arms will effortlessly move at the same time to the desired position.
-
Page 14: Maintenance And Cleaning
Maintenance Naggura tables have been designed for an intensive use during long time thanks to its stability, reliability and durability. However, we advise to keep the table in perfect conditions and make a correct use of it. Unplug the table if you will not use it for a long period of time. -
Page 15: Service
Only a technician authorized by Naggura is allowed to perform any kind of repairs on the bed. If your technical staff is allowed by Naggura to repair the bed, naggura can provide the necessary instructions and spare parts lists. - Page 16 N’RUN Instruction Manual Our products are subject to continuous technical improvements. Naggura reserves the right to change or modify the product and contents without prior notice.
- Page 17 Pol. Ind. La Valldan Camí de Garreta, 92 08600 Berga Barcelona - Spain T. +34 93 824 90 20 E. info@naggura.com www.naggura.com...
