Summary of Contents for Genius SW-S2.1350

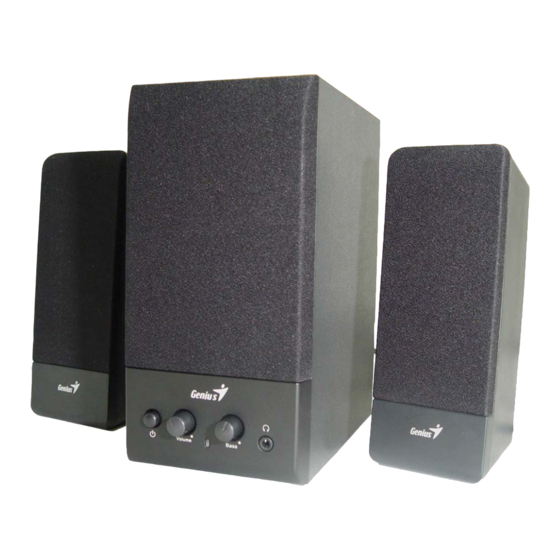

- Page 1 All manuals and user guides at all-guides.com Service Guide SW-S2.1 350 SERVICE GUIDE KYE SYSTEMS CORP. SW-S2.1 350 Version : 1.0 Page 1 of 15...
-
Page 2: Revision History
All manuals and user guides at all-guides.com Service Guide SW-S2.1 350 Version : 1.0 Revision History Version Date Change 07/18/2007 Version : 1.0 Page 2 of 15... -
Page 3: Table Of Contents
All manuals and user guides at all-guides.com Service Guide SW-S2.1 350 Table of Contents Revision History …………………………………………………………………….2 Table of Contents ……………………………………………………………………3 Getting Started ………………………………………………………………………4 Conventions Used in this Guide ……………………………………….4 Safety Precautions ……………………………………………………..4 Chapter 1. How to Handle Defective Returns……………………………………..5 1.1 Overview …………………………………………………………..5 1.2 Problems …………………………………………………………...6 1.2.1 One or more channels no sound ………………..…7... -
Page 4: Getting Started
All manuals and user guides at all-guides.com Service Guide SW-S2.1 350 Getting Started Conventions Used in this Guide Pay Special Attention : Instructions that are important to remember and may prevent mistakes . Caution : Information that, if not followed, may result in damage to the product . -
Page 5: Chapter 1. How To Handle Defective Returns
All manuals and user guides at all-guides.com Service Guide SW-S2.1 350 Chapter 1. How to Handle Defective Returns 1.1 Overview Receiving Defective speakers from Customers Verifying problems Proceeding necessary tests Function NG Analyzing possible malfunction causes Deciding & proceeding the Function NG rectification methods Function OK... -
Page 6: Problems
All manuals and user guides at all-guides.com Service Guide SW-S2.1 350 1.2 Problems Item Problem Description 1.2.1 One or more channels no sound 1.2.2 Power LED (indicator) no light 1.2.3 Volume no function Version : 1.0 Page 6 of 15... - Page 7 All manuals and user guides at all-guides.com Service Guide SW-S2.1 350 Attention Please follow the numbered sequence marked within parenthesis given in individual Flow chat, in that this is the best-recommended sequence to rectify the problems. 1.2.1 One or more channels no sound One or more channels no sound Problem Speaker cable dis-connect or...
- Page 8 All manuals and user guides at all-guides.com Service Guide SW-S2.1 350 1.2.2 Power LED (indicator) no light Power LED (indicator) no light Problem AC cord of transformer Analyzer and Defective D60~D63, Power switch or LED defective disconnected or defective VR1, Power, R60, R61 Identify the Causes Re-solder or replace defective component(s)
-
Page 9: Chapter 2. Specifications
All manuals and user guides at all-guides.com Service Guide SW-S2.1 350 Chapter 2. Specifications Woofer NO. Description Unit Specifications Out Power at THD 10% 5±0.4 130 ± 50 Sensitivity Freq. Response (Ref:-3dB) Hz 55Hz ~ 380Hz dB ≧ 60 S/N ratio mV ≦... -
Page 10: Chapter 3. Block Diagram
All manuals and user guides at all-guides.com Service Guide SW-S2.1 350 Chapter 3. Block Diagram R. Satellite Power Volume Amplifier AUDIO IN L. Satellite Control Woofer Woof. Volume FILTER Transformer & AC IN Rectifier Version : 1.0 Page 10 of 15... -
Page 11: Chapter 4. Exploded View
All manuals and user guides at all-guides.com Service Guide SW-S2.1 350 Chapter 4. Exploded View Woofer Version : 1.0 Page 11 of 15... - Page 12 All manuals and user guides at all-guides.com Service Guide SW-S2.1 350 Satellite Version : 1.0 Page 12 of 15...
-
Page 13: Chapter 5. Part List
All manuals and user guides at all-guides.com Service Guide SW-S2.1 350 Chapter 5. Part List DESCRIPTION UNIT Part No. 1 SW-S2.1 350/Body/Satellite 16-101-01 2 Loud Speaker 5090 8 ohm 3W 16-100-01 3 EVA Pad, SP-S110 12-100-02 4 SW-S2.1 350/Body/Woofer-120V-US 16-101-02 5 SW-S2.1 350/Body/Woofer-220V-AR 16-101-03 6 SW-S2.1 350/Body/Woofer-230V-EU... -
Page 14: Chapter 6. Schematic Diagram
All manuals and user guides at all-guides.com Service Guide SW-S2.1 350 Chapter 6. Schematic Diagram Version : 1.0 Page 14 of 15... -
Page 15: Chapter 7. Important Notes
All manuals and user guides at all-guides.com Service Guide SW-S2.1 350 Chapter 7. Important Notes 7.1 Packing Requirement for Sending the PCB Assembly by Post PCB assembly is a kind of sophisticated electronic circuit board. Well packing will be required when sending them by post. * Some sophisticated IC components are mounted on the PCB assembly, hence it is necessary to pack each PCB assembly with a separate static protecting bag, in order to avoid static electricity.
