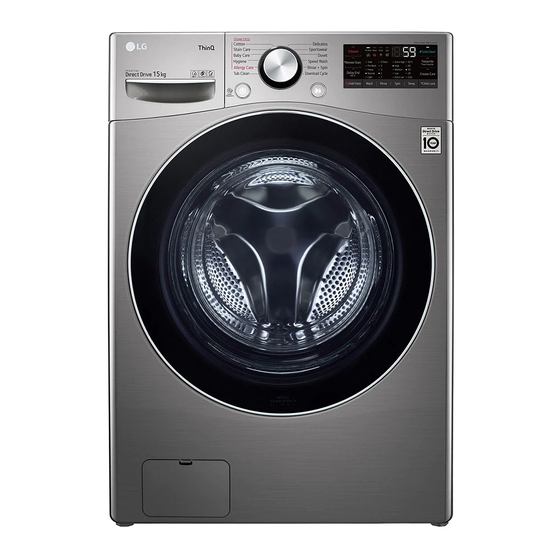

LG WF1510 T Series Owner's Manual

Hide thumbs Also See for WF1510 T Series:
Table of Contents

Advertisement

Quick Links

Download this manual
OWNER'S MANUAL
WASHING MACHINE
Before beginning installation, read these instructions
carefully. This will simplify installation and ensure that the
product is installed correctly and safely. Leave these
instructions near the product after installation for future
reference.
ENGLISH
WF1510**T
MFL71764397
Rev.02_082423
Copyright © 2021-2023 LG Electronics Inc. All Rights Reserved.
www.lg.com

Advertisement

Table of Contents
loading

Related Manuals for LG WF1510 T Series

Summary of Contents for LG WF1510 T Series

  • Page 1 This will simplify installation and ensure that the product is installed correctly and safely. Leave these instructions near the product after installation for future reference. ENGLISH WF1510**T www.lg.com MFL71764397 Rev.02_082423 Copyright © 2021-2023 LG Electronics Inc. All Rights Reserved.

  • Page 2: Table Of Contents

    Control Panel ....................19 Preparing the Wash Load ................22 Adding Detergents and Softeners ..............23 Programme Table ....................25 Extra Options and Functions ................29 SMART FUNCTIONS LG ThinQ Application ..................32 Smart Diagnosis ....................34 MAINTENANCE Cleaning After Every Wash................36 Cleaning the Appliance Periodically ..............36 TROUBLESHOOTING...

  • Page 3: Safety Instructions

    SAFETY INSTRUCTIONS SAFETY INSTRUCTIONS READ ALL INSTRUCTIONS BEFORE USE The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. The guidelines are separated into ‘WARNING’ and ‘CAUTION’ as described below. Safety Messages This symbol is displayed to indicate matters and operations that can cause risk.
  • Page 4 SAFETY INSTRUCTIONS • Children should be supervised to ensure that they do not play with the appliance. • If the power cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
  • Page 5 SAFETY INSTRUCTIONS • This appliance is equipped with a power cord having an equipment- earthing / grounding conductor (earthing pin) and a grounding power plug. The power plug must be plugged into an appropriate outlet socket that is installed and earthed / grounded in accordance with all local codes and ordinances.
  • Page 6 • Do not touch the door during a high temperature programme. • In case of a water leak from the appliance or flood, disconnect the power plug and contact the LG Electronics customer information centre. • Turn off water taps to relieve pressure on hoses and valves and to minimize leakage if a break or rupture should occur.
  • Page 7 • Only qualified service personnel from LG Electronics service centre should disassemble, repair, or modify the appliance. Contact an LG Electronics customer information centre if you move and install the appliance in a different location.

  • Page 8: Installation Parts And Specifications

    INSTALLATION INSTALLATION Parts and Specifications NOTE • Appearance and specifications may change without notice to improve the quality of the appliance. Front View Rear View Power Plug Control Panel Transit Bolts Detergent Dispenser Drawer Drain Hose Drum Door Cover Cap Drain Pump Filter Drain Plug Levelling Feet...
  • Page 9 INSTALLATION Specifications Model WF1510**T Power Supply 220 V~, 50/60 Hz Product Weight 77 kg Maximum Power 2000 W Standard quantity of used water 90 L Annual Water Consumption 18480 liters/year Annual Energy Consumption 241 kWh/year IP No. (Degree of Protection) IPX4 Dimension(mm) 1270...
  • Page 10 INSTALLATION Accessories Cold Supply Hose Anti–slip Sheets*1 Spanner Elbow Bracket for Securing Drain Hose Caps for Covering Transit Bolt Holes Tie Strap*1 *1 The included accessories vary depending on the model you purchased.

  • Page 11: Installation Place Requirements

    INSTALLATION Installation Place Index Clearance (mm) Requirements Before installing the appliance, check the following information to make sure that the appliance should be installed in a correct place. WARNING Installation Location • This appliance must only be used for domestic household purposes and should not be used in •...

  • Page 12: Unpacking The Appliance

    INSTALLATION grounded/earthed in accordance with all local NOTE codes and ordinances. • You can purchase rubber cups (part No. 4620ER4002B) from the LG service centre. Unpacking the Appliance Ventilation Lifting the Appliance Off the Foam Base • Make sure that air circulation around the...

  • Page 13: Levelling The Appliance

    INSTALLATION Levelling the Appliance Starting with the bottom two transit bolts use the spanner (included) to fully loosen all Checking the Level transit bolts by turning them counterclockwise. When pushing down the edges of the top plate diagonally, the appliance should not move up and down at all (check both directions).
  • Page 14 • Do not install the washing machine on a plinth, Failure to do so may cause vibration or noise. stand or elevated surface unless it is manufactured by LG Electronics for use with this model. Using Anti-Slip Sheets This feature may vary depending on the model Check if the appliance is perfectly level using a purchased.

  • Page 15: Connecting The Water Supply Hose

    Put the appliance on the anti-slip sheets. • Do not attach the adhesive side of anti- slip sheets to the feet of the appliance. NOTE • Additional anti-slip sheets are available at LG Electronics service centre. Connecting Screw-Type Hose to Tap Without Thread Connecting the Water...
  • Page 16 INSTALLATION Remove the guide plate if the tap is too large Remove the guide plate if the tap is too large to fit the adapter. to fit the adapter. Push the adapter onto the end of the tap so Push the adapter onto the end of the tap so that the rubber seal is connected to be that the rubber seal is connected to be watertight.

  • Page 17: Installing The Drain Hose

    INSTALLATION Connecting the Hose to the • Securing the drain hose correctly will protect the floor from damage due to water leakage. Appliance Screw the supply hose to the water inlet valve on the back of the appliance. • Do not connect the hose to the hot water supply for models with one water inlet.

  • Page 18: Operation Operation Overview

    OPERATION OPERATION Operation Overview Add cleaning products or detergent and softener. Using the Appliance • Add the proper amount of detergent to the detergent dispenser. If desired, add bleach Before the first wash, select the Cotton wash or fabric softener to the appropriate areas of programme and add a half amount of the the dispenser.

  • Page 19: Control Panel

    • This allows you to select an additional programmes and will light when selected. Remote Start With the LG ThinQ app, you can use a smartphone to control your appliance remotely. • In order to use this function, refer to SMART FUNCTIONS.
  • Page 20 OPERATION Description Customizing Washing Programme Buttons Use these buttons to adjust the water temperature, spin speed and soil level settings for the selected programme. • The current settings are shown in the display. • Press the button for that option to select other settings. Display •...
  • Page 21 OPERATION Description lights up when the remote control feature is activated.

  • Page 22: Preparing The Wash Load

    OPERATION Preparing the Wash Load NOTE Sort the wash load for best washing results, and • The dashes under the symbol give you then prepare the clothes according to the symbols information about the type of fabric and the on their care labels. maximum allowance of mechanical stress.

  • Page 23: Adding Detergents And Softeners

    OPERATION Adding Detergents and NOTE Softeners • Do not let the detergent harden. Doing so may lead to blockages, poor rinse performance or Detergent Dosage odour. • Full load: According to manufacturer’s • Detergent should be used according to the recommendation.
  • Page 24 OPERATION • Be careful not to get a hand caught in the Open the door and put detergent tablets into drawer while closing. the drum before loading the clothes. • It is normal for a small amount of water to remain in the dispenser compartments at the end of the cycle.

  • Page 25: Programme Table

    OPERATION Programme Table Washing Programme Cotton 40 ℃ (Cold to 60 ℃) Max. Load: Rating Description Washes normally soiled clothes by combining various drum motions. Stain Care 60 ℃ (40 °C to 60 ℃) Max. Load: 5 kg Description Washes heavily soiled clothes by combining special drum motions. Baby Care Max.
  • Page 26 OPERATION Speed Wash 40 ℃ (Cold to 40 ℃) Max. Load: 5 kg Description Washes small loads of lightly soiled clothes in a short time. Rinse+Spin Max. Load: Rating Description Rinses and spins clothes. Use fabric softener if needed. Download Cycle Description This programme allows you to download a new and special washing programme to your appliance with a smartphone.
  • Page 27 OPERATION Programme Steam TurboWash Crease Care Delicates Sportswear Duvet Speed Wash Rinse+Spin Selectable Maximum Spin Speed Programme Maximum Spin Speed Cotton Extra High Stain Care Extra High Baby Care Extra High Hygiene Extra High Allergy Care Extra High Delicates Sportswear Extra Low Duvet Medium...
  • Page 28 OPERATION Standard 60 °C Cotton Standard 40 °C Cotton programme programme (Half Load) Full Load Half Load Number of washing cycles Water consumption during washing cycle (liter) Duration of each washing cycle (min) Number of rinse cycles Water consumption of each rinse cycle 25/25 25/25 25/25...

  • Page 29: Extra Options And Functions

    OPERATION Extra Options and Follow the next steps to customize a washing programme: Functions You can use the extra options and functions to Prepare the clothes and load the drum. customize the programmes. Customizing a Washing Press the Power button. Programme Each programme has default settings that are Add detergent.
  • Page 30 OPERATION Using Special Options You can customize washing programmes by adjusting options, if needed. You can customize the programmes by using the following special options: NOTE Steam • Washing method, number of rinses, spin Adding this option helps provide better cleaning intensity and water temperature etc.
  • Page 31 OPERATION • Avoid using liquid detergent for this function. Press the Start/Pause button. Press the Add Item button as necessary. Settings Child Lock Open the door after it unlocks itself and add or Use this option to disable the controls. This function can prevent children from changing cycles remove necessary clothing items.

  • Page 32: Smart Functions

    SMART FUNCTIONS SMART FUNCTIONS LG ThinQ Application notifications on a smartphone. The notifications are triggered even if the LG ThinQ application is off. The LG ThinQ application allows you to communicate with the appliance using a smartphone. NOTE LG ThinQ Application Features •...
  • Page 33 SMART FUNCTIONS • Smartphone user interface (UI) may vary Run the LG ThinQ application and sign in with depending on the mobile operating system (OS) your existing account or create an LG account and the manufacturer. to sign in. • If the security protocol of the router is set to WEP, you may fail to set up the network.

  • Page 34: Smart Diagnosis

    LG ThinQ application. • Launch the LG ThinQ application and select the Disable this function manually Smart Diagnosis feature in the menu. Follow When this function is activated, press and hold the the instructions provided in the LG ThinQ Remote Start button for 3 seconds.
  • Page 35 SMART FUNCTIONS • Keep the smartphone in place until the data transfer has finished. Time remaining for data transfer is displayed. After the data transfer is complete, the diagnosis will be displayed in the application. NOTE • For best results, do not move the smartphone while the tones are being transmitted.

  • Page 36: Maintenance

    MAINTENANCE MAINTENANCE WARNING • Unplug the appliance before cleaning to avoid the risk of electric shock. Failure to follow this warning may result in serious injury, fire, electric shock, or death. • Never use harsh chemicals, abrasive cleaners, or solvents to clean the appliance. They may damage the finish.
  • Page 37 MAINTENANCE Cleaning the Water Inlet Filter Run this function once a month (or more often if needed) to reduce build-up of detergent and softener and other residue. The water inlet filter collects lime or any sediment that may be in water that is supplied to the •...
  • Page 38 MAINTENANCE Allow the water to cool before cleaning the drain Unscrew the drain pump filter slowly to drain pump filter. Open the door in an emergency or the remaining water and then proceed to perform an emergency water evacuation. remove any debris or objects from the filter. Unplug the appliance.
  • Page 39 MAINTENANCE check for build-up of cleaning products once or twice a month. Remove the detergent dispenser drawer by pulling the drawer straight out until the drawer stops. • Then gently pull the drawer outward while pressing hard the disengage button. Remove the build-up of detergent and softener.

  • Page 40: Troubleshooting

    Operation of your appliance can lead to errors and malfunctions. The following tables contain possible causes and notes for resolving an error message or malfunction. It is recommended to read the tables carefully below in order to save your time and money that may cost for calling to LG Electronics service centre.
  • Page 41 • Check and clean the drain filter. Door sensor malfunctions. dE dE1 dEz dE4 DOOR ERROR • Please call LG service centre. You can find your local LG service centre phone number in the warranty card. This is a control error. CONTROL ERROR •...
  • Page 42 TROUBLESHOOTING Symptoms Possible Cause & Solution Thumping sound The clothes may be out of balance. • Pause the programme and redistribute the clothes after the door unlocks. Vibrating noise Package materials are not removed. • Remove package materials. The clothes may be unevenly distributed in the drum. •...
  • Page 43 TROUBLESHOOTING Symptoms Possible Cause & Solution Appliance does not Circuit breaker/fuse is tripped/blown. operate. • Check house circuit breakers/fuses. Replace fuses or reset breaker. The appliance should be on a dedicated branch circuit. The appliance will resume the programme where it stopped once power is restored. Control needs to be reset.
  • Page 44 TROUBLESHOOTING Symptoms Possible Cause & Solution Appliance does not Drain located higher than 1 m above the floor. drain water. • Make sure that the drain hose is no higher than 1 m above the bottom of the appliance. Detergent is not Too much detergent is used.
  • Page 45 • Find the Wi-Fi network connected to your smartphone and remove it, then not connected to the register your appliance on LG ThinQ. Wi-Fi network. Mobile data for your smartphone is turned on. • Turn off the Mobile data of your smartphone and register the appliance...
  • Page 46 TROUBLESHOOTING Symptoms Possible Cause & Solution Your home appliance The wireless network name (SSID) is set incorrectly. and smartphone are • The wireless network name (SSID) should be a combination of English not connected to the letters and numbers. (Do not use special characters). Wi-Fi network.
  • Page 47 Memo...
