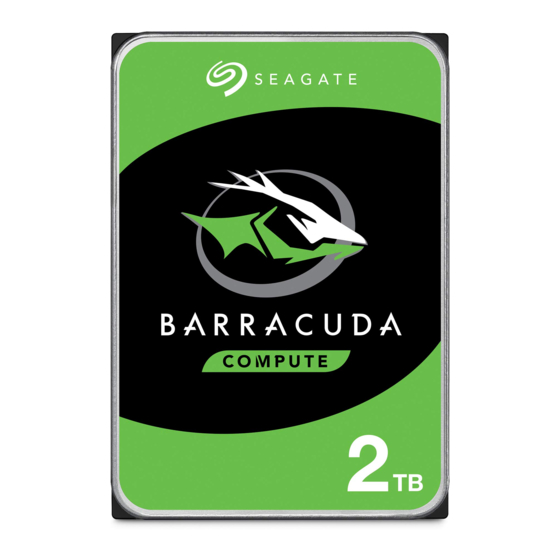

- Page 1 User Manual of Product 1: Seagate BarraCuda 2TB Internal Hard Drive HDD – 3.5 Inch SATA 6Gb/s 7200 RPM 256MB Cache 3.5-Inch – Frustration Free Packaging (ST2000DMZ08)
- Page 2 SATA 2.5" Product Manual Standard models ST5000LM000-2U8170 ST4000LM024-2U817V 100804767, Rev. J September 2020...
- Page 3 Seagate, Seagate Technology, BarraCuda and the Spiral logo are registered trademarks of Seagate Technology LLC in the United States and/or other countries. MTC Technology and SeaTools are either trademarks or registered trademarks of Seagate Technology LLC or one of its affiliated companies in the United States and/or other countries. All other trademarks or registered trademarks are the property of their respective owners.
-
Page 4: Table Of Contents
Seagate® Technology Support Services........ - Page 5 4.3.3 S.M.A.R.T. commands......................27 Seagate BarraCuda Product Manual, Rev. J...
- Page 6 Mounting Dimensions ............... . . 17 Seagate BarraCuda Product Manual, Rev. J...
-
Page 7: Seagate® Technology Support Services
For information regarding online support and services, visit: http://www.seagate.com/contacts/ For information regarding Warranty Support, visit: http://www.seagate.com/support/warranty-and-replacements/ For information regarding data recovery services, visit: http://www.seagate.com/services-software/recover/resources/ For Seagate OEM and Distribution partner and Seagate reseller portal, visit: http://www.seagate.com/partners Seagate BarraCuda Product Manual, Rev. J... -
Page 8: Introduction
Introduction This manual describes the functional, mechanical and interface specifications for the following: Seagate® BarraCuda® model drives: Standard models ST5000LM000- ST4000LM024- 2U8170 2U817V These drives provide the following key features: 128MB buffer. • 5400-RPM spindle speed. • 650 Gs non-operating shock and 300 Gs of operating shock. -
Page 9: Specifications
Startup current, Max (+5V) 1.2A Voltage tolerance (including noise) 5V ± 5% Operating temperature 0° to 60°C Non-operating temperature (Ambient) –40° to 70°C 20°C per hour max (operating) Temperature gradient (max) 35°C per hour max (non-operating) Seagate BarraCuda Product Manual, Rev. J... -
Page 10: Formatted Capacity
5000 GB 9,767,541,168 512 (logical) / 4096 (physical) 4TB models 4000 GB 7,814,037,168 One GB equals one billion bytes when referring to hard drive capacity. Accessible capacity may vary depending on operating environment and formatting. Seagate BarraCuda Product Manual, Rev. J... -
Page 11: Lba Mode
15.0 +0.5/- 0.25 mm (0.59 +0.008/-0.010 in) Width 69.85 +/- 0.25 mm (2.750 +/- 0.010 in) All models Length 100.35 +0.20 / -0.25 mm (3.951 +0.008 / -0.010 in) Weight (max) 190 g (0.42lb) Cache buffer 128 MB (129,536 KB) Seagate BarraCuda Product Manual, Rev. J... -
Page 12: Seek Time
DC input voltages and nominal operating temperature. Start/stop times Table 3: Start/stop times Capacity 5TB and 4TB models Typical seek times (ms) Typical Power-on to ready (sec) Standby to ready (sec) Seagate BarraCuda Product Manual, Rev. J... -
Page 13: Power Specifications
Equivalent resistance is calculated by dividing the nominal voltage by the typical RMS read/write current. Note 2.8.3 Supply Voltage Allowable voltage 5V ± 5% Allowable noise/ripple 100 mV p-p max, 0-30 MHz Allowable supply rise time 1-100 ms Allowable supply fall time <5 s Seagate BarraCuda Product Manual, Rev. J... -
Page 14: Power-Management Modes
The drive leaves Sleep mode after it receives a Hard Reset or Soft Reset from the host. After receiving a reset, the drive exits Sleep mode and enters Standby mode. Seagate BarraCuda Product Manual, Rev. J... -
Page 15: Environmental Specifications
Environmental Specifications This section provides the temperature, humidity, shock, and vibration specifications for Seagate BarraCuda drives. Ambient temperature is defined as the temperature of the environment immediately surrounding the drive. Above 1000 feet (305 meters), the maximum temperature is derated linearly by 1°C every 1000 feet. -
Page 16: Acoustics
Test for prominent discrete tones (PDTs) Seagate follows the ECMA-74 standards for measurement and identification of PDTs. An exception to this process is the use of the absolute threshold of hearing. Seagate uses the lower limit for the threshold curve* to discern tone audibility and to compensate for the inaudible components of sound prior to computation of tone ratios according to Annex D of the ECMA-74 standards. -
Page 17: Reliability
Users should use caution exposing any electronic components to uncontrolled chemical pollutants and corrosive chemicals as electronic drive component reliability can be affected by the installation environment. The silver, copper, nickel and gold films used in Seagate products are especially sensitive to the presence of sulfide, chloride, and nitrate contaminants. Sulfur is found to be the most damaging. In addition, electronic components should never be exposed to condensing water on the surface of the printed circuit board assembly (PCBA) or exposed to an ambient relative humidity greater than 95%. -
Page 18: Unpacking, Configuring And Mounting The Drive
For installations which require cables, users can connect the drive as shown in1. Figure 1 Attaching SATA Cabling Signal connector Power connector Signal cable Power cable Each cable is keyed to ensure correct orientation. BarraCuda drives support latching SATA connectors. Seagate BarraCuda Product Manual, Rev. J... -
Page 19: Drive Mounting
• Top cover stiffness/deflection Operating: no performance degradation, emitted noise, 10 mm probe: 2.0kgf (typical) mechanical damage, or hard errors Non-operating: no hard errors 10 mm probe: maximum 2.0kgf (instantaneous) Figure 2 Mounting Dimensions Seagate BarraCuda Product Manual, Rev. J... -
Page 20: Serial Ata (Sata) Interface
5V power, pre-charge, 2nd mate Power 5V power 5V power Ground 2nd mate Ground or LED signal If grounded, drive does not use deferred spin Ground 1st mate 12V power, pre-charge, 2nd mate 12V power 12V power Seagate BarraCuda Product Manual, Rev. J... -
Page 21: Supported Ata Commands
Read Long with Retries Read Long without Retries Read Multiple Read Multiple Extended Read Native Max Address Read Native Max Address Extended Read Sectors Read Sectors Extended Read Sectors without Retries Read Verify Sectors Seagate BarraCuda Product Manual, Rev. J... - Page 22 B0h/D6h Trusted Receive (SED only) Trusted Receive DMA (SED only) Trusted Send (SED only) Trusted Send DMA (SED only) Write Buffer Write DMA Write DMA Extended Write DMA without Retries Write Long with Retries Seagate BarraCuda Product Manual, Rev. J...
- Page 23 Write Sectors Extended ATA-standard power-management commands Check Power Mode Idle Idle Immediate Sleep Standby Standby Immediate ATA-standard security commands Security Set Password Security Unlock Security Erase Prepare Security Erase Unit Security Freeze Lock Security Disable Password Seagate BarraCuda Product Manual, Rev. J...
-
Page 24: Identify Device Command
Number of current logical heads xxxx Number of current logical sectors per logical track xxxx 57–58 Current capacity in sectors xxxx Number of sectors transferred during a Read Multiple or Write Multiple command xxxx Seagate BarraCuda Product Manual, Rev. J... - Page 25 Enhanced security erase time xxxx Current APM values 8080 Master password revision code FFFE Hardware reset value (see description following this table) xxxx Auto acoustic management setting xxxx Stream Min. Request Size 0000 Seagate BarraCuda Product Manual, Rev. J...
- Page 26 160–221 ATA-reserved 0000 Transport major version number 101F 223–254 ATA-reserved 0000 Integrity word xxA5 See the bit descriptions below for words 63, 88 and 93 of the Identify Drive data. (on next page) Note Seagate BarraCuda Product Manual, Rev. J...
- Page 27 Ultra DMA mode 4 is currently active. Ultra DMA mode 5 is currently active. Ultra DMA mode 6 is currently active. Word 93 1 = 80-conductor cable detected, CBLID above VIH 0 = 40-conductor cable detected, CBLID below VIL Seagate BarraCuda Product Manual, Rev. J...
-
Page 28: Set Features Command
Disable the Free Fall Protection feature (41 above enables the Free Fall Protection feature) Report full capacity available At power-on, or after a hardware or software reset, the default values of the features are as indicated above Note Seagate BarraCuda Product Manual, Rev. J... -
Page 29: Commands
) that eliminates unnecessary drive returns. The diagnostic software ships with all new drives and is also available at: http://www.seagate.com/support/downloads/seatools/. This drive is shipped with S.M.A.R.T. features disabled. Users must have a recent BIOS or software package that supports S.M.A.R.T. to enable this feature. - Page 30 Seagate Technology LLC AMERICAS Seagate Technology LLC 47488 Kato Road, Fremont, California 94538, United States, 510-661-1000 Publication Number: 100804767, Rev. J September 2020...
