KTM 690 SMC R EU Setup Instructions

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SETUP INSTRUCTIONS
2012
690 SMC R EU
690 SMC R AUS/UK
Art. no. 3211893en

Advertisement

Table of Contents
loading

Related Manuals for KTM 690 SMC R EU

Summary of Contents for KTM 690 SMC R EU

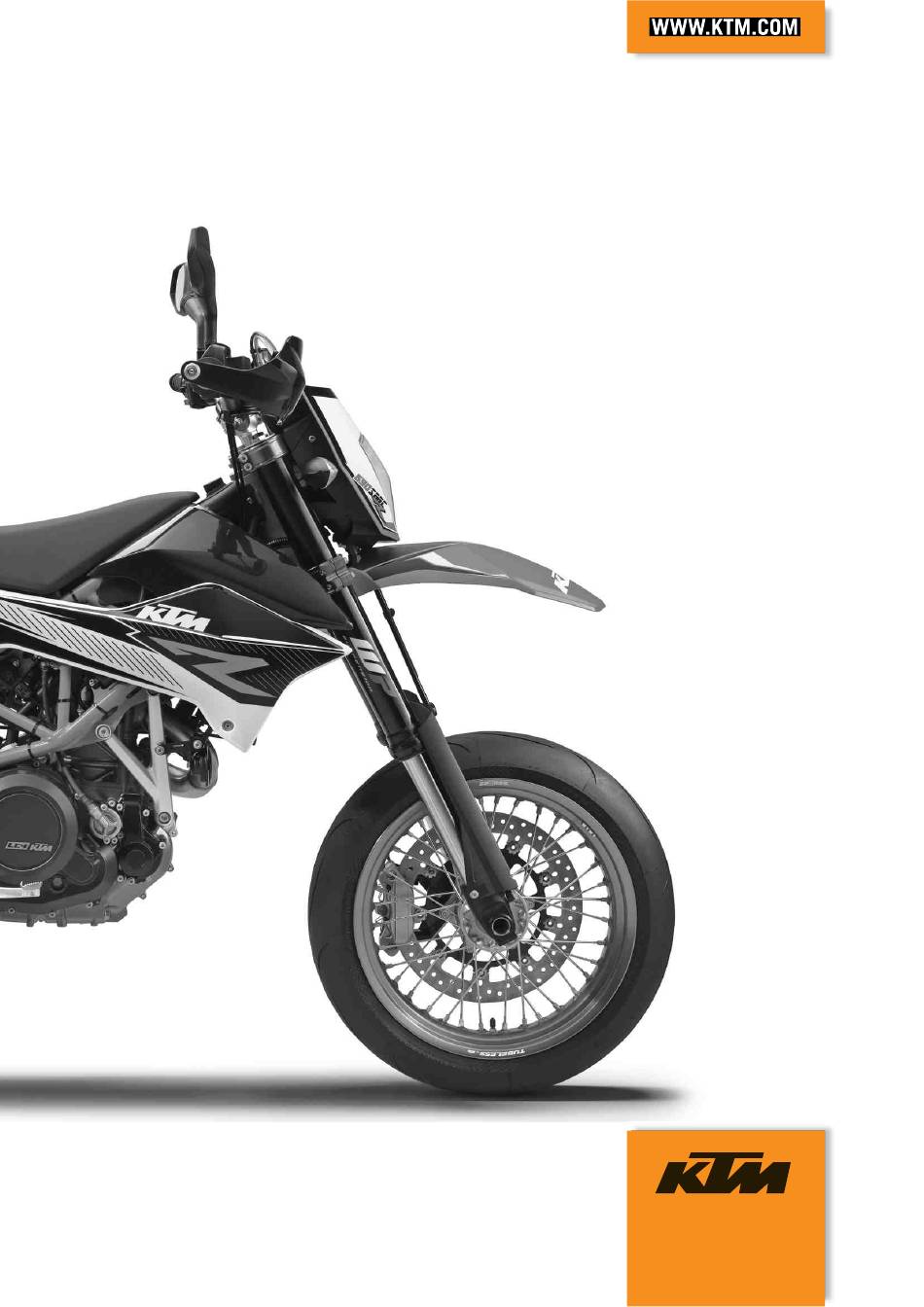

  • Page 1 SETUP INSTRUCTIONS 2012 690 SMC R EU 690 SMC R AUS/UK Art. no. 3211893en...
  • Page 3 KTM accepts no liability for delivery options, deviations from illustrations and descriptions, as well as misprints and other errors.

  • Page 4: Means Of Representation

    MEANS OF REPRESENTATION Symbols used The meaning of specific symbols is described below. Indicates an expected reaction (e.g. of a work step or a function). Indicates an unexpected reaction (e.g. of a work step or a function). Indicates a page reference (more information is provided on the specified page). Indicates information with more details or tips.
  • Page 5 SETUP Unpacking and setting up the vehicle – Remove the box and the plastic packaging. Info To avoid damaging the motorcycle during the setup, leave the protective film on the vehicle until you have finished. – Check the vehicle for transport damage. –...
  • Page 6 SETUP – Mount and tighten the rear mirror adapter and rear mirror on both sides. – Position all controls in their exact positions on the handlebar. Tighten all screws. – Mount and tighten screw M8 of the right hand guard. 600646-01 –...
  • Page 7 – Fit the heel protector. ( p. 10) – Refuel. ( p. 10) – Print out the current PDI form found on KTM DEALER.NET and perform the delivery inspection. – Set kilometers or miles. ( p. 11)
  • Page 8 WORK Removing the seat – Pull on strap and raise the rear of the seat at the same time. – Pull back the seat and lift it off. 601869-10 Mounting the seat 601887-10 – Hook slot of the seat onto screw , press the rear downward and at the same time push it forward.

  • Page 9: Recharging The Battery

    – Do not discard batteries with the household trash. Dispose of a defective battery in an environmentally compatible manner. Give the battery to your KTM dealer or to a recycling center that accepts used batteries. Warning Environmental hazard Hazardous substances cause environmental damage.

  • Page 10: Installing The Battery

    WORK Installing the battery Main work – Slide the battery into the battery rack. Info The battery terminals must be at the rear. – Attach the positive cable and mount positive terminal cover – Position retaining bracket – Mount and tighten screws 601907-11 Guideline Remaining screws, chassis...
  • Page 11 WORK Removing rear fairing Preparatory work – Remove the seat. ( p. 6) Main work – Remove screws 201924-10 – Remove screws – Open the filler cap. ( p. 8) – Take off the rear fairing. – Close the filler cap. ( p.

  • Page 12: Fitting Heel Protector

    WORK 3.11 Fitting heel protector Info The operations are the same for the left and right sides. Warning Forfeiture of homologation and insurance cover The vehicle is homologated as 2-seater. If the heel protector is fitted instead of the footrest bracket, the vehicle no longer conforms to the homologation and must not be operated in this form without alterations to the registration papers.

  • Page 13: Setting The Clock

    WORK 3.13 Setting the clock Condition The motorcycle is stationary. – Switch on the ignition by turning the ignition key to position ON – Press the MODE button repeatedly until the ODO mode is active. – Keep the MODE button and the SET button pressed simultaneously. The time display begins to flash.

  • Page 14: Technical Data - Tightening Torques For Chassis

    TECHNICAL DATA - TIGHTENING TORQUES FOR CHASSIS – Screw, license plate holder, bottom EJOT 3 Nm (2.2 lbf ft) – Screw, side stand switch EJOT 2 Nm (1.5 lbf ft) – Screw, SLS valve EJOT 2 Nm (1.5 lbf ft) –...
  • Page 15 TECHNICAL DATA - TIGHTENING TORQUES FOR CHASSIS – Screw, top triple clamp 17 Nm (12.5 lbf ft) ® Engine carrying screw 45 Nm (33.2 lbf ft) Loctite 243™ – Remaining nuts, chassis 45 Nm (33.2 lbf ft) – Remaining screws, chassis 45 Nm (33.2 lbf ft) ®...
  • Page 16 SUBSTANCES Super unleaded (ROZ 95/RON 95/PON 91) According to – DIN EN 228 (ROZ 95/RON 95/PON 91) Guideline – Only use unleaded super fuel that matches or is equivalent to the specified fuel grade. – Fuel with an ethanol content of up to 10 % (E10 fuel) is safe to use. Info Do not use fuel containing methanol (e.
  • Page 17 *3211893en* 3211893en 08/2012 KTM-Sportmotorcycle AG 5230 Mattighofen/Austria Photo: Mitterbauer/KTM http://www.ktm.com...
