02 PRODUCT OVERVIEW

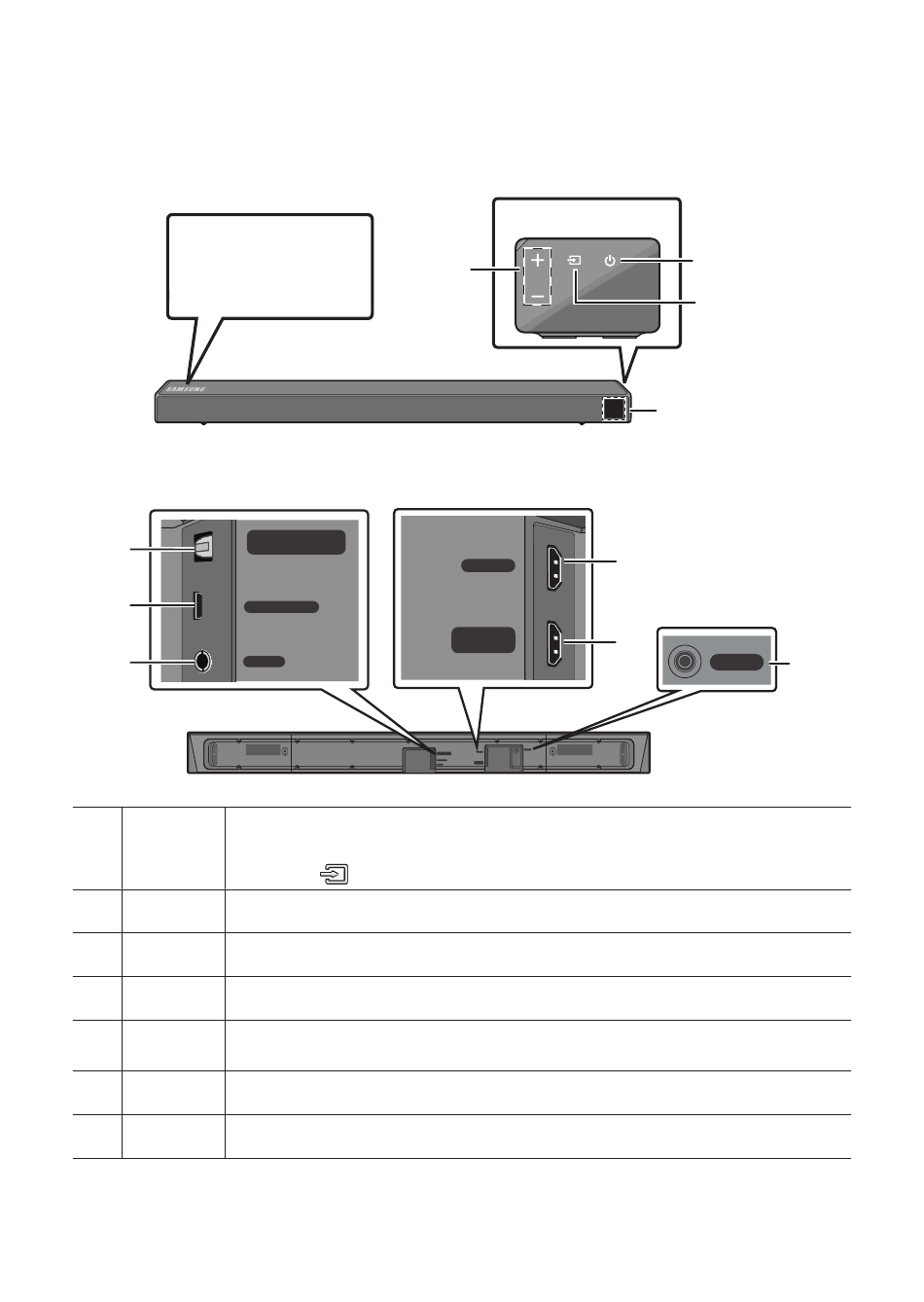

Front Panel / Right Side Panel of the Soundbar

Position the product so
that the SAMSUNG logo
is located on the top.

Bottom Panel of the Soundbar




Selects the source input mode. (D.IN / AUX / HDMI / BT / USB)
• To turn on "BT PAIRING" mode, change the source to "BT" mode, and then press and

Source
 D.IN Connect to the digital (optical) output of an external device.

USB Connect a USB device here to play music files on the USB device through the Soundbar.

AUX Connect to the Analogue output of an external device.
Inputs digital video and audio signals simultaneously using an HDMI cable.
 HDMI IN
Connect to the HDMI output of an external device.

HDMI OUT Connect to the HDMI (ARC) jack on a TV.

DC 24V Connect the AC/DC power adapter. (Power Supply In)
Volume
DIGITAL AUDIO IN
(OPTICAL)
HDMI IN
USB (5V 0.5A)
HDMI OUT
(TV-ARC)
AUX IN
(
hold the Source) button for more than 5 seconds.
Right Side of the Soundbar
HDMI IN
HDMI OUT
(TV-ARC)
DC 24V
HDMI IN
DIGITAL AUDIO IN
(OPTICAL)
USB (5V 0.5A)
HDMI OUT
(TV-ARC)
AUX IN
ENG - 3
Power

Display


DC 24V
