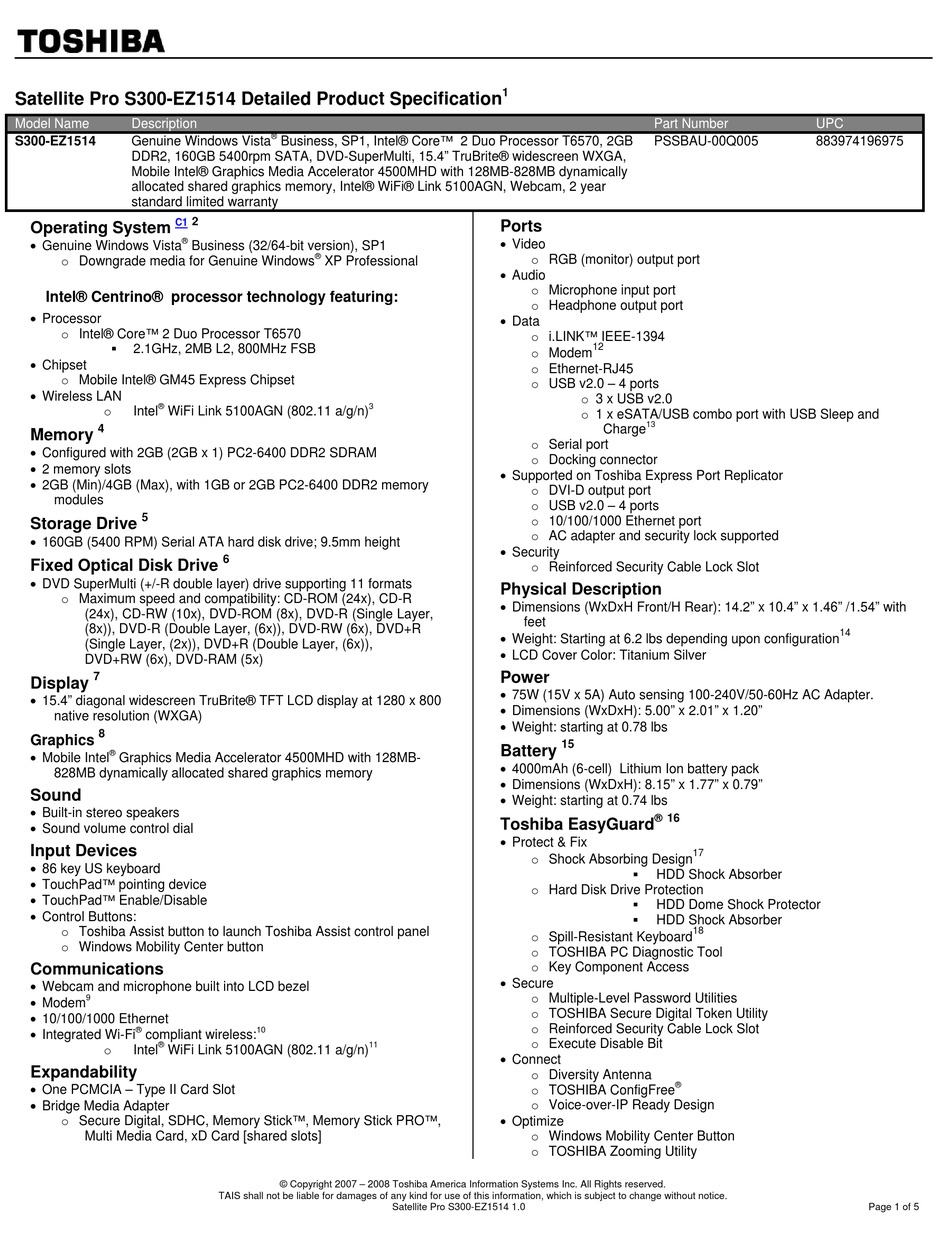

Toshiba Satellite Pro S300-EZ1514 Specifications

Satellite Pro S300-EZ1514 Detailed Product Specification
Model Name Description
S300-EZ1514 Genuine Windows Vista
DDR2, 160GB 5400rpm SATA, DVD-SuperMulti, 15.4" TruBrite® widescreen WXGA,
Mobile Intel® Graphics Media Accelerator 4500MHD with 128MB-828MB dynamically
allocated shared graphics memory, Intel® WiFi® Link 5100AGN, Webcam, 2 year
standard limited warranty
2
C1
Operating System
 Genuine Windows Vista
®
Business (32/64-bit version), SP1
o Downgrade media for Genuine Windows
Intel® Centrino® processor technology featuring:
 Processor
o Intel® Core™ 2 Duo Processor T6570

2.1GHz, 2MB L2, 800MHz FSB
 Chipset
o Mobile Intel® GM45 Express Chipset
 Wireless LAN
®
Intel WiFi Link 5100AGN (802.11 a/g/n)
o
4
Memory
 Configured with 2GB (2GB x 1) PC2-6400 DDR2 SDRAM
 2 memory slots
 2GB (Min)/4GB (Max), with 1GB or 2GB PC2-6400 DDR2 memory
modules
5
Storage Drive
 160GB (5400 RPM) Serial ATA hard disk drive; 9.5mm height
Fixed Optical Disk Drive
 DVD SuperMulti (+/-R double layer) drive supporting 11 formats
o Maximum speed and compatibility: CD-ROM (24x), CD-R
(24x), CD-RW (10x), DVD-ROM (8x), DVD-R (Single Layer,
(8x)), DVD-R (Double Layer, (6x)), DVD-RW (6x), DVD+R
(Single Layer, (2x)), DVD+R (Double Layer, (6x)),
DVD+RW (6x), DVD-RAM (5x)
7
Display
 15.4" diagonal widescreen TruBrite® TFT LCD display at 1280 x 800
native resolution (WXGA)
8
Graphics
 Mobile Intel
®
Graphics Media Accelerator 4500MHD with 128MB-
828MB dynamically allocated shared graphics memory
Sound
 Built-in stereo speakers
 Sound volume control dial
Input Devices
 86 key US keyboard
 TouchPad™ pointing device
 TouchPad™ Enable/Disable
 Control Buttons:
o Toshiba Assist button to launch Toshiba Assist control panel
o Windows Mobility Center button
Communications
 Webcam and microphone built into LCD bezel
 Modem
9
 10/100/1000 Ethernet
 Integrated Wi-Fi ®
compliant wireless:
®
Intel WiFi Link 5100AGN (802.11 a/g/n)
o
Expandability
 One PCMCIA – Type II Card Slot
 Bridge Media Adapter
o Secure Digital, SDHC, Memory Stick™, Memory Stick PRO™,
Multi Media Card, xD Card [shared slots]
®
Business, SP1, Intel® Core™ 2 Duo Processor T6570, 2GB
®
XP Professional
3
6
10
11
© Copyright 2007 – 2008 Toshiba America Information Systems Inc. All Rights reserved.
TAIS shall not be liable for damages of any kind for use of this information, which is subject to change without notice.
Satellite Pro S300-EZ1514 1.0
1
Part Number
PSSBAU-00Q005
Ports
 Video
o RGB (monitor) output port
 Audio
o Microphone input port
o Headphone output port
 Data
o i.LINK™ IEEE-1394
12
o Modem
o Ethernet-RJ45
o USB v2.0 – 4 ports
o 3 x USB v2.0
o 1 x eSATA/USB combo port with USB Sleep and
13
Charge
o Serial port
o Docking connector
 Supported on Toshiba Express Port Replicator
o DVI-D output port
o USB v2.0 – 4 ports
o 10/100/1000 Ethernet port
o AC adapter and security lock supported
 Security
o Reinforced Security Cable Lock Slot
Physical Description
 Dimensions (WxDxH Front/H Rear): 14.2" x 10.4" x 1.46" /1.54" with
feet
 Weight: Starting at 6.2 lbs depending upon configuration
 LCD Cover Color: Titanium Silver
Power
 75W (15V x 5A) Auto sensing 100-240V/50-60Hz AC Adapter.
 Dimensions (WxDxH): 5.00" x 2.01" x 1.20"
 Weight: starting at 0.78 lbs
15
Battery
 4000mAh (6-cell) Lithium Ion battery pack
 Dimensions (WxDxH): 8.15" x 1.77" x 0.79"
 Weight: starting at 0.74 lbs
16
®
Toshiba EasyGuard
 Protect & Fix
o Shock Absorbing Design

HDD Shock Absorber
o Hard Disk Drive Protection

HDD Dome Shock Protector

HDD Shock Absorber
o Spill-Resistant Keyboard
o TOSHIBA PC Diagnostic Tool
o Key Component Access
 Secure
o Multiple-Level Password Utilities
o TOSHIBA Secure Digital Token Utility
o Reinforced Security Cable Lock Slot
o Execute Disable Bit
 Connect
o Diversity Antenna
®
o TOSHIBA ConfigFree
o Voice-over-IP Ready Design
 Optimize
o Windows Mobility Center Button
o TOSHIBA Zooming Utility
UPC
883974196975
14
17
18
Page 1 of 5
