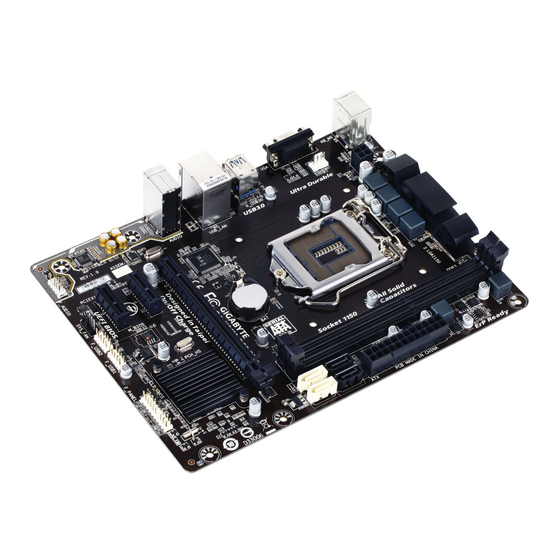

- Page 1 GA-H81M-DS2 Plus User's Manual Rev. 1001 12ME-H81M2PS-1001R...
- Page 2 Information in this manual is protected by copyright laws and is the property of GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by any means without GIGABYTE's prior written permission.
-
Page 3: Table Of Contents
Table of Contents GA-H81M-DS2 Plus Motherboard Layout ...............4 GA-H81M-DS2 Plus Motherboard Block Diagram ............5 Chapter 1 Hardware Installation ..................6 Installation Precautions ..................6 Product Specifications ..................7 Installing the CPU .................... 9 Installing the Memory ..................9 Installing an Expansion Card ................. 10 Back Panel Connectors .................. -
Page 4: Ga-H81M-Ds2 Plus Motherboard Layout
GA-H81M-DS2 Plus Motherboard Layout KB_MS ATX_12V LGA1150 CPU_FAN R_USB30 USB_LAN ® Super I/O AUDIO GA-H81M-DS2 Plus PCIEX16 Realtek ® GbE LAN PCIEX1_1 Intel ® M_BIOS CODEC PCIEX1_2 CLR_CMOS F_USB2 F_USB1 F_AUDIO SYS_FAN F_PANEL Box Contents 5 GA-H81M-DS2 Plus motherboard 5 Motherboard driver disk... -
Page 5: Ga-H81M-Ds2 Plus Motherboard Block Diagram
GA-H81M-DS2 Plus Motherboard Block Diagram 1 PCI Express x16 CPU CLK+/- (100 MHz) LGA1150 DDR3 1600/1333 MHz Dual Channel Memory PCIe CLK (100 MHz) PCI Express Bus BIOS D-Sub 2 SATA 6Gb/s PCI Express Bus 2 SATA 3Gb/s Intel ®... -
Page 6: Chapter 1 Hardware Installation
Chapter 1 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: • Prior to installation, make sure the chassis is suitable for the motherboard. •... -
Page 7: 1-2 Product Specifications
Support for DDR3 1600/1333 MHz memory modules Š Support for non-ECC memory modules Š Support for Extreme Memory Profile (XMP) memory modules Š (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) Onboard Integrated Graphics Processor- Intel HD Graphics support: Š... - Page 8 * GIGABYTE reserves the right to make any changes to the product specifications and product-related information without prior notice. * Please visit the Support & Downloads\Utility page on GIGABYTE's website to check the supported operating system(s) for the software listed in the "Unique Features" and "Bundled Software" columns.
-
Page 9: Installing The Cpu
• Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) • Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage. -
Page 10: Installing An Expansion Card
Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode. Dual Channel mode cannot be enabled if only one DDR3 memory module is installed. When enabling Dual Channel mode with two memory modules, it is recommended that memory of the same capacity, brand, speed, and chips be used for optimum performance. -
Page 11: Internal Connectors
Line In Jack (Blue) The line in jack. Use this audio jack for line in devices such as an optical drive, walkman, etc. Line Out Jack (Green) The line out jack. Use this audio jack for a headphone or 2-channel speaker. This jack can be used to connect front speakers in a 4/5.1/7.1-channel audio configuration. - Page 12 1/2) ATX_12V/ATX (2x2 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and all devices are properly installed.
- Page 13 5) BAT (Battery) The battery provides power to keep the values (such as BIOS configurations, date, and time information) in the CMOS when the computer is turned off. Replace the battery when the battery voltage drops to a low level, or the CMOS values may not be accurate or may be lost. You may clear the CMOS values by removing the battery: 1.
- Page 14 8) F_PANEL (Front Panel Header) Connect the power switch, reset switch, speaker, and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables. • PLED/PWR_LED (Power LED): Power LED Power Switch Speaker Connects to the power status indicator...
- Page 15 10) F_USB1/F_USB2 (USB 2.0/1.1 Headers) The headers conform to USB 2.0/1.1 specification. Each USB header can provide two USB ports via an optional USB bracket. For purchasing the optional USB bracket, please contact the local dealer. Pin No. Definition Pin No. Definition Power (5V) USB DY+ Power (5V)
-
Page 16: Chapter 2 Bios Setup
To access the BIOS Setup program, press the <Delete> key during the POST when the power is turned on. To upgrade the BIOS, use either the GIGABYTE Q-Flash or @BIOS utility. Q-Flash allows the user to quickly and easily upgrade or back up BIOS without entering the operating system. - Page 17 M.I.T. This section provides information on the BIOS version, CPU base clock, CPU frequency, memory frequency, total memory size, CPU temperature, Vcore, and memory voltage. Whether the system will work stably with the overclock/overvoltage settings you made is dependent on your overall system configurations.
- Page 18 & CPU PLL Selection Allows you to set the CPU PLL. Auto lets the BIOS automatically configure this setting. (Default: Auto) & Filter PLL Level Allows you to set the Filter PLL. Auto lets the BIOS automatically configure this setting. (Default: Auto) &...
- Page 19 & CPU EIST Function (Note 1) Enables or disables Enhanced Intel Speed Step Technology (EIST). Depending on CPU loading, Intel ® EIST technology can dynamically and effectively lower the CPU voltage and core frequency to decrease average power consumption and heat production. Auto lets the BIOS automatically configure this setting. (Default: Auto) &...
- Page 20 & Rank Interleaving Enables or disables memory rank interleaving. Enabled allows the system to simultaneously access different ranks of the memory to increase memory performance and stability. Auto lets the BIOS automatically configure this setting. (Default: Auto) ` Channel A/B Memory Sub Timings This sub-menu provides memory timing settings for each channel of memory.
-
Page 21: System Information
& System Fan Speed Control Allows you to determine whether to enable the fan speed control function and adjust the fan speed. Allows the fan to run at different speeds according to the system temperature. You Normal can adjust the fan speed with System Information Viewer based on your system requirements. -
Page 22: Bios Features
& System Date Sets the system date. The date format is week (read-only), month, date, and year. Use <Enter> to switch between the Month, Date, and Year fields and use the <Page Up> or <Page Down> key to set the desired value. - Page 23 System (Default) & Full Screen LOGO Show Allows you to determine whether to display the GIGABYTE Logo at system startup. Disabled skips the GIGABYTE Logo when the system starts up. (Default: Enabled) & Fast Boot Enables or disables Fast Boot to shorten the OS boot process. Ultra Fast provides the fastest bootup speed.
- Page 24 & Windows 8 Features Allows you to select the operating system to be installed. (Default: Other OS) & CSM Support Enables or disables UEFI CSM (Compatibility Support Module) to support a legacy PC boot process. Enables UEFI CSM. (Default) Always Disables UEFI CSM and supports UEFI BIOS boot process only.
-
Page 25: Peripherals
Peripherals & Initial Display Output Specifies the first initiation of the monitor display from the installed PCI Express graphics card or the onboard graphics. Sets the onboard graphics as the first display. IGFX PCIe 1 Slot Sets the graphics card on the PCIEX16 slot as the first display. (Default) &... - Page 26 & Audio Controller Enables or disables the onboard audio function. (Default: Auto) If you wish to install a 3rd party add-in audio card instead of using the onboard audio, set this item to Disabled. & Intel Processor Graphics Enables or disables the onboard graphics function. (Default: Enabled) &...
-
Page 27: Power Management
Power Management & Power Loading Enables or disables dummy load. When the power supply is at low load, a self-protection will activate causing it to shutdown or fail. If this occurs, please set to Enabled. Auto lets the BIOS automatically configure this setting. -
Page 28: Save & Exit
& Power On By Keyboard Allows the system to be turned on by a PS/2 keyboard wake-up event. Note: To use this function, you need an ATX power supply providing at least 1A on the +5VSB lead. Disables this function. (Default) Disabled Set a password with 1~5 characters to turn on the system. -
Page 29: Chapter 3 Appendix
You can click the Xpress Install button and "Xpress Install" will install all of the selected drivers. Or click the arrow icon to individually install the drivers you need. For more software information, please visit GIGABYTE's website. - 29 -... -
Page 30: Regulatory Statements
Contravention will be prosecuted. We believe that the information contained herein was accurate in all respects at the time of printing. GIGABYTE cannot, however, assume any responsibility for errors or omissions in this text. Also note that the information in this document is subject to change without notice and should not be construed as a commitment by GIGABYTE. - Page 31 FCC Notice (U.S.A. Only) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 32: Contact Us
Tech. and Non-Tech. Support (Sales/Marketing) : http://esupport.gigabyte.com WEB address (English): http://www.gigabyte.com WEB address (Chinese): http://www.gigabyte.tw You may go to the GIGABYTE website, select your language in the language list on the top right corner of the website. GIGABYTE eSupport •...
