GA-H81M-S2PH
User's Manual
Rev. 2301
For more product details, please visit GIGABYTE's website.
https://www.gigabyte.com/Motherboard/GA-H81M-S2PH-rev-23#kf
GIGABYTE will reduce paper use in order to fulfill the responsibilities of a global citizen.
Also, to reduce the impacts on global warming, the packaging materials of this product
are recyclable and reusable. GIGABYTE works with you to protect the environment.

Advertisement

Table of Contents
loading

Related Manuals for Gigabyte GA-H81M-S2PH

Summary of Contents for Gigabyte GA-H81M-S2PH

  • Page 1 For more product details, please visit GIGABYTE's website. https://www.gigabyte.com/Motherboard/GA-H81M-S2PH-rev-23#kf GIGABYTE will reduce paper use in order to fulfill the responsibilities of a global citizen. Also, to reduce the impacts on global warming, the packaging materials of this product are recyclable and reusable. GIGABYTE works with you to protect the environment.
  • Page 2 The trademarks mentioned in this manual are legally registered to their respective owners. Disclaimer Information in this manual is protected by copyright laws and is the property of GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice.

  • Page 3: Table Of Contents

    Table of Contents Chapter 1 Product Introduction ..................4 Motherboard Layout ..................4 Chapter 2 Hardware Installation ..................5 Installation Precautions ..................5 Product Specifications ..................6 Installing the CPU .................... 9 Installing the Memory ..................9 Installing an Expansion Card ................. 10 Back Panel Connectors ..................

  • Page 4: Chapter 1 Product Introduction

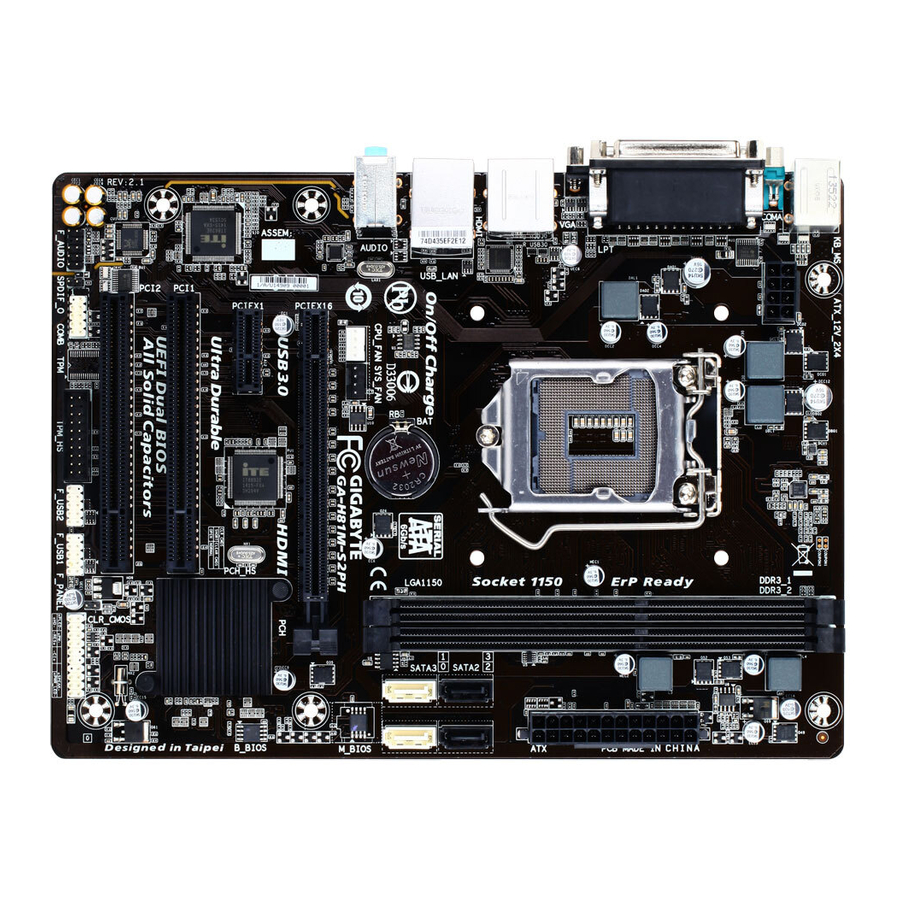

    Chapter 1 Product Introduction Motherboard Layout KB_MS ATX_12V_2X4 LGA1150 R_USB30 HDMI USB_LAN AUDIO CPU_FAN SYS_FAN GA-H81M-S2PH M_BIOS PCIEX16 Realtek ® GbE LAN PCIEX1 B_BIOS PCIe to PCI Bridge ® Intel ® PCI1 Super I/O CODEC PCI2 CLR_CMOS F_AUDIO F_USB1 COMB...

  • Page 5: Chapter 2 Hardware Installation

    Chapter 2 Hardware Installation Installation Precautions The motherboard contains numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user's manual and follow these procedures: • Prior to installation, make sure the chassis is suitable for the motherboard. •...

  • Page 6: 2-2 Product Specifications

    Support for DDR3 1600/1333 MHz memory modules Š Support for non-ECC memory modules Š Support for Extreme Memory Profile (XMP) memory modules Š (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) Onboard Integrated Graphics Processor-Intel HD Graphics support: ®...
  • Page 7 Internal 1 x 24-pin ATX main power connector Š Connectors 1 x 8-pin ATX 12V power connector Š 2 x SATA 6Gb/s connectors Š 2 x SATA 3Gb/s connectors Š 1 x CPU fan header Š 1 x system fan header Š...
  • Page 8 Micro ATX Form Factor; 24.4cm x 18.0cm Š * GIGABYTE reserves the right to make any changes to the product specifications and product-related information without prior notice. & Please visit GIGABYTE's website for support lists of CPU, memory modules, and SSDs.

  • Page 9: Installing The Cpu

    • Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. (Go to GIGABYTE's website for the latest supported memory speeds and memory modules.) • Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage.

  • Page 10: Installing An Expansion Card

    The two memory sockets are divided into two channels and each channel has one memory socket as following: Channel A: DDR3_1 Channel B: DDR3_2 Due to CPU limitations, read the following guidelines before installing the memory in Dual Channel mode. Dual Channel mode cannot be enabled if only one memory module is installed.
  • Page 11 You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. & Please visit GIGABYTE's website for details on configuring the audio software. https://www.gigabyte.com/WebPage/697/realtek897-audio.html - 11 -...

  • Page 12: Internal Connectors

    Internal Connectors ATX_12V_2X4 CLR_CMOS F_PANEL CPU_FAN F_AUDIO SYS_FAN SPDIF_O SATA3 0/1 F_USB1/F_USB2 SATA2 2/3 COMB TPM_HS Read the following guidelines before connecting external devices: • First make sure your devices are compliant with the connectors you wish to connect. • Before installing the devices, be sure to turn off the devices and your computer. Unplug the power cord from the power outlet to prevent damage to the devices.
  • Page 13 1/2) ATX_12V_2X4/ATX (2x4 12V Power Connector and 2x12 Main Power Connector) With the use of the power connector, the power supply can supply enough stable power to all the components on the motherboard. Before connecting the power connector, first make sure the power supply is turned off and all devices are properly installed.
  • Page 14 DEBUG DEBUG PORT PORT 5) SATA3 0/1 (SATA 6Gb/s Connectors) The SATA connectors conform to SATA 6Gb/s standard and are compatible with SATA 3Gb/s and SATA 1.5Gb/s standard. Each SATA connector supports a single SATA device. Pin No. Definition Pin No. Definition SATA3 6) SATA2 2/3 (SATA 3Gb/s Connectors) The SATA connectors conform to SATA 3Gb/s standard and are compatible with SATA 1.5Gb/s standard.
  • Page 15 9) F_PANEL (Front Panel Header) Connect the power switch, reset switch, speaker, and system status indicator on the chassis to this header according to the pin assignments below. Note the positive and negative pins before connecting the cables. • PLED/PWR_LED (Power LED): Power LED Power Switch Speaker...
  • Page 16 11) SPDIF_O (S/PDIF Out Header) This header supports digital S/PDIF Out and connects a S/PDIF digital audio cable (provided by expansion cards) for digital audio output from your motherboard to certain expansion cards like graphics cards and sound cards. For example, some graphics cards may require you to use a S/PDIF digital audio cable for digital audio output from your motherboard to your graphics card if you wish to connect an HDMI display to the graphics card and have digital audio output from the HDMI display at the same time.

  • Page 17: Chapter 3 Bios Setup

    To access the BIOS Setup program, press the <Delete> key during the POST when the power is turned on. To upgrade the BIOS, use either the GIGABYTE Q-Flash or @BIOS utility. Q-Flash allows the user to quickly and easily upgrade or back up BIOS without entering the operating system.
  • Page 18 M.I.T. This section provides information on the BIOS version, CPU base clock, CPU frequency, memory frequency, total memory size, CPU temperature, Vcore, and memory voltage. Whether the system will work stably with the overclock/overvoltage settings you made is dependent on your overall system configurations.
  • Page 19 & CPU PLL Selection Allows you to set the CPU PLL. Auto lets the BIOS automatically configure this setting. (Default: Auto) & Filter PLL Level Allows you to set the Filter PLL. Auto lets the BIOS automatically configure this setting. (Default: Auto) &...
  • Page 20 & CPU Thermal Monitor (Note 1) Enables or disables Intel Thermal Monitor function, a CPU overheating protection function. When enabled, ® the CPU core frequency and voltage will be reduced when the CPU is overheated. Auto lets the BIOS automatically configure this setting. (Default: Auto) &...
  • Page 21 & Channel Interleaving Enables or disables memory channel interleaving. Enabled allows the system to simultaneously access different channels of the memory to increase memory performance and stability. Auto lets the BIOS automatically configure this setting. (Default: Auto) & Rank Interleaving Enables or disables memory rank interleaving.
  • Page 22 & Fan Speed Percentage Allows you to control the CPU fan speed. This item is configurable only when CPU Fan Speed Control is set to Manual. Options are: 0.75 PWM value / C ~ 2.50 PWM value / & System Fan Speed Control Allows you to determine whether to enable the system fan speed control function and adjust the fan speed.

  • Page 23: System Information

    System Information This section provides information on your motherboard model and BIOS version. You can also select the default language used by the BIOS and manually set the system time. & System Language Selects the default language used by the BIOS. &...

  • Page 24: Bios Features

    A password is required for booting the system and for entering the BIOS Setup program. System (Default) & Full Screen LOGO Show Allows you to determine whether to display the GIGABYTE Logo at system startup. Disabled skips the GIGABYTE Logo when the system starts up. (Default: Enabled) - 24 -...
  • Page 25 & Fast Boot Enables or disables Fast Boot to shorten the OS boot process. Ultra Fast provides the fastest bootup speed. (Default: Disabled) & VGA Support Allows you to select which type of operating system to boot. Enables legacy option ROM only. Auto EFI Driver Enables EFI option ROM.
  • Page 26 & Windows 8 Features Allows you to select the operating system to be installed. (Default: Other OS) & CSM Support Enables or disables UEFI CSM (Compatibility Support Module) to support a legacy PC boot process. Enables UEFI CSM. (Default) Always Disables UEFI CSM and supports UEFI BIOS boot process only.

  • Page 27: Peripherals

    Peripherals & Initial Display Output Specifies the first initiation of the monitor display from the installed PCI graphics card, PCI Express graphics card, or the onboard graphics. Sets the onboard graphics as the first display. IGFX PCIe 1 Slot Sets the graphics card on the PCIEX16 slot as the first display. (Default) Sets the graphics card on the PCI slot as the first display.
  • Page 28 & Audio Controller Enables or disables the onboard audio function. (Default: Auto) If you wish to install a 3rd party add-in audio card instead of using the onboard audio, set this item to Disabled. & Intel Processor Graphics Enables or disables the onboard graphics function. (Default: Enabled) &...
  • Page 29 ` Super IO Configuration This section provides information on the super I/O chip and allows you to configure the serial port and parallel port. & Serial Port A/B Enables or disables the onboard serial port. (Default: Enabled) & Parallel Port Enables or disables the onboard parallel port. (Default: Enabled) &...

  • Page 30: Power Management

    Power Management & Power Loading Enables or disables dummy load. When the power supply is at low load, a self-protection will activate causing it to shutdown or fail. If this occurs, please set to Enabled. Auto lets the BIOS automatically configure this setting.
  • Page 31 & Power On By Keyboard Allows the system to be turned on by a PS/2 keyboard wake-up event. Note: To use this function, you need an ATX power supply providing at least 1A on the +5VSB lead. Disables this function. (Default) Disabled Set a password with 1~5 characters to turn on the system.

  • Page 32: Save & Exit

    Save & Exit & Save & Exit Setup Press <Enter> on this item and select Yes. This saves the changes to the CMOS and exits the BIOS Setup program. Select No or press <Esc> to return to the BIOS Setup Main Menu. &...

  • Page 33: Chapter 4 Installing The Operating System And Drivers

    Installing the Operating System and Drivers With the correct BIOS settings, you are ready to install the operating system. After installing the operating system, you can go to GIGABYTE's website to download and install the latest drivers. https://www.gigabyte.com/Motherboard/GA-H81M-S2PH-rev-23/support#support-dl-driver Before the installation, make sure the system is connected to the Internet.

  • Page 34: Regulatory Notices

    Commission Delegated Directive (EU) 2015/863 Statement Diretiva RSP 2011/65/UE. A conformidade com estas diretivas é verificada GIGABYTE products have not intended to add and safe from hazardous utilizando as normas europeias harmonizadas. substances (Cd, Pb, Hg, Cr+6, PBDE, PBB, DEHP, BBP, DBP and DIBP).

  • Page 35: Contact Us

    Contact Us GIGA-BYTE TECHNOLOGY CO., LTD. Address: No.6, Baoqiang Rd., Xindian Dist., New Taipei City 231 TEL: +886-2-8912-4000, FAX: +886-2-8912-4005 Tech. and Non-Tech. Support (Sales/Marketing) : https://esupport.gigabyte.com WEB address (English): https://www.gigabyte.com WEB address (Chinese): https://www.gigabyte.com/tw GIGABYTE eSupport • To submit a technical or non-technical (Sales/Marketing) question, please link to: https://esupport.gigabyte.com...
