Specifications*
General
Power Supply
Current Consumption
MD Player
Total Harmonic Distortion
Signal to Noise Ratio
Channel Separation
DC 12V (11V - 16V)
Test Voltage 14.4V
Negative Ground
Less than 1A ( Illumination ON )
Less than 0.2%
More than 65dB (IHF-A)
More than 52dB (IHF-A)
AUTOMOTIVE ELECTRONICS
MAZDA

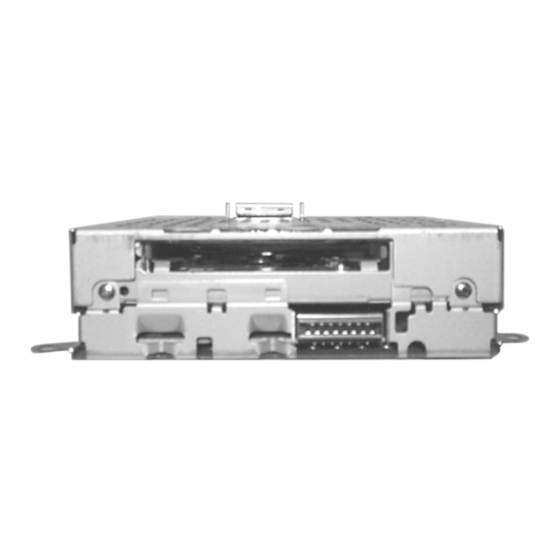

CX-BM4290F
MD Player Module [Dealer's Option]
PART No.
: GJ6E 79 APX
VEHICLE
: Universal
DESTINATION : All Countries
PRODUCED AFTER
: Jun., 2002
Wow and Flutter
Dimensions** (W×H×D)
Weight**
* Specifications and the design are subject to possible modification
without notice due to improvements.
** Dimensions and Weight shown are approximate.
Above specifications comply with EIA standards
ORDER No. 1121
Below measurable limits
133.8 × 41.1 × 125.7 (mm)
0.71kg
I0
Advertisement
Table of Contents
Related Manuals for Panasonic CX-BM4290F
Summary of Contents for Panasonic CX-BM4290F
- Page 1 ORDER No. 1121 AUTOMOTIVE ELECTRONICS MAZDA CX-BM4290F MD Player Module [Dealer’s Option] PART No. : GJ6E 79 APX VEHICLE : Universal DESTINATION : All Countries PRODUCED AFTER : Jun., 2002 Specifications* General Wow and Flutter Below measurable limits Power Supply DC 12V (11V - 16V) Test Voltage 14.4V...
-
Page 2: Table Of Contents
MAZDA / CX-BM4290F CONTENTS Page Page 1 FEATUERS 9 IC BLOCK DIAGRAM 2 LASER PRODUCTS 10 REPLACEMENT PARTS LIST 3 SYSTEM BLOCK DIAGRAM 11 EXPLODED VIEW (Unit) 4 CENTER PANEL AUDIO SYSTEM 12 MD PLAYER PARTS LIST 5 NAME OF FUNCTION OF EACH PARTS... -
Page 3: Name Of Function Of Each Parts
MAZDA / CX-BM4290F 5 NAME OF FUNCTION OF EACH PARTS... -
Page 4: Wiring Connection
MAZDA / CX-BM4290F 6 WIRING CONNECTION... -
Page 5: Block Diagram
MAZDA / CX-BM4290F 7 BLOCK DIAGRAM 7.1. Main Block... - Page 6 MAZDA / CX-BM4290F 7.2. MD Servo Block...
-
Page 7: Terminals Description
MAZDA / CX-BM4290F 8 TERMINALS DESCRIPTION 8.1. Main Block Name Description I/O Vol. KEY REQ Key data input IC601 : C2BBFE000113 BATT-DET BATT voltage detect Name Description I/O Vol. ACC-DET ACC voltage detect MD EJECT MD eject (NC) (Connecting to ground) - Page 8 MAZDA / CX-BM4290F Name Description I/O Vol. Servo Driver MUTE2 Servo Driver MUTE1 PUL Lon SW1/SW2/SW3 input cont. 51-57 - No connection Disc-in detection 59-63 - No connection Disc clamp detection Disc inner detection 66-74 - No connection AVSS RF-DS Power Servo driver power cont.
-
Page 9: Ic Block Diagram
MAZDA / CX-BM4290F 9 IC BLOCK DIAGRAM 9.1. Main Block IC602 : YEAMT74HC07L IC201 : C0ABBB000045 IC640 : AN8065SE1 9.2. MD Servo Block IC101 : C1BB00000679... - Page 10 MAZDA / CX-BM4290F IC401 : C1BB00000680...
-
Page 11: Replacement Parts List
MAZDA / CX-BM4290F 10 REPLACEMENT PARTS Ref. Part No. Part Name & Description Remarks D609 MA8056LMHTX Diode LIST D610 MA8056LMHTX Diode D611 MA8056LMHTX Diode Notes : D702 YEADRD56M3T1 Diode D704 MA152WKTX Diode 1. Be sure to make your orders of replacement parts... - Page 12 MAZDA / CX-BM4290F Ref. Part No. Part Name & Description Remarks Ref. Part No. Part Name & Description Remarks Chip, 0Ω Ω Ω Ω 1/10W Chip, 47kΩ Ω Ω Ω 1/10W J113 ERJ6GEY0R00V R601 ERJ6GEYJ473 Chip, 0Ω Ω Ω Ω 1/10W Chip, 1kΩ...
- Page 13 MAZDA / CX-BM4290F Ref. Part No. Part Name & Description Remarks CONNECTORs CN601 YEAE5280714 Connector, 14P CN602 K1KB15B00015 Connector, 15P CN603 YEAETKCF16QS Connector, 16P CN703 K1KB15B00015 Connector, 15P CP603 K1KA16B00068 Connector, 16P COILs L601 YELTBLM2B222 Coil L721 YELTBLM2B222 Coil L723...
-
Page 14: Exploded View (Unit)
MAZDA / CX-BM4290F 11 EXPLODED VIEW (Unit) -
Page 15: Md Player Parts List
MAZDA / CX-BM4290F 12 MD PLAYER PARTS LIST Ref. Part No. Part Name & Description Remarks C502 YECUZ1H102KX Ceramic, 1000PF 50WV Ref. Part No. Part Name & Description Remarks C503 F1J1A1050010 Ceramic, 1µF 10WV C508 YECUZ1C104KX Ceramic, 0.1µF 16WV [E9157] MD Servo Block... - Page 16 MAZDA / CX-BM4290F Ref. Part No. Part Name & Description Remarks CONNECTORs K1KB14B00027 Connector, 14P CN101 K1MN20B00001 Connector, 20P SWITCHEs K0L1BA000022 Switch SW2,3 K0L1BA000023 Switch CRYSTALs XL401 H2D225500002 Crystal XL501 YEXLSTCC737T Crystal COILs L401,40 J0JAC0000047 Ciol L451 J0JAC0000047 Ciol L452...
-
Page 17: Exploded View (Md Deck)
MAZDA / CX-BM4290F 13 EXPLODED VIEW (MD Deck) -
Page 18: Wiring Diagram
MAZDA / CX-BM4290F 14 WIRING DIAGRAM 14.1. Main Block (Top View) B C E [E-9167a] [Top View] [E-9167b] [Top View] CX-BM4290F MAIN P.C.B... - Page 19 MAZDA / CX-BM4290F 14.2. Main Block (Bottom View) 1 80 [E-9167a] [Bottom View] [E-9167b] [Bottom View] CX-BM4290F MAIN P.C.B...
- Page 20 MAZDA / CX-BM4290F 14.3. MD Servo Block [E-9157][Top View] [E-9157][Bottom View] YEFD31141 MD DECK P.C.B...
-
Page 21: Schematic Diagram
MAZDA / CX-BM4290F 15 SCHEMATIC DIAGRAM 15.1. Main Block... - Page 22 MAZDA / CX-BM4290F 15.2. MD Servo Block Printed in Japan (K) 2002.6 (Recycled Paper)
