LIGHTING THE BURNERS
• To ignite one of the burners, turn the relative knob anti-clockwise to the maximum flame setting
• Press the knob against the control panel to ignite the burner.
• After the burner has ignited, keep the knob pressed for about 5 seconds to allow the thermocouple to warm up.
This burner safety device shuts off the gas supply to the burner if the flame goes out accidentally (because of sudden
draught, an interruption in the gas delivery, boiling over of liquids, etc.).
• The device must not be pressed for more than 15 sec. If, after that time has elapsed, the burner does not
remain lit, wait at least one minute before trying to light it again.
- The burner might go out when the knob is released. This means that the thermocouple has not warmed up enough.
In this case, repeat the operations described above.
PRATICAL ADVICE FOR USING THE BURNERS
For better burner performance, please stick to the following rules:
- Use pots and pans that fit the burners (see table on the
right).
- Only use flat-bottomed pots and pans.
- Use the correct amount of water for cooking foods and
keep the pot covered.
- In the case of pans with convex bottoms (WOK), use
the support grille provided, which should be positioned
only on the 4 ring burner.
Important:
Improper use of the grids can result in damage to the hob:
do not position the grids upside down or slide them across
the hob.
Do not use:
- Cast iron griddles, ollar stones, terracotta pots and
pans.
- Heat diffusers such as metal mesh, or any other types.
- Two burners simultaneously for one receptacle (e.g. fish
kettle)
5019 319 01500
All manuals and user guides at all-guides.com

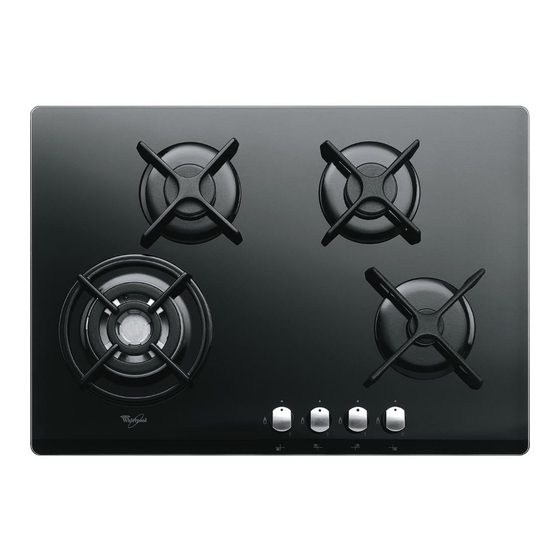

PRODUCT DESCRIPTION SHEET
Removable panstand grids
1.
Auxiliary burner
2.
Semi-rapid burner
3.
Semi-rapid burner
4.
4 ring burner
5.
Auxiliary burner control knob
6.
Semi-rapid burner control knob
7.
Semi-rapid burner control knob
8.
4 ring burner control knob
9.
SYMBOLS
Tap closed
Maximum flame
Minimum flame
.
Burner Pot Ø
4 ring burner from 24 to 26 cm
semi-rapid from 16 to 22 cm
auxiliary from 8 to 14 cm
To get full satisfaction from the hob, please read these instructions carefully and keep them for future consultation.
DIMENSIONS AND DISTANCES TO BE MAINTAINED (mm)
If the distance "A" between the wall cabinets is between 600 mm and 730 mm, the height
NOTE:
"B" must be a minimum of 530 mm.
If the distance "A" between the wall cabinets is greater than the width of the cooktop, the
height "B" must be a minimum of 400 mm.
In case of installation of a hood above the cooktop, please refer to the hood instructions for
the correct distance.
INJECTOR TABLE
Type of gas used Type of burner Injector
marking
4 ring burner
NATURAL GAS
Semi-rapid burner
(Methane) G20
Auxiliary burner
LIQUID
4 ring burner
PETROLEUM GAS Semi-rapid burner
Auxiliary burner
(Butane) G30
LIQUID
4 ring burner
PETROLEUM GAS Semi-rapid burner
Auxiliary burner
(Propane) G31
Type of gas used Configuration Rated thermal
model flow rate kW
G20 20 mbar 4 burners
G30 28-30 mbar 4 burners
G31 37 mbar 4 burners
ELECTRIC SUPPLY: 230 V ~ 50 Hz
GB ES
Rated Rated Reduced
thermal flow consumption heat capacity
rate kW kW
139 3.50 333 l/h 1.50
95 1.65 157 l/h 0.35
78 1.00 95 l/h 0.30
95 3.50 254 g/h 1.50
67 1.65 120 g/h 0.35
50 1.00 73 g/h 0.30
95 3.50 250 g/h 1.50
67 1.65 118 g/h 0.35
50 1.00 71 g/h 0.30
Total rated Air necessary (m
consumption combustion of 1 m
7.80 742 l/h
7.80 567 g/h
7.80 557 g/h
PT IT GR
CATEGORY II2H3+
Gas pressure (mbar)
min. rat. max.
17 20 25
20 28-30 35
25 37 45
3
) for the
3
of gas
9.52
30.94
23.80
