Shure ADX1 - Bodypack Transmitter Manual

Features

ADX series transmitters deliver impeccable audio quality and RF performance, and are equipped with ShowLink^® remote control for real-time parameter adjustments and interference avoidance. This transmitter features wide tuning, High Density (HD) mode, encryption, and advanced rechargeability in a streamlined design. Light-weight aluminum construction, AAA or SB910 rechargeable power options (with lockable charging), and TA4 or LEMO3 connector options.

Performance

• 184 MHz tuning range
• 20 Hz to 20 kHz range with flat frequency response
• Automatic input staging optimizes gain setting

• Diversity ShowLink-enabled for remote transmitter control and automatic interference avoidance
• AES 256-bit encryption-enabled for secure transmission
• >120 dB, A-weighted, System Gain @ +10
• Digital output: >125dB, A-weighted (Dante, AES3, AES67)
• 100 meter (300 feet) line-of-sight operating range
• Selectable modulation modes optimize performance for spectral efficiency
• Standard – optimal coverage, low latency
• High density – dramatic increase in max system channel count
• Built-in tone generator and RF markers to facilitate walk-testing
• Switchable Power Levels = 2/10/40 mW (region dependent)
• Frequency Diversity selection using two bodypacks

Design

• TA4 or LEMO3 audio connector option
• Backlit LCD with easy to navigate menu and controls
• Durable, moisture-resistant, lightweight metal case
• Flexible ¼ wave antenna
• Menu and power lockout

Power

• Shure SB910 rechargeable batteries for up to 10 hours of runtime, precision metering, and zero memory effect
• AAA-compatible battery sled available
• External charging contacts for docked charging

Included Components

SB910 Shure Rechargeable Battery	95A24832
¼ wave antenna	Varies by Region
Belt clip	44A32452
Zipper bag	95A2313

Optional Accessories

SB910 Shure Rechargeable Battery	95A24832
3 x AAA Battery Sled for ADX1 Transmitter	SB913
AD651FOB Talk Switch fob for bodypack transmitters	90A37348
Belt clip	44A32452
Shure Networked Docking Charger 2-Up	SBC240
Transmitter carrying case	WA610

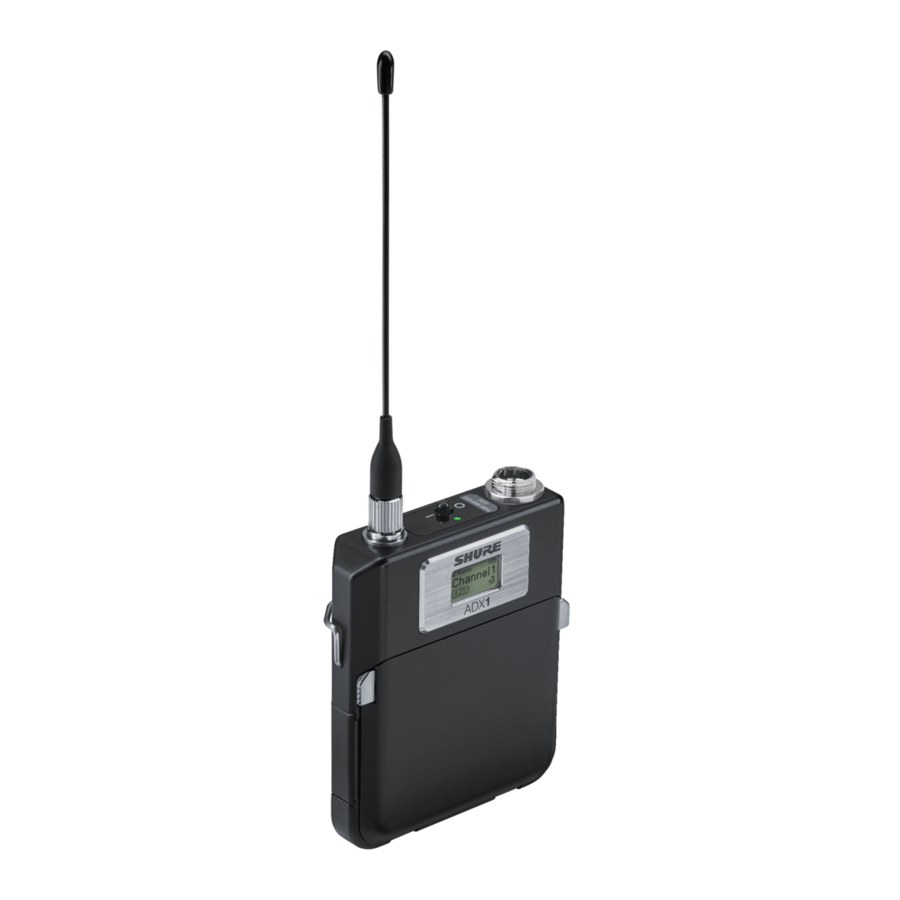

ADX1 Transmitter Overview

1. RF Antenna
   For RF signal transmission.
2. Display
   View menu screens and settings. Press any control button to activate the backlight.
3. Control Buttons
   Use to navigate through parameter menus and to change settings.
4. Battery Compartment
   Requires Shure SB910 rechargeable battery.
5. Battery Door
   Latching door to secure battery.
6. SMA Connector
   Connection point for RF antenna.
7. Infrared (IR) Port
   Align with the receiver IR port during an IR Sync for automated transmitter tuning and setup.
8. Power Switch
   Powers the unit on or off.
9. Power LED
   • Green = unit is powered on
   • Red = low battery, Mute Mode enabled, input overload, or battery error (see Troubleshooting)
10. Input Jack
    Connects to a 4-Pin Mini Connector (TA4F) microphone or instrument cable.
    Note: A LEMO connector model variation of this transmitter is available.
11. Battery Charging Contacts
    Charging contacts for use with docking battery chargers.

Installing Bodypack Antennas

Hand-tighten antennas until secure. Do not use tools.

Transmitter Controls

Use the controls to navigate through parameter menus and change values.

Control	Description
X	Acts as a 'back' button to return to previous menus or parameters without confirming a value change
O	Enters menu screens and confirms parameter changes
∨∧	Use to scroll through menu screens and to change parameter values

Tip: Use the following shortcuts for quick setup:

• Hold the ∧ button while powering on to lock or unlock the transmitter.
• Hold the X button while powering on to enter the safe start menu.

Locking the Interface

Lock transmitter interface controls to prevent accidental or unauthorized changes to parameters. The lock icon appears on the home screen when the interface lock is enabled.

1. From the Utilities menu, navigate to Locks and select one of the following lock options:
   • None: The controls are unlocked
   • Power: The power switch is locked
   • Menu: The menu parameters are locked
   • All: The power switch and menu parameters are locked
2. Press O to save.

To quickly unlock a transmitter: Press O twice, select None, and press O.

Home Screen Display

The home screen shows transmitter information and status.

There are four pieces of information that you can choose to see on the home screen. Use the arrow buttons to select one of the following choices:

• Name
• Frequency Setting
• Group (G) and Channel (C)
• Device ID

The following icons indicate transmitter settings:

Icon	Setting
	Battery runtime in hours and minutes or bar display
	Key: Displayed when encryption is enabled
	Lock: Displayed when controls are locked. Icon will flash if access is attempted to a locked control (power or menu).
	ShowLink signal strength displays 0 to 5 bars
	STD: Standard Transmission Mode
	HD: High Density Transmission Mode
	RF Mute Engaged: Displayed when RF output is muted

Shure Rechargeable Batteries

Shure lithium-ion batteries offer a rechargeable option for powering the transmitters. Batteries quickly charge to 50% capacity in one hour and reach full charge within three hours.

Single chargers and multiple bay chargers are available to recharge the Shure batteries.

Caution: Only charge Shure rechargeable batteries with a Shure battery charger.

Checking Battery Info

When using a Shure rechargeable battery, the receiver and transmitter home screens display the number of hours and minutes remaining.

Detailed information for the battery is displayed Battery menu of the transmitter: Utilities > Battery

• Battery: The chemistry type of for the installed battery (Shure, Alkaline, Lithium, NiMH)
• Bars: Indicates the number of bars displayed
• Time: Battery runtime
• Charge: Percentage of charge capacity
• Health: Percentage of current battery health
• Cycle Count: Total of the number of charging cycles for the installed battery
• Temperature: Battery temperature reported in Celsius and Fahrenheit

Important Tips for Care and Storage of Shure Rechargeable Batteries

Proper care and storage of Shure batteries results in reliable performance and ensures a long lifetime.

• Always store batteries and transmitters at room temperature
• Ideally, batteries should be charged to approximately 40% of capacity for long-term storage
• Regularly clean the battery contacts with an electrical contact cleaner designed for gold contacts and safe on plastics
• During storage, check batteries every 6 months and recharge to 40% of capacity as needed

For additional rechargeable battery information, visit www.shure.com.

Battery Installation

1. Accessing the Battery Compartment
   Press the door latches and open the battery door.
2. Inserting the Battery
   Insert the battery, contracts first into the battery compartment. Press down on the tab to fully seat the battery, and then close the battery door.

Tip: To remove the battery, pull up on the tab on the bottom of the battery.

ADX1 SB910 Battery Runtime

Note: Higher RF power levels decrease battery runtime. Battery runtime varies with battery age and environmental conditions.

2 mW	10 mW	40 mW
11.0 to 12.0 hours	9.0 to 11.0 hours	6.5 to 8.5 hours

Note: A Battery Hot warning indicates that transmitter battery needs to cool off. Otherwise, the transmitter will shut down. Let the device cool down and then consider swapping the transmitter battery to continue operation.

Identify any possible external heat sources to the transmitter and operate the transmitter away from those external heat sources.

All batteries should be stored and operated away from external heat sources in reasonable temperature conditions for best performance.

Menu Parameters

The Main menu organizes the available transmitter parameters into three sub-menus:

• Radio
• Audio
• Utilities

Tip: Use the arrow buttons to scroll between the sub-menus.

Tips for Editing Menu Parameters

• To access the menu options from the home screen, press O. Use the arrow buttons to access additional menus and parameters.
• A menu parameter will blink when editing is enabled
• To increase, decrease or change a parameter, use the arrow buttons
• To save a menu change, press O
• To exit a menu without saving a change, press X

Menu Map

Menu Parameter Descriptions

Radio Menu

Freq
Press the O button to enable editing of a group (G:) channel (C:) or frequency (MHz). Use the arrow buttons to adjust the values. To edit the frequency, press the O button once to edit the first 3 digits, or twice to edit the second 3 digits.

Power
Higher RF power settings can extend the range of the transmitter.

Note: Higher RF power settings decrease battery runtime.

Output
Sets the RF output to On or Mute.

• On: RF signal is active
• Mute: RF signal is inactive

Audio Menu

Pad
Adjust the pad to avoid overloading the audio input. Select 12 dB or Off.

Offset
Adjust Offset level to balance mic levels when using two transmitters or when assigning multiple transmitters to receiver slots. Adjustment range: -12 dB to +21 dB.

Polarity
Selectable polarity assignment for the audio input connector:

• Pos: Positive pressure on microphone diaphragm produces positive voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the TRS output.
• Neg: Positive pressure on microphone diaphragm produces negative voltage on pin 2 (with respect to pin 3 of XLR output) and the tip of the TRS output.

Mute
When enabled, the power switch is configured as a mute switch for the audio:

• Power switch on: Audio signal on
• Power switch off: Audio signal muted

Exit mute mode to return the power switch to its normal functionality.

Tone Gen
Transmitter will generate a continuous test tone:

• Freq: The tone can be set to 400 Hz or 1000 Hz.
• Level: Adjusts the output level of the test tone.

Utilities Menu

Device ID
Assign a device ID of up to 9 letters or numbers.

Locks
Locks the transmitter controls and power switch.

• None: The controls are unlocked
• Power: The power switch is locked
• Menu: The menu parameters are locked
• All: The power switch and menu parameters are locked

Link Info
Displays the following information about the link between a transmitter and receiver:

• Not Linked: The transmitter is not linked to a receiver
• Linked: The transmitter is linked to a receiver. Select Unlink? to free the transmitter from the receiver link.
• Unlinked: The transmitter is not linked to a receiver

SL Test
ShowLink test tool to measure the boundaries of ShowLink coverage. Marker
When enabled, press the enter button to drop a marker in Wireless Workbench.

Battery
Displays battery information:

• Battery Life: Runtime reported in bar display and time (hours: minutes)
• Charge: Percentage of charge capacity
• Health: Percentage of current battery health
• Cycle Count: Total of the number of charging cycles for the installed battery
• Temperature: Battery temperature reported in Celsius and Fahrenheit

Talk Sw
Press ENTER to add control from a talk switch. Press the button on the talk switch twice to complete the link.

Identify
When enabled, Identify flashes the transmitter icon in Wireless Workbench Inventory or Monitor tabs.

About
Displays the following transmitter information:

• Model: Displays the model number
• Band: Displays the tuning band of the transmitter
• FW Version: Installed firmware
• HW Version: Hardware version
• Serial Num: Serial number

Reset All
Restores all transmitter parameters to factory settings.

IR Sync

Use IR Sync to form an audio channel between the transmitter and receiver.

Note: The receiver band must match the band of the transmitter.

1. Select a receiver channel.
2. Tune the channel to an available frequency using group scan or manually turn to an open frequency.
3. Power on the transmitter.
4. Press the SYNC button on the receiver.
5. Align the IR windows between the transmitter and the receiver so that the IR LED illuminates red. When complete, Sync Success! appears. The transmitter and receiver are now tuned to the same frequency.


Note:
Any change to the encryption status on the receiver (enabling/disabling encryption) requires a sync to send the settings to the transmitter. New encryption keys for the transmitter and receiver channel are generated on every IR sync, so to request a new key for a transmitter, perform an IR sync with the desired receiver channel.

Setting the Frequency Manually

The transmitter can be manually tuned to a specific group, channel, or frequency.

1. Navigate to the Radio menu and select Freq.

2. Scroll to select G: and C: to edit the group and channel, or select the frequency parameter (MHz). When editing the frequency, press O once to edit the first 3 digits, or twice to edit the last 3 digits.
3. Use the ∧∨ buttons to adjust the group, channel, or frequency.
4. Press O to save, and then press X when finished.

Wearing the Bodypack Transmitter

Clip the transmitter to a belt or slide a guitar strap through the transmitter clip as shown.

For best results, the belt should be pressed against the base of the clip.

Tip: The clip can removed and rotated 180 degrees to increase mounting options.

RF Mute

RF mute prevents transmission of the audio by suppressing the RF signal. The home screen displays RF MUTED in this mode.

1. From the Radio menu, navigate to Output.

2. Choose one of the following options:
   • On: RF signal is active
   • Mute: RF signal is disabled
3. Press O to save.

When a transmitter is in RF mute mode, the RF will remain muted when the power is cycled and when the battery is replaced. To restore the RF signal, return to the Output menu and select On.

Safe Start

Power on in Safe Start mode to prevent interference with other devices. Hold the X button while powering on your device until the Safe Start menu appears.

Safe Start menu options:

• RF: Mute or On
• Locks: None, Pwr, Menu, All

Use the navigation buttons to make changes.

To exit the Safe Start menu, cycle the power or momentarily remove the battery.

Previous settings for locks and RF will be retained when the transmitter is powered on in Safe Start.

Input Overload

The OVERLOAD message appears when the audio input experiences a high level signal. The power LED turns red as an additional indicator of an overload. Reduce the input signal or enable the input pad to remove the overload condition.

Tip: To enable the input pad, navigate to Audio > Pad and select 12 dB.

Matching Audio Levels with Mic Offset

When linking two or more transmitters to a receiver, there may be a difference in volume levels between microphones or instruments. If this occurs, use the Offset function to match the audio levels and eliminate audible volume differences between transmitters. If using a single transmitter, set Offset to 0 dB.

1. Turn on the first transmitter and perform a sound check to test the audio level. Turn off the transmitter when finished.
2. Turn on the second transmitter and perform a sound check to test the audio level. Repeat for any additional transmitters.
3. If there is an audible difference in the sound level between the transmitters, navigate to the Offset menu (Audio > Offset) in the transmitter to increase or decrease the Offset in realtime to match the audio levels.


Tone Generator

The transmitter contains an internal tone generator that produces a continuous audio signal. The tone is helpful when conducting a sound check or for troubleshooting the audio signal chain. The level of the tone is adjustable from -60 dB to 0 dB and the frequency can be set to 400 Hz or 1000 Hz.

Always start with the level set to -60 dB to avoid overloading speakers or headphones.

1. From the Audio menu select Tone Gen.

2. Set the frequency to 400 Hz or 1000 Hz.
3. Select Level and use the arrow buttons adjust the value between -60 dB and 0 dB.

Turn off the tone by selecting Off from the menu or by cycling the transmitter power.

ShowLink Test

The ShowLink Test is a tool to find the boundaries of the ShowLink coverage area. When the ShowLink test is activated, a fivebar display indicating the link quality is shown on the screen. As the transmitter moves away from the access point, the number of bars will decrease. ShowLink control is maintained as long as 1 bar is displayed.

If the transmitter is beyond the coverage range, ShowLink control will not be possible. However, the audio signal will not be affected or interrupted as long as the transmitter is within range of the RF signal.

To improve coverage, adjust the location of your access points or place additional access points to extend coverage.

To activate the ShowLink Test:

1. From the Utilities menu, navigate to SL Test.
2. Press the O button to start the test and walk the transmitter around the coverage area. Monitor the number of bars displayed and the state of the ShowLink icon. Coverage boundaries are indicated by 0 bars displayed or the ShowLink icon is empty.
3. Press the X button to exit the ShowLink test.

Tip: During a ShowLink test, press O (enter) to drop a marker in Wireless Workbench.

Updating Firmware

Firmware is embedded software in each component that controls functionality. Periodically, new versions of firmware are developed to incorporate additional features and enhancements. To take advantage of design improvements, you can upload and install new versions of the firmware by using the Shure Update Utility, available on the Shure Update Utility page.

Firmware Versions

When performing an update, first download firmware to the receiver, and then update transmitters to the same firmware version to ensure consistent operation.

The firmware numbering for Shure devices uses the following format: MAJOR.MINOR.PATCH (e.g., 1.2.14). At a minimum, all devices on the network (including transmitters), must have the same MAJOR and MINOR firmware version numbers (e.g. 1.2.x).

Updating the Transmitter

1. Download the firmware to the receiver.
2. Access the following menu from the receiver: Device Configuration > Tx Firmware Update.
3. Align the IR ports between the transmitter and the receiver. IR ports must be aligned for the entire download, which can take 50 seconds or longer.
   Tip: The red alignment LED will turn on when the alignment is correct.
4. Press ENTER on the receiver to begin the download to the transmitter. The receiver will display the progress of the update as a percentage.

Troubleshooting

Issue	See Solution...
No sound	Power, Cables, Radio Frequency, or Encryp tion Mismatch
Faint sound or distortion	Gain, Cables
Lack of range, unwanted noise bursts, or dropouts	Radio Frequency (RF)
Cannot turn transmitter off or change frequency settings, or can't pro gram receiver	Interface Locks
Encryption Mismatch message	Encryption Mismatch
Firmware Mismatch message	Firmware Mismatch
Transmitter Battery Hot message	Tx Battery Hot
Antenna Fault Red LED	RF
Handheld transmitter shuts down during use	Clean Battery Contacts

Power

Make sure that the receiver and transmitter are receiving sufficient voltage. Check the battery indicators and replace the transmitter batteries if necessary.

Gain

Adjust the system gain on the front of the receiver. Ensure the output level on the back of the receiver corresponds to the mic/ line input setting of the mixing console, amplifier, or DSP.

Cables

Check that all cables and connectors are working correctly.

Interface Locks

The transmitter and the receiver can be locked to prevent accidental or unauthorized changes. A locked feature or button will produce the Locked screen on the LCD panel or the lock icon will flash on a transmitter.

Encryption Mismatch

Re-sync all receivers and transmitters after enabling or disabling encryption.

Firmware Mismatch

Paired transmitters and receivers must have the same firmware version installed to ensure consistent operation. See Firmware topic for firmware update procedure.

Tx Battery Hot

If the transmitter battery does not cool off, the transmitter will shut down. Let the device cool down and then consider swapping the transmitter battery to continue operation.

Identify any possible external heat sources to the transmitter and operate the transmitter away from those external heat sources.

All batteries should be stored and operated away from external heat sources in reasonable temperature conditions for best performance.

Radio Frequency (RF)

RF LEDs

If neither blue RF Diversity LED is illuminated, then the receiver is not detecting the presence of a transmitter.

The orange RF Signal Strength LEDs indicate the amount of RF power being received. This signal could be from the transmitter, or it could be from an interfering source, such as a television broadcast. If more than two of the orange RF LEDs are still illuminated while the transmitter is off, then that channel may be experiencing interference, and you should try a different channel.

The red RF LED indicates RF overload. Overloads have the potential to cause interference in multiple system installations. If you are experiencing an overload, turn off the receiver to see if it is causing interference with other components.

The numerical channel select button also turns red to indicate interference.

• Dim red = Channel is not selected, experiencing interference
• Bright red = Channel is selected, experiencing interference

Compatibility

• Perform a Scan and Sync to ensure the transmitter and receiver are set to the same group and channel.
• Look at the band label on the transmitter and make sure the receiver is set to the same band.

Reducing Interference

• Perform a group or channel scan to find the best open frequency. Perform a sync to transfer the setting to the transmitter.
• For multiple systems, check that all systems are set to channels in the same group (systems in different bands do not need to be set to the same group).
• Maintain a line of sight between transmitter and receiver antennas.
• Move or point receiver antennas away from metal objects or other sources of RF interference (such as LED walls, computers, digital effects, network switches, network cables and Personal Stereo Monitor (PSM) wireless systems).
• Eliminate RF overload (see below).

Increasing Range

If the transmitter is more than 6 to 60 m (20 to 200 ft) from the receiver antenna, you may be able to increase range by doing one of the following:

• Reduce interference (see above).
• Increase transmitter RF power level.
• Use Normal mode instead of High Density mode.
• Use an active directional antenna, antenna distribution system, or other antenna accessory to increase RF range.

Eliminating RF Overload

If you see the red RF LED on a receiver, try the following:

• Reduce the transmitter RF power level
• Move the transmitter further away from the receiver—at least 6 m (20 ft)
• If you are using active antennas, reduce antenna or amplifier gain.
• Use omnidirectional antennas

Antenna Faults

The Antenna Fault red LED indicates a short circuit condition or excessive load at an antenna port.

• Check antennas and cables for damage
• Ensure that antenna ports are not overloaded
• Check antenna bias voltage setting. Turn off voltage if using passive antennas.

Clean Battery Contacts

Clean the battery contacts with an electrical contact cleaner designed for gold contacts and safe on plastics.

Specifications

Mic Offset Range
12 to 21 dB (in 1 dB steps)

Battery Type
Shure SB910 Rechargeable Li Ion

Battery Runtime
@10 mW
Shure SB910 up to 10 hours

Dimensions
91 mm x 68 mm x 19 mm (3.6 in. x 2.7 in. x 0.8 in.) H x W x D

Weight
142 g (5.0 oz.), Without Battery

Housing
Aluminum

Operating Temperature Range
-18°C (0°F) to 45°C (113°F)
Note: Battery characteristics may limit this range.

Storage Temperature Range
-29°C (-20°F) to 74°C (165°F)
Note: Battery characteristics may limit this range.

Audio Input

Connector
4-Pin male mini connector (TA4M) or Lemo Connector

Configuration
Unbalanced

Impedance
4-Pin male mini connector (TA4M) 910 kΩ
Lemo Connector 8.2 kΩ

Maximum Input Level
1 kHz at 1% THD
Pad Off 8.5 dBV ( 7.5 Vpp)
Pad On 20.5 dBV ( 30 Vpp)

Preamplifier Equivalent Input Noise (EIN)
System Gain Setting ≥ +20
-120 dBV, A weighted, typical

RF Output

Antenna Type
UHF 1/4 wave

Connector Type
SMA

Impedance
50 Ω

Occupied Bandwidth
<200 kHz

Channel-to-Channel Spacing
Standard Mode 350 kHz
High Density Mode 125 kHz

Modulation Type
Shure Axient Digital Proprietary

Power
2 mW, 10 mW, 40 mW
See Frequency Range and Output Power table, varies by region

Specific Absorption Rate (SAR)
< 0.20 W/kg

ShowLink

Network Type
IEEE 802.15.4

Antenna Type
Zigbee Dual Conformal

Frequency Range
2.40 to 2.4835 GHz ( 24 Channels)

RF Output Power
10 dBm (ERP)
varies by region

Input Connector Diagrams

TA4M

LEMO

Frequency Range and Transmitter Output Level

Band	Frequency Range ( MHz)	Tx RF Power ( mW)***
G53	470 to 510	2/10/40
G54	479 to 565	2/10/20
G55†	470 to 636	2/10/40
G56◇	470 to 636	2/10/40
G57△	470 to 616*	2/10/40
G62	510 to 530	2/10/40
H54	520 to 636	2/10/40
K53†	606 to 698	2/10/40
K54△	606 to 663**	2/10/40
K55	606 to 694	2/10/40
K56	606 to 714	2/10/40
K57	606 to 790	2/10/40
K58	622 to 698	2/10/40
L54	630 to 787	2/10/40
L60	630.125 to 697.875	2/10/40
P55	694 to 703, 748 to 758, 803 to 806	2/10/40
R52	794 to 806	10
JB	806 to 810	2/10
X55	941 to 960	2/10/40
X56	960 to 1000	2/10/40

*With a gap between 608 to 614 MHz.

**With a gap between 608 to 614 MHz and a gap between 616 to 653 MHz.

***Power delivered to the antenna port.

†Operation mode varies according to region. In Brazil, High Density mode is used. The maximum power level for Peru is 10mW.

△Output power limited to 10 mW above 608 MHz.

◇Korea defines power as conducted (ERP) which is 1dB less then declared in table.

• Battery packs may explode or release toxic materials. Risk of fire or burns. Do not open, crush, modify, disassemble, heat above 140°F (60°C), or incinerate.
• Follow instructions from manufacturer
• Only use Shure charger to recharge Shure rechargeable batteries
•
  Danger of explosion if battery incorrectly replaced. Replace only with same or equivalent type.
• Never put batteries in mouth. If swallowed, contact your physician or local poison control center
• Do not short circuit; may cause burns or catch fire
• Do not charge or use battery packs other than Shure rechargeable batteries
• Dispose of battery packs properly. Check with local vendor for proper disposal of used battery packs.
• Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like
• Do not immerse the battery in liquid such as water, beverages, or other fluids.
• Do not attach or insert battery with polarity reversed.
• Keep away from small children.
• Do not use abnormal batteries.
• Pack the battery securely for transport.

Note: Use only with the included power supply or a Shure-approved equivalent.

Contact Customer Support

Didn't find what you need? Contact our customer support to get help.
