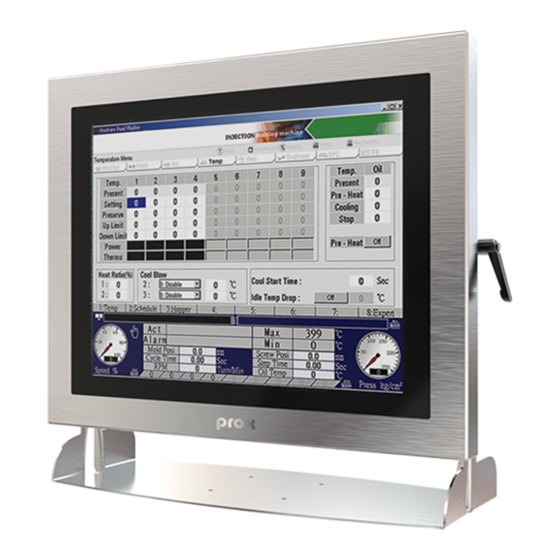

Protech Systems SG-S151 Quick Reference Manual

SG-S151/
SG-S171/
SG-S211
Quick
Reference
Guide
Jumper Setting
COM3 Pin9 RI/5V/12V
5 6 5
6 6
2 2 1 2 1
2
RI 12V
(default)
COM4 Pin9 RI/5V/12V
6 5 6 5 6
2 2 1 2
2 1
RI
12V
(default)
LVDS Backlight
Control Selection
1
3.3V
(default)
Clear CMOS Data
1 1
Normal
Clear
CMOS
(default)
LVDS VCC Voltage
1
3.3V
(default)
CAUTION!
Danger of explosion may occur if the battery is replaced incorrectly. Replace batteries only with the same or equivalent type recommended by the manufacturer. Dispose the
used batteries according to the manufacturer's instructions.
The waterproof capability of the device may be incapable when the screws are loosened.
The O-ring to seal the device may be damaged during the maintenance process. Qualified engineer is recommended to make the O-ring replacement to keep the waterproof
capability of the device.
All Rights Reserved. Copyright 2020
JP_COM4
1
5
COM4
1
5
5V
1
COM3
5
1
5
COM2
1
5
5V
1
COM1
5
JFP1
1
1
Specifications
System
CPU Type
Memory Support
Operating System
Enclosure
IP Rating
Power Input
Watchdog
Mounting Support
System Weight
Dimensions (WxHxD)
Certifications
I/O Ports
Power Input
Serial Port
LAN
USB
Storage
Expansion Slot
Display
LCD
Touchscreen
Environment
Operating Temperature HDD: 0°C~40°C (32°F~104°F) / SSD: 0°C ~ 50°C (32°F ~122°F)
(with airflow)
Ver. Q2
Storage Temperature
Humidity
VGA1
LAN2
5 6 5 6
JP_COM3
6
1 2 1 2
2
1
JLPC1
10
6
9 10
JDIO1
10
6
10
M_SATA1
6
10
9
1
2
M_PCIE1
10
PWR2
JP7
3 1
JBAT1
1 4 1
FAN1 JINV1
SG-S151/SG-S171/SG-S211
Intel Celeron J3455
® ®
Intel Atom x7 E3950 (for SG-S151 & SG-S171 only)
® ®
1 x DDR3L 1600/1867MHz SO-DIMM socket (up to 8GB)
Windows 10 IoT LTSC 2019
®
Ubuntu16.04 LTS
Stainless SUS304/SUS316
IP66/IP69K
DC In 12V/24V
1~255 second Watchdog timer selectable
Wall Mount / VESA 100 / Table Stand
SG-S151: 7.5kg / SG-S171: 8.5kg / SG-S211: 9.5kg
SG-S151: 420 x 335 x 70mm / SG-S171: 450 x 381 x 70mm
SG-S211: 590 x 395 x 70mm
FCC / CE
1 x M12 Waterproof Connector with Remote Switch
Supports 12V, 16~24V DC
1 x COM port with M12 waterproof connector
COM 1 for RS-232/422/485 selectable under BIOS
2 x GbE LANs with M12 waterproof connectors
LAN1: Intel I210IT / LAN2: Intel I210IT
Supports Wake-On-LAN
2 x USB 2.0 with M12 waterproof connectors
1 x 2.5" SATA III HDD or SSD
1 x full-sized Mini PCIe slot (Mini PCIe and USB signals)
SG-S151: 15" TFT LCD(LED) XGA (1024 x 768), 450 nits
SG-S171: 17" TFT LCD(LED) XGA (1280 x 1024), 350 nits
SG-S211: 21.5" TFT LCD(LED) XGA (1920 x 1080), 350 nits
Projected capacitive or 5-wire resistive touchscreen (USB I/F)
Wide Temperature SSD:
-20°C ~50°C (-4°F ~ 122°F) SSD (for x7-E3950 only)
-20°C ~ 80°C (-4°F ~ 176°F)
20%~ 90%
SG-S151/SG-S171/SG-S211
LAN1 HDMI1
JMCU1
4 1
1
SATA_PWR1
10
9
AUDIO1
1
2
SW1
JP3
JP4
1
LVDS1
1 2 1 29
4
1
5
1 7
3
2 30
JP_VDD1 SATA1
USB2 USB1
1
4
JI2C1
SO_DIMM1
USB3
JP9
1
9
10 2
