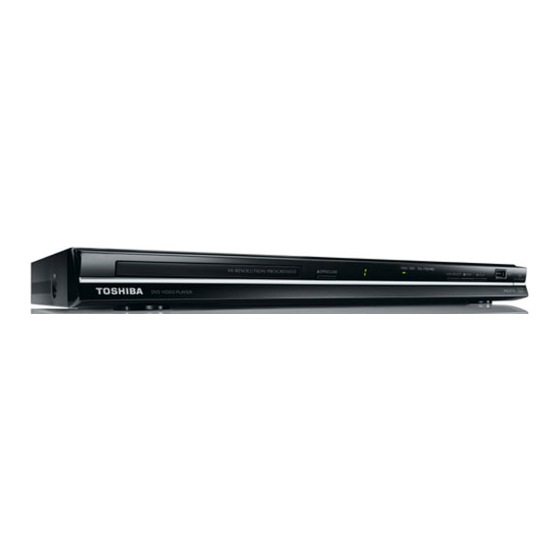

Page 1: Dvd Player
DIGITAL VIDEO DVD PLAYER SD590EKE OWNER’S MANUAL © 2009 Toshiba Corporation Introduction Connections Basic playback Advanced playback Function setup Others... -
Page 2: Introduction
"This product is marked with "CE" and complies therefore with the applicable harmonized European standards listed under the Low Voltage Directive 2006/95/EC and the EMC Directive 2004/108/EC." Responsible for CE-marking is TOSHIBA INFORMATION SYSTEMS (U.K.) LTD, Toshiba Court, Weybridge Business Park, Addlestone Road, Weybridge,... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read these instructions. Keep these instructions. Read all warnings. Follow all instructions. Do not use this appliance near water. Clean only with a dry cloth. Do not block any of the ventilation openings. Install in accordance with the manufacturer's instructions. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat. - Page 4 Introduction IMPORTANT SAFETY INSTRUCTIONS SOME DOS AND DON’TS ON THE SAFE USE OF EQUIPMENT This equipment has been designed and manufactured to meet international safety standards but, like any electrical equipment, care must be taken if you are to obtain the best results and safety is to be assured. So, please read the points below for your own safety.
-
Page 5: Precautions
Precautions Notes on handling When shipping the DVD player, the original shipping carton and packing materials come in handy. For maximum protection, repack the unit as it was originally packed at the factory. Take care not to give it a shock or shake when carrying. -
Page 6: Notes On Discs
Introduction Notes on Discs On handling discs Do not touch the playback side of the disc. Playback side Do not attach paper or tape to discs. On cleaning discs Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the center outwards with a soft cloth. -
Page 7: Playable Discs
Because of problems and errors that can occur during the creation of DVD and CD software and/or the manufacture of DVD and CD discs, Toshiba cannot assure that this DVD player will successfully play every disc bearing the DVD and CD logos. -
Page 8: Table Of Contents
Introduction Table of Contents Introduction SAFETY PRECAUTIONS ... 2 IMPORTANT SAFETY INSTRUCTIONS ... 3 Precautions ... 5 Notes on Discs ... 6 Notes on region numbers ... 7 Table of Contents ... 8 Identification of Controls ... 9 Front panel ... 9 Rear panel ... -
Page 9: Identification Of Controls
Identification of Controls See the page in for details. Front panel Rear panel HDMI OUT Power Cord jack AV (SCART) socket DVD display The indicators vary depending on the kinds of discs you play. Bad disc No disc Bad disc DVD VIDEO VIDEO CD •... -
Page 10: Remote Control
Introduction Identification of Controls (continued) The instructions in this manual describe the functions on the remote control. See the page in Remote control DVD button * RETURN button Return to menu display for VCD (2.0) discs with menu. for details. HDMI button USB button * MENU button... -
Page 11: Loading Batteries
Loading batteries Open the cover. Insert batteries (R03/AAA size). Make sure to match the + and – on the batteries to the marks inside the battery compartment. Caution • Never throw batteries into a fire. Notes • Be sure to use R03/AAA size batteries. •... -
Page 12: Connections
Connections Connecting to a TV Connect the DVD player to your TV. Connecting to a TV (Using the SCART socket) Normal TV SCART cable (not supplied) Connecting to a TV (Using the phono type jacks) Normal TV T o audio T o video input input... -
Page 13: Connecting To A Display
About HDMI HDMI (High Definition Multimedia Interface) supports both video and audio on a single digital connection for use with DVD players, DTV, set-top boxes, and other AV devices. HDMI was developed to provide the technologies of High Bandwidth Digital Content Protection (HDCP) as well as Digital Visual Interface (DVI) in one specification. -
Page 14: Connecting To Optional Equipment
Connections Content of the output for each output jack is shown in the following table and differ depending on the On-Screen Display Setting: HD JPEG Mode: Off On-Screen Display Setting Content of output for each output jack "Video Out" HDMI Output HDMI Setting Setting *... -
Page 15: Connecting To An Amplifier Equipped With A Dolby
Connections Connecting to Optional Equipment (Continued) Connecting to an amplifier equipped with a Dolby Dolby Digital Dolby Digital is the surround sound technology used in theaters showing the latest movies, and is now available to reproduce this realistic effect in the home. You can enjoy motion picture and live concert DVDs with this dynamic realistic sound by connecting the DVD player to a 6 channel amplifier equipped with a Dolby Digital decoder or Dolby Digital processor. -
Page 16: Dts Decoder
Connections Connecting to Optional Equipment (Continued) Connecting to an amplifier equipped with a DTS Digital Theater Systems (DTS) DTS is a high quality surround technology used in theaters and now available for home use, on DVDs or audio CDs. If you have a DTS decoder or processor, you can obtain the full benefit of 5.1 channel DTS encoded sound tracks on DVDs or audio CDs. -
Page 17: Playing A Disc
Playing a Disc This section shows you the basics on how to play a disc. Basic playback Preparations • When you want to view a disc, turn on the TV and select the video input connected to the DVD player. •... -
Page 18: Variable Speed Playback
Basic playback Variable Speed Playback You can play discs at various speeds, and resume playback from the location where you stopped playback. Playing in fast reverse or fast forward directions Press REV or FWD during playback. REV: Fast reverse playback FWD: Fast forward playback Each time you press the REV or FWD button, the playback speed changes. -
Page 19: Locating A Desired Section
To start playback from the beginning regardless of the location where you stopped playback. 1 Press STOP twice. The DVD player deletes the memory of the location. 2 Press PLAY. Playback starts from the beginning of the current title. Playback starts from the beginning of the disc. Playback starts from the beginning of the current track. -
Page 20: Advanced Playback
Advanced playback Accessing a Specific Location Directly Locating a specific title/chapter/time Press T. Press to highlight the Title/Chapter/ Track/Time. e.g. SEARCH 00 : 00 : 00 Track Time 00 : 00 : 00 Disc Time Press to select a section you want to locate. -
Page 21: Repeating A Specific Segment
Repeating a Specific Segment You can specify a desired segment and repeat it. Repeating a specific segment Press A-B RPT at the beginning of the segment (point A) you want to play repeatedly. A-B RPT Rep A- Press A-B RPT again at the end of the segment (point B). -
Page 22: Playing In A Favourite Order
Advanced playback Playing in a Favourite Order You can combine your favourite titles, chapters, or tracks and play them in the order you determine. You can program up to 12 selections into the memory. (Memory playback) Setting titles, chapters or tracks in a favourite order Insert a disc and press MEMORY during stop. -
Page 23: Zooming A Picture
Zooming a Picture You can magnify areas within a picture. Zooming a picture Press ZOOM during normal, slow or still playback. The centre part of the image will be ZOOM zoomed in. e.g. Each time you press the ZOOM button, the magnification level changes as follows: Press the ZOOM button to select the magnification level. -
Page 24: Selecting The Picture Enhancement (E
Advanced playback Selecting the Picture Enhancement (E.P.M.*) You can easily select a preferred picture enhancement. *E.P.M.: Enhanced Picture Mode Selecting the picture enhancement Press E.P.M. E.P.M The picture enhancement menu appears. Contrast Select the picture enhancement by pressing / , then press your selections. -
Page 25: Selecting The Camera Angle
Selecting the Camera Angle If the scene was recorded from multiple angles, you can easily change the camera angle of the scene you are watching. Changing the camera angle Press ANGLE while playing a scene recorded with multiple angles. ANGLE While playing a scene recorded with multiple angles, press the ANGLE button. -
Page 26: On-Screen Display Operation
Advanced playback On-screen Display Operation When you turn on the on-screen display, you can view information on operational status and access features and settings. On-screen display operation Press NAVI. NAVI The following display appears. e.g. When playing a DVD. Chapter number 00:30:34/01:00:52 1/1 5/12 Elapsed time Remaining time... -
Page 27: Playing Mp3 Files
Please be advised that you must obtain permission from the applicable copyright owners to download copyrighted content, including music files, in any format, including the MP3 formats, prior to the downloading thereof. Toshiba has no right to grant and does not grant permission to download any copyrighted content. “... -
Page 28: Viewing Jpeg Files
Advanced playback Viewing JPEG Files You can play JPEG files that have been recorded on a CD-R or CD-RW on the DVD player. You can select a preferred view: a page of 9 thumbnail images or a single image view. Also, rotating, enlarging and shifting of each image can be possible. To playback in HD JPEG resolution, see Viewing JPEG files Preparations... -
Page 29: Playing Divx /Mpeg-4 Files
JPEG files compatibility Discs whose compatibility with this DVD player has been confirmed by TOSHIBA are as follows. CANON QuickCD FUJICOLOR CD Kodak Picture CD NORITSU QSS CD JPEG disc compatibility with this DVD player is limited as follows: • Playable discs: CD-R (650MB / 74 min. -
Page 30: Playing Usb Device
Advanced playback Playing USB Device You can connect the USB flash drives (not included) to the USB jack on the front of DVD player. ® You can play the files in MP3, DivX or JPEG format stored on a USB flash drive by connecting it to this player. Connecting to USB flash drive Plug the USB flash drive to the USB jack on the front of DVD player. -
Page 31: Customizing The Function Settings
Customizing the Function Settings You can change the default settings to customize performance to your preference. Setting procedure Press SETUP during stop. The following on-screen display appears. Language : English : Off DivX subtitle : ASCII : English DVD Menu : English Press to select an option for the... - Page 32 Function setup Customizing the Function Settings (continued) Setting details Language DivX subtitle DVD Menu Notes • Some DVDs may be set to display subtitles in a different language other than you selected. A prior subtitle language may be programmed on the disc. •...
- Page 33 Aspect Ratio : 16 : 9 Video : Auto Fit TV System : PAL Video Out : HDMI HDMI Resolution : Auto HD JPEG Mode : On JPEG Interval : 5 seconds Aspect Ratio 1) Press SETUP button. 2) Press button to select Video.
-
Page 34: Video Out
Function setup Customizing the Function Settings (continued) Setting details TV System 1) Press SETUP button. 2) Press button to select Video. 3) Press button, then use the button to select TV System. 4) Press ENTER button, then use the and change the TV system. 5) Press ENTER button. -
Page 35: Jpeg Interval
JPEG Interval 1) Press SETUP button. 2) Press button to select the Video. 3) Press button, then the button to select the JPEG Interval. 4) Press ENTER button, then the button to shift and change the JPEG Interval. 5) Press ENTER button. 6) Press SETUP button to exit the menu. -
Page 36: Parental Control Dvd
Function setup Customizing the Function Settings (continued) Setting details Parental Control DVDs equipped with the password function are rated according to their content. The contents allowed by a parental lock level and the way a DVD can be controlled may vary from disc to disc. For example, if the disc allowed, you could edit out violent scenes unsuitable for children and replace them with more suitable scenes, or you could lock out... - Page 37 ® DivX Registration ® Some DivX Video-On-Demand files required registration code, please get the code of your DVD player as follow: 1) Press SETUP button. 2) Press button to select Misc. 3) Press button, then use the button to select DivX Registration.
-
Page 38: Others
Others Table of Languages Table of languages and their abbreviations Language – – – No alternate language CHI (ZH) Chinese DUT (NL) Dutch ENG (EN) English FRE (FR) French GER (DE) German ITA (IT) Italian JPN (JA) Japanese KOR (KO) Korean MAY (MS) Malay... -
Page 39: Before Calling Service Personnel
Others Before Calling Service Personnel Check the following guide for the possible cause of a problem before contacting service. Symptoms and correction Symptom Cause No power. • The power plug is disconnected. The DVD player turned off by • The automatic power off function turned the itself. -
Page 40: Specifications
Others Specifications DVD player / outputs / supplied accessories DVD Player Power supply 100V - 240V AC, 50/60Hz Power consumption 11 W (standby: less than 1.0W) Mass 1.26 kg External dimensions 430 x 41 x 197 mm (W/H/D) Signal system PAL/3.58 NTSC Laser Semiconductor laser, wavelength 650/780 nm...
