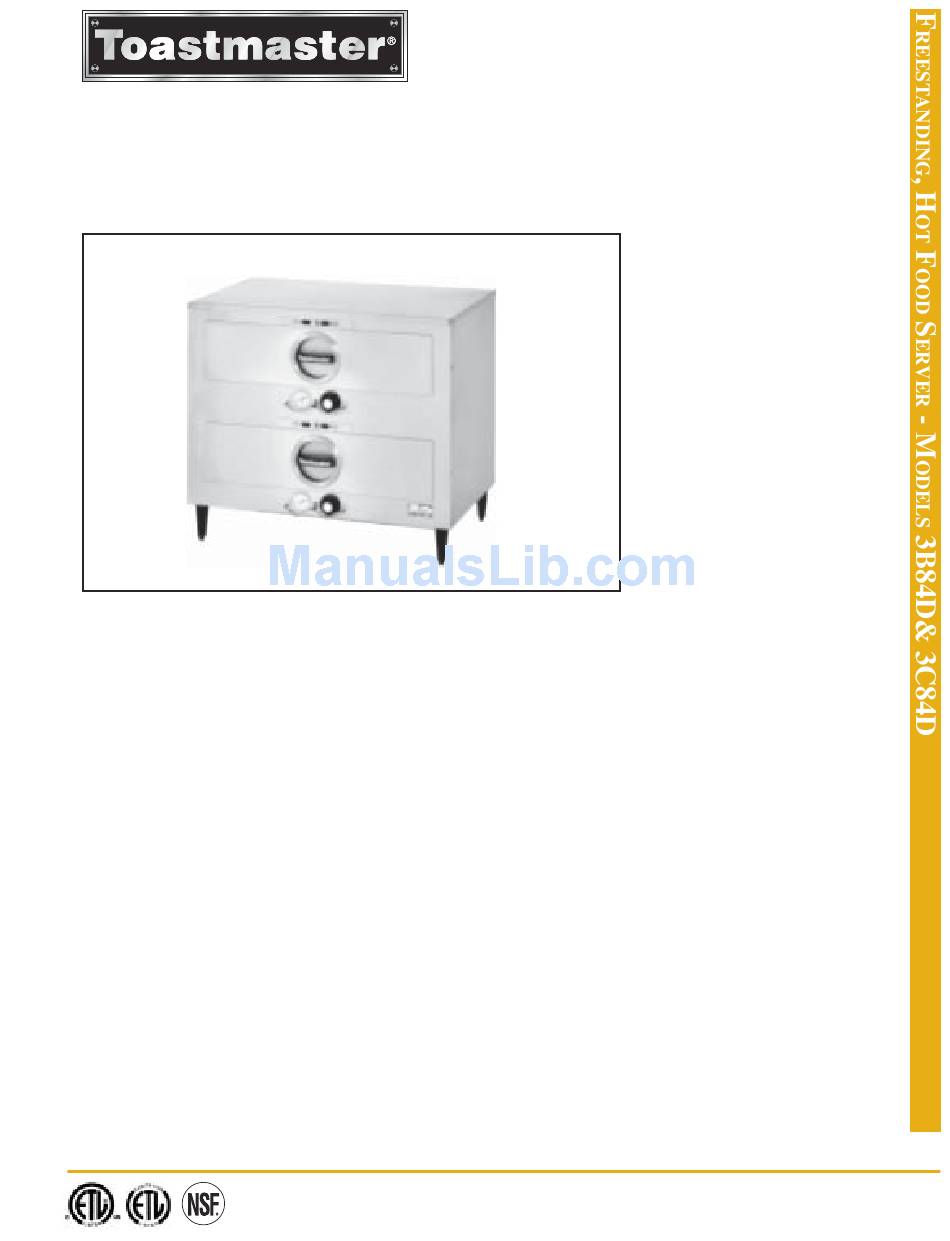

Toastmaster 3B84D Brochure

Freestanding, Hot Food Server
Models 3B84D & 3C84D
Application
Hot food servers are designed to hold
cooked foods at a safe, thermometer
verified serving temperature and proper
moisture content. Hot food can be
placed into the drawer(s) either directly
or in separate open pans or containers.
Holding temperature and moisture
content can be set for the type of food
being held.
General Information
Freestanding, drawer-type hot food
server comes in two or three drawer
models. Each drawer is furnished with a
removable, deep drawn stainless steel
pan. See dimensional data and preheat
chart on reverse side. Model 3B84D
includes a set of 4" NSF approved,
adjustable legs. Model 3C84D - legs or
casters optional at extra cost.
Construction
The frame is of welded and reinforced
sheet steel. The exterior cabinet and
drawer fronts are of stainless steel with
an aluminized steel inner lining.
Drawers are equipped with a handle
operated latching mechanism and
positive stop. Drawers glide on third
member suspension system rails. Third
members have five (5) roller bearings
with Individual Drawer Controls
3B84D
(load support) and five (5) guide
bearings (smooth operation) each (i.e.
twenty (20) bearings per drawer).
Insulation
Fully insulated on all six sides, including
drawer fronts, with blanket-type fiber
glass insulation.
Electrical
Provided with a factory installed 3 ft
cord and plug: NEMA 5-15 plug for
120V, NEMA 6-15 plug for 208/240V.
Single phase only. See electrical data
chart on reverse side.
Heating
Heating is accomplished with preformed
tubular heating elements. Models
3B84D and 3C84D have individual
drawer heat control and, therefore,
have a separate heating element for
each drawer.
Controls
Temperature is regulated by hydraulic
thermostat adjustable from 100
o
200 F, with "OFF" position. Thermostat
control is mounted on front below each
drawer and is equipped with adjacent
signal light. Each thermostat knob is
protected by a knob guard. The
