Toastmaster 3B84A Brochure

Built-in, Hot Food Servers
Models 3B84A, & 3C84A
INTENDED FOR COMMERCIAL USE ONLY. NOT FOR HOUSEHOLD USE.
Toastmaster, in line with its policy to continually improve its product, reserves the right to change materials or specifications without notice. Such
revisions do not entitle the buyer to corresponding changes, improvements, additions, or replacements for previously purchased equipment.
1400 Toastmaster Drive, Elgin IL 60120-9272 USA - Tel: 847-741-3300 - Fax: 800-635-4725 - www.toastmastercorp.com
Form 205 Rev 0 (02/05)
Built-in, Hot Food Servers
Models 3B84A & 3C84A
3B84A 3C84A
Application
member suspension system rails.
Hot food servers are designed to hold Third members have five (5) roller
cooked foods at a safe, thermometer bearings (load support) and five (5)
verified serving temperature and guide bearings (smooth operation)
proper moisture content. Hot food can each (i.e. twenty (20) bearings per
be placed into the drawer(s) either drawer).
directly or in separate open pans or
containers. Holding temperatures and
moisture content can be set for the
type of food being held.
General Information
Built-in, drawer-type hot food servers
come in two or three drawer models.
3B84A has two drawers and 3C84A
has three drawers. Each drawer is
individually themostatically controlled
Insulation
and comes with a removable, deep
Fully insulated on all six sides,
drawn 22-1/2"L x 13-5/8"W x 5-1/4"H
including drawer fronts, with blanket-
stainless steel pan. See dimensional
type fiber glass insulation.

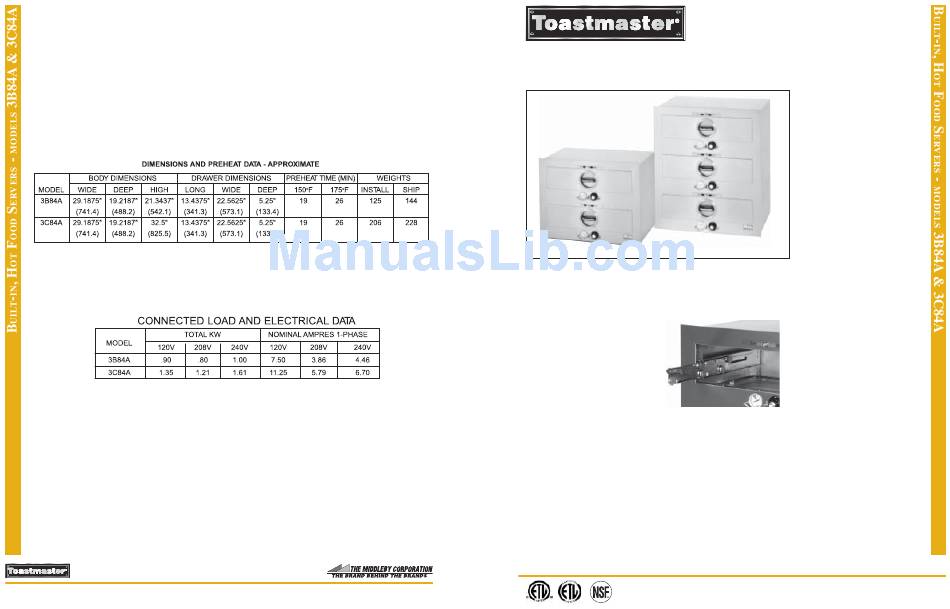

data and preheat chart on reverse
side.
Electrical
Provided with 48" flexible metal
Construction
conduit for electrical connection.
The frame is of welded and reinforced
Available in 120V or 208/240V units,
sheet steel. The body is of aluminized
single phase only. See electrical data
steel with stainless steel drawer fronts
chart on reverse side.
and flange. The integral front flange
extends beyond the body 1/2" at top
Heating
an bottom and 3/8" at the sides.
Heating is accomplished with
Drawers are equipped with a handle
preformed tubular heating elements.
operated latching mechanism and
positive stop. Drawers glide on third
1400 Toastmaster Drive, Elgin IL 60120-9272 USA - Tel: 847-741-3300 - Fax: 800-635-4725 - www.toastmastercorp.com
Form 205 Rev 0 (02/05)
Foodservice Equipment
Job ________ Item# ________
with Individual Drawer Controls
Model 3B84A and 3C84A have
individual drawer heat control;
therefore, each drawer has a separate
heating element.
Controls
Temperature is regulated by hydraulic
thermostat adjustable from 100
200 o F, with "OFF" position.
Thermostat control is mounted on
front below the drawer(s) and is
equipped with adjacent signal light.
Each drawer is fitted with a moisture
control slide adjustment located at
center front above each warming
drawer. A thermometer accurately
reflects the temperature at the coolest
point inside the server. This safety
feature ensures that food products are
being held at a temperature above the
bacterial growth level, and at
temperatures below those that may
overcook or dry-out food.
Capacity
Designed to hold precooked foods at
serving temperature, hot food servers
are ideal for baked potatoes,
vegetables, ribs, buns and rolls. Each
drawer holds one 12" x 20" pan, 5"
deep. Nominal capacities per drawer:
40 baked potatoes (120 count)
8 #10 cans vegetables
30 lb. ribs
6-1/2 doz. hamburger buns
7 doz. dinner rolls
No Quibble Warranty
Warranty includes one year parts and
labor, on-site service (USA only)..
Ordering Information
! 3B84A - 120V, 1 phase
! 3B84A - 208/240V, 1 phase
! 3C84A - 120V, 1 phase
! 3C84A - 208/240V, 1 phase
! Pan - ACCPANALL
o F to
