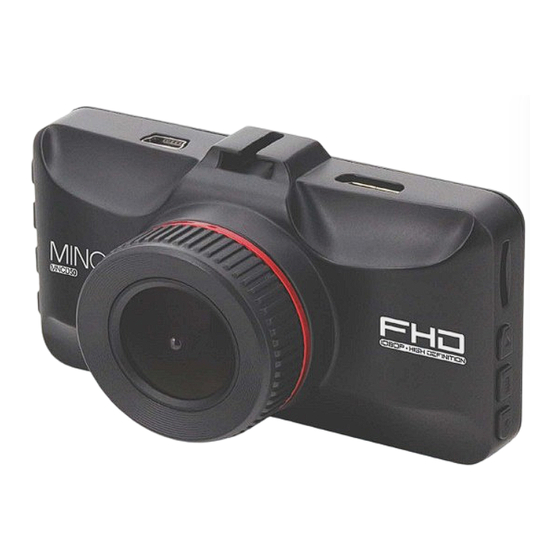

- Page 1 MNCD50 MINOLTX Dash Cam...
- Page 2 ADDENDUM A Q: My camera will not respond to any buttons presses. Why is this happening? A: Your dash-cam is designed to prioritize the recording of video and will not allow any interruptions. The menu and other modes can only be operated while the dash-cam is in standby (not recording). Q: How can I access the menu or change modes while my camera is recording (blinking red dot at top of screen)? A: If Motion Detection is enabled (if this icon...
- Page 3 Getting Started Simply insert the MicroSD card into the MicroSD card slot, and insert the auxiliary power adaptor into the camera’s USB port and your car’s power port. The camcorder will automatically power on and begin recording video. Remove the auxiliary power adaptor to automatically save a recording and power the camcorder off. To start or stop recording at any time, press the RECORD button.
- Page 4 The Minolta MNCD50 allows you to record video when mounted to your car’s windshield in a wide, large angle. This quick guide explains how to use your camcorder and provides additional information, including precautions and technical specifications.
- Page 5 OVERVIEW Display MicroSD Card Slot Status LED Indicator 10 Up Speaker & Microphone 11 Menu Reset 12 Down OK/Record 13 Front Lens Lock File/Parking Monitor 14 USB Port Mode 15 Mount Port 16 HDMI Port Power...
-
Page 6: Getting Started
GETTING STARTED MicroSD Card Insertion and Removal Ensure the camera is powered off. Insert a MicroSD card into the MicroSD card slot with the gold pins facing the direction of the display screen. The MicroSD card can only be inserted in one direction. Do not force it through. Once successfully inserted, it will click in. -
Page 7: Camcorder Operation
Quick Use Simply insert a MicroSD card into the MicroSD card slot, and insert the auxiliary power adaptor into the camera’s USB port and your car’s power port. The camcorder will automatically power on. Remove the auxiliary power adaptor to automatically save a recording and power the camcorder off. To start or stop recording at any time, press the RECORD button. -
Page 8: Video Mode
VIDEO MODE 1. VIDEO Mode 2. Loop Recording Enabled 3. Motion Detection Recording Enabled 4. Exposure Value 5. G-Sensor Enabled 6. Recording Time Remaining 7. Current Date 8. Current Time 9. Current Battery Power Level 10. MicroSD Card Inserted 11. Microphone Enabled 12. -
Page 9: Playback Mode
PLAYBACK MODE Press the MODE button until you enter PLAYBACK mode. It is the third mode. PLAYBACK mode allows you to browse through your photos and videos, and allows you to playback files recorded by your camcorder. Press the UP and DOWN buttons to cycle through available playback files. ... - Page 10 MENU & SETTINGS INTERFACE The menu interface is available in all 3 modes and the options settings differ depending on the current mode enabled. To access VIDEO and PHOTO mode settings: Press the MODE until you are in either VIDEO or PHOTO mode. While in VIDEO mode, you will notice a camcorder icon in the top left corner.
- Page 11 Video Mode Menu While in VIDEO mode, press the MENU button to enter the recording menu interface. Resolution: Sets the size of the video recording. 1080FHD is the highest and clearest setting. Loop Recording: Allows you to set a maximum duration for each video clip recorded. WDR: Balances lighting when one part of a scene is very dark, while another part is bright.
- Page 12 Photo Mode Menu While in PHOTO mode, press the MENU button to enter the photo menu interface. Resolution: Sets the size of the photo being captured. 12M is the highest and clearest setting. Sequence: Enables a sequence of 5 consecutive images to be captured. Each image is automatically captured 2 seconds apart until all 5 images are successfully captured.
- Page 13 Setup / Main Menu While in any mode, press the MENU button twice to enter the main menu interface. Park Mode: Will automatically power the camcorder on and record a video clip, if the camcorder detects a collision while parked and powered off. You can set the sensitivity level in this menu. Date/Time: Allows you to set a date and time for display on videos and photos.
- Page 14 Default Setting: Allows to reset all of the settings to factory defaults. Version: Displays the current firmware version. ***To imprint your CAR NUMBER or LICENSE PLATE NUMBER on recorded media: While in either PHOTO or VIDEO mode, press the MENU button twice to access the SETUP/MAIN settings.
-
Page 15: Media Transfer
MEDIA TRANSFER Connecting to a Computer Connect your camcorder to a computer with the included USB cable. When the camcorder automatically powers on, the following prompts will display. Select “Mass Storage” and press the RECORD key to continue. ... -
Page 16: Technical Specifications
TECHNICAL SPECIFICATIONS LCD Display Screen 3.0 inch 230k LCD Screen Anti-Shake Technology Electronic Image Stabilization Field of View Super wide angle; 150 Degrees 1080FHD 1920X1080 30fps Video Resolution 720P 1280X720 30fps 12 Mega Pixels; 10 Mega Pixels; 8 Mega Pixels; 5 Mega Pixels; 3 Photo Resolutions Mega Pixels;... - Page 17 800-441-1100. Please be sure to have your camera handy when calling. Minolta is a registered trademark of JMM Lee Properties, LLC and is used in the United States by Elite Brands under license. © August 2017, Elite Brands Inc.
