Toa BS-1030 Specifications

B S - 1 0 3 0 B /
B S - 1 0 3 0 W
M / P
U S I C A G I N G
S
P E A K E R S

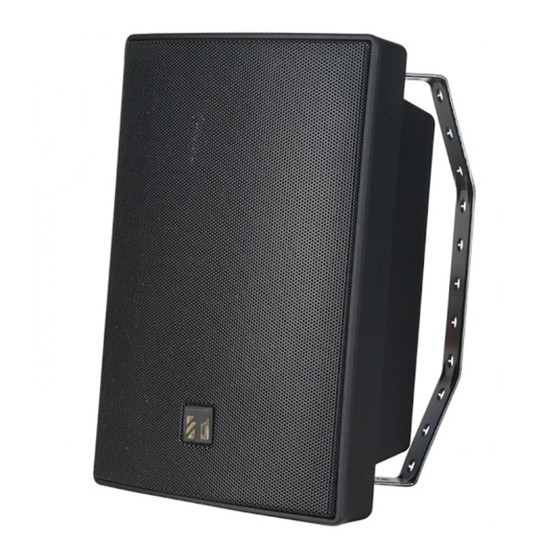

THE TOA BS-1030 MUSIC/PAGING SPEAKER has
exceptional sound quality and value for a wide
variety of applications. Available in black and
white, the versatile BS-1030 is designed for both
indoor and outdoor use with a durable ABS resin
enclosure and steel mesh grille.
The two-way, bass-reflex design features a 4.72"
(12 cm) cone woofer, 1" (2.5 cm) dome tweeter
and built-in multi-tap transformer with screw-
driver-adjustable power taps. A transformer
bypass setting allows direct 8-ohm operation.
Installation is fast and easy with the supplied
mounting bracket or rear panel keyholes for
horizontal or vertical surface-mounting.
The BS-1030 speakers are backed with a five year
warranty.
APPLICATIONS
Audio/Visual
Airports
Bars/Lounges/Nightclubs
Convention Centers
Corporate Boardrooms
Hotels/Hospitality
Houses of Worship
Museums
Offices
Patios
Residential Spaces
Restaurants
Retail Stores
Schools
Theaters
Theme Parks
H
I G H L I G H T S
Compact Speaker for Music and
Voice Paging Distribution
Clear, Natural Sound Reproduction
TOA Quality and Reliability
Wide Variety of Indoor/Outdoor
Applications
Available in Black (BS-1030B) and
White (BS-1030W)
Weather-Resistant (IEC IP-X4 Rating)
Mounting Bracket Included
Horizontal or Vertical Mounting
with rotatable logo badge
Durable ABS Resin UV-Resistant
Paintable Enclosure
O A
P T I O N A L C C E S S O R I E S
FB-100
Subwoofer
HB-1
Flush-Mount In-Wall Subwoofer
WCB-12
Swivel Bracket, Black
WCB-12W
Swivel Bracket, White
Two-Way, Bass-Reflex Design
4.72" Cone Woofer and
1" Dome Tweeter
Steel Mesh Grille
Power Handling:
90 W (Continuous Program)
Sensitivity:
90 dB SPL (1 W/1 m)
Frequency Response:
80 Hz to 20 kHz
Built-in Multi-tap Transformer
(70.7/100 V)
Screwdriver-Adjustable Power Tap
Settings:
5, 10, 15, 20 and 30 W
Direct 8-Ohm Mode
Five Year Warranty
