"I give a standing ovation to Jim Thiel
and the gang at THIEL Audio for not
only conceiving of the SmartSub and its
ancillaries, but making them a reality.
THIEL has taken a well-known product
[category], addressed its deficiencies,
improved its performance and made it
more intuitive to use. Voilà—they've re-
engineered the status quo."
—Marc Mickelson,
SoundStage
O
ur goal in developing a subwoofer system
was to produce a product that achieves a very high
sonic quality but does not exhibit the sonic
problems typical of subwoofers. In particular,
conventional subwoofer systems usually do not
integrate well sonically with other speakers in the
system and our SmartSub products were originally
inspired by the now patented idea of an electronic
means of generating subwoofer crossover
characteristics that could be made to perfectly
match any main speaker. In addition, unbalanced
response caused by placement near walls has also
been solved in our SmartSub designs. We believe
that the major problems of subwoofers have been
effectively eliminated in our THIEL SmartSub
subwoofer products.

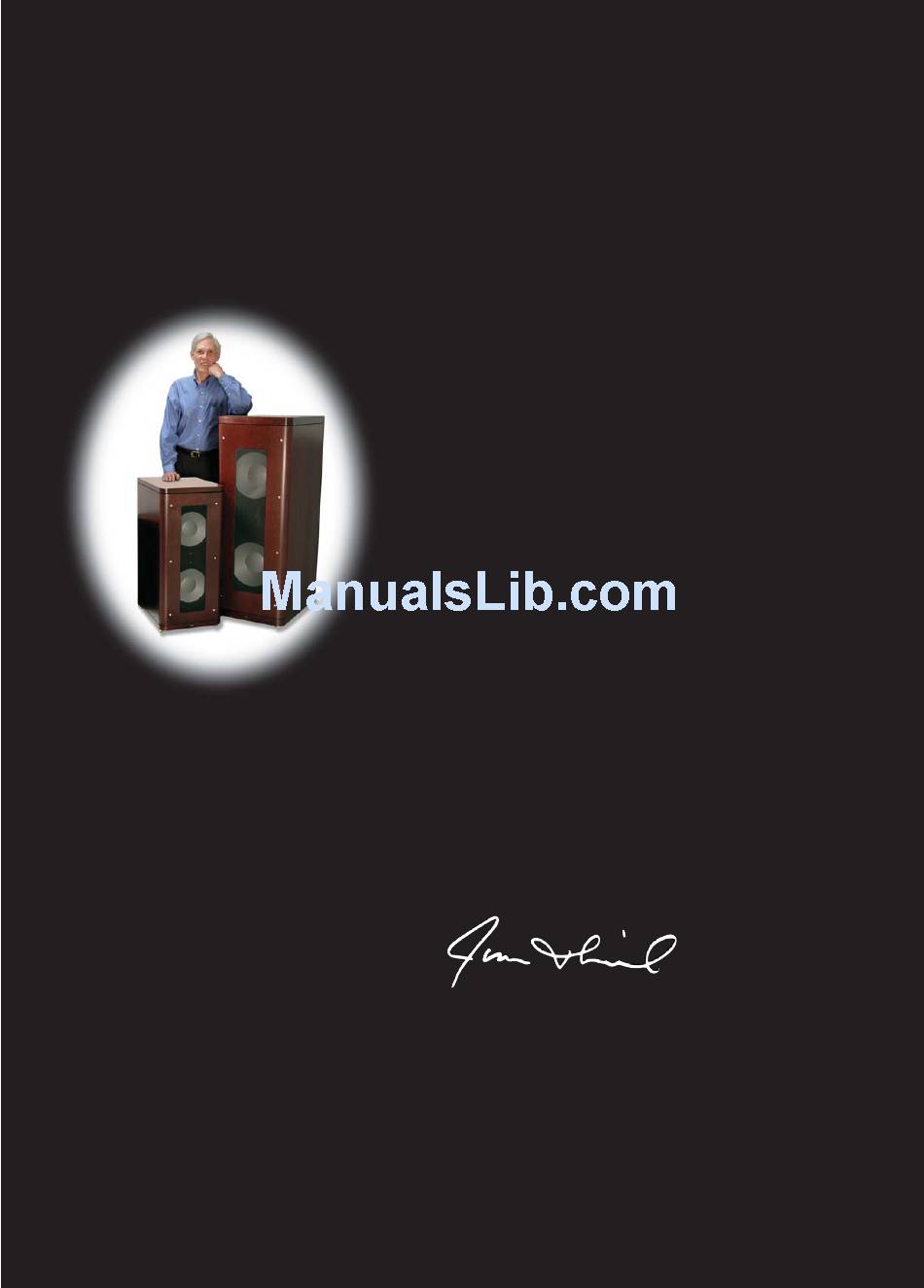

Jim Thiel
Advertisement
Related Manuals for Thiel PCS
Summary of Contents for Thiel PCS
- Page 1 “I give a standing ovation to Jim Thiel and the gang at THIEL Audio for not only conceiving of the SmartSub and its ancillaries, but making them a reality. THIEL has taken a well-known product [category], addressed its deficiencies, improved its performance and made it more intuitive to use.
- Page 2 THIEL Awards and Honors CES Innovations Design & Engineering Awards Audio/Video International Grand Prix “Product of the Year” Awards The Absolute Sound or Perfect Vision “Editors’ Choice” Awards SoundStage “Reviewers’ Choice” Awards Stereophile “Speaker of the Year” & “Runner-up“ Awards StereoSound COTY- “Components of the...
- Page 3 Reach your system’s true potential with THIEL’s SmartSub bass components, regardless of your current brand of main speakers.

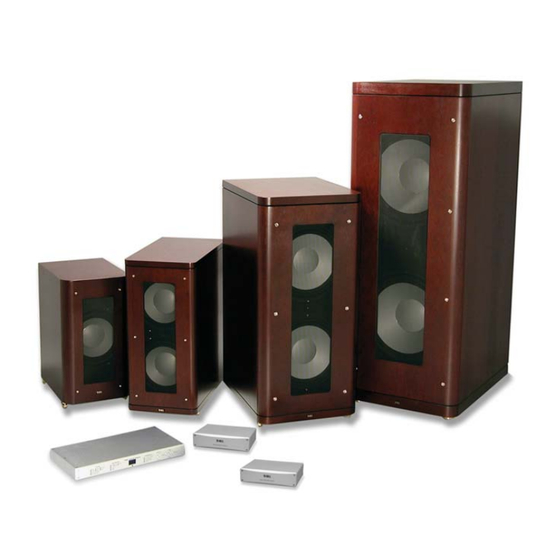

- Page 4 THIEL SmartSub subwoofers. Use as either a powered, stand alone system for reproducing the “point one” channel in a home theater system, or combined with either the companion SmartSub Integrator or the THIEL PX02 or PX05 Passive Subwoofer Crossovers for full system bass reproduction.
- Page 5 The model SS4 employs two long-throw 15" woofers in a 51" H x 19" W x 26.5" D, 290 pound cabinet with up to 113 dB of output at 20 Hz and up to 120 dB at 30 Hz to meet the needs of consumers who desire extraordinary amounts of bass output for their home...
- Page 6 SmartSub Integrator: Perfectly match a THIEL subwoofer to ANY main speaker The SmartSub SI 1 Integrator is designed to provide the unprecedented ability to perfectly match THIEL subwoofers to any speaker, regardless of brand or type, for seamless, coherent sound. The Integrator takes the guesswork out of subwoofer crossover adjustments.
- Page 7 SmartSub Integrator: Perfectly match a THIEL subwoofer to ANY main speaker The SmartSub SI 1 Integrator is designed to provide the unprecedented ability to perfectly match THIEL subwoofers to any speaker, regardless of brand or type, for seamless, coherent sound. The Integrator takes the guesswork out of subwoofer crossover adjustments.
-
Page 8: Specifications
Passive Subwoofer Crossovers: Perfectly match a THIEL subwoofer THIEL Passive Subwoofer Crossovers allow a THIEL subwoofer to perfectly blend its output to augment the output of your main THIEL speakers. Individual THIEL model versions of the two-channel PX02 and the five-channel PX05 are each designed to create a seamless match with its main THIEL speaker models’... - Page 9 Design & Engineering The difference is our engineering Designing a better subwoofer THIEL’s excellence in loudspeaker engineering and design is what separates us from other companies. Our in-house designed drivers represent state-of- the-art technology and performance that greatly contribute to the exceptional sound reproduction provided by our entire line of award-winning speakers.
- Page 10 Solution for Wall and Corner Placement Problems THIEL’s SmartSub subwoofers can be easily adjusted to accurately eliminate room interaction problems for any placement. SmartSub Amplifier measurements. The result is the elimination of room boundary problems for outstandingly balanced and smooth bass reproduction.
- Page 11 Manufacturing Building a better loudspeaker THIEL speakers are ruggedly constructed with great attention to detail. We strike a fine balance between hand craftsmanship and the use of high-precision machines to meet the THIEL standard. “At THIEL, quality is nothing extraneous, rare, or...
- Page 12 Maple Walnut Black Ash so your THIEL finish may differ from the samples shown. THIEL is concerned about the impact of manufacturing on the environment. We purchase veneer only from responsible foresters, and contribute to sustainable forest management by funding the planting of 10 trees for each that we use.
