Supplemental
Technical Information
for model

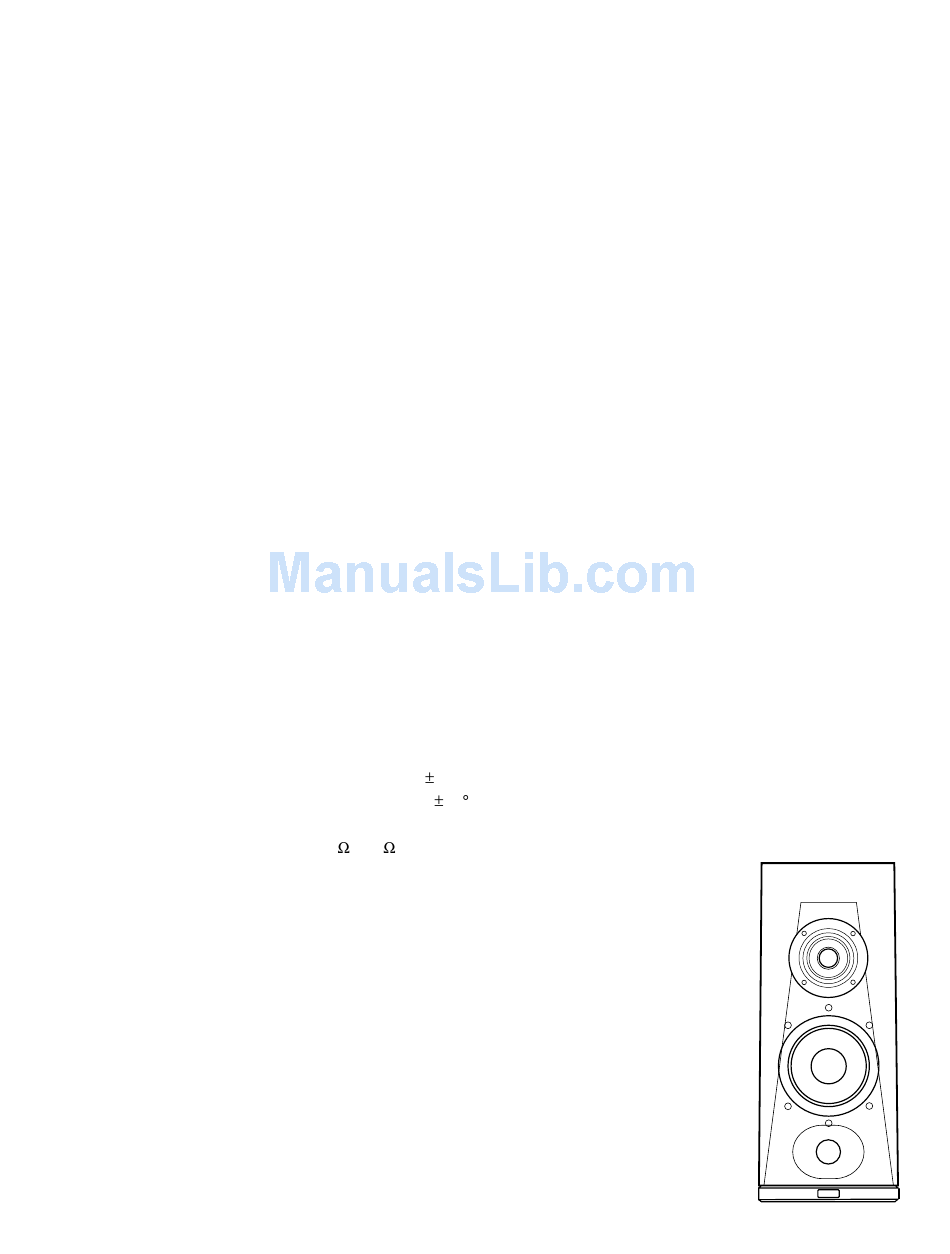

THIEL PCS
Coherent Source
This paper contains only information specific to the PCS speaker system.
It is intended to supplement the general technical information paper
which explains our engineering philosophy, goals and techniques.
THIEL PCS SPECIFICATIONS
Bandwidth (-3 dB)
Amplitude response
Phase response
Sensitivity
Impedance
Recommended Power
Size (W x D x H)
Weight
Driver Complement:
Woofer
6.5" (5.1" radiating area) with anodized aluminum cone, cast frame, 1.7"
dia voice coil. Underhung coil (short coil/ long gap) motor system. Linear
travel
3
/
" pk-pk, 3 in
3
linear displacement. 2.5 lb. magnet, 6 lb total magnet
16
structure plus 1.2 lb. shielding magnet. Copper pole sleeve. Made by THIEL.
Coaxial Midrange/ Tweeter
Midrange 4" (2.7" radiating area) with anodized aluminum diaphragm,
cast frame, 1" dia voice coil. Underhung coil (short coil/long gap) motor
1
system. Linear travel
/
" pk-pk. Magnet weight of .7 lb powers midrange and
8
tweeter. Tweeter 1" (1.2" radiating area) with anodized aluminum dome.
Coincident with midrange.Copper pole sleeve. Ferrofluid. Magnetically
shielded. Made by THIEL.
®
55 Hz - 23 kHz
57 Hz - 18 KHz 2 dB
minimum 10
87 dB @ 2.8 v-1m
4 , 3.3 minimum
50-200 watts
7.25 x 11.5 x 19 inches
30 lb
Loudspeaker
2/00
