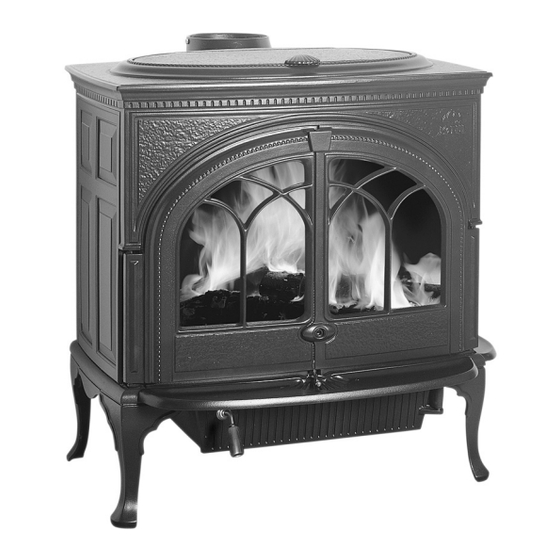

Jøtul F 600 Firelight
Non-catalytic Wood Stove
Installation and Operating Instructions
for the United States and Canada
„ The Jøtul F 600 Firelight non-catalytic
stove is listed to burn solid wood only.
Do not burn any other fuels.
„ Read this entire manual before you
install and use this appliance.
„ Save these instructions for future
reference and make them available to
anyone using or servicing the fireplace
insert.
„ This wood heater requires periodic
inspection and repair for proper
operation. See this manual for specific
maintenance information. It is against
federal regulations to operate this
wood heater in a manner inconsistent
with the operating instructions in this
owner's manual.
Advertisement
Table of Contents
Related Manuals for Jøtul F600 Firelight
Summary of Contents for Jøtul F600 Firelight
- Page 1 Jøtul F 600 Firelight Non-catalytic Wood Stove Installation and Operating Instructions for the United States and Canada „ The Jøtul F 600 Firelight non-catalytic stove is listed to burn solid wood only. Do not burn any other fuels. „ Read this entire manual before you install and use this appliance.
-
Page 2: Table Of Contents
139682-R04 F 600 9/19 Table of Contents: Standards The Jøtul F 600 Firelight solid fuel heater has been tested Combustion Specifications, and listed to : Building Codes, U.S. Standards: ANSI/UL 737 and ANSI/UL 1482. Safety Notices ..............3 Canadian Standards: CAN/ULC-S627-M00 and CAN/ULC-S628-M93 1.0 Installation 1.1 Assembly before Installation ........4 Certified Safety Tests performed by:... -
Page 3: Combustion Specifications
139682-R04 F 600 9/19 Combustion Specifications Safety Notices Jøtul F 600 Firelight • BURN SOLID, NATURAL WOOD FUEL ONLY. DO NOT BURN ANY OTHER FUEL. Heat Output Range: 11,600 to 32,500 BTU/hr. • DO NOT USE CHEMICALS OR FLUIDS TO START A FIRE. Max. -
Page 4: Installation
139682-R04 F 600 9/19 1.0 Installation 2.0 Chimney Requirements T h e re a re t wo t y p e s o f c h i m n eys s u i t a b l e fo r t h e 1.1 Assembly before installation Jøtul F 600: 1. -
Page 5: Prefabricated Chimneys
139682-R04 F 600 9/19 2.4 Wall Pass-throughs • A newly-built chimney must conform to local codes and in their absence must recognize national regulations. W h e n When your installation unavoidably requires the chimney using an existing chimney, it must be inspected by a licensed connector to pass through a combustible wall to reach the professional chimney sweep, fire official, or code officer, to chimney, always consult your local building officials, and be sure... -
Page 6: Connecting To The Chimney
139682-R04 F 600 9/19 3.0 Connecting to the Chimney 4.0 Clearances to Combustibles 3.1 Masonry Chimney Thimbles 4.1 Floor Protection When installing a Jøtul F 600 into a masonry chimney through a Floor protection under the stove must be constructed of a non- “thimble”(the opening through the chimney wall to the flue), the combustible material for protection from radiant heat, sparks, thimble must be lined with ceramic tile or metal and be securely... -
Page 7: Floor Protection
139682-R04 F 600 9/19 4.3 Using Shields to Reduce Clearances 6. Minimum ceiling height in an unprotected installation, off the top of the stove is 48”(1220mm). The minimum ceiling height In all cases, clearance reduction dimensions extend from the off the top of the stove in a protected ceiling installation is heat source surface to the protected combustible surface. -
Page 8: Operation
139682-R04 F 600 9/19 5.0 Operation BURN UNTREATED WOOD ONLY. DO NOT BURN: • Coal; • Garbage; Please read the following section completely before building a • Synthetic fuel or logs; fire in your new Jøtul F 600 Firelight. • Material containg rubber, including tires; 5.1 Combustion Efficiency •... -
Page 9: Break-In Procedure
139682-R04 F 600 9/19 viewing glass a slow, rolling flames suspended over the main NOTE: It is normal for a new, painted stove fuel bed and smaller jets of flame extending from the secondary to emit odor and smoke during initial fires, manifold ports. -
Page 10: Creosote Formation And Removal
139682-R04 F 600 9/19 WARNING: DO NOT OVER-FIRE THIS HEATER. IF ANY PART OF THE STOVE OR CHIMNEY CONNECTOR GLOWS, YOU ARE OVER-FIRING. A HOUSE FIRE OR SERIOUS DAMAGE TO THE STOVE OR CHIMNEY COULD RESULT. ATTEMPTS TO ACHIEVE HEAT OUTPUT RATES THAT EXCEED HEATER DESIGN SPECIFICATIONS CAN RESULT IN PERMANENT DAMAGE TO THE HEATER. -
Page 11: Maintenance
139682-R04 F 600 9/19 around the firebox and away from the air inlet ports at the and then every other month during the heating season. Clean the front center of the firebox floor. chimney whenever creosote and fly ash accumulation exceeds •... -
Page 12: Gaskets
139682-R04 F 600 9/19 4. Remove all remaining debris from the glass area using a wire Warning: Operate your Jøtul F 600 with the front doors fully brush. open and the firescreen in place or fully closed. Partially opened 5. Apply a small bead of gasket/stove cement and the new doors may result in overfiring. -
Page 13: Figures
139682-R04 F 600 9/19 Fig. 1a Fig. 2 Fig. 1b Fig. 3 At least 2 ft. (61 cm) At least 3 ft. (91.5 cm) 10 ft. (305 cm) Fig. 1c Fig. 4... - Page 14 139682-R04 F 600 9/19 Fig. 5 Hearth Protection Fig. 8 Fig. 9 Fig. 6 Unprotected Alcove Installation Fig. 7 Fig. 10 Protected Alcove Installation...
- Page 15 139682-R04 F 600 9/19 Fig. 11 Fig. 14 Fig. 12 Fig.15 Unpainted Side Up 1) Bend the flattened heat shield on the perforations as shown, painted side down. 2) Use a 10 mm wrench to remove the two bolts from the bottom of the ash compartment.
-
Page 16: Clearance Chart And Diagrams
139682-R04 F 600 9/19 Jøtul F 600 Woodstove Clearances Unprotected Surface Protected Surface PER NFPA 211 or Parallel to the Wall Parallel to the Wall CAN/CSA-B365 Important Connector heatshields and double wall pipe must be a listed product. Always follow the manufacturer’s instructions. single wall pipe with connector shields double wall pipe Unprotected Surface... - Page 17 139682-R04 F 600 9/19 Jøtul F 600 Woodstove Clearances Stove clearances Unprotected surface Protected surface NFPA 211 Parallel installation Parallel installation Side Rear Corner* Side Rear Corner* Stove- no heatshields 13” A 19” B 13” C 6” D 12” E 9”...
-
Page 18: Parts Schematic And Listing
139682-R04 F 600 9/19... -
Page 19: Appendix A (Alternate Floor Protection)
139682-R04 F 600 9/19 Part list for Jøtul F 600 Alternate Floor Protection All floor protection materials must be non-combustible ie. metal, brick, stone, mineral fiber boards). Any combustible material may Pos. Pos. not be used. no. Description no. Description Gasket (Glass) Tube Frame Holder Gasket (Top) -
Page 20: Warranty Statement
139682-R04 F 600 9/19 9.0 Jøtul North America Woodburning Product Warranty Effective January 1, 2013 Exclusions and Limitations This warranty policy applies to wood-burning products identified by Jøtul and Scan trade names, as set forth below. Notice: This warranty is void if installation or service is performed A. - Page 21 139682-R04 F 600 9/19 Some states do not allow the exclusion or limitation of incidental or consequential damages, or limitations on the length of implied warranties. Therefore, the above exclusions or limitations may not apply to you. This warranty gives you specific legal rights, and you may have other rights, which vary from state to state.
- Page 22 139682-R04 F 600 9/19 This page is intentionally blank.
- Page 23 139682-R04 F 600 9/19 This page is intentionally blank.
- Page 24 139682-R04 F 600 9/19 Jøtul pursues a policy of continuous product development. Products supplied may therefore differ in specification, colour and type of accessories from those illustrated and described in the brochure. Jøtul North America Inc. 55 Hutcherson Drive Gorham, Maine 04038 Jøtul AS P.o.
